Description
ASRock B650M PG Riptide Wifi is a powerful motherboard designed for optimal performance and versatile connectivity. This micro-ATX motherboard supports the latest AMD processors and offers fast DDR5 memory slots for maximum speed. With extensive connectivity options such as multiple USB 3.2 ports, HDMI and DisplayPort outputs, and integrated WiFi 6 technology, it ensures a blazing-fast and stable connection. Additionally, PCIe 4.0 slots are available for high-performance graphics cards and storage, making this motherboard ideal for both gamers and professionals who demand reliability and speed.
Product: ASRock B650M PG Riptide Wifi
Socket: AM5
Category: Motherboards
Brand: ASRock
Condition: Refurbished
EAN: 4710483940835
SKU: 90-MXBJ90-A0UAYZ, B650M PG Riptide
Warranty: 6 months
Drivers for the ASRock B650M PG Riptide Wifi
Processors supported by the ASRock B650M PG Riptide Wifi
Package contents:
– Motherboard (B650M PG Riptide Wifi)
– IO Shield (metal backplate)
– 2 Antennas
Unique Feature
Superb Productivity
– PCIe Gen5 (M.2)
– Dual Channel DDR5
Rock-Solid Durability
– 12+2+1 Power Phase, 50A Dr.MOS with Enlarged Heatsink Armor
– Flexible Integrated I/O Shield
Ultrafast Gaming
– 2.5G LAN, 802.11ax Wi-Fi 6E Module
– ASRock Lightning Gaming Ports
EZ Update
– BIOS Flashback Button
– ASRock Auto Driver Installer
EZ Troubleshooter
– ASRock Post Status Checker
CPU
– Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*
*The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
Chipset
– AMD B650
Memory
– Dual Channel DDR5 Memory Technology
– 4 x DDR5 DIMM Slots
– Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
– Max. capacity of system memory: 256GB
– Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
*Please refer to Memory Support List for more information.
BIOS
– 256Mb AMI UEFI Legal BIOS with GUI support
Graphics
Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Audio
– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Nahimic Audio
LAN
– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supports Phantom Gaming LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User Friendly UI
– Visual Network Usage Statistics
– Optimized Default Setting for Game, Browser, and Streaming Modes
– User Customized Priority Control
Wireless LAN
– 802.11ax Wi-Fi 6E Module
– Supports IEEE 802.11a/b/g/n/ac/ax
– Supports Dual-Band 2×2 with extended 6GHz band* support
– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
– Supports Bluetooth + High speed class II
– Supports MU-MIMO
*The Wi-Fi 6E module is supported by Microsoft Windows® 11 only. There is no driver available for Windows® 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.
Slots
CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
– 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode*
Chipset:
– 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
– 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
*Supports NVMe SSD as boot disks
Supports AMD CrossFire™
15μ Gold Contact in VGA PCIe Slot (PCIE1)
Storage
CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 4 x SATA3 6.0 Gb/s Connectors
*Supports NVMe SSD as boot disks
RAID
– Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
– Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
*Requires additional M.2 NVMe expansion cards to support RAID 10
USB
– 1 x USB 3.2 Gen2 Type-C (Rear)
– 1 x USB 3.2 Gen2 Type-A (Rear)
– 1 x USB 3.2 Gen1 Type-C (Front)
– 6 x USB 3.2 Gen1 (2 Rear, 4 Front)
– 8 x USB 2.0 (4 Rear, 4 Front)
*All USB ports support ESD Protection
Connector
– 1 x SPI TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 3 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x 4 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen1 Header
*Supports in total up to 12V/3A, 36W LED Strip
**Support in total up to 5V/3A, 15W LED Strip
***CPU_FAN1 supports the fan power up to 1A (12W).
****CPU_FAN2/WP supports the fan power up to 2A (24W).
*****CHA_FAN1~3/WP support the fan power up to 2A (24W).
CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

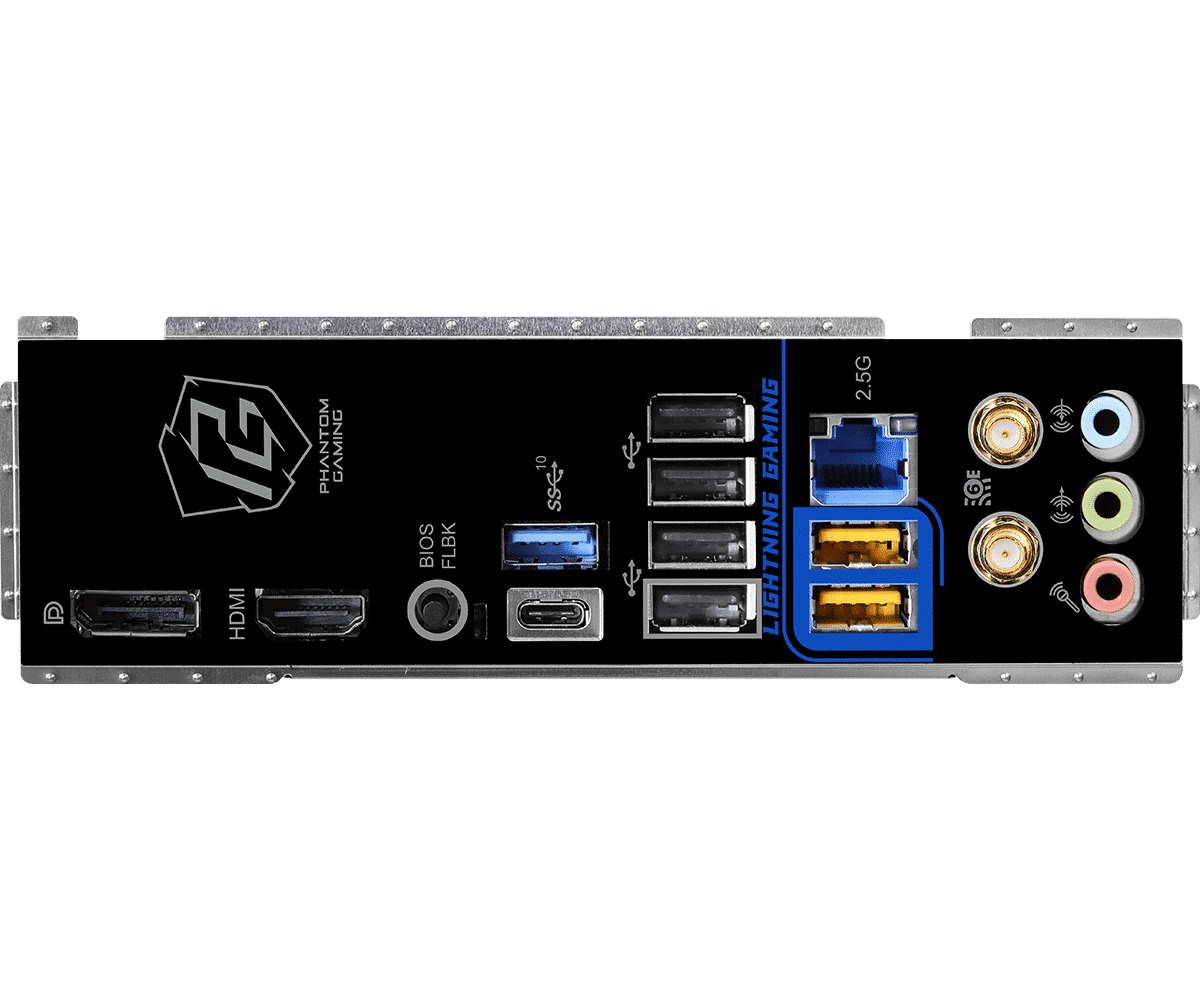

Rear Panel I/O
– 2 x Antenna Ports
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)
– 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)
– 2 x USB 3.2 Gen1 Ports (USB32_23 are Lightning Gaming Ports.)
– 4 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– 1 x BIOS Flashback Button
– HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
– ASRock Motherboard Utility (Phantom Gaming Tuning)
– ASRock Phantom Gaming LAN Software
– ASRock Polychrome SYNC*
UEFI
– ASRock Full HD UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories
– 2 x GHz Antennas
Form Factor
– Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
– 2oz Copper PCB
OS
– Microsoft Windows® 10 64-bit / 11 64-bit
Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
