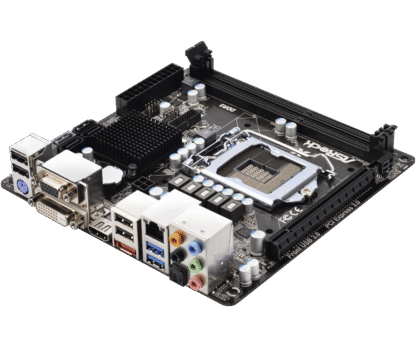

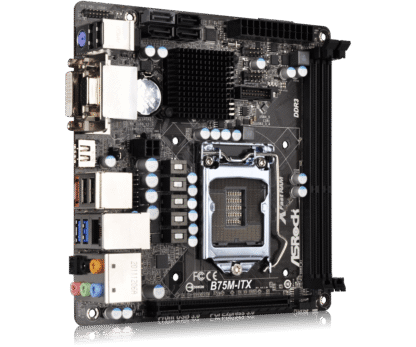

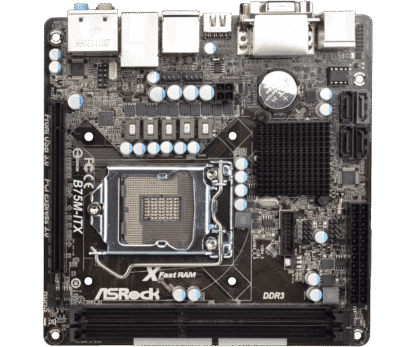

Product information

The ASRock B75M-ITX motherboard is a Mini-ATX motherboard which is equipped with 2 DDR3 memory slots. The ASRock B75M-ITX Socket 1155 motherboard is a motherboard equipped with the Intel B75 Chipset.

Motherboard – Socket LGA1155 | Mini ATX | Intel B75 Chipset | DDR3 up to 16GB | Gigabit Ethernet | SATA 600 | USB 2.0 | USB 3.1 (Gen1, 5Gb/s) | DVI-D | HDMI | VGA (D Sub)


Product: ASRock B75M-ITX Socket 1155;
Category: Intel socket 1155 Motherboards;
Brand: ASrock;
EAN: 4711140879567
SKU: 90-MXGLT0-A0UAYZ, B75M-ITX
Condition: Used
Warranty:
6 Months


CPU
– Supports 3rd and 2nd Generation Intel® Core™ i7 / i5 / i3 / Xeon® / Pentium® / Celeron® in LGA1155 Package
– Digi Power Design
– 4 + 2 Power Phase Design
– Supports Intel® Turbo Boost 2.0 Technology
– Supports Hyper-Threading Technology


Chipset
– Intel® B75
– Supports Intel® Small Business Advantage
– Supports Intel® Rapid Start Technology and Smart Connect Technology

*Intel® Rapid Start Technology and Smart Connect Technology are only supported under Windows® 7 OS or later versions.


Memory
– Dual Channel DDR3 memory technology
– 2 x DDR3 DIMM slots
– Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 16GB*
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

**The highest supported DRAM frequency depends on the CPU you’ve installed. For detailed CPU specifications, please refer to Intel® official website.

***In order to maximize the system memory, please install 8GB memory module with 16 cells


BIOS
– 64Mb AMI UEFI Legal BIOS with GUI support
– Support “Plug and Play”
– ACPI 1.1 Compliance Wake Up Events
– Supports jumper free
– SMBIOS 2.3.1 Support
– CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment


Graphics
– Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video 2.0, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 2500/4000 with Intel® Ivy Bridge CPU
– Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® HD Graphics 2000/3000, Intel® Advanced Vector Extensions (AVX) with Intel® Sandy Bridge CPU
– Pixel Shader 5.0, DirectX 11 with Intel® Ivy Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel® Sandy Bridge CPU
– Max. shared memory 1760MB with Intel® Ivy Bridge CPU. Max. shared memory 1759MB with Intel® Sandy Bridge CPU
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports HDMI Technology with max. resolution up to 1920×1200 @ 60Hz
– Supports DVI with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 2048×1536 @ 75Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
– Supports HDCP function with DVI and HDMI ports
– Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports

*Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

**Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® Vista™ and Windows® 7.

***Intel® InTru™ 3D is only supported under Windows® 7 and Windows® 7 x64.


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
– Premium Blu-ray audio support


LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111E
– Supports Wake-On-LAN
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 1 x PCI Express 3.0 x16 slot (PCIE1: x16 mode)

*PCIe Gen3 is supported on 3rd Generation of Intel® Core™ i5 and Core™ i7 CPUs.


SATA3
– 1 x SATA3 6.0 Gb/s connector, supports NCQ, AHCI and Hot Plug functions


USB 3.0
– 2 x Rear USB 3.1 Gen1 ports, support USB 1.0/2.0/3.0 up to 5Gb/s
– 1 x Front USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports), supports USB 1.0/2.0/3.0 up to 5Gb/s


Connector
– 3 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions
– 1 x SATA3 6.0 Gb/s connector
– 1 x CIR header
– 1 x CPU Fan connector (1 x 4-pin)
– 1 x Chassis Fan connector (1 x 4-pin)
– 24 pin ATX power connector
– 4 pin 12V power connector
– Front panel audio connector
– 1 x USB 2.0 header (supports 2 USB 2.0 ports)
– 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports)

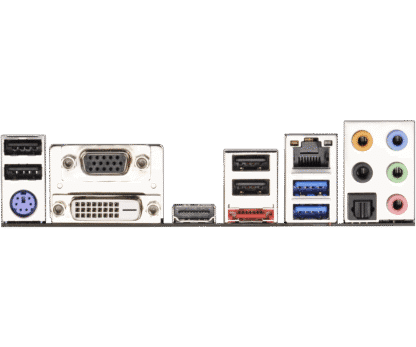

Rear Panel I/O
I/O Panel
– 1 x PS/2 Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 1 x Optical SPDIF Out Port
– 4 x Ready-to-Use USB 2.0 Ports
– 1 x eSATA2 Connector
– 2 x Ready-to-Use USB 3.1 Gen1 Ports
– 1 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone


Unique Feature
– ASRock Extreme Tuning Utility (AXTU)
– ASRock Instant Boot
– ASRock Instant Flash
– ASRock APP Charger
– ASRock XFast USB
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock Internet Flash
– ASRock Dehumidifier Function
– ASRock On/Off Play Technology
– Hybrid Booster:
– ASRock U-COP
– Boot Failure Guard (B.F.G.)
– Good Night LED


Accessories
– I/O Shield


Hardware Monitor
– CPU Temperature Sensing
– Chassis Temperature Sensing
– CPU Fan Tachometer
– Chassis Fan Tachometer
– CPU, Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
– CPU, Chassis Fan multi-speed control
– Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore


Form Factor
– Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
– All Solid Capacitor design (100% Japan made high quality conductive polymer capacitors)


OS
– Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32-bit / XP 64-bit

*Windows® 8.1 is supported with Intel® Ivy Bridge CPU for onboard VGA.


Certifications
– FCC, CE
– ErP/EuP Ready (ErP/EuP ready power supply is required)

Specification

Weight 1 kg
Intel

LGA1155

Brand

Asrock

Chipset

Intel B75

Form Factor

Mini-ITX

Memory Type

DDR3 SDRAM

Number of memory slots

2

Maximum memory size

16 GB

Connectors

D-Sub (VGA), DVI-D, eSATA, HDMI, USB 2.0, USB 3.1 Gen1

Storage Interfaces

Serial ATA-600

Interfaces

PCI-e 3.0 x16

Socket

Model

B75M-ITX

Length

17 cm

Width

17 cm

package content

Motherboard and Backplate (Blende)

ASRock B75M-ITX LGA1155 motherboard

Fast delivery

  • 100% All Solid Capacitor Design
  • Supports Dual Channel DDR3 1600
  • 1 PCIe 3.0 x16, Supports AMD Quad CrossFireX™ and CrossFireX™
  • PCIE Gigabit LAN
  • Supports Intel® HD Graphics with Built-in Visuals
  • Graphics Output Options : D-Sub, DVI-D, HDMI
  • Combo Cooler Option (C.C.O.)
  • 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
  • Supports ASRock XFast RAM, XFast LAN, XFast USB, OMG, Internet Flash, Dehumidifier, UEFI System Browser
  • Supports Intel® Smart Connect, Intel® Rapid Start, Intel® Small Business Advantage
