Description

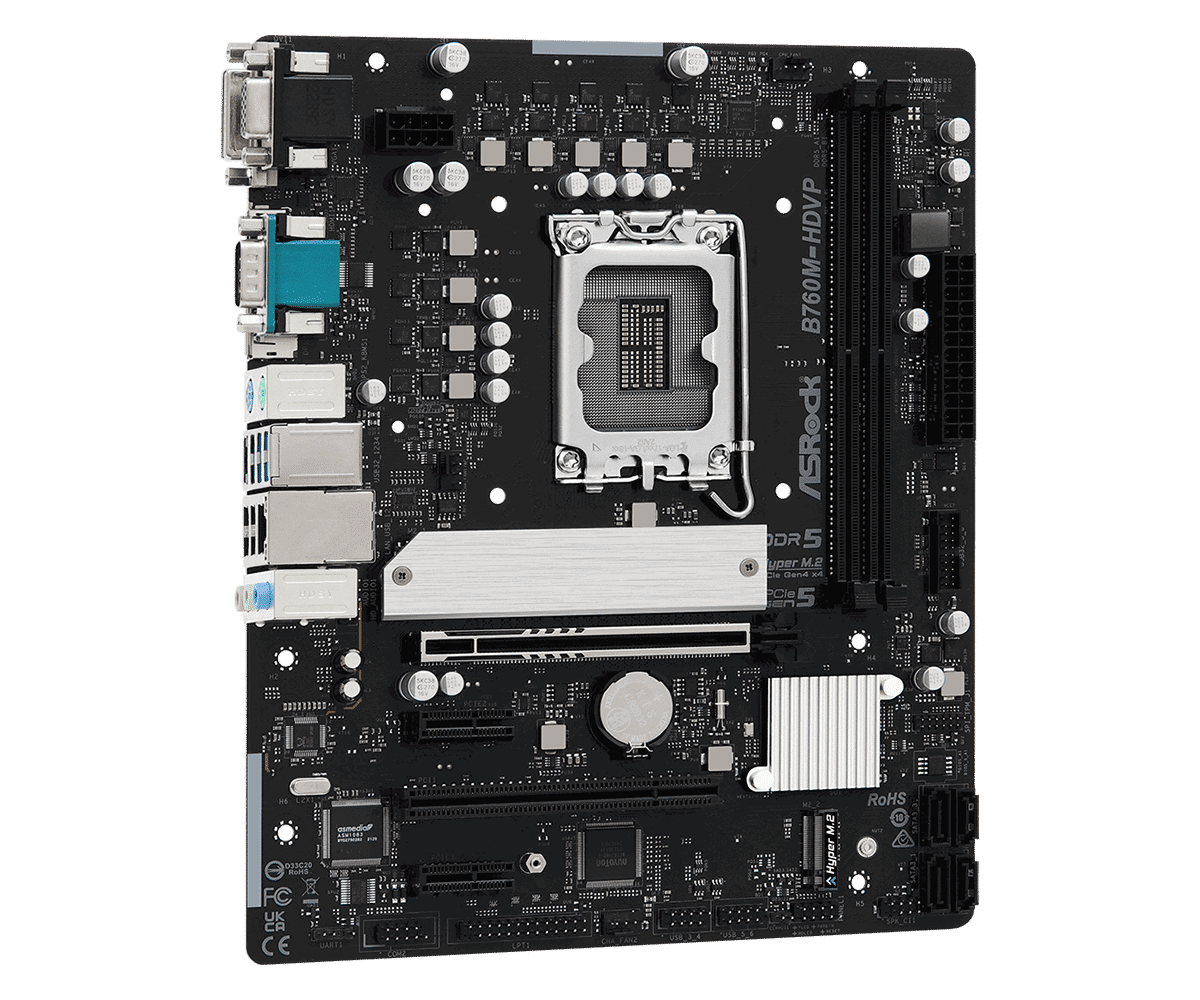

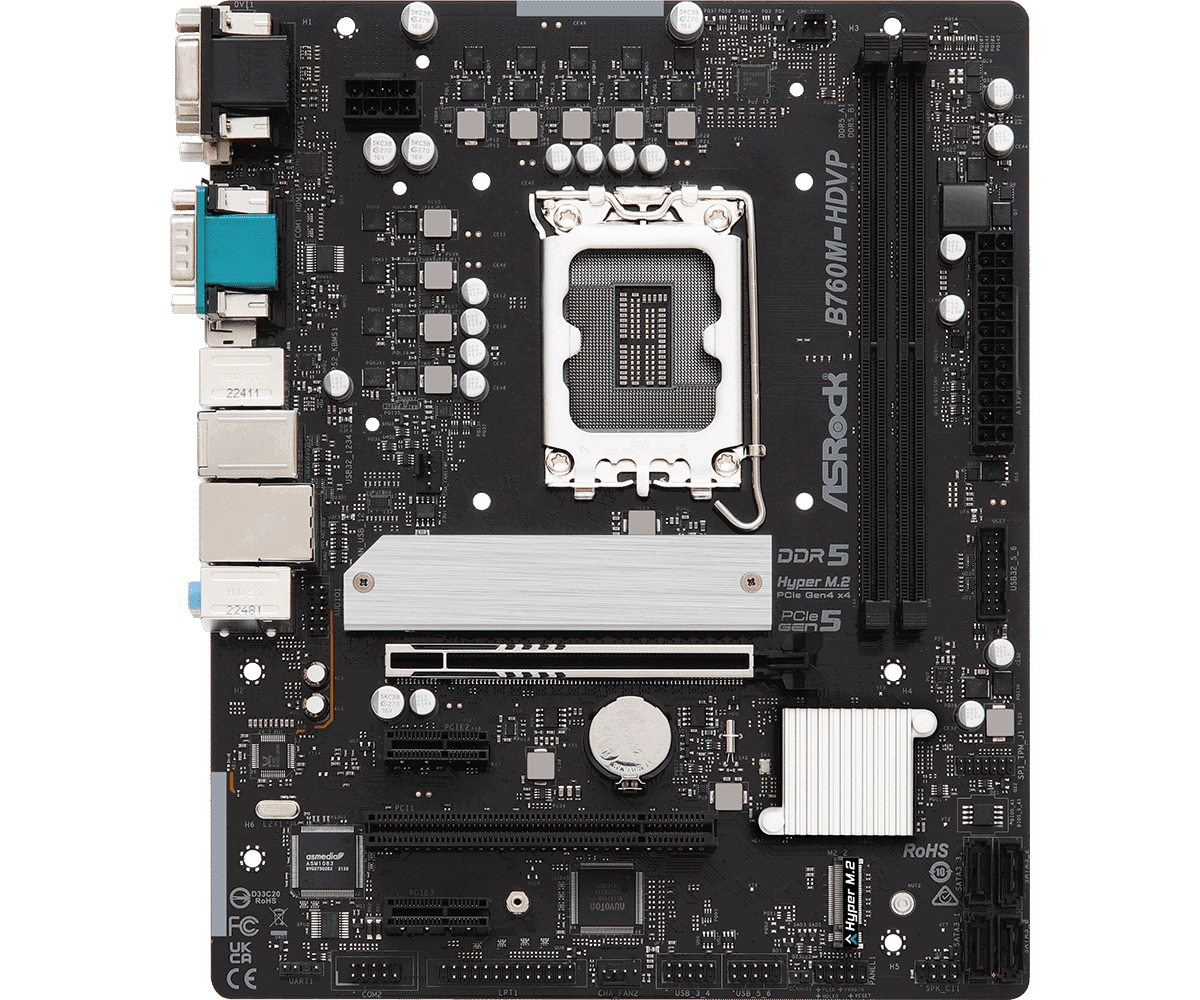

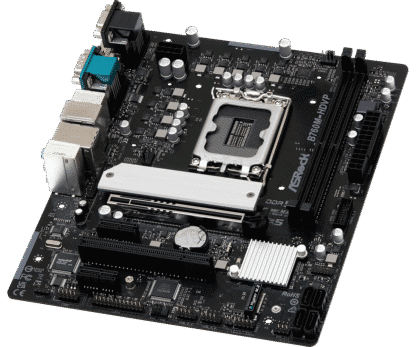

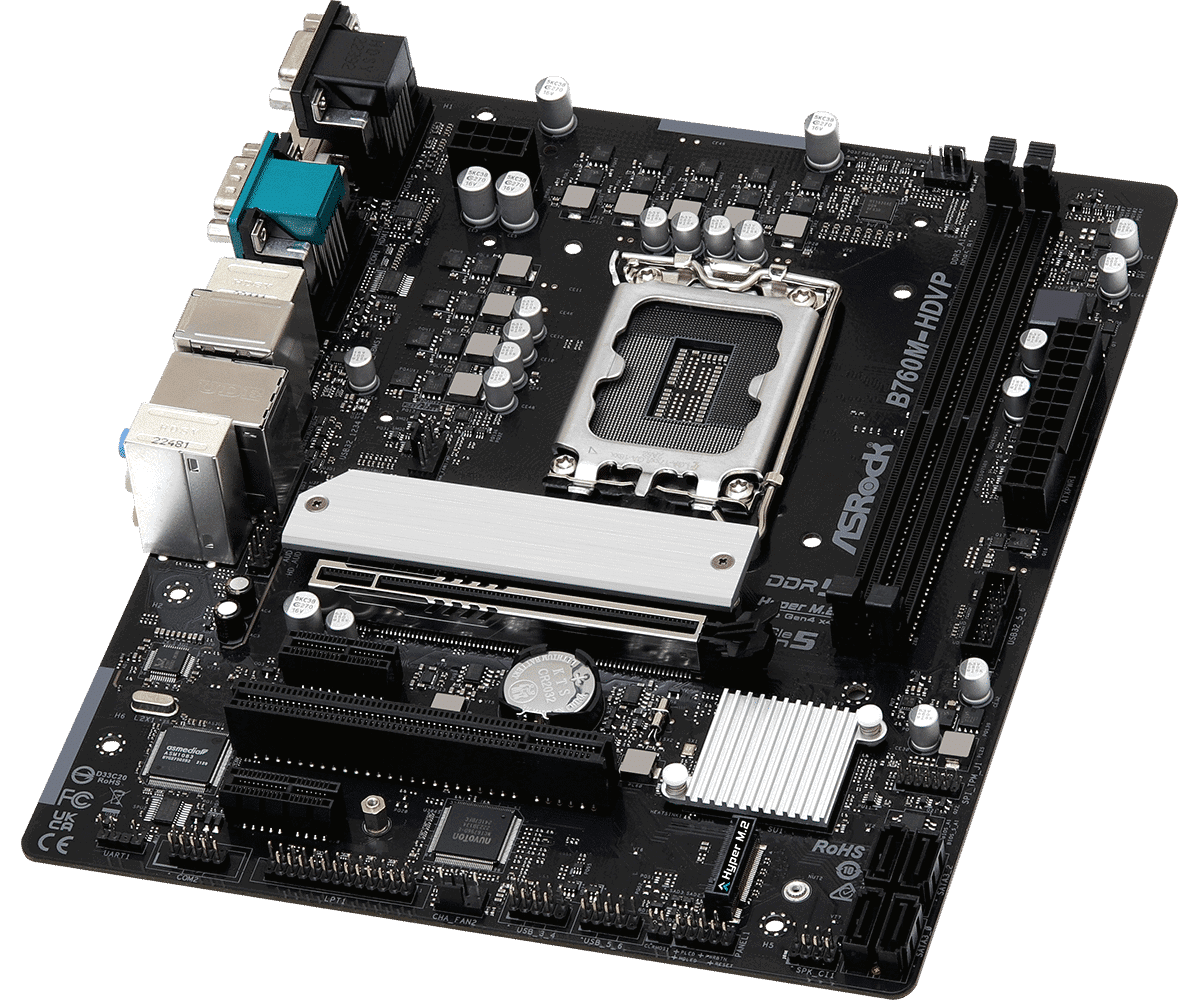

The ASRock B760M-HDVP is a powerful micro-ATX motherboard suitable for the latest Intel processors and equipped with fast DDR5 memory slots for optimal performance. This motherboard offers various connections including HDMI for crystal-clear video output and multiple USB ports for connecting peripherals. Additionally, it features a Gigabit LAN port for stable network connections and supports both PCIe slots for graphics cards and M.2 storage, making it a versatile foundation for a modern PC.
Product: ASRock B760M-HDVP
Socket: LGA1700
Category: Motherboards
Brand: ASRock
Condition: Refurbished
Warranty: 6 months
Package contents:
– Motherboard (ASRock B760M-HDVP)
– IO Shield (metal backplate)
Unique Feature
Superb Productivity
– PCIe Gen5 (Graphics)
– Dual Channel DDR5
Rock-Solid Durability
– 7+1+1 Power Phase
EZ Update
– ASRock Auto Driver Installer
CPU
– Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
– Supports Intel® Hybrid Technology
– Supports Intel® Turbo Boost Max 3.0 Technology
– Supports Intel® Thermal Velocity Boost (TVB)
– Supports Intel® Adaptive Boost Technology (ABT)
Chipset
– Intel® B760
Memory
– Dual Channel DDR5 Memory Technology
– 2 x DDR5 DIMM Slots
– Supports DDR5 non-ECC, un-buffered memory up to 7000+(OC)*
– Max. capacity of system memory: 128GB
– Supports Intel® Extreme Memory Profile (XMP) 3.0
*1DPC 1R Up to 7000+ MHz (OC), 5600 MHz Natively.
1DPC 2R Up to 6600+ MHz (OC), 5200 MHz Natively.
BIOS
– 128Mb AMI UEFI Legal BIOS with GUI support
Graphics
– Intel® Xe Graphics Architecture (Gen 12)
– 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
– 1 x DVI-D, supports max. resolution up to Full HD (1920×1200) 60Hz
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
– 1 x D-Sub, supports max. resolution up to Full HD (1920×1080) 60Hz
*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Audio
– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN
– Gigabit LAN 10/100/1000 Mb/s
– Realtek 8111H
Slots
CPU:
– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)*
ASMedia ASM1083:
– 1 x PCI Slot
*Supports NVMe SSD as boot disks
Storage
CPU:
– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 4 x SATA3 6.0 Gb/s Connectors
*Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks
RAID
– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
– 2 x USB 3.2 Gen2 Type-A (Rear)
– 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
– 6 x USB 2.0 (2 Rear, 4 Front)
*All USB ports support ESD Protection
Connector
– 1 x Print Port Header
– 1 x COM Port Header
– 1 x SPI TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)*
– 1 x Chassis Fan Connector (4-pin)**
– 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
*CPU_FAN1 supports the fan power up to 1A (12W).
**CHA_FAN2 supports the fan power up to 1A (12W).
***CHA_FAN1/WP supports the fan power up to 2A (24W).
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

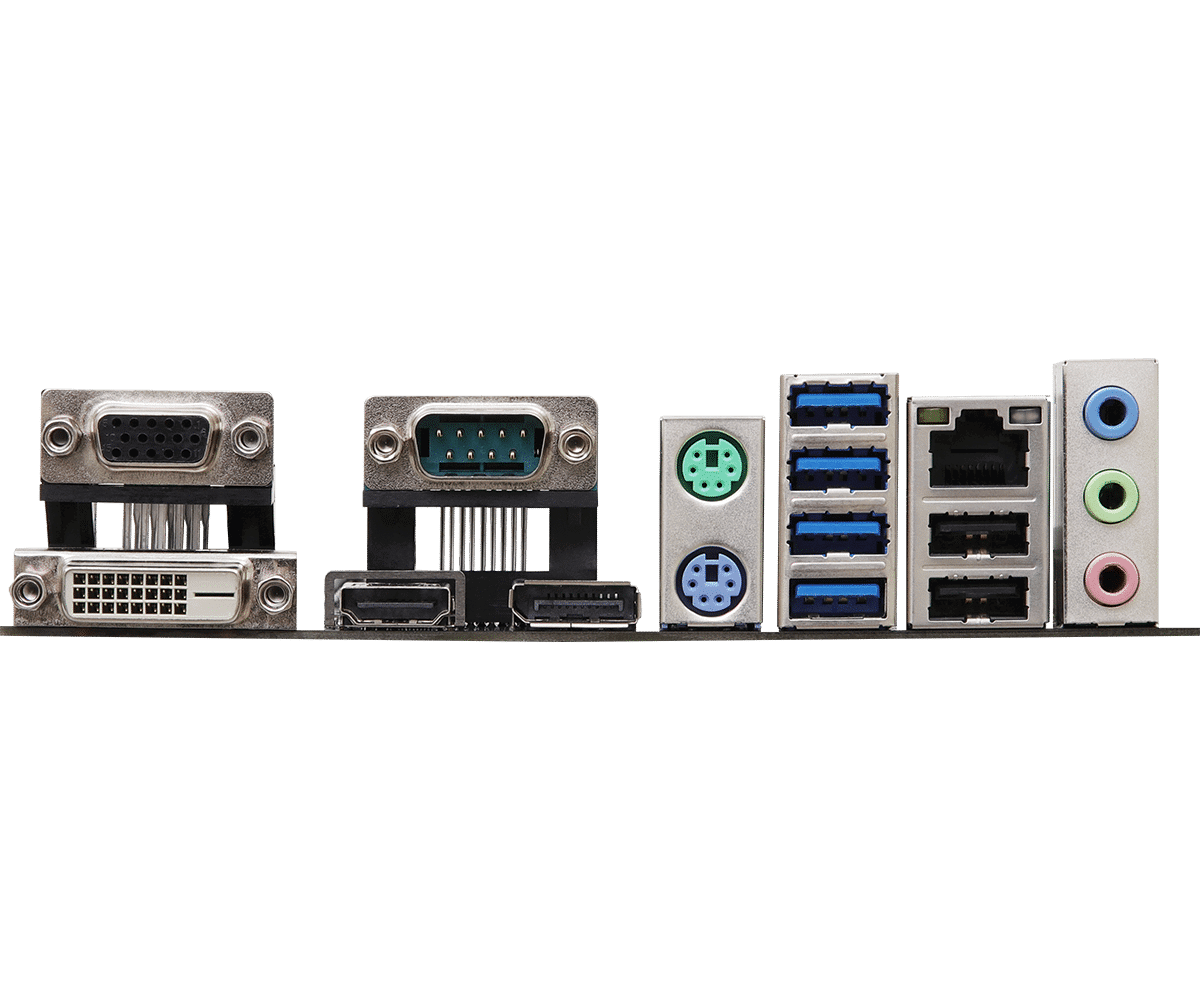

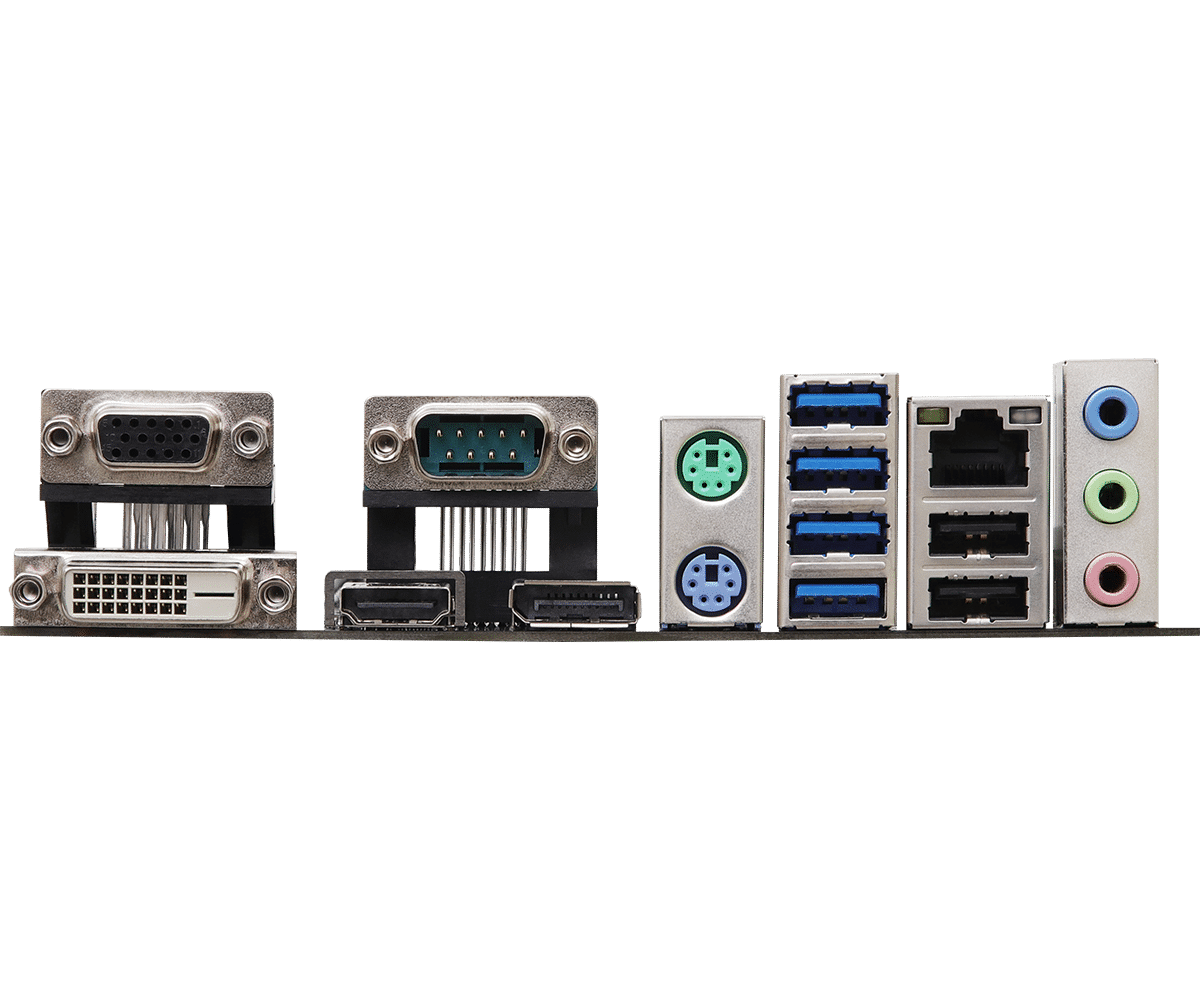

Rear Panel I/O
– 1 x PS/2 Keyboard Port
– 1 x PS/2 Mouse Port
– 1 x Serial Port: COM1
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 2 x USB 3.2 Gen2 Type-A Ports
– 2 x USB 3.2 Gen1 Type-A Ports
– 2 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
– ASRock Motherboard Utility (A-Tuning)
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash
– ASRock Easy RAID Installer
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories
– 1 x I/O Shield
Form Factor
– Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm
OS
– Microsoft Windows® 10 64-bit / 11 64-bit
Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
