Product information

ASRock B85M DASH/OL R2.0: Motherboard | Micro ATX | LGA1150 | 4x DDR3 (max 32GB) | SATA 600 | PCI-e 2.0 x1 | PCI-e 3.0 x16 | USB 2.0 | USB 3.2 (Gen1, 5Gb/s) | DVI-D| VGA (D Sub)

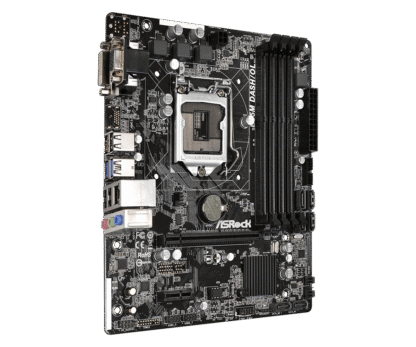

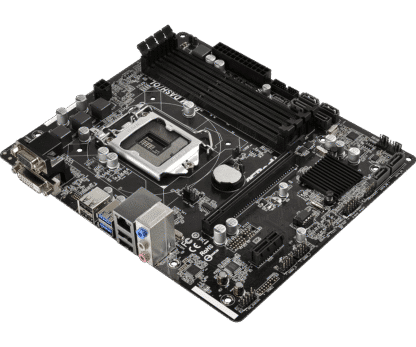

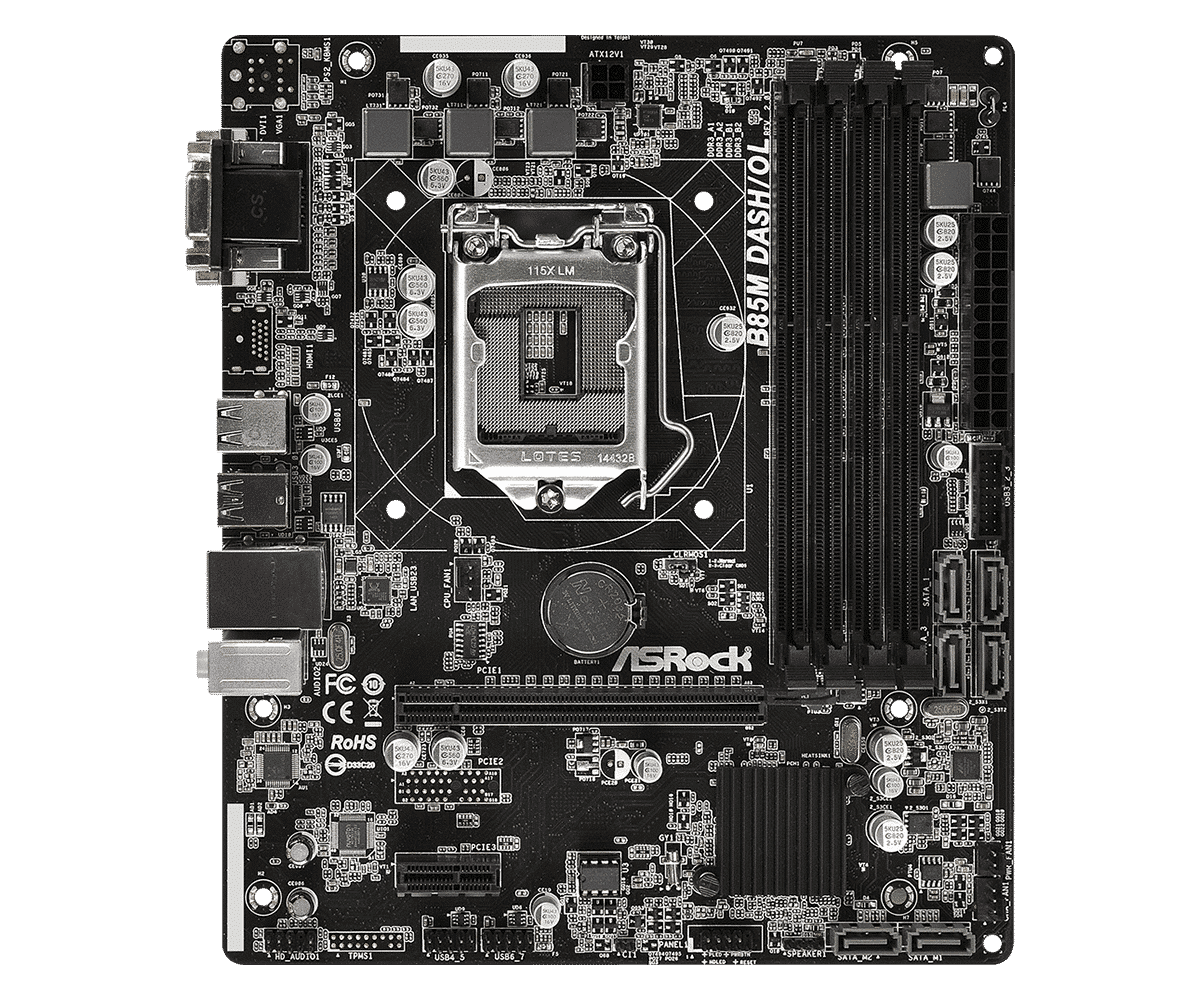

Product:ASRock B85M DASH/OL R2.0
Socket:LGA1150/Sockel H3
Category: motherboards
Brand: ASRock
Condition: Refurbished – BIOS updated to the latest version
EAN:4717677325614
SKU: B85M DASH/OL R2.0
Warranty: 6 months

Package contents:
– Motherboard (ASRock B85M DASH/OL R2.0)
– Backplate (blende)
– No manual
– No drivers CD
– No cables

CPU
– Supports New 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
– Supports Intel® Turbo Boost 2.0 Technology

Chipset
– Intel® B85

Memory
– Dual-Channel DDR3 Memory Technology
– 4 x DDR3 DIMM Slots
– Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 32GB*
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS
– 32Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 1.1 Compliant wake-up events
– SMBIOS 2.3.1 support
– CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage multi-adjustment

Graphics
– Supports Intel® HD Graphics Built-in Visuals: Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel ® HD Graphics 4400/4600
– Pixel Shader 5.0, DirectX 11.1
– Max. shared memory 512MB*
– Dual graphics output: Support DVI-D and D-Sub by independent display controllers
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports HDCP with DVI-D Port
– Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port

*The size of maximum shared memory may vary from different operating systems.

Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Audio
– 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
– Supports Surge Protection (ASRock Full Spike Protection)

LAN
– PCIe x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111EP
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
– Support DASH

Slots
– 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)
– 1 x PCI Express 2.0 x1 Slot

Storage
– 4 x SATA3 6.0 Gb/s Connectors by Intel® B85, support NCQ, AHCI, and Hot Plug
– 2 x SATA3 6.0 Gb/s Connectors by Marvell 9172, support RAID (RAID 0 and RAID 1), NCQ, AHCI, and Hot Plug

Connector
– 1 x Chassis Intrusion Header
– 1 x CPU Fan Connector (4 pin)
– 1 x Chassis Fan Connector (4-pin)
– 1 x Power Fan Connector (3 pin)
– 1 x 24 pin ATX Power Connector
– 1 x 4 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.0 Header (Support 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

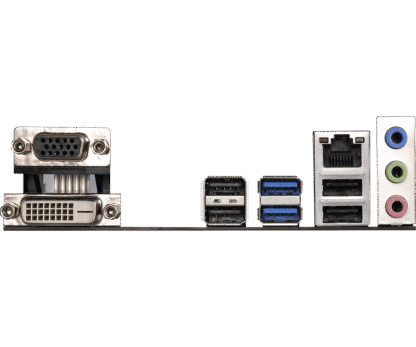

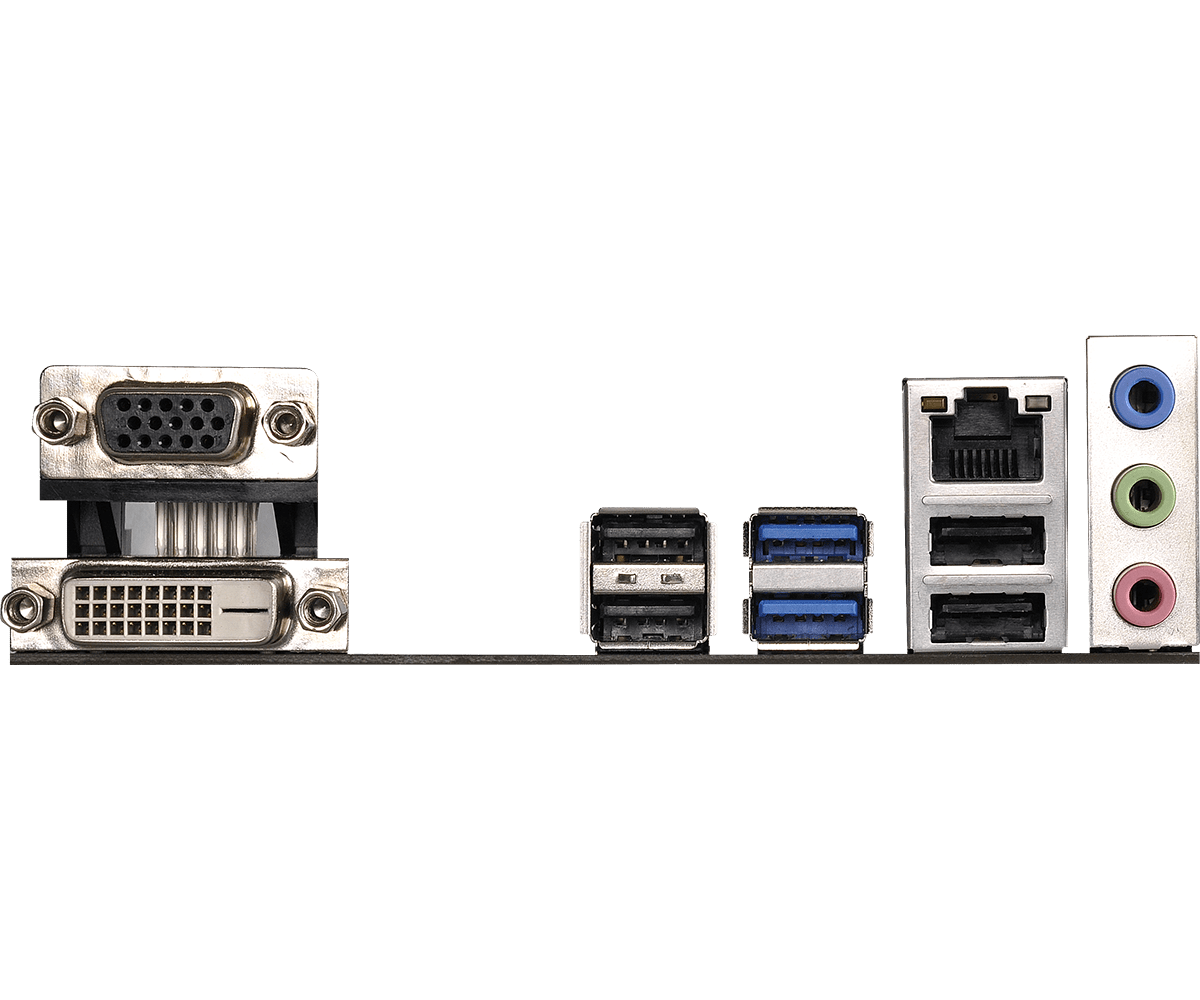

Rear Panel I/O
– 1 x D-Sub port
– 1 x DVI-D port
– 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone

Unique Feature
ASRock Full Spike Protection
ASRock Live Update & APP Shop

Accessories
– I/O Shield

Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis, Power Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor
– Micro ATX Form Factor: 8.9-in x 7.6-in, 22.6 cm x 19.3 cm
– All Solid Capacitor design
– High-Density Glass Fabric PCB

OS
– Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit

Certifications
– FCC, CE, WHQL
– ErP/EuP ready (ErP/EuP ready power supply is required)
