Product information

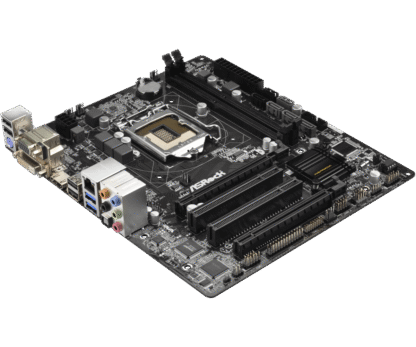

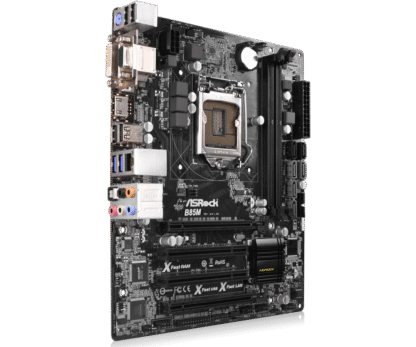

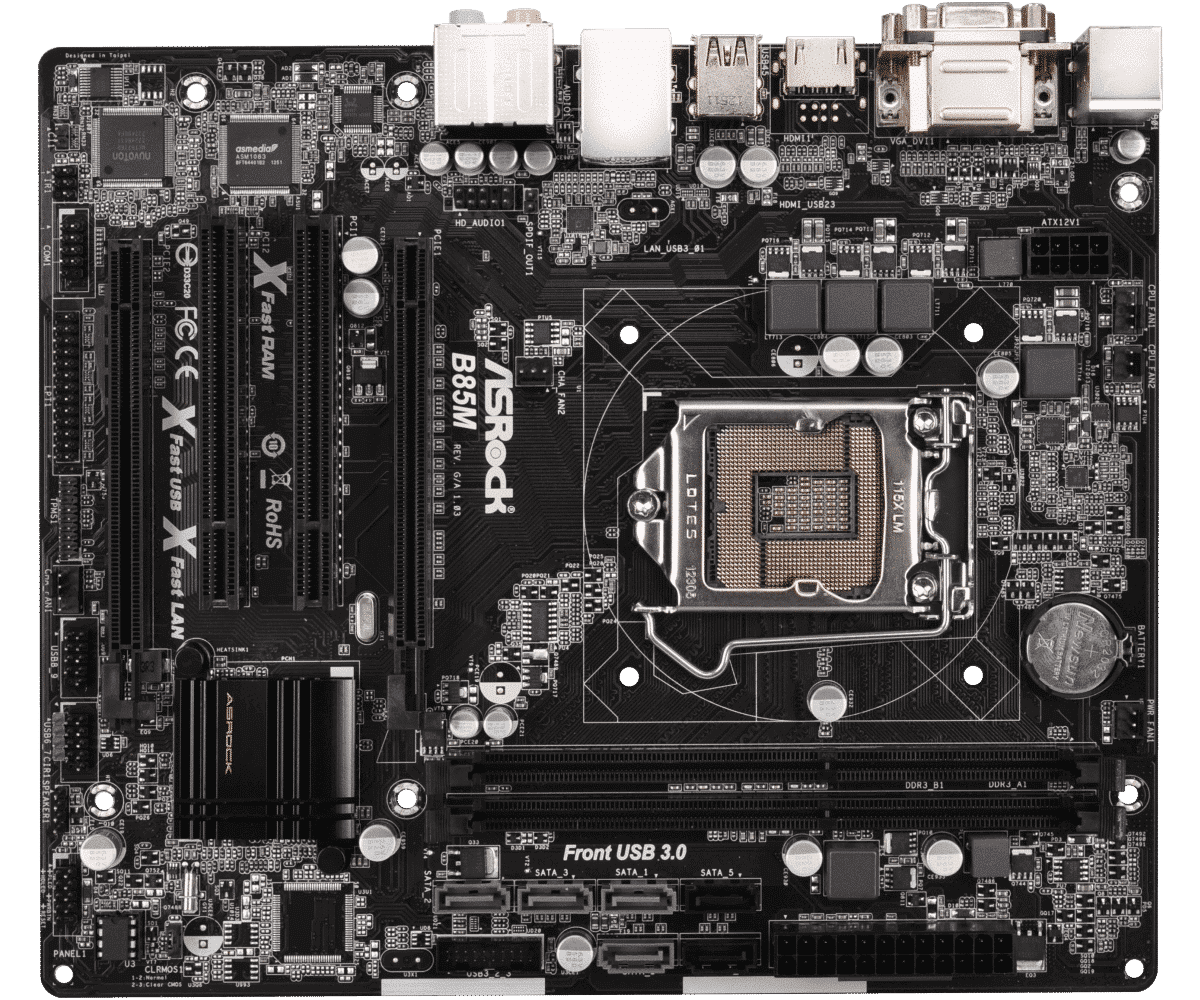

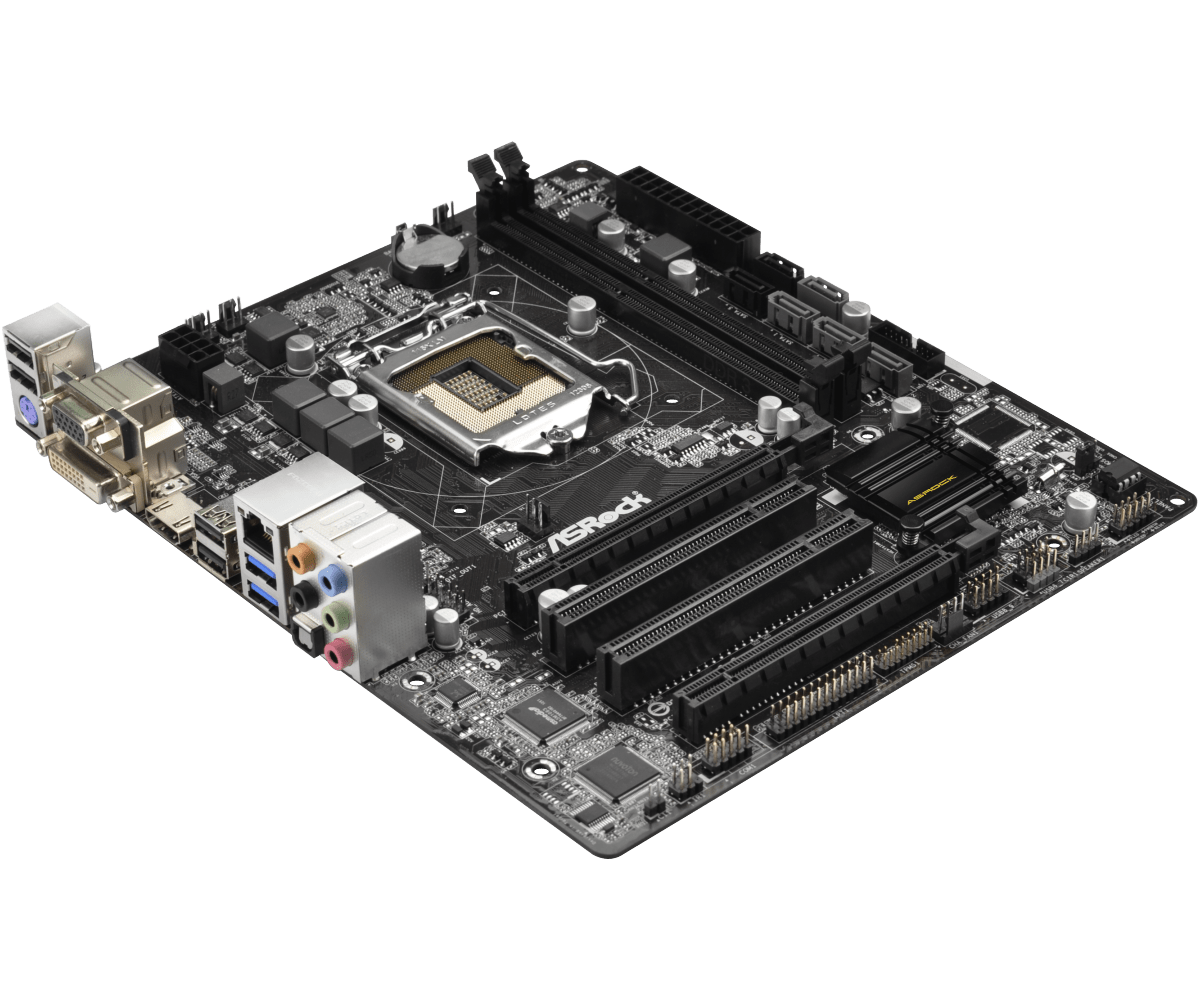

The ASRock B85M is a Micro-ATX LGA1150 motherboard based on the Intel B85 chipset. The board must be combined with DDR3 memory, for which 2 slots are available. In total, the ASRock B85M has 6 Serial ATA connections for hard drives and SSDs.

Features: Motherboard | Micro ATX | LGA1150 | 2x DDR3 (max 16GB) | SATA 600 | SATA-300 | PCI-e 2.0 x1 | PCI-e 3.0 x16 | USB 2.0 | USB 3.2 (Gen1, 5Gb/s) | DVI-D| VGA (D-Sub) | HDMI

Product: ASRock B85M
Socket: LGA1150
Category: motherboards
Brand: ASRock
Condition: Refurbished – BIOS updated to the latest version
EAN:4562193450759
SKU: 90-MXGPW0-A0UAYZ
Warranty: 6 months

Package contents:
– Motherboard (ASRock B85M)
– Backplate (Blende)
– No manual
– No drivers CD
– No cables

A-Style
– ASRock Cloud

CPU
– Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
– 4 Power Phase Design
– Supports Intel® Turbo Boost 2.0 Technology

Chipset
– Intel® B85
– Supports Intel® Small Business Advantage 2.0

Memory
– Dual Channel DDR3/DDR3L memory technology
– 2 x DDR3/DDR3L DIMM slots
– Supports DDR3/DDR3L 1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 16GB*
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS
– 64Mb AMI UEFI Legal BIOS with Multilingual GUI support
– ACPI 1.1 Compliance Wake Up Events
– SMBIOS 2.3.1 Support
– CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment

Graphics
– Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel ® HD Graphics 4400/4600
– Pixel Shader 5.0, DirectX 11.1
– Max. shared memory 512MB*
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports Triple Monitor
– Supports HDMI Technology with max. resolution up to 1920×1200 @ 60Hz
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
– Supports HDCP function with DVI-D and HDMI ports
– Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI ports

*The size of maximum shared memory may vary from different operating systems.

**Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit.

****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.

Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
– Premium Blu-ray audio support

LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Qualcomm® Atheros® AR8171
– Supports Qualcomm® Atheros® Security Wake On Internet Technology
– Supports Wake-On-LAN
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE

Slots
– 1 x PCI Express 3.0 x16 slot (PCIE1: x16 mode)
– 1 x PCI Express 2.0 x16 slot (PCIE2: x4 mode)
– 2 x PCI slots
– Supports AMD Quad CrossFireX™ ​​and CrossFireX™

Storage
– 4 x SATA3 6.0 Gb/s connectors, support NCQ, AHCI and Hot Plug
– 2 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug

Connector
– 1 x IR header
– 1 x Print Port header
– 1 x COM Port header
– 1 x Chassis Intrusion header
– 1 x TPM header
– 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
– 2 x Chassis Fan connectors (1 x 4-pin, 1 x 3-pin)
– 1 x Power Fan connector (3 pin)
– 1 x 24 pin ATX power connector
– 1 x 8 pin 12V power connector
– 1 x Front panel audio connector
– 1 x SPDIF Out connector
– 2 x USB 2.0 headers (support 4 USB 2.0 ports)
– 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports)

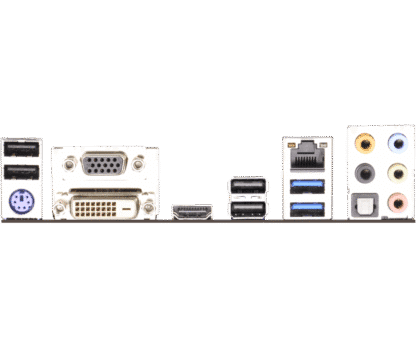

Rear Panel I/O
I/O Panel
– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 1 x Optical SPDIF Out Port
– 4 x USB 2.0 Ports
– 2 x USB 3.1 Gen1 Ports
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Unique Feature
– ASRock APP Shop
– ASRock A-Tuning
– ASRock Instant Flash
– ASRock APP Charger
– ASRock XFast USB
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock Internet Flash
– ASRock System Browser
– ASRock UEFI Tech Service
– ASRock Dehumidifier
– ASRock Easy Driver Installer
– ASRock Interactive UEFI
– ASRock Fast Boot
– ASRock Restart to UEFI
– ASRock On/Off Play Technology
– ASRock USB Key
– ASRock FAN-Tastic Tuning
– Hybrid Booster:
– ASRock U-COP
– Boot Failure Guard (B.F.G.)
– Good Night LED

Accessories
– I/O Shield

Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis, Power Fan Tachometer
– CPU, Chassis Quiet Fan (Allow Chassis Fan Speed ​​Auto-Adjust by CPU Temperature)
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
– Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor
– Micro ATX Form Factor
– All Solid Capacitor design

OS
– Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit

Certifications
– FCC, CE
– ErP/EuP Ready (ErP/EuP ready power supply is required)
