ASRock Fatal1ty 990FX Killer

Brand: Asrock
Model: Fatal1ty 990FX Killer
Socket: AM3 +
Memory: 4x DDR3 (64GB Max)
Form-Factor: ATX
EAN: 4717677322637
SKU: 90-MXGST0-A0UAYZ, 990FX KILLER, Fatal1ty 990FX Killer

Out of stock

Vergelijk
SKU: ASRock 990 Killer Categories: , , Tags: , ,

Description

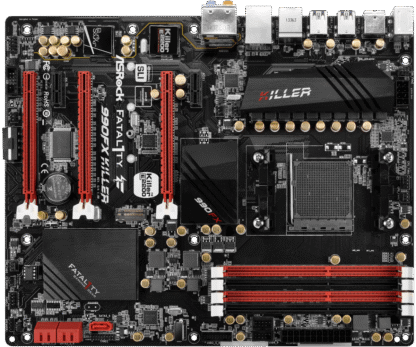

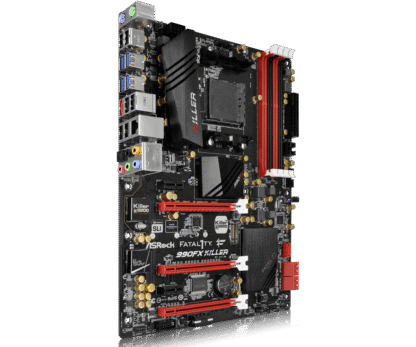

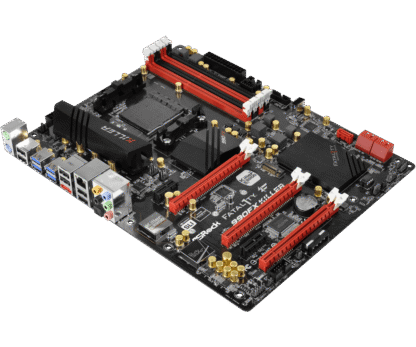

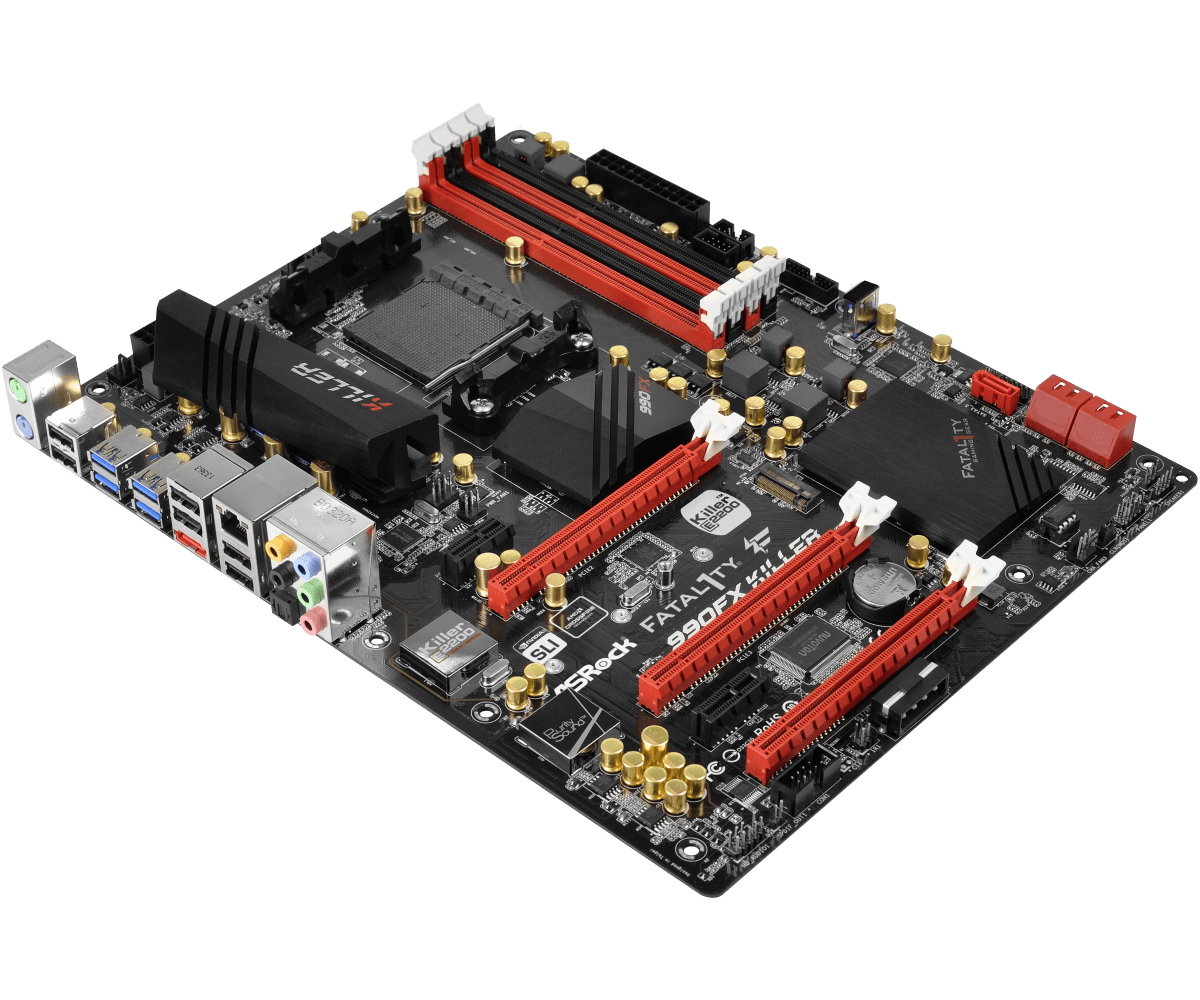

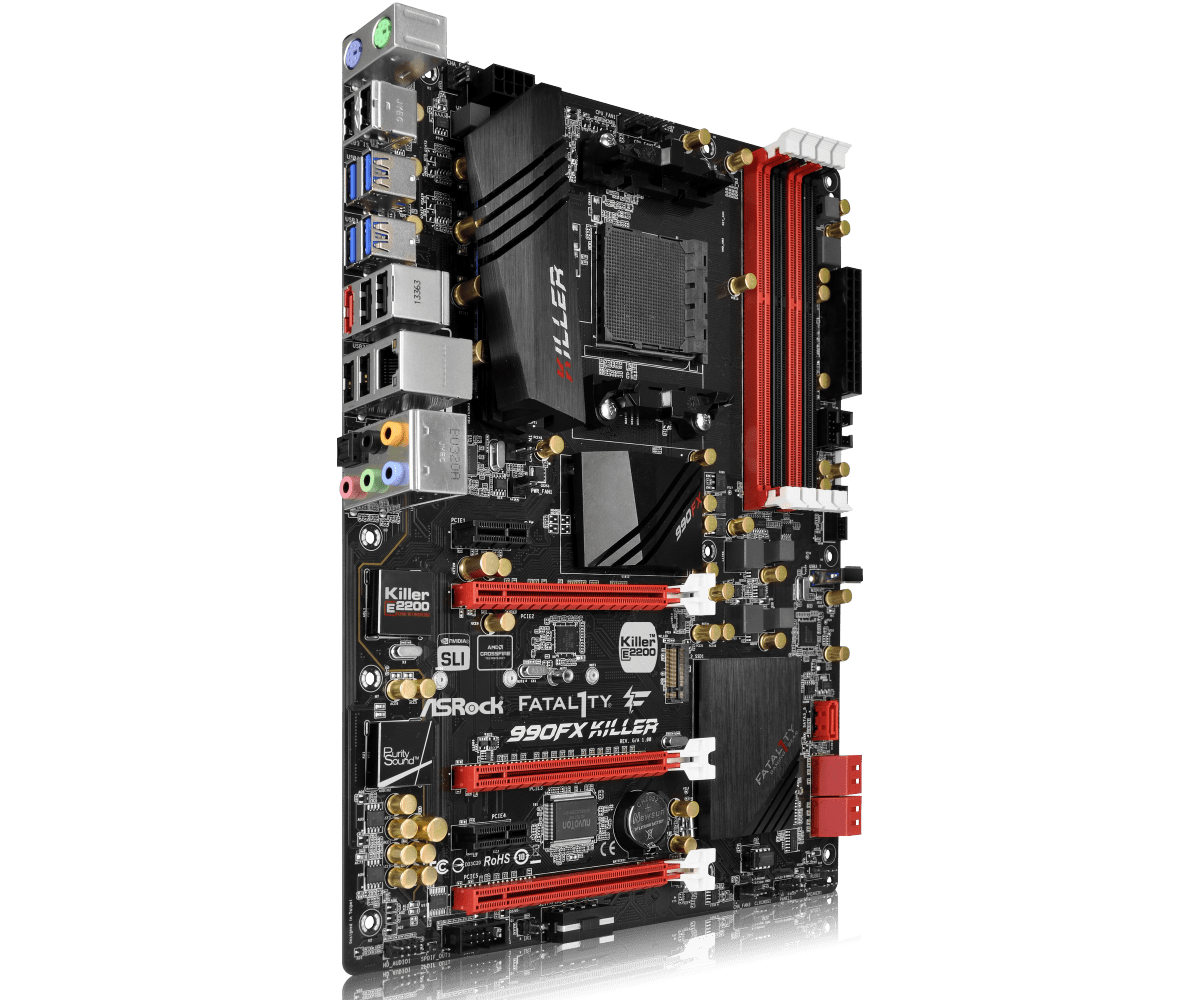

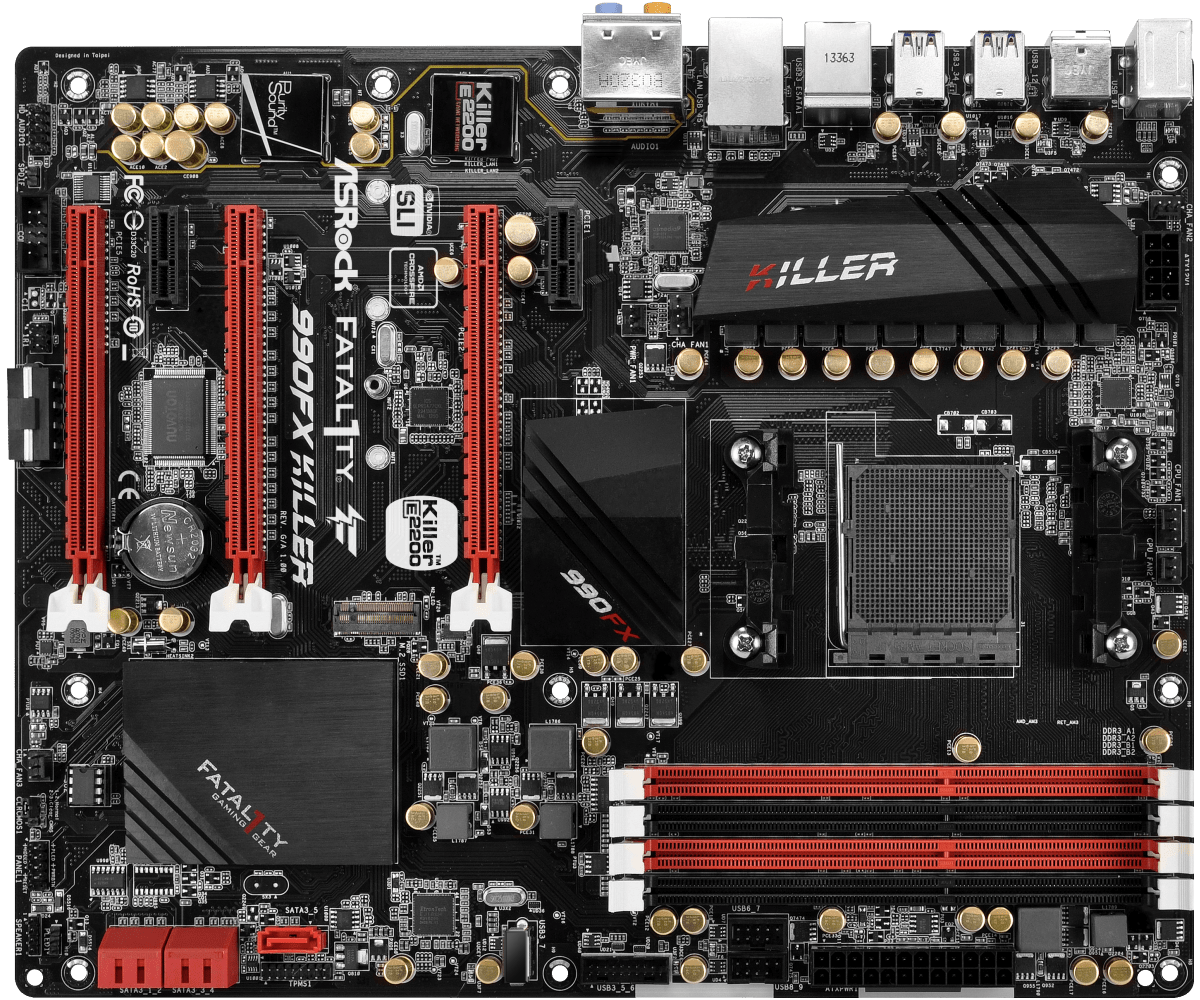

The ASRock Fatal1ty 990FX Killer is an ATX AM3 + motherboard based on the Northbridge: AMD 990, Southbridge: AMD SB950 chipset. The board must be combined with DDR3 memory, for which 4 slots are available. In total, the ASRock Fatal1ty 990FX Killer has 8 Serial ATA connections for hard disks and SSDs. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC898 chip.

Features: Motherboard | ATX | AMD AM3 + | 4x DDR3 | 5x SATA-600 | PCI-e 2.0 x1 | PCI-e 2.0 x16 | 5x USB 2.0 | 4x USB 3.1 (Gen1, 5Gb / s) | eSATA3

Product: ASRock Fatal1ty 990FX Killer
Socket: AMD AM3 +
Category: motherboards
Brand: ASRock
EAN: 4717677322637
Condition: Refurbished – BIOS updated to the latest version
SKU: 90-MXGST0-A0UAYZ, 990FX KILLER, Fatal1ty 990FX Killer
Warranty:
6 months

Package Contents:
– Motherboard (ASRock Fatal1ty 990FX Killer)
– backplate (blende)
– No manual
– No CD with drivers
– No cables


A-Style
– ASRock Cloud
– Purity Sound ™


CPU
Supports Socket AM3 + processors
Supports Socket AM3 processors: AMD Phenom ™ II X6 / X4 / X3 / X2 (except 920/940) / Athlon II X4 / X3 / X2 / Sempron processors
Supports 8-Core CPU
Supports UCC feature (Unlock CPU Core)
– Digi Power design
– 8 + 2 Power Phase design
Supports CPU up to 140W
Supports AMD’s Cool ‘n’ Quiet Technology
– FSB 2600 MHz (5.2 GT / s)
– Supports Untied Overclocking Technology
Supports Hyper-Transport 3.0 (HT 3.0) Technology


Chipset
– Northbridge: AMD 990FX
– Southbridge: AMD SB950


Memory
– Dual Channel DDR3 Memory Technology
– 4 x DDR3 DIMM Slots
Supports DDR3 2450 (OC) / 2100 (OC) / 1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 64GB *
Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
Supports AMD Memory Profile (AMP)

* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 32Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 1.1 Compliant wake up events
– Supports jumperfree
– SMBIOS 2.3.1 support
– CPU, DRAM, NB, HT, CPU VDDA, PCIE VDDA, CPU NB Voltage multi-adjustment


Graphics
– n / a


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
– Premium Blu-ray Audio support
– Supports Purity Sound ™
115dB SNR DAC with differential amplifier
– TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)
– Direct Drive Technology
– EMI shielding cover
– PCB isolate shielding
– Supports DTS Connect


LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb / s
– Qualcomm® Atheros® Killer ™ E2200 Series
– Supports Wake-On-LAN
Supports Energy Efficient Ethernet 802.3az
Supports PXE


Slots
3 x PCI Express 2.0 x16 Slots (PCIE2 / PCIE3 @ x16 mode; PCIE5 @ x4 mode)
– 2 x PCI Express 2.0 x1 Slots
Supports AMD Quad CrossFireX ™, 3-Way CrossFireX ™ and CrossFireX ™
Supports NVIDIA® Quad SLI ™ and SLI ™


Storage
– 5 x SATA3 6.0 Gb / s Connectors, support RAID (RAID 0, RAID 1, RAID 0 + 1, JBOD and RAID 5), NCQ, AHCI and Hot Plug
– 1 x M.2_SSD (NGFF) Socket 3, supports M Key M.2 SATA3 6.0 Gb / s module and M.2 PCI Express module up to Gen2 x2 (10 Gb / s)

* M.2_SSD (NGFF) Socket 3 is shared with the eSATA3 connector.


Connector
– 1 x IR Header
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Power LED Header
– 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)
– 1 x Power Fan Connector (3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x SLI / XFire Power Connector
– 1 x Front Panel Audio Connector
– 1 x SPDIF Out Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 1 x Vertical Type A USB 3.1 Gen1
– 1 x USB 3.1 Gen1 Header by Etron EJ188 (Supports 2 USB 3.1 Gen1 ports)

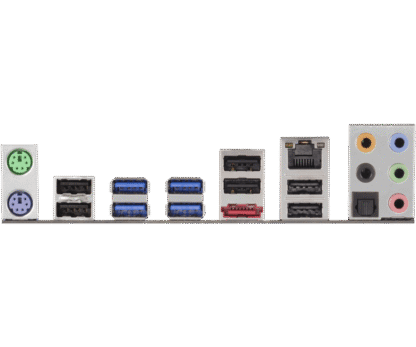

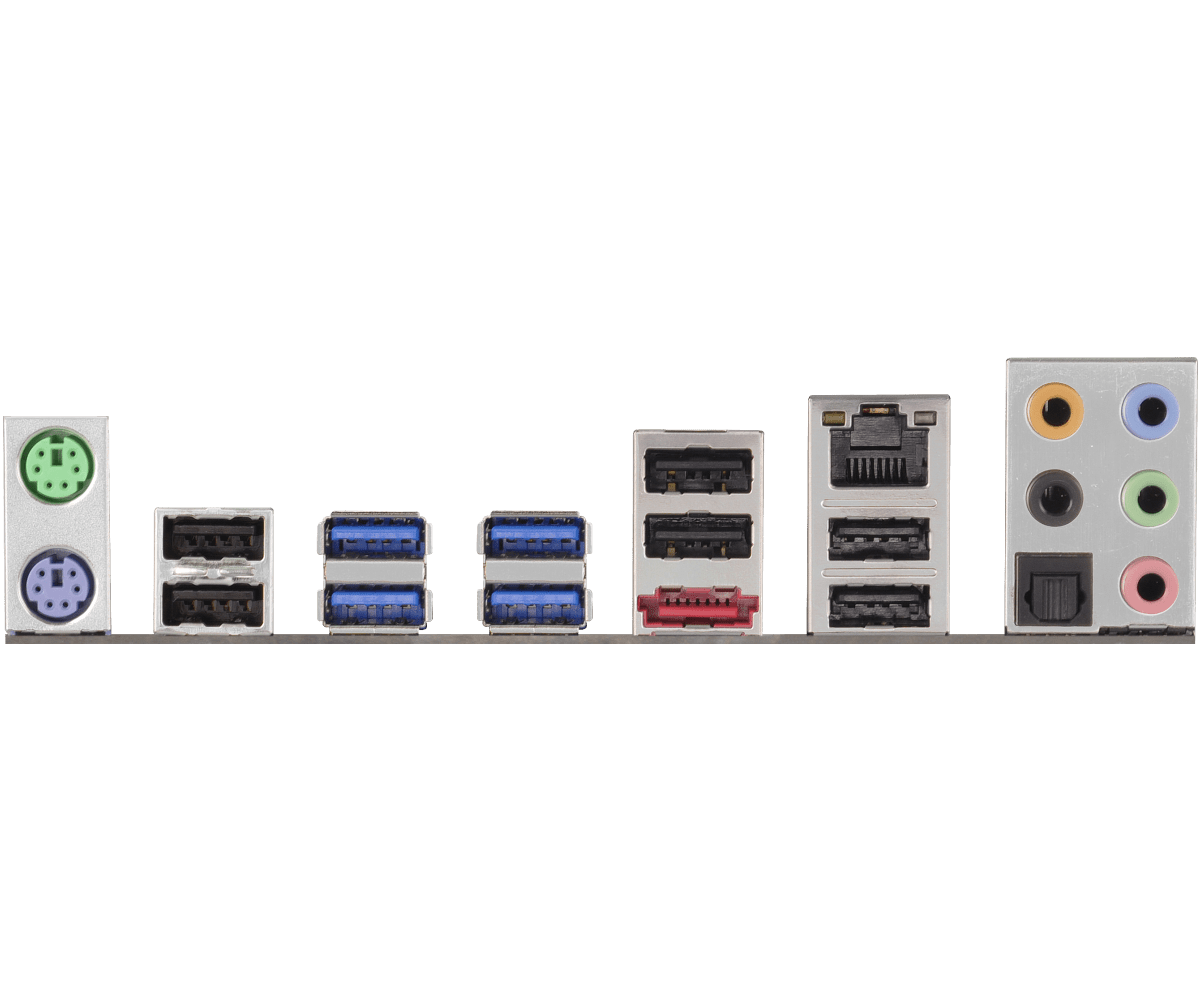

Rear Panel I / O
– 1 x PS / 2 Mouse Port
– 1 x PS / 2 Keyboard Port
– 1 x Optical SPDIF Outport wine
– 5 x USB 2.0 Ports
– 1 x Fatal1ty Mouse Port (USB 2.0)
– 4 x USB 3.1 Gen1 Ports (ASMedia Hub)
– 1 x eSATA3 Connector
– 1 x RJ-45 LAN Port with LED (ACT / LINK LED and SPEED LED)
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone


Unique Feature
– F-Stream
– ASRock Instant Boot
– ASRock Instant Flash
– ASRock APP Charger
– ASRock APP Shop
– ASRock XFast RAM
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock Internet Flash
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Dehumidifier Function
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer
– ASRock Fast Boot
– ASRock X-Boost
– ASRock Restart to UEFI
– Hybrid Booster:
– CPU Frequency Stepless Control
– ASRock U-COP
– Boot Failure Guard (B.F.G.)
– Turbo 50 / Turbo 60 Overclocking
– Good Night LED


Accessories
– I / O Shield


Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis, Power Fan Tachometer
CPU, Chassis Quiet Fan (Auto adjust fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
Voltage monitoring: + 12V, + 5V, + 3.3V, CPU Vcore Voltage


Form Factor
– ATX Form Factor
Premium Gold Capacitor design (100% Japan made high quality conductive polymer capacitors)


OS
Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit


Certifications
– FCC, CE
– ErP / EuP ready (ErP / EuP ready power supply is required)

Additional information

Weight 1 kg
AMD-en

AM3(+)

Brand

Asrock

Chipset

Northbridge: AMD 990FX, Southbridge: AMD SB950

Form Factor

ATX

Memory Type

DDR3 SDRAM

Number of memory slots

4

Maximum memory size

64 GB

Connectors

eSATA, USB 2.0, USB 3.1 Gen1

Storage Interfaces

M.2_SSD (NGFF) Socket 3, Serial ATA-600

Interfaces

PCI-e 2.0 x1, PCI-e 2.0 x16

Socket
