Product information

ASRock Fatal1ty E3V5 Performance Gaming/OC:  motherboard | ATX | Intel LGA1151 | Intel C232 Chipset | 4x DDR4 (max. 64GB) ECC memory is supported | PCI-e 3.0 x1 | PCI-e 3.0 x16 | SATA 600 | USB 2.0 | USB 3.2 (Gen1, 5Gb/s)

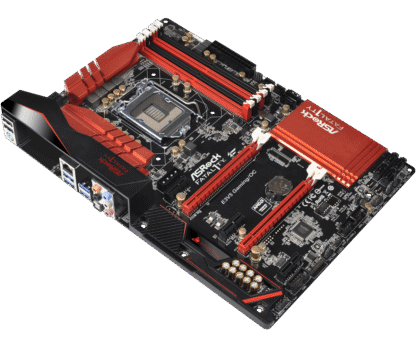

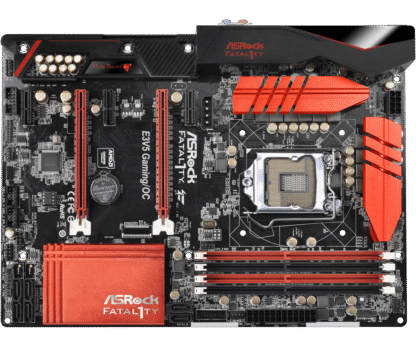

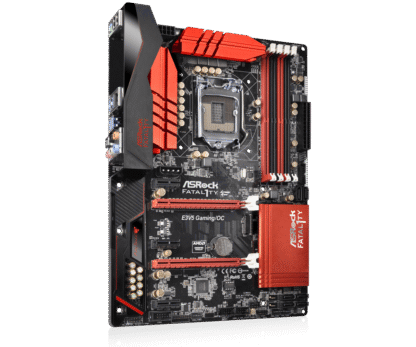

Product: ASRock Fatal1ty E3V5 Performance Gaming/OC
Socket:
LGA1151
Supports: 6th en 7th Generation Processors
Category: Motherboards
Brand: ASRock
Condition: Refurbished, with the latest BIOS version
EAN:4717677329629
SKU:
90-MXB1Q0-A0UAYZ, Fatal1ty E3V5 Performance Gaming/OC
Warranty: 6 months


package content:
– Motherboard (Fatal1ty E3V5 Performance Gaming/OC)
– backplate (blende)
– no manual
– no driver CD
– no cables


Gaming Armor
memory
– 15μ Gold Contact in DIMM Slots
VGA Card
– 15μ Gold Contact in VGA PCIe Slot (PCIE2)
– PCIe Power Connector
Internet
– Intel® LAN
Cooling
– XXL Aluminum Alloy Heatsink
Audio
– Purity Sound™ 3


Unique Feature
ASRock Super Alloy
– XXL Aluminum Alloy Heatsink
– Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
– I/O Armor
– Matte Black PCB
– High Density Glass Fabric PCB
ASRock Full Spike Protection
ASRock Live Update & APP Shop


CPU
– Supports the Intel® Xeon® E3-1200 v5 Processor and 7th and 6th Generation Intel® Core™ i3/Pentium®/Celeron® Processors (Socket 1151)
– Digi Power design
– 10 Power Phase design
– Supports Intel® Turbo Boost 2.0 Technology
– Supports ASRock BCLK Full-range Overclocking
– Supports ASRock Hyper BCLK Engine


Chipset
– Intel® C232


Memory
– Dual Channel DDR4 Memory Technology
– 4 x DDR4 DIMM Slots
– Supports DDR4 2133 non-ECC, unbuffered memory
– Supports ECC UDIMM memory modules*
– Max. capacity of system memory: 64GB**
– Supports Intel® Extreme Memory Profile (XMP) 2.0
– 15μ Gold Contact in DIMM Slots


*ECC memory modules are supported with Intel® E3/Core™ i3/Pentium®/Celeron® CPU only. With Intel® Core™ i7/i5 CPU, ECC function is not supported.
Please refer to Memory Support List on ASRock’s website for more information.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 5.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCPLL, VCCSA Voltage Multi-adjustment


Graphics
– n/a


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
– Premium Blu-ray Audio support
– Supports Surge Protection (ASRock Full Spike Protection)
– Supports Purity Sound™ 3
– Nichicon Fine Gold Series Audio Caps
– 115dB SNR DAC with differential amplifier
– TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)
– Pure Power In
– Direct Drive Technology
– PCB isolation shielding
– Supports DTS Connect


LAN
– Gigabit LAN 10/100/1000 Mb/s
– Giga PHY Intel® I219V
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)*
– 3 x PCI Express 3.0 x1 Slots (Flexible PCIe)
– Supports AMD Quad CrossFireX™ ​​and CrossFireX™
– 15μ Gold Contact in VGA PCIe Slot (PCIE2)

*Supports NVMe SSD as boot disks


Storage
– 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology enterprise), NCQ, AHCI and Hot Plug


Connector
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Power LED and Speaker Header
– 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed ​​Control)
– 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed ​​Control)*
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x PCIe Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))

*CPU_FAN1 and CHA_FAN1 can auto detect if 3-pin or 4-pin fan is in use.
The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

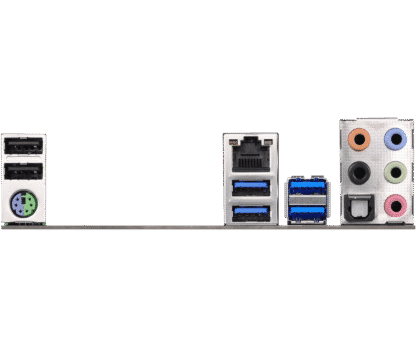

Rear Panel I/O
– 1 x PS/2 Mouse/Keyboard Port
– 1 x Optical SPDIF Out Port
– 1 x USB 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection))
– 4 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone


Software and UEFI
Software
– ASRock F-Stream
– ASRock Disk Health Report
– ASRock USB Key
– ASRock Key Master
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Fast Boot (Fast Boot, Restart to UEFI)
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.


Accessories
– I/O Shield


Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCSA


Form Factor
– ATX Form Factor: 12.0-in x 8.6-in, 30.5cm x 21.8cm


OS
– Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit*

*To install Windows® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please see our online tutorial or check our User Manual for more detailed instructions.
For the updated Windows® 10 driver, please visit ASRock’s website for details.


Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Specification

Weight1 kg
Intel

Socket 1151

Brand

Asrock

Form Factor

ATX

Chipset

Intel C232

Memory Type

DDR4 SDRAM

Number of memory slots

4

Maximum memory size

64 GB

Connectors

Ethernet (RJ-45), PS/2, USB 2.0, USB 3.2 (Gen1, 5Gb/s)

Storage Interfaces

Serial ATA-600

Interfaces

PCI-e 3.0 x1, PCI-e 3.0 x16

Socket

Model

Fatal1ty E3V5 Performance Gaming/OC

Length

30.5 cm

Width

21.8 cm

package content

Motherboard and Backplate (Blende)

ASRock Fatal1ty E3V5 Performance Gaming/OC LGA1151 motherboard

Fast delivery

  • Intel® C232 Chipset
  • ASRock Super Alloy
  • Gaming Armor – Memory / VGA Card / Cooling / Internet / Audio
  • Supports Intel® Xeon® E3-1200 v5 Processor and 7th and 6th Generation Intel® Core™ i3/Pentium®/Celeron® Processors
    *8th Gen Intel® Core™ desktop processors are supported with Intel® 300 Series chipset motherboards only
  • Digi Power, 10 Power Phase Design
  • Supports Dual Channel DDR4 2133, DDR4 Non-Z OC
  • 2 PCIe 3.0 x16, 3 PCIe 3.0 x1
  • AMD Quad CrossFireX™
  • 7.1 CH HD Audio (Realtek ALC1150 Audio Codec), Supports Purity Sound™ 3 & DTS Connect
  • 6 SATA3
  • 6 USB 3.1 Gen1 (2 Front, 4 Rear)
  • Supports Full Spike Protection, ASRock Live Update & APP Shop, Key Master, XSplit
