Product information

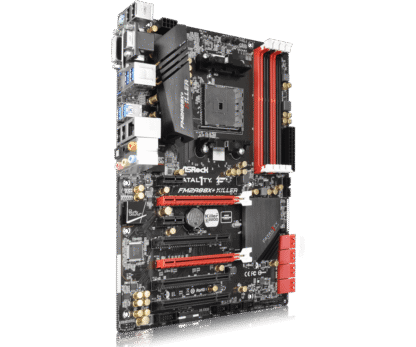

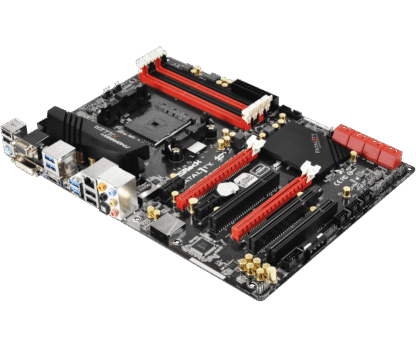

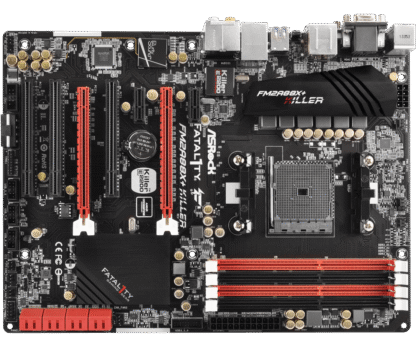

The ASRock Fatal1ty FM2A88X + Killer is an ATX Socket FM2 + motherboard based on the AMD A88X chipset. The board must be combined with DDR3 memory, for which 4 slots are available. In total, the ASRock Fatal1ty FM2A88X + Killer has 8 Serial ATA connections for hard disks and SSDs. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC662 chip.

Features: Motherboard | ATX | AMD FM2 + | 4x DDR3 | 8x SATA-600 | PCI | PCI-e 2.0 x1 | PCI-e 2.0 x16 | PCI-e 3.0 x16 | USB 2.0 | USB 3.1 (Gen1, 5Gb / s) | DVI-D | D-Sub (VGA) | HDMI

Product: ASRock Fatal1ty FM2A88X + Killer
Socket: AMD FM2 +
Category: motherboards
Brand: ASRock
EAN: 4717677322712
Condition: Refurbished – BIOS updated to the latest version
SKU: 90-MXGT60-A0UAYZ, Fatal1ty FM2A88X + Killer, FM2A88X + KILLER
Warranty: 6 months

Package Contents:
– Motherboard (ASRock Fatal1ty FM2A88X + Killer)
– backplate (blende)
– No manual
– No CD with drivers
– No cables

A-Style
– ASRock Cloud
– Purity Sound ™

Gaming Armor
CPU Power
– Hi-Density Power Connector
VGA Card
– 15μ Gold Finger in VGA PCIe Slot (PCIE2)
– CrossFireX ™ Power Connector
Internet
– Qualcomm® Atheros® Killer ™ LAN
Audio
– Purity Sound ™

CPU
Supports Socket FM2 + 95W / FM2 100W processors
– Digi Power design
– 4 + 2 Power Phase design

Chipset
– AMD A88X (Bolton-D4)

Memory
– Dual-Channel DDR3 Memory Technology
– 4 x DDR3 DIMM Slots
Supports DDR3 2600+ (OC) / 2400 (OC) / 2133/1866/1600/1333/1066 non-ECC, un-buffered memory *
– Max. capacity of system memory: 64GB **
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
Supports AMD Memory Profile Technology (AMP) up to AMP 2400

* DDR3 2600+ is only supported with two DIMMs.

** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS
– 64Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 1.1 Compliant wake-up events
– Supports jumperfree
– SMBIOS 2.3.1 support
– DRAM, VDDP, VDDR Voltage multi-adjustment

Graphics
– Integrated AMD Radeon ™ R7 / R5 Series Graphics in A-series APU
– DirectX 11.1, Pixel Shader 5.0 with FM2 + CPU. DirectX 11, Pixel Shader 5.0 with FM2 CPU.
– Max. shared memory 2GB
– Three graphics output options: D-Sub, DVI-D, and HDMI
– Supports Triple Monitor
Supports HDMI with max. Resolution up to 4K x 2K (4096×2160) @ 24Hz
Supports Dual-link DVI-D with max. Resolution up to 2560×1600 @ 60Hz
Supports D-Sub with max. Resolution up to 1920×1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC, and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports Blu-ray Stereoscopic 3D with HDMI Port
Supports AMD Steady Video ™ 2.0: New video post-processing capability for automatic jitter reduction on home / online video
– Supports HDCP with DVI-D, and HDMI Ports
Supports Full HD 1080p Blu-ray (BD) playback with DVI-D, and HDMI Ports

* Only FM2 + APU can support up to 4096×2160 resolution display VIA® HDMI port

Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
– Premium Blu-ray Audio support
– Supports Purity Sound ™
115dB SNR DAC with differential amplifier
– TI® NE5532 Premium Headset Amplifier (Supports up to 600-ohm headsets)
– Direct Drive Technology
– EMI shielding cover
– PCB isolate shielding
– Supports DTS Connect

LAN
– PCIe x1 Gigabit LAN 10/100/1000 Mb / s
– Qualcomm® Atheros® Killer ™ E2200 Series
– Supports Wake-On-LAN
Supports Energy Efficient Ethernet 802.3az
– Supports PXE

Slots
– 1 x PCI Express 3.0 x16 Slot (PCIE2 @ x16 mode)
– 1 x PCI Express 2.0 x16 Slot (PCIE4 @ x4 mode)
– 2 x PCI Express 2.0 x1 Slots
– 3 x PCI Slots
Supports AMD Quad CrossFireX ™, CrossFireX ™, and Dual Graphics

* PCIe 3.0 is only supported with FM2 + CPU. With FM2 CPU, it only supports PCIe 2.0.

Storage
– 8 x SATA3 6.0 Gb / s Connectors, support RAID (RAID 0, RAID 1, RAID 5 and RAID 10), NCQ, AHCI, and Hot Plug

Connector
– 1 x COM Port Header
– 1 x Chassis Intrusion Header
– 1 x TPM Header
– 1 x Power LED Header
– 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
– 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)
– 1 x Power Fan Connector (3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x XFire Power Connector
– 1 x Front Panel Audio Connector
– 3 x USB 2.0 Headers (Support 6 USB 2.0 ports)
– 1 x USB 3.1 Gen1 Header by AMD A88X (Bolton-D4) (Supports 2 USB 3.1 Gen1 ports)

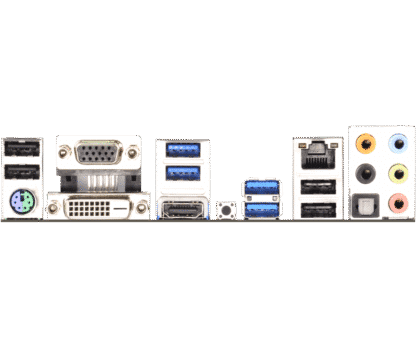

Rear Panel I / O
– 1 x PS / 2 Mouse / Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 1 x Optical SPDIF Out Port
– 3 x USB 2.0 Ports
– 1 x Fatal1ty Mouse Port (USB 2.0)
– 2 x USB 3.1 Gen1 Ports (AMD A88X (Bolton-D4))
– 2 x USB 3.1 Gen1 Ports (ASMedia ASM1042A)
– 1 x RJ-45 LAN Port with LED (ACT / LINK LED and SPEED LED)
– 1 x Clear CMOS Switch with LED
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Unique Feature
– ASRock F-Stream
– ASRock APP Shop
– ASRock Instant Boot
– ASRock Instant Flash
– ASRock APP Charger
– ASRock XFast RAM
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock Internet Flash
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Dehumidifier Function
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer
– ASRock Interactive UEFI
– ASRock Fast Boot
– ASRock X-Boost
– ASRock Restart to UEFI
– ASRock USB Key
– ASRock Key Master
– ASRock FAN-Tastic Tuning
– Hybrid Booster:
– ASRock U-COP

Accessories
– I / O Shield

Hardware Monitor
– CPU temperature sensing
– Chassis temperature sensing
– CPU Fan Tachometer
– Chassis Fan Tachometer
– CPU, Chassis Quiet Fan
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
Voltage monitoring: + 12V, + 5V, + 3.3V, Vcore

Form Factor
– ATX Form Factor
– Premium Gold Capacitor design (100% Japan-made high-quality conductive polymer capacitors)

OS
Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit

* Carrizo FM2r2 processor supports Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit only.

Certifications
– FCC, CE
– ErP / EuP ready (ErP / EuP ready power supply is required)
