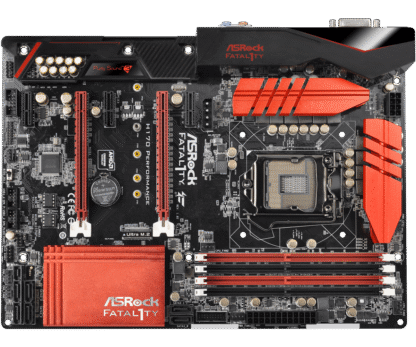

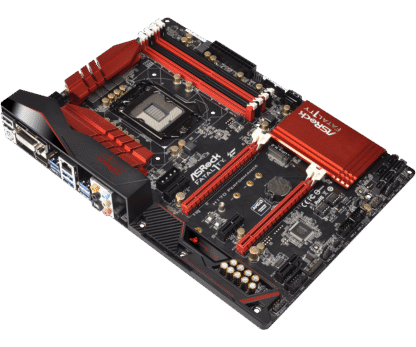

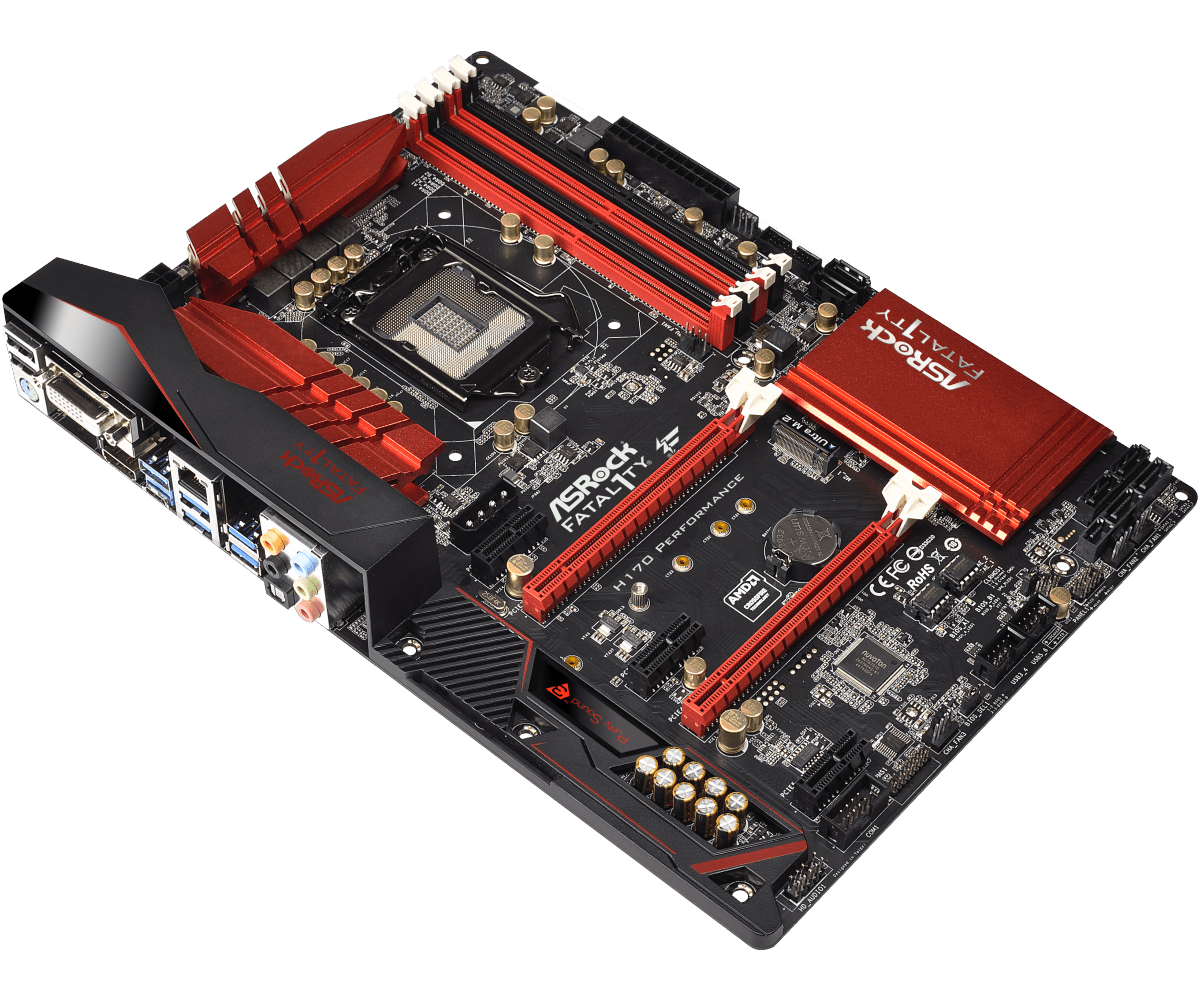

ASRock Fatal1ty H170 Performance

Fast delivery
94,95

Brand: ASRock
Model: Fatal1ty H170 Performance
Socket: LGA1151
Chipset: Intel H170
Memory: 4x DDR4 (64GB Max)
Form-Factor: ATX
EAN: 4717677327007
SKU: 90-MXGYY0-A0UAYZ, H170 PERFORMANCE

4 in stock

  • Free shipping from €100,-
  • Reliable for more than 10 years!
  • Fast delivery
  • Monthly payments are possible!
SKU: h170-performance Categories: , Tags: , ,

Product information

Features: Motherboard – ATX – Socket 1151 – DDR4 – Support 6th and 7th Gen CPU – PCI-e 3.0 x16 – PCI-e 2.0 x1 – USB 3.1 – Sata3 – HDMI – USB 3.1 Gen1 Type-C port wine

Click here for the supporting CPUs
Click here for the drivers

Product: ASRock H170 PERFORMANCE
Category: Motherboards
Brand: ASRock
EAN: 4717677327007
SKU: 90-MXGYY0-A0UAYZ, H170 PERFORMANCE

Note: This is a refurbished motherboard updated with the latest BIOS version, the product warranty period is 90 days.

Package Contents:
– Motherboard
– Backplate (blende)
– No manual
– No driver CD
– No cables


Gaming Armor

Memory
– 15μ Gold Contact in DIMM Slots

VGA Card
– 15μ Gold Contact in VGA PCIe Slot (PCIE2)
– PCIe Power Connector

Internet
– Intel® LAN

Cooling
– XXL Aluminum Alloy Heatsink

Audio
– Purity Sound ™ 3


Unique Feature
ASRock Super Alloy
– XXL Aluminum Alloy Heatsink
Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
– I / O Armor
– Matte Black PCB
– High Density Glass Fabric PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & amp; SATA3)
ASRock Full Spike Protection
ASRock Live Update & amp; APP Shop


CPU
Supports 7th and 6th Generation Intel® Core ™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1151)
– Digi Power design
– 10 Power Phase design
– Supports Intel® Turbo Boost 2.0 Technology


Chipset
– Intel® H170
– Supports Intel® Small Business Advantage 4.0


Memory
– Dual Channel DDR4 Memory Technology
– 4 x DDR4 DIMM Slots
Supports DDR4 2133 non-ECC, un-buffered memory
Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 64GB *
Supports Intel® Extreme Memory Profile (XMP) 2.0
– 15μ Gold Contact in DIMM Slots

* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
– Supports Secure Backup UEFI Technology
– ACPI 5.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCPLL, VCCSA Voltage Multi-adjustment


Graphics
Supports Intel® HD Graphics Built-in Visuals: Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru ™ 3D, Intel® Clear Video HD Technology, Intel® Insider ™, Intel ® HD Graphics 510/530
Pixel Shader 5.0, DirectX 12
– Max. shared memory 1024MB *
Dual graphics output: Support DVI-D and HDMI ports by independent display controllers
Supports HDMI with max. Resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz
Supports DVI-D with max. Resolution up to 1920×1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
Supports Accelerated Media Codecs: HEVC, VP8, VP9
Supports HDCP with DVI-D and HDMI Ports
Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

* The size of maximum shared memory may vary from different operating systems.

** Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

*** Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8/8 64-bit / 7/7 64-bit.

**** Intel® InTru ™ 3D is only supported under Windows® 8/8 64-bit / 7/7 64-bit.


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
– Premium Blu-ray Audio support
Supports Surge Protection (ASRock Full Spike Protection)
Supports Purity Sound ™ 3
– Nichicon Fine Gold Series Audio Caps
115dB SNR DAC with differential amplifier
– TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)
– Pure Power-In
– Direct Drive Technology
– PCB isolate shielding
– Supports DTS Connect


LAN
Gigabit LAN 10/100/1000 Mb / s
– Giga PHY Intel® I219V
– Supports Wake-On-LAN
Supports Lightning / ESD Protection (ASRock Full Spike Protection)
Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
-2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode) *
– 3 x PCI Express 3.0 x1 Slots (Flexible PCIe)
– Supports AMD Quad CrossFireX ™ and CrossFireX ™
– 15μ Gold Contact in VGA PCIe Slot (PCIE2)

* Supports NVMe SSD as boot disks


Storage
– 6 x SATA3 6.0 Gb / s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 14 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug
– 1 x SATA Express 10 Gb / s Connector **
– 1 x Ultra M.2 Socket, supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb / s module and M.2 PCI Express module up to Gen3 x4 (32 Gb / s) **

* If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 and SATA3_1 will be disabled.
Support to be announced

** Supports ASRock U.2 Kit
Supports NVMe SSD as boot disks


Connector
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Power LED and Speaker Header
– 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed ​​Control)
– 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed ​​Control) *
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x PCIe Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))

* CPU_FAN1 and CHA_FAN1 can auto detect if 3-pin or 4-pin fan is in use.
The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

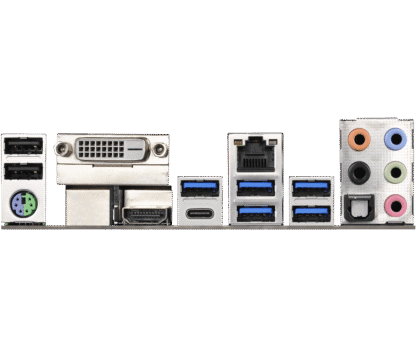

Rear Panel I / O
– 1 x PS / 2 Mouse / Keyboard Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 1 x Optical SPDIF Out Port
– 1 x USB 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection))
– 5 x USB 3.1 Gen1 Type-A Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT / LINK LED and SPEED LED)
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone


Software and UEFI
Software
– ASRock F-Stream
– ASRock Disk Health Report
– ASRock USB Key
– ASRock Key Master
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Fast Boot (Fast Boot, Restart to UEFI)

UEFI
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer

* These utilities can be downloaded from ASRock Live Update & amp; APP Shop.


Accessories
– I / O Shield


Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
Voltage monitoring: + 12V, + 5V, + 3.3V, CPU Vcore, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCSA

Form Factor
ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm


OS
– Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit *

* To install Windows® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please see our online tutorial or check our User Manual for more detailed instructions.

* For the updated Windows® 10 driver, please visit ASRock’s website for details.


Certifications
– FCC, CE
– ErP / EuP ready (ErP / EuP ready power supply is required)

Specification

Weight1 kg
Intel

Socket 1151

Brand

Asrock

Chipset

Intel H170

Form Factor

ATX

Memory Type

DDR4

Number of memory slots

2, 4

Maximum memory size

64 GB

Connectors

DVI-D, HDMI, USB 2.0, USB 3.1 Gen1, USB 3.1 Gen1 Type-C

Storage Interfaces

SATA Express 10 Gb/s, SATA3 6.0 Gb/s, Ultra M.2 Socket

Interfaces

PCI-e 3.0 x1, PCI-e 3.0 x16

Socket

Intel LGA1151
