Product information

ASRock Fatal1ty X299 Professional Gaming i9: Motherboard | ATX | LGA2066| 8x DDR4 | M.2 (PCI-e 3.0 x4 + SATA) | USB 2.0 | USB 3.2 (Gen1, 5Gb/s) | USB 3.2 (Gen2, 10Gb/s) | USB 3.2 (Gen2, 10Gb/s) type-c | WLAN | Bluetooth | 2x Ethernet 1Gbps | Ethernet 10Gbps

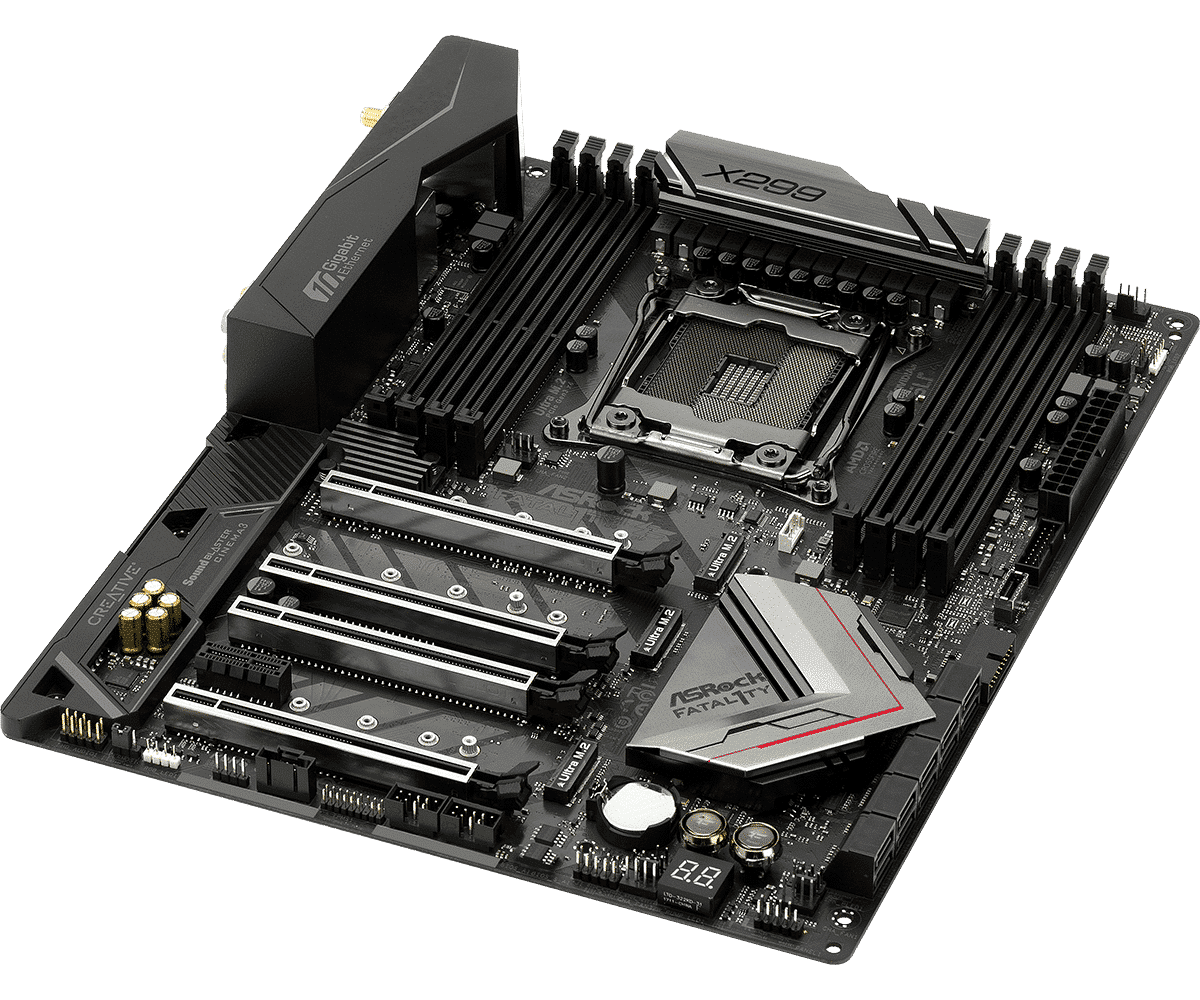

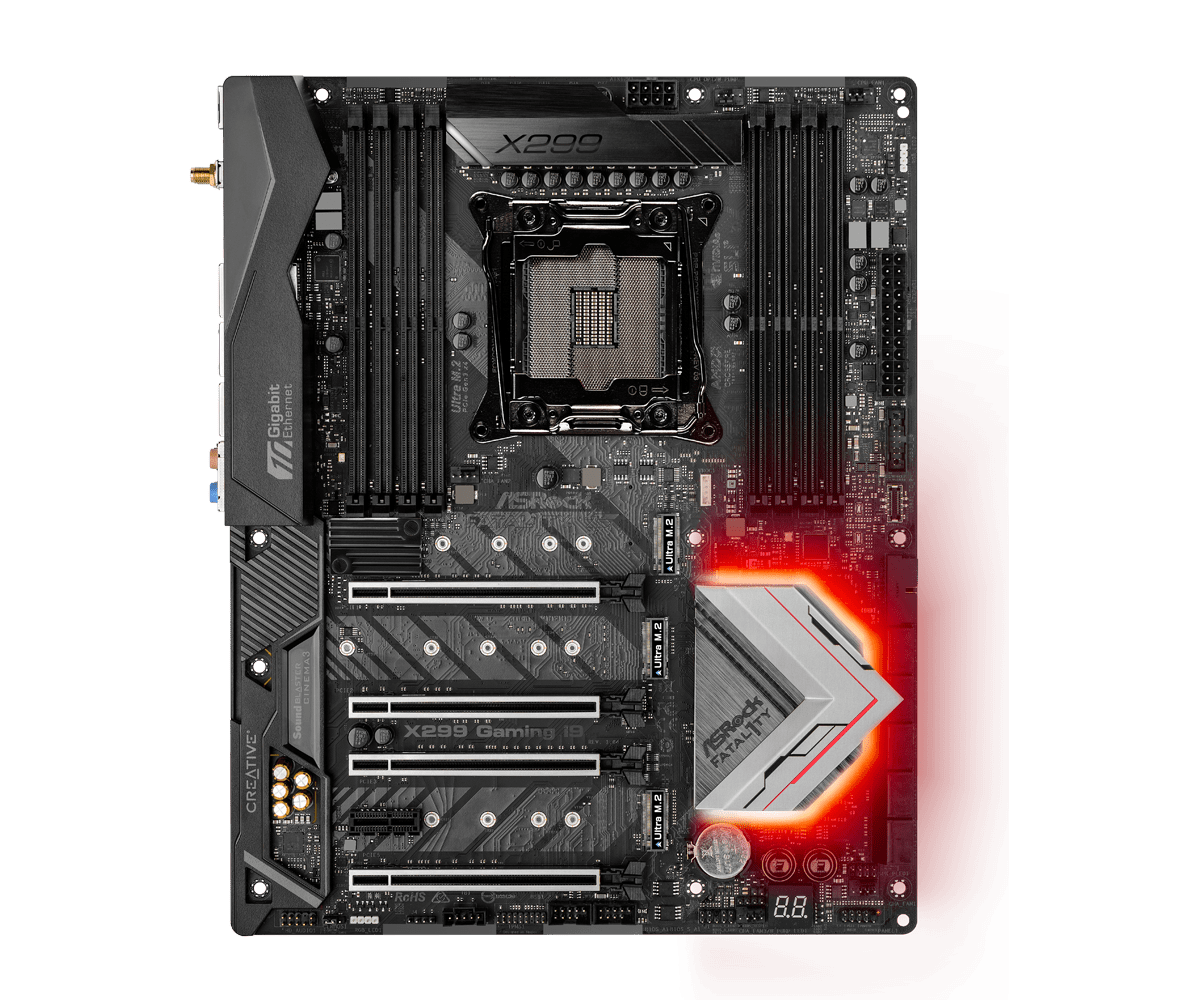

Product: ASRock Fatal1ty X299 Professional Gaming i9
Socket: LGA2066
Category: motherboards
Brand: ASRock
Condition: New Retail
EAN:4717677333541
SKU:
90-MXB5B0-A0UAYZ, X299 PROF. GAMING I9
Warranty:
6 months


package content:
– Motherboard (ASRock Fatal1ty X299 Professional Gaming i9)
– Backplate (Blende)
– manual
– drivers CD
– cables


Gaming Armor
Power
– Hi-Density Power Connectors (24 pin and 8 pin)
– dr. MOSS
Memory
– 15μ Gold Contact in DIMM Slots
VGA Card
– 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3)
Internet
– AQUANTIA® / Marvell 10G LAN
– Intel® LAN
Cooling
– XXL Aluminum Alloy Heatsink
– 8 Layer PCB
– 2oz Copper PCB
Audio
– Creative Sound Blaster™ Cinema 3


Unique Feature
ASRock USB 3.1 Gen2
– ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)
– ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
– XXL Aluminum Alloy Heatsink
– Premium 65A Power Choke
– dr. MOSS
– Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
– I/O Armor
– Matte Black PCB
– High Density Glass Fabric PCB
AQUANTIA® / Marvell 10G LAN
ASRock 802.11ac WiFi
ASRock Steel Slots
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Ultra USB Power
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop


CPU
– Supports Intel® Core™ X-Series Processor Family for the LGA 2066 Socket
– Digi Power design
– 13 Power Phase design
– Supports Intel® Turbo Boost Max Technology 3.0*
– Supports ASRock Hyper BCLK Engine III

*Please note that the 4-Core processors only support Intel® Turbo Boost Technology 2.0.


Chipset
– Intel® X299


Memory
– Quad Channel DDR4 Memory Technology
– 8 x DDR4 DIMM Slots
– Supports DDR4 4400+(OC)* / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, unbuffered memory
– Supports non-ECC RDIMM (Registered DIMM)**
– Max. capacity of system memory: 256GB***
– Supports Intel® Extreme Memory Profile (XMP) 2.0
– 15μ Gold Contact in DIMM Slots

*Intel® X299 does not support 1Rx16 memory modules.
The maximum memory frequency supported may vary by processor type.

**Due to Intel® microcode updates, RDIMM is not supported with BIOS version 1.80 or above.

***Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
– Supports Secure Backup UEFI Technology
– ACPI 6.1 Compliant wake up events
– SMBIOS 3.0 Support
– CPU, DRAM, VPPM, VTTM, PCH 1.0V, VCCMPHY, VCCIO, VCCST, VCCSA, VCCSFR, VCCPLL, CLK VDD Voltage Multi-adjustment


Graphics
– n/a


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
– Premium Blu-ray Audio support
– Support Surge Protection
– Nichicon Fine Gold Series Audio Caps
– 120dB SNR DAC with Differential Amplifier
– TI® NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
– Pure Power In
– Direct Drive Tetechnology
– PCB Isolate Shielding
– Impedance Sensing on Rear Out port
– Individual PCB Layers for R/L Audio Channel
– Gold Audio Jacks
– 15μ Gold Audio Connector
– Supports Creative Sound Blaster™ Cinema 3


LAN
1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (AQUANTIA® AQC107):
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports PXE
2 x Gigabit LAN 10/100/1000 Mb/s (1 x Intel® I219V, 1 x Intel® I211AT):
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Dual LAN with Teaming*
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE

*Teaming is supported on Windows® 10 RS2, RS3 and RS4.


Wireless LAN
– Intel® 802.11ac WiFi Module (Free Bundle)
– Supports IEEE 802.11a/b/g/n/ac
– Supports Dual Band (2.4/5 GHz)
– Supports high speed wireless connections up to 433Mbps
– Supports Bluetooth 4.2 / 3.0 + High speed class II


Slots
– 4 x PCI Express 3.0 x16 Slots*
– 1 x PCI Express 2.0 x1 Slot
– Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ ​​and CrossFireX™ ​​**
– Supports NVIDIA® Quad SLI™, 3-Way SLI™ and SLI™***
– 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
– 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3)

*If you install CPU with 44 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x8/x16/x0 or x8/x8/x16/x8.
If you install CPU with 28 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x0/x8/x0 or x8/x0/x8/x8.
If you install CPU with 16 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x0/x0/x0 or x8/x0/x4/x0.
Supports NVMe SSD as boot disks

**3-Way CrossFireX™ ​​is only supported with CPU with 44 lanes or 28 lanes.

***This feature is only supported with CPU with 44 lanes or 28 lanes.


Storage
– 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 15 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug*
– 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
– 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s )**
– 2 x Ultra M.2 Sockets (M2_1 and M2_3), support M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s )**

*If M2_1 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.
If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
If M2_3 is occupied by a SATA-type M.2 device, SATA3_7 will be disabled.

**Supports Intel® Optane™ Technology M10 Series
Supports PCIe RAID (on M2_2 and M2_3)
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit


Connector
– 1 x Virtual RAID On CPU Header
– 1 x TPM Header
– 1 x Power LED and Speaker Header
– 2 x RGB LED Headers*
– 1 x CPU Fan Connector (4-pin)**
– 1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed ​​Control)***
– 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed ​​Control)
– 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed ​​Control)****
– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
– 1 x Thunderbolt™ AIC Connector (5-pin)*****
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (ASMedia ASM1074 Hub) (Supports ESD Protection)
– 1 x Front Panel Type C USB 3.1 Gen2 Header (ASMedia ASM3142)******
– 1 x Dr. Debug with LED
– 1 x Power Switch with LED
– 1 x Reset Switch with LED

*Support up to 12V/3A, 36W LED Strip

**The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

***The CPU Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.

****The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.
CPU_OPT/W_PUMP, CHA_FAN1, CHA_FAN2 and CHA_FAN3/W_PUMP can auto detect if 3-pin or 4-pin fan is in use.

*****The Thunderbolt™ AIC card can be installed in the enabled PCIe slot (depending on CPU type).

******Supports USB PD 2.0 up to 12V@3A (36W) charging

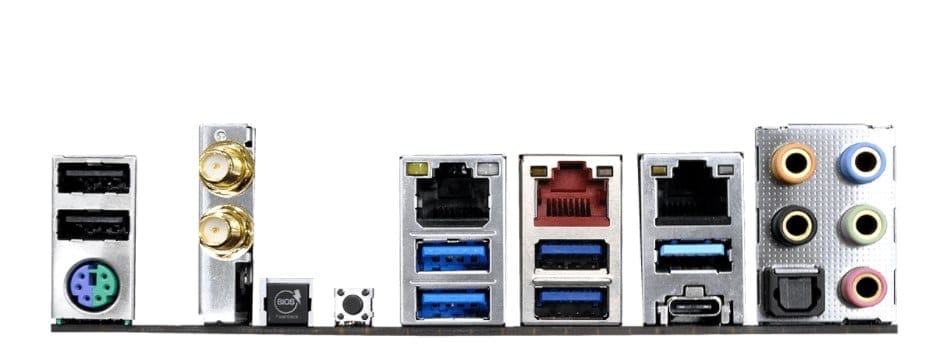

Rear Panel I/O
– 2 x Antenna Ports
– 1 x PS/2 Mouse/Keyboard Port
– 1 x Optical SPDIF Out Port
– 2 x USB 2.0 Ports (Support ESD Protection)*
– 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection)
– 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection)**
– 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
– 3 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
– 1 x BIOS Flashback Switch
– 1 x Clear CMOS Switch
– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

*1 x Fatal1ty Mouse Port (USB 2.0) is included

**Ultra USB Power is supported on USB3_12 ports.
ACPI wake up function is not supported on USB3_12 ports.


Software and UEFI
Software
– ASRock F-Stream
– ASRock RGB LED
– ASRock Key Master
– ASRock APP Charger
– ASRock XFast LAN
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.


Accessories
– I/O Shield


Hardware Monitor
– Temperature Sensing: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
– Fan Tachometer: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
– Fan Multi-Speed ​​Control: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCSFR


Form Factor
– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
– 8 Layer PCB
– 2oz Copper PCB


OS
– Microsoft® Windows® 10 64-bit


Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Specification

Weight1 kg
Intel

Socket 2066

Brand

Asrock

Chipset

Intel X299

Form Factor

ATX

Memory Type

DDR4 SDRAM

Number of memory slots

8

Maximum memory size

128 GB

Connectors

2x RJ-45 LAN, Ethernet 10Gbps, USB 2.0, USB 3.2 (Gen1, 5Gb/s), USB 3.2 (Gen2, 10Gb/s), USB 3.2 (Gen2, 10Gb/s) type-c, Wireless LAN

Storage Interfaces

M.2 (PCI-e 3.0 x4 + SATA), Serial ATA-600

Interfaces

PCI-e 3.0 x1, PCI-e 3.0 x16

Socket

ASRock Fatal1ty X299 Professional Gaming i9

Free delivery

  • Socket 2066
  • ASRock Super Alloy
  • Gaming Armor: Power / Memory / VGA / Internet / Cooling / Audio
  • Supports Intel® Core™ X-Series Processor Family for the LGA 2066 Socket
  • 13 Power Phase Design, Dr. MOS
  • Supports DDR4 4400+(OC)
  • 4 PCIe 3.0 x16, 1 PCIe 2.0 x1
  • NVIDIA® 3-Way SLI™, AMD 3-Way CrossFireX™
  • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Creative Sound Blaster™ Cinema 3
  • 10 SATA3, 3 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 3 USB 3.1 Gen2 10Gb/s (1 Front Header, 1 Type-A + 1 Type-C), 8 USB 3.1 Gen1 (4 Front, 4 Rear)
  • AQUANTIA® / Marvell 10 Gigabit LAN, Dual Intel® Gigabit LAN
  • Intel® 802.11ac WiFi
  • ASRock RGB LED
  • BIOS Flashback
  • Hyper BCLK Engine III
