Description

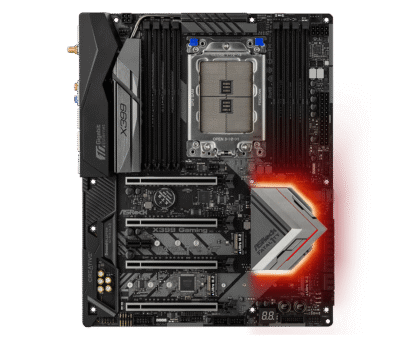

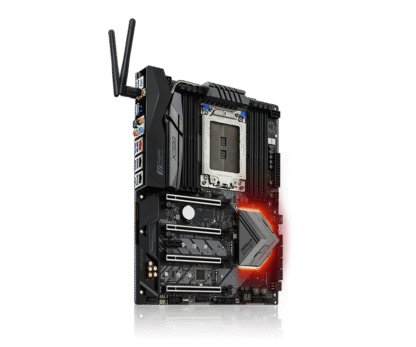

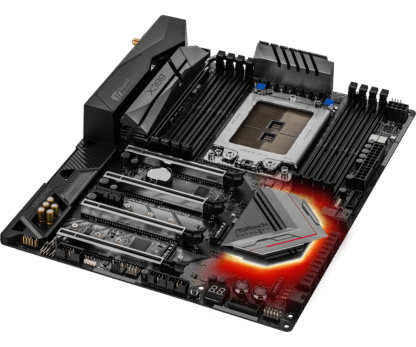

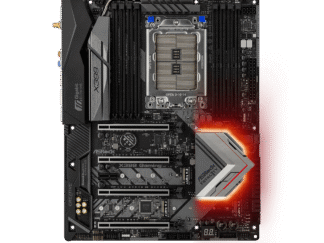

ASRock Fatal1ty X399 Professional Gaming motherboard is based on the AMD X399 chipset, featuring 2 quad-channel DDR4 memory slots with a maximum capacity of 128GB RAM. The ASRock Fatal1ty X399 Professional Gaming motherboard also includes four PCI Express 3.0 x16 slots, one PCI Express 2.0 x1 slot, and two Ultra M.2 slots. Additionally, it offers USB 3.1 Gen2 (Type A and C), USB 3.1 Gen1, and three RJ-45 LAN ports.
ASRock Fatal1ty X399 Professional Gaming
Product: ASRock Fatal1ty X399 Professional Gaming
Socket: TR4
Category: Motherboards
Brand: ASRock
Condition: Refurbished
EAN: 4717677333930
SKU: 90-MXB5Q0-A0UAYZ, Fatal1ty X399 Professional Gaming, X399 PROF. GAMING, X399 PROFESSIONAL GAMING
Warranty: 6 months
Drivers for the ASRock Fatal1ty X399 Professional Gaming
Processors supported by the ASRock Fatal1ty X399 Professional Gaming
Package Contents:
- Motherboard (ASRock Fatal1ty X399 Professional Gaming)
- IO-Shield (metal backplate)
- Antenna
- No manual
- No driver CD
- No cables
Unique Features
Gaming Armor
Power
– Hi-Density Power Connectors (24 pin for Motherboard, 8+4 pin for Motherboard, 6 pin for PCIe Slot)
– IR Dr. MOS
Memory
– 15μ Gold Contact in DIMM Slots
VGA Card
– 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE4)
Internet
– AQUANTIA® / Marvell 10G LAN
– Intel® LAN
Cooling
– XXL Aluminum Alloy Heatsink
– 8 Layer PCB
– 2oz Copper PCB
– Heat Pipe Design
Audio
– Creative Sound Blaster™ Cinema 3
Unique Feature
ASRock USB 3.1 Gen2
– ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)
– ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
– XXL Aluminum Alloy Heatsink
– Premium 60A Power Choke
– Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
– IR3555M Dr. MOS 60A
– Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
– I/O Armor
– Matte Black PCB
– High Density Glass Fabric PCB
AQUANTIA® / Marvell 10G LAN
Intel® 802.11ac WiFi
ASRock Steel Slots
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Ultra USB Power
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU
– Supports AMD TR4 Socket Ryzen Threadripper Series CPUs
– IR Digital PWM
– 11 Power Phase design
– Supports ASRock Hyper BCLK Engine III
Chipset
– AMD X399
Memory
– Quad Channel DDR4 Memory Technology
– 8 x DDR4 DIMM Slots
– Supports DDR4 3600+(OC) / 3200(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory(U-DIMM)
– Max. capacity of system memory: 128GB*
– 15μ Gold Contact in DIMM Slots
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
– 128Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 5.1 compliance wake up events
– Supports jumperfree
– SMBIOS 2.3 support
– CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment
Graphics
– n/a
Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
– Premium Blu-ray Audio support
– Supports Surge Protection
– Nichicon Fine Gold Series Audio Caps
– 120dB SNR DAC with Differential Amplifier
– TI® NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
– Pure Power-In
– Direct Drive Technology
– PCB Isolate Shielding
– Impedance Sensing on Rear Out port
– Individual PCB Layers for R/L Audio Channel
– RGB LED
– Gold Audio Jacks
– 15μ Gold Audio Connector
– Supports Creative Sound Blaster™ Cinema 3
LAN
1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (AQUANTIA® / Marvell AQC107):
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports PXE
2 x Intel® Gigabit LAN 10/100/1000 Mb/s (2 x Intel® I211AT):
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Dual LAN with Teaming*
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
*Teaming is supported on Windows® 10 RS2, RS3 and RS4.
Wireless LAN
– Intel® 802.11ac WiFi Module (Free Bundle)
– Supports IEEE 802.11a/b/g/n/ac
– Supports Dual-Band (2.4/5 GHz)
– Supports high speed wireless connections up to 433Mbps
– Supports Bluetooth 4.2 / 3.0 + High speed class II
Slots
– 4 x PCI Express 3.0 x16 Slots (PCIE1/PCIE2/PCIE4/PCIE5: single at x16 (PCIE1); dual at x16 (PCIE1) / x16 (PCIE4); triple at x16 (PCIE1) / x8 (PCIE2) / x16 (PCIE4); quad at x16 (PCIE1) / x8 (PCIE2) / x16 (PCIE4) / x8 (PCIE5))*
– 1 x PCI Express 2.0 x1 Slot
– Supports AMD Quad CrossFireX™, 4-Way CrossFireX™, 3-Way CrossFireX™ and CrossFireX™
– Supports NVIDIA® Quad SLI™, 4-Way SLI™, 3-Way SLI™ and SLI™
– 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
– 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE4)
*Supports NVMe SSD as boot disks
Storage
– 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
– 2 x Ultra M.2 Sockets (M2_1 and M2_2), support M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
– 1 x Ultra M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
– 1 x U.2 Connector**
*Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
**If M2_1 is plugged, U.2 Connector will be disabled.
Connector
– 1 x COM Port Header
– 1 x Power LED and Speaker Header
– 2 x RGB LED Headers*
– 1 x CPU Fan Connector (4-pin)**
– 1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
– 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
– 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) (for Motherboard)
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) (for Motherboard)
– 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) (for Motherboard)
– 1 x 6 pin 12V Power Connector (Hi-Density Power Connector) (for PCIe graphics card)
– 1 x Front Panel Audio Connector (15μ Gold Audio Connector)*****
– 1 x Right Angle Front Panel Audio Connector*****
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)
– 1 x Clear CMOS Switch
– 1 x Dr. Debug with LED
– 1 x Power Switch with LED
– 1 x Reset Switch with LED
– 1 x CPU Xtreme OC Switch
*Each header supports up to 12V/3A, 36W LED Strip
**The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
***The CPU Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.
****The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.
CPU_FAN1, CHA_FAN1, CHA_FAN2, CPU_OPT/W_PUMP and CHA_FAN3/W_PUMP can auto detect if 3-pin or 4-pin fan is in use.
******Connect the audio device to either one of the audio connectors.

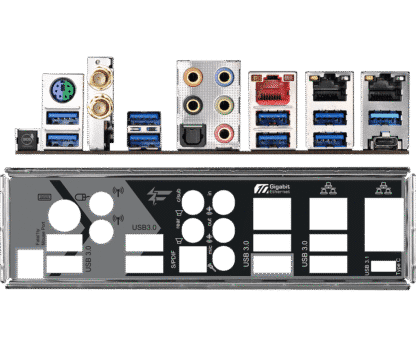

Rear Panel I/O
– 2 x Antenna Ports
– 1 x PS/2 Mouse/Keyboard Port
– 1 x Optical SPDIF Out Port
– 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
– 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
– 8 x USB 3.1 Gen1 Ports (Supports ESD Protection)
– 3 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
– 1 x BIOS Flashback Switch
– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
*Ultra USB Power is supported on USB3_6 port.
1 x Fatal1ty Mouse Port (USB 3.1 Gen1) is included
Software and UEFI
Software
– ASRock F-Stream
– ASRock RGB LED
– ASRock Key Master
– ASRock APP Charger
UEFI
– ASRock Full HD UEFI
– ASRock Instant Flash
– ASRock Crashless BIOS
– ASRock Easy RAID Installer
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories
– I/O Shield
– 2 x WiFi 2.4/5 GHz Antennas
Hardware Monitor
– Temperature Sensing: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
– Fan Tachometer: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
– Fan Multi-Speed Control: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_NB, DRAM, PCH 1.05V, +1.8V, VDDP
Form Factor
– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
– 8 Layer PCB
– 2oz Copper PCB
OS
– Microsoft Windows® 10 64-bit
Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
