Product information

ASRock Fatal1ty Z370 Gaming K6: Motherboard | ATX | LGA1151 (supports 8th and 9th gen, CPU) | 4x DDR4 (max 64GB) | M.2 (PCI-e 3.0 x4 + SATA) | SATA 600 | PCI-e 3.0 x1 | PCI-e 3.0 x16 | Ethernet 1Gbps | USB 2.0 | USB 3.2 (Gen1, 5Gb/s) | USB 3.2 (Gen2, 10Gb/s) | USB 3.2 (Gen2, 10Gb/s) type-c


Product:ASRock Fatal1ty Z370 Gaming K6
Socket: LGA1151
Supports: 8th en 9th Generation Processors
Category: motherboards
Brand: ASRock
Condition: Refurbished – BIOS updated to the latest version
EAN:
4717677334210
SKU: 90-MXB5V0-A0UAYZ, Z370 Gaming K6
Warranty:
6 months

Package contents:
– Motherboard (ASRock Z370 Gaming K6)
– Backplate (blende)
– No manual
– No drivers CD
– No cables


Gaming Armor
Power
– Hi-Density Power Connectors (24 pin and 8 pin)
Memory
– 15μ Gold Contact in DIMM Slots
VGA Card
– 15μ Gold Contact in VGA PCIe Slot (PCIE2)
Internet
– Intel® LAN
Cooling
– XXL Aluminum Alloy Heatsink
– Heat Pipe Design
Audio
– Creative Sound Blaster™ Cinema 3


Unique Feature
ASRock USB 3.1 Gen2
– ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)
– ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
– XXL Aluminum Alloy Heatsink
– Premium 60A Power Choke
– Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
– Dual Stack MOSFET (DSM)
– Combo Caps (Nichicon 12K Black Caps)
– Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
– I/O Armor
– Matte Black PCB
– High Density Glass Fabric PCB

ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology
ASRock Steel Slots
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Ultra USB Power
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop


CPU
– Supports 8th Generation Intel® Core™ Processors (Socket 1151)
– Digi Power design
– 12 Power Phase design
– Supports Intel® Turbo Boost 2.0 Technology
– Supports Intel® K-Series unlocked CPUs
– Supports ASRock BCLK Full-range Overclocking
– Supports ASRock Hyper BCLK Engine II


Chipset
– Intel® Z370


Memory
– Dual Channel DDR4 Memory Technology
– 4 x DDR4 DIMM Slots
– Supports DDR4 4333+(OC)* / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, unbuffered memory
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 64GB**
– Supports Intel® Extreme Memory Profile (XMP) 2.0
– 15μ Gold Contact in DIMM Slots

*8th Gen Intel® CPU supports DDR4 up to 2666.
Please refer to Memory Support List on ASRock’s website for more information.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
– Supports Secure Backup UEFI Technology
– ACPI 6.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU Core/Cache, GT Core/Cache, DRAM, PCH 1.0V, VCCIO, VCCST, VCCSA, VCCPLL, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL Voltage Multi-adjustment


Graphics
– Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel ® UHD Graphics
– DirectX 12
– HWA Encode/Decode: VP9 8-bit, VP9 10-bit (Encode only), VP8, HEVC (MPEG-H Part2, h.265), AVC (MPEG4, h.264), MPEG2-Part2 (h.262 ), JPEG/MJPEG,VC-1
– Max. shared memory 1024MB**
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports Triple Monitor
– Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 30Hz
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports HDCP with DVI-D and HDMI Ports
– Supports 4K Ultra HD (UHD) playback with HDMI Port

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

**The size of maximum shared memory may vary from different operating systems.


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
– Premium Blu-ray Audio support
– Support Surge Protection
– Nichicon Fine Gold Series Audio Caps
– 120dB SNR DAC with Differential Amplifier
– NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
– Pure Power In
– Direct Drive Technology
– PCB Isolate Shielding
– Impedance Sensing on Rear Out port
– Individual PCB Layers for R/L Audio Channel
– RGB LED
– Gold Audio Jacks
– 15μ Gold Audio Connector
– Supports Creative Sound Blaster™ Cinema 3


LAN
– Gigabit LAN 10/100/1000 Mb/s
– 1 x Giga PHY Intel® I219V, 1 x GigaLAN Intel® I211AT
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Dual LAN with Teaming*
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE

*Teaming is supported on Windows® 10 RS2 and above.


Slots
– 3 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4/PCIE6: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); triple at x8 (PCIE2) / x8 (PCIE4) / x4 (PCIE6) )*
– 3 x PCI Express 3.0 x1 Slots (Flexible PCIe)
– Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ ​​and CrossFireX™
– Supports NVIDIA® Quad SLI™ and SLI™
– Supports NVIDIA® NVLink™ with dual NVIDIA® GeForce RTX series graphics cards**
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
– 15μ Gold Contact in VGA PCIe Slot (PCIE2)

*Supports NVMe SSD as boot disks

**NVIDIA® NVLink™ Bridge does not come with the package. Please purchase it from NVIDIA® if necessary.
storage
– 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 15), NCQ, AHCI and Hot Plug*
– 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
– 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)* *
– 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s )**

*M2_1, SATA3_0 and SATA3_1 share lanes. If either one of them is in use, the others will be disabled.
M2_2, SATA3_4 and SATA3_5 share lanes. If either one of them is in use, the others will be disabled.

**Supports Intel® Optane™ Technology
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit


Connector
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 1 x CPU Fan Connector (4-pin)**
– 1 x CPU Optional/Water Pump Fan Connector (4-pin)***
– 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed ​​Control)
– 1 x Chassis Optional/Water Pump Fan Connector (4-pin)****
– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
– 1 x Thunderbolt™ AIC Connector (5 pin)
– 3 x USB 2.0 Headers (Support 6 USB 2.0 ports) (Intel® Z370) (Supports ESD Protection)
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Intel® Z370) (Supports ESD Protection)
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
– 1 x Front Panel Type C USB 3.1 Gen1 Header (ASMedia ASM1074 hub)
– 1 x Dr. Debug with LED
– 1 x Power Button with LED
– 1 x Reset Button with LED
– 1 x XMP Switch

*Supports in total up to 12V/3A, 36W LED Strip

**The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

***The CPU Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.

****The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.

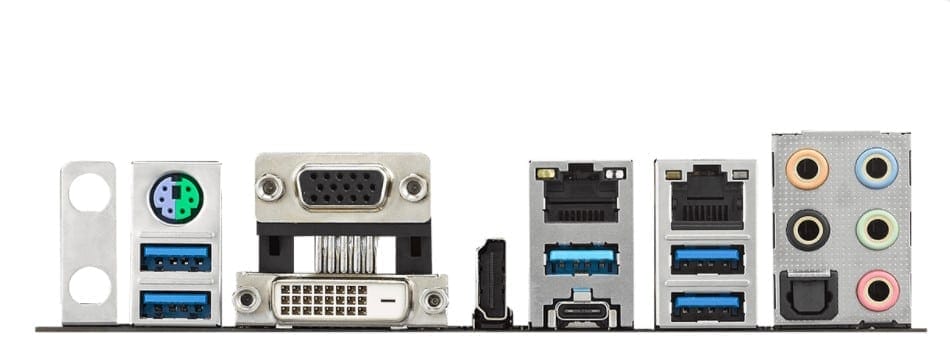

Rear Panel I/O
– 2 x Antenna Ports
– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 1 x Optical SPDIF Out Port
– 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection)
– 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection)
– 4 x USB 3.1 Gen1 Ports (Intel® Z370) (Supports ESD Protection)*
– 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

*1 x Fatal1ty Mouse Port (USB 3.1 Gen1) is included

**Ultra USB Power is supported on USB3_34 ports.
ACPI wake up function is not supported on USB3_34 ports.


Software and UEFI
Software
– ASRock F-Stream
– ASRock RGB LED
– ASRock Key Master
– ASRock XFast LAN
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.


Accessories
– I/O Shield


Hardware Monitor
– Temperature Sensing: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
– Fan Tachometer: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
– Fan Multi-Speed ​​Control: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH 1.0V, VCCSA, VCCST


Form Factor
– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm


OS
– Microsoft® Windows® 10 64-bit / 11 64-bit


Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Specification

Weight 1 kg
Intel

Socket 1151

Brand

Asrock

Form Factor

ATX

Chipset

Intel Z370

Memory Type

DDR4 SDRAM

Number of memory slots

4

Maximum memory size

64 GB

Connectors

2x RJ-45 LAN, D-Sub (VGA), DVI-D, HDMI, USB 3.1 Gen1, USB 3.1 Gen2 Type-A, USB 3.1 Gen2 Type-C

Storage Interfaces

Serial ATA-600, Ultra M.2 Socket

Interfaces

M.2, PCI-e 3.0 x1, PCI-e 3.0 x16

Socket

Model

Z370-Gaming-K6

Length

30.5 cm

Width

24.4 cm

package content

Motherboard and Backplate (Blende)

ASRock Fatal1ty Z370 Gaming K6 LGA1151 motherboard

51 in stock

Free delivery
109,95

  • Intel Z370 Chipset
  • Supports 8th and 9th Generation Intel® Core™ Processors (Socket 1151)
  • Digital PWM, 12 Power Phase
  • Supports DDR4 4333+(OC)
  • 3 PCIe 3.0 x16, 3 PCIe 3.0 x1, 1 M.2 (Key E)
  • NVIDIA® Quad SLI™, AMD 3-Way CrossFireX™
  • Graphics Output Options : HDMI, DVI-D, D-Sub
  • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
    Supports Purity Sound™ 4 & Creative Sound Blaster™ Cinema 3
  • 8 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 2 USB 3.1 Gen2 10Gb/s (1 Type-A + 1 Type-C)
    9 USB 3.1 Gen1 (1 Front Type-C, 4 Front Type-A, 3 Rear, 1 Fatal1ty Mouse Port)
  • Dual Intel® Gigabit LAN
  • ASRock RGB LED
  • Intel® Optane™ Memory Ready
