Product information

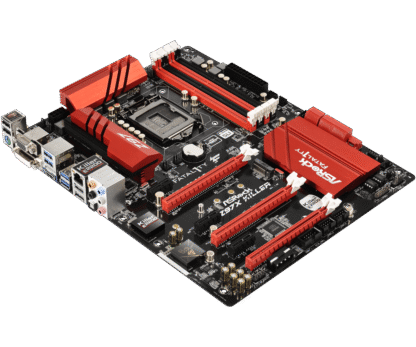

The ASRock Fatal1ty Z97X Killer is an ATX LGA1150 motherboard based on the Intel Z97 chipset. The board must be combined with DDR3 memory, for which 4 slots are available. In total, the Fatal1ty Z97X Killer / 3.1 has 6 Serial ATA connections for hard disks and SSDs. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC1150 chip.

Features: Motherboard | ATX | LGA1150 | 4x DDR3 | 6x SATA-600 | PCI-e 2.0 x1 | PCI-e 3.0 x16 | 10x USB 2.0 | 6x USB 3.1 (Gen1, 5Gb / s) | DVI-D | HDMI | VGA (D-Sub)

Click here for the supporting CPUs
Click here for the drivers

Product: ASRock Fatal1ty Z97X Killer / 3.1
Socket: LGA1150
Category: motherboards
Brand: ASRock;
EAN: 4717677323498
Condition: Refurbished – BIOS updated to the latest version
SKU: 90-MXGU30-A0UAYZ, Fatal1ty Z97X Killer, Z97X KILLER
Warranty:
6 months

Package Contents:
– Motherboard (Fatal1ty Z97X Killer)
– backplate (blende)
– No manual
– No CD with drivers
– No cables


Gaming Armor
CPU Power
– Hi-Density Power Connector
Dual-Stack MOSFET (DSM)
Memory
– NexFET ™ MOSFET
– 15μ Gold Contact in DIMM Slots
VGA Card
– 15μ Gold Contact in VGA PCIe Slot (PCIE2)
– PCIe Power Connector
Internet
– Qualcomm® Atheros® Killer ™ LAN
Cooling
– XXL Aluminum Alloy Heatsink
Audio
– Purity Sound ™ 2

Unique Feature
ASRock Super Alloy
– XXL Aluminum Alloy Heatsink
– Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke)
Dual-Stack MOSFET (DSM)
– NexFET ™ MOSFET
Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
– Sapphire Black PCB
ASRock HDD Saver Technology
ASRock Full Spike Protection
ASRock Cloud
ASRock APP Shop


CPU
Supports 5th Generation Intel® Core ™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
Supports New 4th and 4th Generation Intel® Xeon® / Core ™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
– Digi Power design
– 8 Power Phase design
– Supports Intel® Turbo Boost 2.0 Technology
Supports Intel® K-Series unlocked CPUs
Supports ASRock BCLK Full-range Overclocking


Chipset
– Intel® Z97


Memory
Dual Channel DDR3 / DDR3L Memory Technology
– 4 x DDR3 / DDR3L DIMM Slots
Supports DDR3 / DDR3L 3200+ (OC) / 2933 (OC) / 2800 (OC) / 2400 (OC) / 2133 (OC) / 1866 (OC) / 1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 32GB *
Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2

* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 2 x 64Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
– Supports Secure Backup UEFI Technology
– ACPI 1.1 Compliant wake up events
– SMBIOS 2.3.1 Support
– CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment


Graphics
Supports Intel® HD Graphics Built-in Visuals: Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru ™ 3D, Intel® Clear Video HD Technology, Intel® Insider ™, Intel ® HD Graphics 4400/4600
Pixel Shader 5.0, DirectX 11.1
– Max. shared memory 512MB *
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports Triple Monitor
Supports HDMI with max. Resolution up to 4K x 2K (4096×2304) @ 24Hz
Supports DVI-D with max. Resolution up to 1920×1200 @ 60Hz
Supports D-Sub with max. Resolution up to 1920×1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
Supports HDCP with DVI-D and HDMI Ports
Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

* The size of maximum shared memory may vary from different operating systems.

** Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

*** Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8/8 64-bit / 7/7 64-bit.

**** Intel® InTru ™ 3D is only supported under Windows® 8/8 64-bit / 7/7 64-bit.


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
– Premium Blu-ray Audio support
Supports Surge Protection (ASRock Full Spike Protection)
Supports Purity Sound ™ 2
– Nichicon Fine Gold Series Audio Caps
115dB SNR DAC with differential amplifier
– TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)
– Direct Drive Technology
– EMI shielding cover
– PCB isolate shielding
– Supports DTS Connect


LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb / s
– Qualcomm® Atheros® Killer ™ E2200 Series
– Supports Qualcomm® Atheros® Security Wake On Internet Technology
– Supports Wake-On-LAN
Supports Lightning / ESD Protection (ASRock Full Spike Protection)
Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 3 x PCI Express 3.0 x16 Slots (PCIE2 / PCIE4 / PCIE6: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); triple at x8 (PCIE2) / x4 (PCIE4) / x4 (PCIE6)
– 3 x PCI Express 2.0 x1 Slots
Supports AMD Quad CrossFireX ™, 3-Way CrossFireX ™ and CrossFireX ™
Supports NVIDIA® Quad SLI ™ and SLI ™


Storage
– 6 x SATA3 6.0 Gb / s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 13 and Intel® Smart Response Technology), NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology
– 1 x SATA Express 10 Gb / s Connector (shared with SATA3_4, SATA3_5 and M.2 Socket) *
– 1 x M.2_SSD (NGFF) Socket 3, supports M Key M.2 SATA3 6.0 Gb / s module and M.2 PCI Express module up to Gen2 x2 (10 Gb / s)

* Support to be announced.
** The M.2 Socket, SATA3_4, SATA3_5 and SATA Express share lanes. If either one of them is in use, the others will be disabled.


Connector
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Power LED Header
– 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)
– 1 x Power Fan Connector (3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x HDD Saver Connector
– 1 x PCIe Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))


Rear Panel I / O
– 1 x PS / 2 Mouse / Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 1 x Optical SPDIF Out Port
– 1 x USB 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x USB 3.1 Gen1 Ports (ASMedia ASM1042AE) (Supports ESD Protection (ASRock Full Spike Protection))
– 4 x USB 3.1 Gen1 Ports (Intel® Z97) ​​(Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT / LINK LED and SPEED LED)
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone


Software and UEFI
Software
– ASRock F-Stream
– ASRock Disk Health Report
– ASRock USB Key
– ASRock Key Master
– ASRock APP Charger
– ASRock XFast RAM
– ASRock Restart to UEFI

UEFI
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock UEFI Guide
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Dehumidifier
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer


Accessories
– I / O Shield


Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis, Power Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
Voltage monitoring: + 12V, + 5V, + 3.3V, CPU Input Voltage, CPU Internal Voltages


Form Factor
– ATX Form Factor
– High Density Glass Fabric PCB


OS
Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit


Certifications
– FCC, CE
– ErP / EuP ready (ErP / EuP ready power supply is required)

Specification

Weight1 kg
Intel

LGA1150

Brand

Asrock

Chipset

Intel Z97

Form Factor

ATX

Memory Type

DDR3 SDRAM

Number of memory slots

4

Maximum memory size

32 GB

Connectors

D-Sub (VGA), DVI-D, HDMI, USB 3.1 Gen1

Storage Interfaces

M.2_SSD (NGFF) Socket 3, SATA Express 10 Gb/s, Serial ATA-600

Interfaces

PCI-e 2.0 x1, PCI-e 3.0 x16

Socket

ASRock Fatal1ty Z97X Killer LGA1150 motherboard

Free delivery

Brand: Asrock
Model: Fatal1ty Z97X Killer
Socket: 1150
Memory: 4x DDR3 (32GB Max)
Form-Factor: ATX
EAN: 4717677323498
SKU: 90-MXGU30-A0UAYZ, Fatal1ty Z97X Killer, Z97X KILLER
