Description

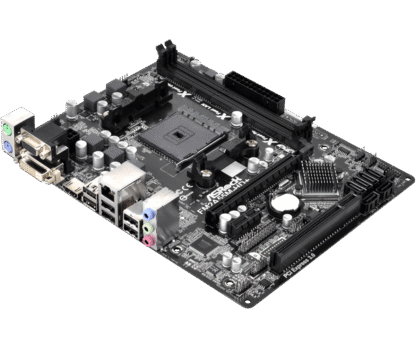

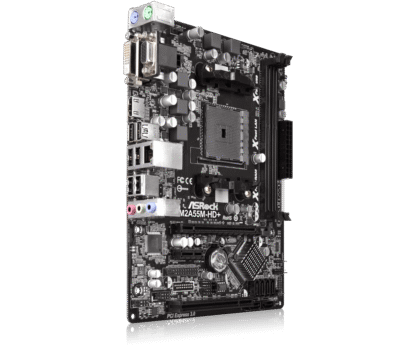

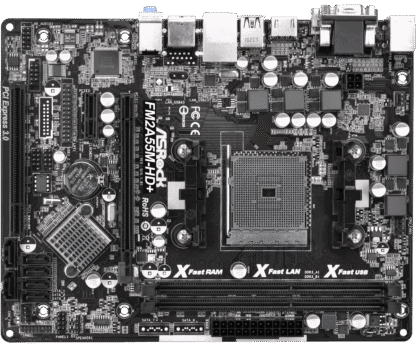

The ASRock FM2A55M-HD+ is an ATX Socket FM2+ motherboard based on the AMD A55 chipset. The board must be combined with DDR3 memory, for which 2 slots are available. In total, the ASRock FM2A55 Pro+ has 6 Serial ATA connections for hard disks and SSDs. The onboard sound card offers 5.1 channel sound and is based on a Realtek ALC662 chip.
Features: Motherboard | ATX | AMD FM2+ | DDR3 (Max32GB) | SATA-300 | USB2.0 | DVI-D | VGA | HDMI
Product: ASRock FM2A55 Pro+
Socket: AMD FM2+
Category: Motherboards
Brand: ASRock
EAN: 4717677322156
Condition: Refurbished – Equipped with the latest available BIOS version
SKU: 90-MXGRZ0-A0UAYZ, FM2A55M-HD+, FM2A55MHD+
Warranty: 6 Months
package content:
– Motherboard (ASRock FM2A55 Pro+)
– Backplate (blende)
– No manual
– No driver CD
– No cables
A-Style
– ASRock Cloud
CPU
– Supports Socket FM2+ 95W / FM2 100W processors
Chipset
– AMD A55 FCH (Hudson-D2)
Memory
– Dual Channel DDR3 Memory Technology
– 2 x DDR3 DIMM Slots
– Supports DDR3 1866/1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 32GB*
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
– Supports AMD Memory Profile (AMP)
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
– 64Mb AMI UEFI Legal BIOS with GUI support
– Support “Plug and Play”
– ACPI 1.1 Compliant wake up events
– Supports jumper free
– SMBIOS 2.3.1 support
– DRAM, CPU Voltage multi-adjustment
Graphics
– Integrated AMD Radeon™ R7/R5 Series Graphics in A-series APU
– DirectX 11.1, Pixel Shader 5.0 with FM2+ CPU. DirectX 11, Pixel Shader 5.0 with FM2 CPU.
– Max. shared memory 2GB
– Multi Graphics Output Options: D-Sub, DVI-D and HDMI Ports
– Supports Triple Monitor
– Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 24Hz*
– Supports Dual-link DVI-D with max. resolution up to 2560×1600 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports Blu-ray Stereoscopic 3D with HDMI Port
– Supports AMD Steady Video™ 2.0: New video post processing capability for automatic jitter reduction on home/online video
– Supports HDCP with DVI-D and HDMI Ports
– Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports
*Only FM2+ APU can support up to 4096×2160 resolution display VIA® HDMI port
Audio
– 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111FR
– Supports Realtek RealWoW! Technology
– Supports Wake-On-LAN
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
Slots
– 1 x PCI Express 3.0 x16 Slot (PCIE1 @ x16 mode)
– 1 x PCI Express 2.0 x1 Slot
– 1 x PCI Slot
– Supports AMD Dual Graphics
*PCIE 3.0 is only supported with FM2+ CPU. With FM2 CPU, it only supports PCIE 2.0.
Storage
– 6 x SATA2 3.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
Connector
– 1 x Print Port Header
– 1 x COM Port Header
– 1 x Chassis Intrusion Header
– 1 x TPM Header
– 1 x CPU Fan Connector (4 pin)
– 1 x Chassis Fan Connector (4-pin)
– 1 x Power Fan Connector (3 pin)
– 1 x 24 pin ATX Power Connector
– 1 x 4 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

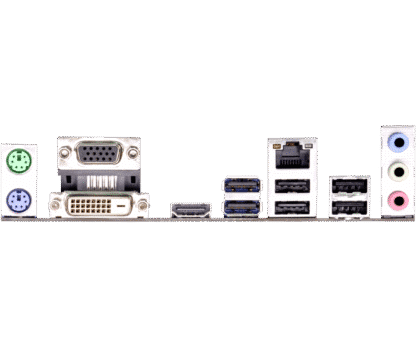

Rear Panel I/O
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 6 x USB 2.0 Ports
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone
Unique Feature
– ASRock A-Tuning
– ASRock Instant Boot
– ASRock Instant Flash
– ASRock APP Charger
– ASRock XFast USB
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock Internet Flash
– ASRock UEFI Tech Service
– ASRock Dehumidifier Function
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer
– ASRock Interactive UEFI
– ASRock Fast Boot
– ASRock X Boost
– ASRock Restart to UEFI
– ASRock USB Key
– ASRock FAN-Tastic Tuning
– Hybrid Booster:
– ASRock U-COP
Accessories
– I/O Shield
Hardware Monitor
– CPU temperature sensing
– Chassis temperature sensing
– CPU Fan Tachometer
– Chassis Fan Tachometer
– CPU, Chassis Quiet Fan
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, Vcore
Form Factor
– Micro ATX Form Factor
– All Solid Capacitor design
OS
– Microsoft® Windows® 10 32-bit / 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
*Carrizo FM2r2 processor supports Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit only.
Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
