Product information

ASRock FM2A88M Pro3 +: Motherboard | M-ATX | AMD FM2 + | 4x DDR3 | 8x SATA-600 | PCI-e 2.0 x1 | PCI-e 3.0 x16 | USB 2.0 | USB 3.1 (Gen1, 5Gb / s) | DVI-D | HDMI | D-Sub (VGA)

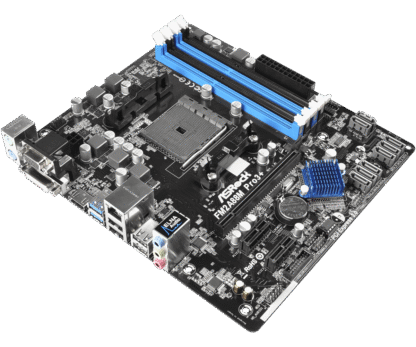

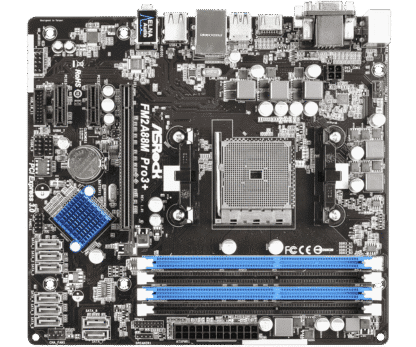

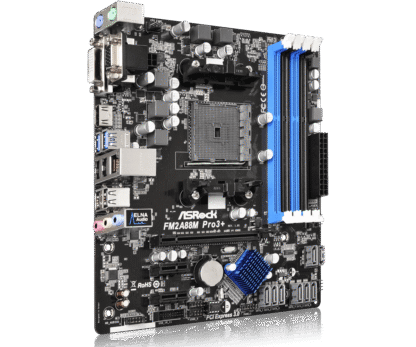

Product: ASRock FM2A88M Pro3 +
Socket: AMD FM2 +
Category: motherboards
Brand: ASRock
EAN: 4717677324860
Condition: Refurbished – BIOS updated to the latest version
SKU: 90-MXGWE0-A0UAYZ, FM2A88M PRO3 +
Warranty:
6 months


Package Contents:
– Motherboard (ASRock FM2A88M Pro3+)
– backplate (blende)
– No manual
– No CD with drivers
– No cables


Unique Feature
ASRock Full Spike Protection
ASRock Cloud
ASRock APP Shop


CPU
Supports Socket FM2 + 95W / FM2 100W processors


Chipset
– AMD A88X (Bolton-D4)


Memory
– Dual Channel DDR3 Memory Technology
– 4 x DDR3 DIMM Slots
Supports DDR3 2400+ (OC) / 2133/1866/1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 64GB *
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
Supports AMD Memory Profile Technology (AMP) up to AMP 2400

* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 64Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 1.1 Compliant wake up events
– Supports jumperfree
– SMBIOS 2.3.1 support
– DRAM, CPU Voltage multi-adjustment


Graphics
– Integrated AMD Radeon ™ R7 / R5 Series Graphics in A-series APU
– DirectX 11.1, Pixel Shader 5.0 with FM2 + CPU. DirectX 11, Pixel Shader 5.0 with FM2 CPU.
– Max. shared memory 2GB
– Three graphics output options: D-Sub, DVI-D and HDMI Ports
– Supports Triple Monitor
Supports HDMI with max. Resolution up to 4K x 2K (4096×2160) @ 24Hz
Supports Dual-link DVI-D with max. Resolution up to 2560×1600 @ 60Hz
Supports D-Sub with max. Resolution up to 1920×1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports Blu-ray Stereoscopic 3D with HDMI Port
Supports AMD Steady Video ™ 2.0: New video post processing capability for automatic jitter reduction on home / online video
– Supports HDCP with DVI-D and HDMI Ports
Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

* Only FM2 + APU can support up to 4096×2160 resolution display VIA® HDMI port.


Audio
– 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
– Supports Surge Protection (ASRock Full Spike Protection)
– ELNA Audio Caps


LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb / s
– Realtek RTL8111GR
Supports Wake-On-WAN
Supports Wake-On-LAN
Supports Lightning / ESD Protection (ASRock Full Spike Protection)
– Supports LAN Cable Detection
Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 1 x PCI Express 3.0 x16 Slot (PCIE1 @ x16 mode)
– 2 x PCI Express 2.0 x1 Slots
– Supports AMD Dual Graphics

* PCIE 3.0 is only supported with FM2 + CPU. With FM2 CPU, it only supports PCIE 2.0.


Storage
– 8 x SATA3 6.0 Gb / s Connectors, support RAID (RAID 0, RAID 1, RAID 5 and RAID 10), NCQ, AHCI and Hot Plug


Connector
– 1 x Chassis Intrusion Header
– 1 x TPM Header
– 1 x CPU Fan Connector (4-pin)
– 1 x Chassis Fan Connector (4-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 4 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Header by AMD A88X (Bolton-D4) (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))

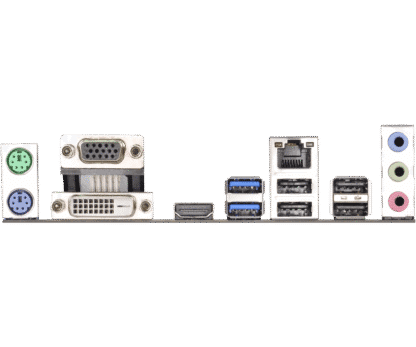

Rear Panel I / O
– 1 x PS / 2 Mouse Port
– 1 x PS / 2 Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x USB 3.1 Gen1 Ports (AMD A88X (Bolton-D4)) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT / LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone


Software and UEFI
Software
– ASRock A-Tuning
– ASRock Disk Health Report
– ASRock USB Key
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Restart to UEFI
– ASRock X-Boost

UEFI
– ASRock Interactive UEFI
– ASRock Instant Boot
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Dehumidifier Function
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer


Accessories
– I / O Shield


Hardware Monitor
– CPU temperature sensing
– Chassis temperature sensing
– CPU Fan Tachometer
– Chassis Fan Tachometer
– CPU, Chassis Quiet Fan
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
Voltage monitoring: + 12V, + 5V, + 3.3V, Vcore


Form Factor
– Micro ATX Form Factor
– Solid capacitor design
– High Density Glass Fabric PCB


OS
Microsoft® Windows® 10 32-bit / 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit

* Carrizo FM2r2 processor supports Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit only.


Certifications
– FCC, CE
– ErP / EuP ready (ErP / EuP ready power supply is required)

Specification

Weight1 kg
AMD-en

FM2(+)

Brand

Asrock

Chipset

AMD A88X (Bolton-D4)

Form Factor

Micro-ATX

Memory Type

DDR3 SDRAM

Number of memory slots

4

Maximum memory size

64 GB

Connectors

D-Sub (VGA), DVI-D, Ethernet (RJ-45), HDMI, USB 2.0, USB 3.1 Gen1

Storage Interfaces

Serial ATA-600

Interfaces

PCI-e 2.0 x1, PCI-e 3.0 x16

Socket

ASRock FM2A88M Pro3+

Fast delivery

  • AMD A88X (Bolton-D4) chipset
  • Support for Socket FM2+ 95W / FM2 100W processors
  • Supports Dual Channel DDR3 2400+(OC)
  • 1 PCIe 3.0 x16, 2 PCIe 2.0 x1
  • Supports AMD Dual Graphics
  • Integrated AMD Radeon™ R7/R5 Series Graphics in A Series APU
  • Graphics output options: D-Sub, DVI-D, HDMI
  • 5.1 CH HD Audio (Realtek ALC662 Audio Codec), ELNA Audio Caps
  • 8 SATA3, 4 USB 3.1 Gen1 (2 front, 2 rear), 8 USB 2.0
  • Supports ASRock Cloud, APP Shop, Full Spike Protection, X-Boost
