ASRock FM2A88X+ BTC

Fast delivery
44,95

Brand: Asrock
Model: FM2A88X + BTC
Socket: AMD FM2 (+)
Memory: 4x DDR3 (64GB Max)
Form-Factor: ATX
EAN: 4717677323177
SKU: 90-MXGTT0-A0UAYZ, FM2A88X + BTC, FM2A88X + BTC

Out of stock

SKU: ASRock FM2A88X+ BTC Categories: , Tags: , ,

Product information

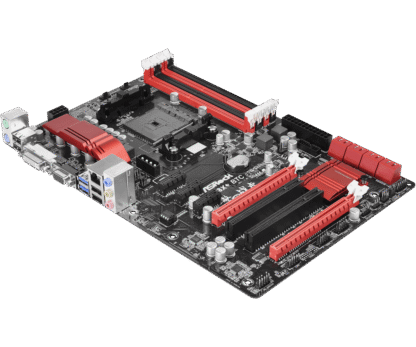

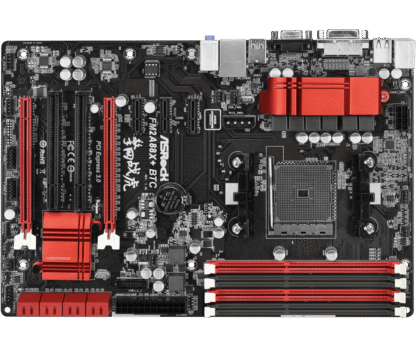

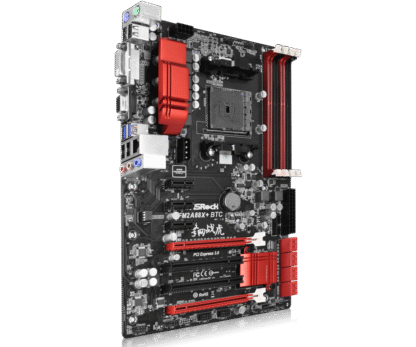

The ASRock FM2A88X + BTC is an ATX Socket FM2 + motherboard based on the AMD A88X chipset. The board must be combined with DDR3 memory, for which 4 slots are available. In total, the ASRock FM2A88X + BTC has 8 Serial ATA connections for hard disks and SSDs. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC662 chip.

Features: Motherboard | ATX | Connection FM2 + | 4x DDR3 | 8x SATA-600 | PCI | PCI-e 2.0 x1 | PCI-e 2.0 x16 | PCI-e 3.0 x16 | USB 2.0 | USB 3.1 (Gen1, 5Gb / s) | DVI-D | D-Sub (VGA)

Click here for the supporting CPUs
Click here for the drivers

Product: ASRock FM2A88X + BTC
Connection: FM2 +
Category: motherboards
Brand: ASRock
EAN: 4717677323177
Condition: Refurbished – BIOS updated to the latest version
SKU: 90-MXGTT0-A0UAYZ, FM2A88X + BTC, FM2A88X + BTC
Warranty:
6 months

Package Contents:
– Motherboard (ASRock FM2A88X + BTC)
– backplate (blende)
– No manual
– No CD with drivers
– No cables


A-Style
– ASRock Cloud


CPU
Supports Socket FM2 + 95W / FM2 100W processors
– 4 + 2 Power Phase design


Chipset
– AMD A88X (Bolton-D4)


Memory
– Dual-Channel DDR3 Memory Technology
– 4 x DDR3 DIMM Slots
Supports DDR3 2400+ (OC) / 2133 (OC) / 1866 (OC) / 1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 64GB *
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
Supports AMD Memory Profile Technology (AMP) up to AMP 2400
– 15μ Gold Contact in DIMM Slots

* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 64Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 1.1 Compliant wake-up events
– Supports jumperfree
– SMBIOS 2.3.1 support
– DRAM, CPU Voltage multi-adjustment


Graphics
– Integrated AMD Radeon ™ R7 / R5 Series Graphics in A-series APU
– DirectX 11.1, Pixel Shader 5.0 with FM2 + CPU. DirectX 11, Pixel Shader 5.0 with FM2 CPU.
– Max. shared memory 2GB
– Dual graphics output: Support DVI-D and D-Sub by independent display controllers
Supports Dual-link DVI-D with max. Resolution up to 2560×1600 @ 60Hz
Supports D-Sub with max. Resolution up to 1920×1200 @ 60Hz
Supports AMD Steady Video ™ 2.0: New video post-processing capability for automatic jitter reduction on home / online video
– Supports HDCP with DVI-D Port
Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port


Audio
– 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
Supports Surge Protection (ASRock Full Spike Protection)
– TI® NE5532 Premium Headset Amplifier (Supports up to 600-ohm headsets) (Line-Out on the rear I / O only)


LAN
– PCIe x1 Gigabit LAN 10/100/1000 Mb / s
– Realtek RTL8111GR
Supports Wake-On-WAN
– Supports Wake-On-LAN
Supports Lightning / ESD Protection (ASRock Full Spike Protection)
– Supports LAN Cable Detection
Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 1 x PCI Express 3.0 x16 Slot (PCIE4 @ x16 mode)
– 1 x PCI Express 2.0 x16 Slot (PCIE5 @ x4 mode)
– 3 x PCI Express 2.0 x1 Slots
– 2 x PCI Slots
Supports AMD Quad CrossFireX ™, CrossFireX ™ and Dual Graphics
– 15μ Gold Contact in VGA PCIe Slot (PCIE4)

* PCIe 3.0 is only supported with FM2 + CPU. With FM2 CPU, it only supports PCIe 2.0.

Storage
– 8 x SATA3 6.0 Gb / s Connectors, support RAID (RAID 0, RAID 1, RAID 5 and RAID 10), NCQ, AHCI and Hot Plug


Connector
– 1 x COM Port Header
– 1 x Power LED Header
– 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
– 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)
– 1 x Power Fan Connector (3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x PCIe Power Connector
– 1 x Front Panel Audio Connector
– 1 x USB Power Jumper (Ultra USB Power)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Header by AMD A88X (Bolton-D4) (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))

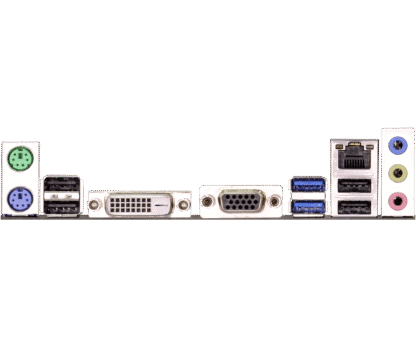

Rear Panel I / O
– 1 x PS / 2 Mouse Port
– 1 x PS / 2 Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x USB 3.1 Gen1 Ports (AMD A88X (Bolton-D4)) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT / LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone


Unique Feature
– ASRock A-Tuning
– ASRock APP Shop
– ASRock Instant Boot
– ASRock Instant Flash
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock Internet Flash
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Dehumidifier Function
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer
– ASRock Interactive UEFI
– ASRock Fast Boot
– ASRock X-Boost
– ASRock Restart to UEFI
– ASRock USB Key
– ASRock FAN-Tastic Tuning
– Hybrid Booster:
– ASRock U-COP
– Good Night LED


Accessories
– I / O Shield


Hardware Monitor
– CPU temperature sensing
– Chassis temperature sensing
– CPU Fan Tachometer
– Chassis Fan Tachometer
– CPU, Chassis Quiet Fan
– CPU, Chassis Fan multi-speed control
Voltage monitoring: + 12V, + 5V, + 3.3V, Vcore


Form Factor
– ATX Form Factor
– All Solid Capacitor design
– High-Density Glass Fabric PCB


OS
– Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / XP 32-bit / XP 64-bit < / p>

* USB 3.1 Gen1 is not supported by Windows® XP

** Carrizo FM2r2 processor supports Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit only.


Certifications
– FCC, CE
– ErP / EuP ready (ErP / EuP ready power supply is required)

Specification

Weight1 kg
AMD-en

FM2(+)

Brand

Asrock

Chipset

AMD A88X (Bolton-D4)

Form Factor

ATX

Memory Type

DDR3

Number of memory slots

4

Maximum memory size

64 GB

Connectors

D-Sub (VGA), DVI-D, USB 2.0, USB 3.1 Gen1

Storage Interfaces

Serial ATA-600

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 2.0 x16, PCI-e 3.0 x16

Socket

AMD FM2(+)
