Product information

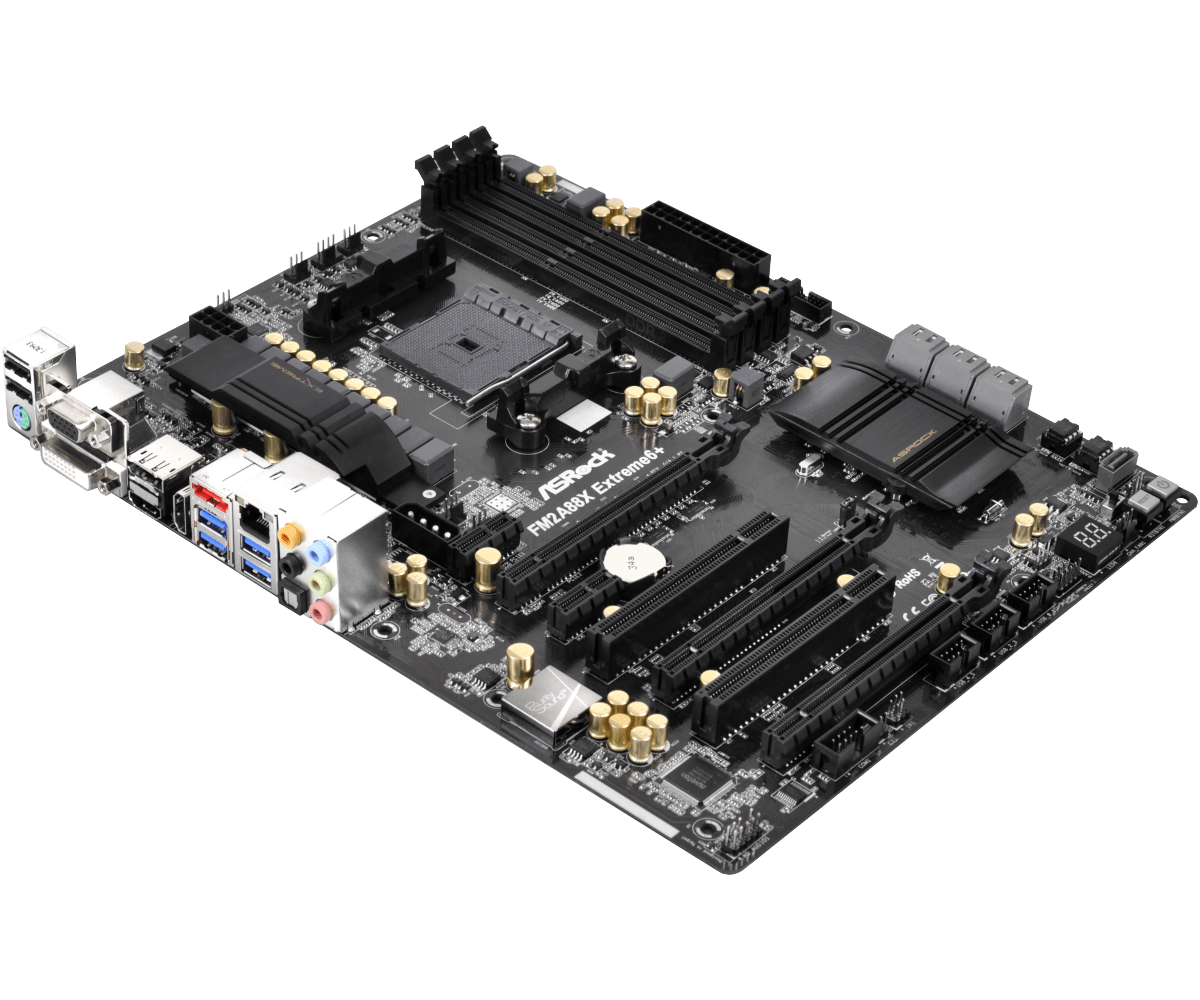

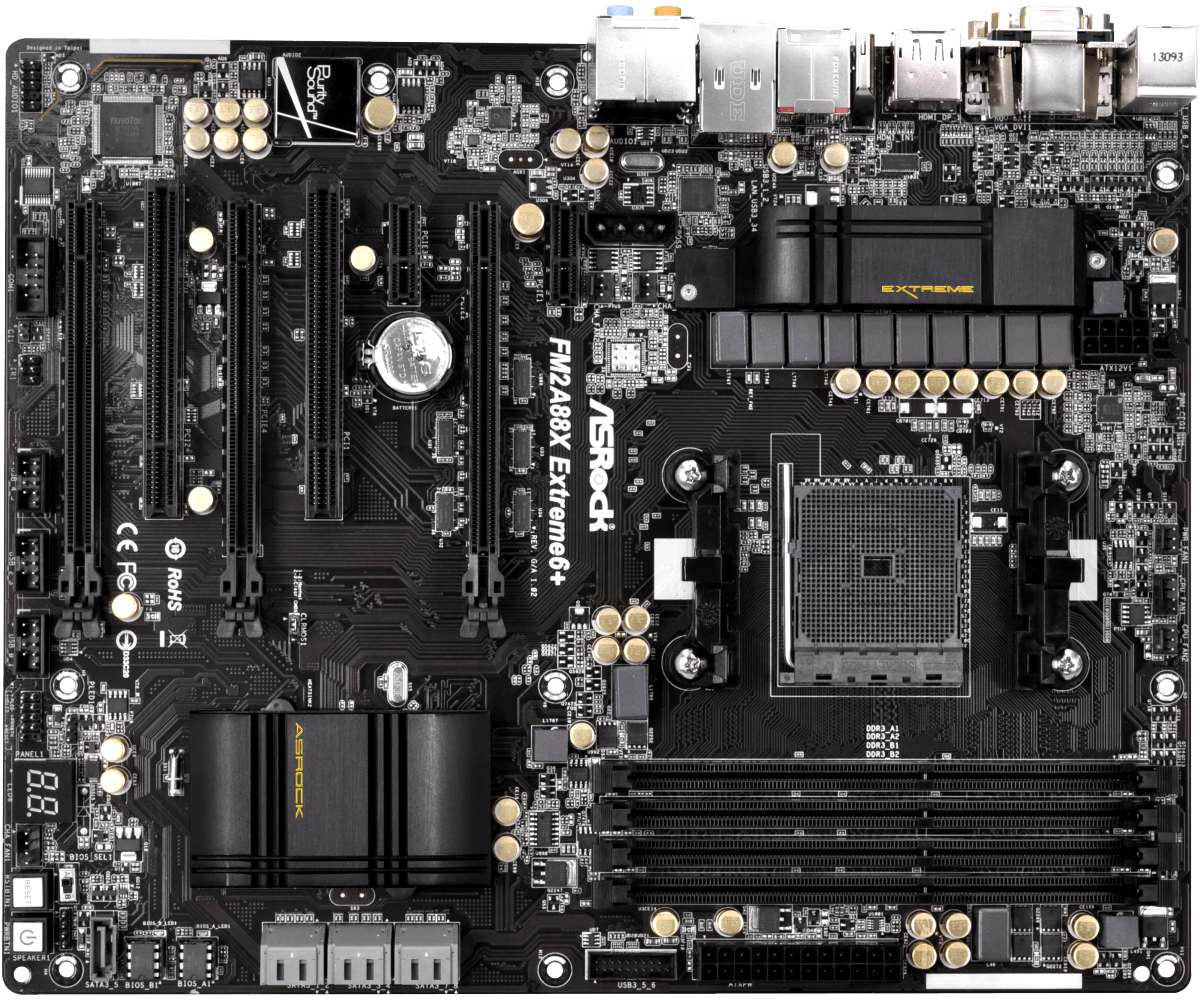

The ASRock FM2A88X Extreme6+ is an ATX Socket FM2 + motherboard based on the AMD A88X chipset. The board must be combined with DDR3 memory, for which 4 slots are available. In total, the ASRock FM2A88X Extreme6+ has 7 Serial ATA connections for hard disks and SSDs. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC1150 chip.

Features: Motherboard | ATX | AMD FM2 + | 4x DDR3 | 7x SATA-600 | PCI | PCI-e 2.0 x1 | PCI-e 2.0 x16 | PCI-e 3.0 x16 | USB 2.0 | USB 3.1 (Gen1, 5Gb / s) | DVI-D | HDMI | HDMI-in | eSATA | D-Sub (VGA)

Product: ASRock FM2A88X Extreme6+
Socket: AMD FM2+
Category: motherboards
Brand: ASRock
EAN: 4717677321814
Condition: Refurbished – BIOS updated to the latest version
SKU: 90-MXGRU0-A0UAYZ, 90-MXGRUO-A0UYZ, FM2A88X EXT6, FM2A88X EXT6+, FM2A88X EXTREME6+
Warranty:
6 months

Package Contents:
– Motherboard (ASRock FM2A88X Extreme6+)
– backplate (blende)
– No manual
– No CD with drivers
– No cables


A-Style
– ASRock Cloud
– Purity Sound™
– HDMI-In


CPU
– Supports Socket FM2+ 95W / FM2 100W processors
– Digi Power design
– 8 + 2 Power Phase design


Chipset
– AMD A88X (Bolton-D4)


Memory
– Dual-Channel DDR3 Memory Technology
– 4 x DDR3 DIMM Slots
– Supports DDR3 2600+(OC)*/2400(OC)/2133/1866/1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 64GB**
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
– Supports AMD Memory Profile Technology (AMP) up to AMP 2400

*DDR3 2600+ is only supported with two DIMMs.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 2 x 64Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
– Supports Secure Backup UEFI Technology
– Supports “Plug and Play”
– ACPI 1.1 Compliant wake-up events
– Supports jumperfree
– SMBIOS 2.3.1 support
– DRAM, VDDP, VDDR Voltage multi-adjustment


Graphics
– Integrated AMD Radeon™ R7/R5 Series Graphics in A-series APU
– DirectX 11.1, Pixel Shader 5.0 with FM2+ CPU. DirectX 11, Pixel Shader 5.0 with FM2 CPU.
– Max. shared memory 2GB
– Four graphics output options: D-Sub, DVI-D, HDMI and DisplayPort
– Supports Quad Monitor with FM2+ CPU. Supports Triple Monitor with FM2 CPU.
– Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 24Hz
– Supports Dual-link DVI-D with max. resolution up to 2560×1600 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096×2400) @ 60Hz or 4K x 2K (4096×2160) @ 60Hz
– Supports DP++
– Supports Multi-Streaming
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports Blu-ray Stereoscopic 3D with HDMI Port
– Supports AMD Steady Video™ 2.0: New video post-processing capability for automatic jitter reduction on home/online video
– Supports HDCP with DVI-D, HDMI and DisplayPort Ports
– Supports Full HD 1080p Blu-ray (BD) playback with DVI-D, HDMI and DisplayPort ports

*Only FM2+ APU can support up to 4096×2160 resolution display VIA® HDMI port.


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
– Premium Blu-ray Audio support
– Supports Purity Sound™
– 115dB SNR DAC with differential amplifier
– TI® NE5532 Premium Headset Amplifier (Supports up to 600-ohm headsets)
– Direct Drive Technology
– EMI shielding cover
– PCB isolate shielding
– Supports DTS Connect


LAN
– PCIe x1 Gigabit LAN 10/100/1000 Mb/s
– Qualcomm® Atheros® AR8171
– Supports Qualcomm® Atheros® Security Wake On Internet Technology
– Supports Wake-On-LAN
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4))
– 1 x PCI Express 2.0 x16 Slot (PCIE5 @ x4 mode)
– 2 x PCI Express 2.0 x1 Slots
– 2 x PCI Slots
– Supports AMD Quad CrossFireX™, 3-Way CrossFireX™, CrossFireX™ and Dual Graphics

*PCIE 3.0 is only supported with FM2+ CPU. With FM2 CPU, it only supports PCIE 2.0.
If you install Carrizo CPU, the system only supports PCIE2 GEN3 x8 due to CPU limitation.


Storage
– 7 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5 and RAID 10), NCQ, AHCI and Hot Plug


Connector
– 1 x IR Header
– 1 x COM Port Header
– 1 x Chassis Intrusion Header
– 1 x Power LED Header
– 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
– 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)
– 1 x Power Fan Connector (3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x XFire Power Connector
– 1 x Front Panel Audio Connector
– 3 x USB 2.0 Headers (Support 6 USB 2.0 ports)
– 1 x USB 3.1 Gen1 Header by AMD A88X (Bolton-D4) (Supports 2 USB 3.1 Gen1 ports)
– 1 x Dr Debug with LED
– 1 x Power Switch with LED
– 1 x Reset Switch with LED
– 1 x BIOS Selection Switch


Rear Panel I/O
– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI-Out Port
– 1 x HDMI-In Port
– 1 x DisplayPort
– 1 x Optical SPDIF Out Port
– 2 x USB 2.0 Ports
– 1 x eSATA Connector
– 2 x USB 3.1 Gen1 Ports (AMD A88X (Bolton-D4))
– 2 x USB 3.1 Gen1 Ports (ASMedia ASM1042)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone


Unique Feature
– ASRock A-Tuning
– ASRock APP Shop
– ASRock Instant Boot
– ASRock Instant Flash
– ASRock APP Charger
– ASRock XFast USB
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock Internet Flash
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Dehumidifier Function
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer
– ASRock Interactive UEFI
– ASRock Fast Boot
– ASRock X-Boost
– ASRock Restart to UEFI
– ASRock USB Key
– ASRock FAN-Tastic Tuning
– Hybrid Booster:
– ASRock U-COP


Accessories
– I/O Shield


Hardware Monitor
– CPU temperature sensing
– Chassis temperature sensing
– CPU Fan Tachometer
– Chassis Fan Tachometer
– CPU, Chassis Quiet Fan
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, Vcore


Form Factor
– ATX Form Factor
– Premium Gold Capacitor design (100% Japan-made high-quality conductive polymer capacitors)


OS
– Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit

*Carrizo FM2r2 processor supports Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit only.


Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Specification

Weight1 kg
AMD-en

FM2(+)

Brand

Asrock

Chipset

AMD A88X (Bolton-D4)

Form Factor

ATX

Memory Type

DDR3 SDRAM

Number of memory slots

4

Maximum memory size

64 GB

Connectors

D-Sub (VGA), DVI-D, eSATA, Ethernet (RJ-45), HDMI, HDMI-In, USB 2.0, USB 3.1 Gen1

Storage Interfaces

SATA3 6.0 Gb/s

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 2.0 x16, PCI-e 3.0 x16

Socket

ASRock FM2A88X Extreme6+

Fast delivery

Brand: Asrock
Model: FM2A88X Extreme6+
Socket: AMD FM2 (+)
Memory: 4x DDR3 (64GB Max)
Form-Factor: ATX
EAN: 4717677321814
SKU: 90-MXGRU0-A0UAYZ, 90-MXGRUO-A0UYZ, FM2A88X EXT6, FM2A88X EXT6+, FM2A88X EXTREME6+
