Product information

Features: Motherboard – M-ATX – Socket 1151 – DDR4 – Support 6th and 7th Gen CPU – PCI-e 3.0 x16 – PCI-e 2.0 x1 – USB 3.1 Gen1 – Sata3 – DVI-D – D -Sub (VGA)

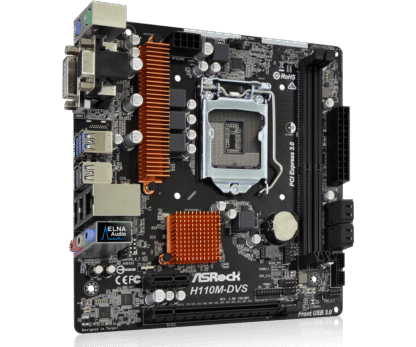

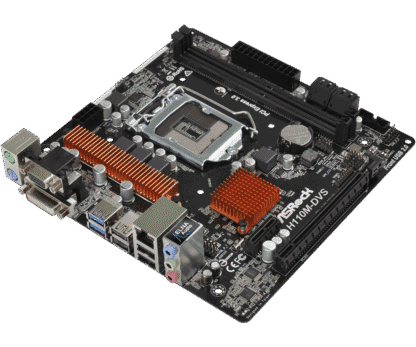

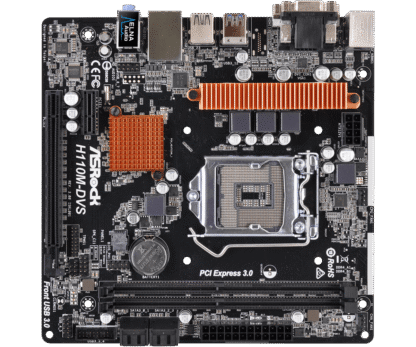

Product: ASRock H110M-DVS R3.0
CPU Support: 6th and 7th Gen Processors only
Category: Motherboards
Brand: ASRock
EAN: 4717677331998
SKU: 90-MXB4A0-A0UAYZ, H110M-DVS R3.0

Note: This is a refurbished motherboard updated with the latest BIOS version, the warranty period of the product is 6 months.


package contents:
– Motherboard
– Backplate (blende)
– No manual
– No driver CD
– No cables


Unique Features
AS Rock Super Alloy
– Matte Black PCB
– High-Density Glass Fabric PCB
ASRock Full Spike Protection
ASRock Live Update & APP Store


Unique Features
ASRock Super Alloy
– Matte Black PCB
– High-Density Glass Fabric PCB
ASRock Full Spike Protection
ASRock Live Update & APP Store


CPU
– Supports 7th and 6th Generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1151)
– 4 Power Phase design
– Support CPU up to 95W
-Supports Intel® Turbo Boost 2.0 Technology


Chipset
-Intel® H110


Memory
-Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– Supports DDR4 2400/2133 non-ECC, unbuffered memory*
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 32GB**
– Supports Intel® Extreme Memory Profile (XMP) 2.0

*7th Gen Intel® CPU supports DDR4 up to 2400; 6th Gen Intel® CPU supports DDR4 up to 2133.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 64Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 5.0 Compliant wake-up events
– SMBIOS 2.7 Support
– DRAM, PCH 1.0V Voltage Multi-adjustment


Graphics
– Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel ® HD Graphics 510/530/630
– Pixel Shader 5.0, DirectX 12
– Max. shared memory 1024MB**
– Dual graphics output: Support DVI-D and D-Sub ports by independent display controllers
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Accelerated Media Codecs: HEVC, VP8, VP9
– Supports HDCP with DVI-D Port
– Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port

*Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

**The size of maximum shared memory may vary from different operating systems.

***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.

****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.


Audio
– 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
– Supports Surge Protection (ASRock Full Spike Protection)
– ELNA Audio Caps

*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.


LAN
-PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111C/RTL8111H
– Supports Wake On LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Support LAN Cable Detection
– Supports PXE


Slots
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
– 1 x PCI Express 2.0 x1 Slot

*Supports NVMe SSD as boot disks


Storage
– 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug


Connector
– 1 x TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)
– 1 x Chassis Fan Connector (4-pin)*
– 1 x 24 pin ATX Power Connector
– 1 x 8pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))

*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.


Rear Panel I/O
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))*
– 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone

*ACPI wake-up function is supported on USB01 ports only.


Software and UEFI
Software
– ASRock Disk Health Report
– ASRock USB Key
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Fast Boot (Fast Boot, Restart to UEFI)
UEFI
– ASRock EZ Mode
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock UEFI Tech Service
– ASRock Easy Driver Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.


Accessories
– I/O Shield


Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore


Form Factor
– Micro ATX Form Factor: 7.5-in x 7.4-in, 19.1 cm x 18.8 cm
– Solid Capacitor design


OS
– Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit*

*To install Windows® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions.
For the updated Windows® 10 driver, please visit ASRock’s website for details.


Certifications
– FCC, CE

Specification

Weight1 kg
Intel

Socket 1151

Brand

Asrock

Chipset

Intel H110

Form Factor

Micro-ATX

Memory Type

DDR4 SDRAM

Number of memory slots

2

Maximum memory size

32 GB

Connectors

D-Sub (VGA), DVI-D, Ethernet (RJ-45), USB 2.0, USB 3.1 Gen1

Storage Interfaces

Serial ATA-600

Interfaces

PCI-e 2.0 x1, PCI-e 3.0 x16

Socket

Model

H110M-DGS R3.0, H110M-DVS R3.0

Suitable for

Regular use

particularities

Video Chipset

package content

Motherboard and Backplate (Blende)

Length

19 cm

Width

18.8 cm

ASRock H110M-DVS R3.0 LGA1151 Motherboard

Fast delivery

Brand: ASRock
Model: ASRock H110M-DVS R3.0
Socket: LGA1151
Chipset: Intel H110
Memory: 2x DDR4 (32GB Max)
Form Factor: Micro ATX
EAN: 4717677331998
SKU: 90-MXB4A0-A0UAYZ, H110M-DVS R3.0


SKU: H110M-DVS R3.0 Categories: , , Tags: , ,
