Product information

ASRock H110M-STX: Motherboard | Mini ITX | LGA1151 | 2x DDR4 | 4x SATA 600  | M.2 (PCI-e 3.0 x4 + SATA) | 3x USB 2.0 | 2x USB 3.2 (Gen1, 5Gb/s) | USB 3.2 (Gen1, 5Gb/s) type-c | DisplayPort | HDMI | VGA (D Sub)

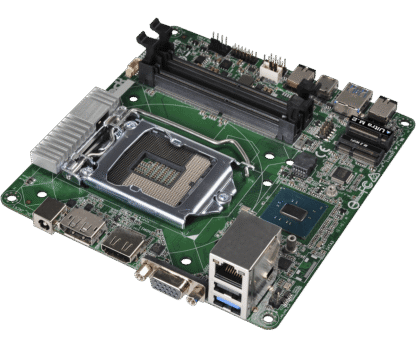

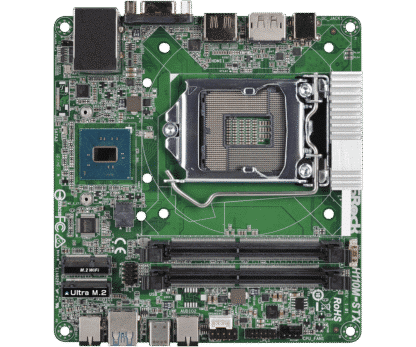

Product: ASRock H110M-STX
Socket: LGA1151
Supports: 6th en 7th Generation Processors
Category: motherboards
Brand: ASRock
Condition: refurbished – BIOS updated to the latest version
EAN:4717677331745
SKU: 90-BXG2T0-A0UAYP, H110M-STX
Warranty: 6 months

Package contents:
– Motherboard (ASRock H110M-STX )
– No Backplate (blende)
– No manual
– No drivers CD
– No cables

Unique Feature
ASRock Full Spike Protection
ASRock Live Update & APP Shop

CPU
– Supports 7th and 6th Generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1151)
– Supports CPU up to 65W*
– Supports Intel® Turbo Boost 2.0 Technology

*It is recommended to use 120W power adapter. 90W power adapter only supports CPU with a maximum of 51W TDP.
Please refer to “CPU Support List” for further information.

Chipset
– Intel® H110

Memory
– Dual Channel DDR4 Memory Technology
– 2 x DDR4 SO-DIMM Slots
– Supports DDR4 2400/2133 non-ECC, unbuffered memory*
– Max. capacity of system memory: 32GB**
– Supports Intel® Extreme Memory Profile (XMP) 2.0

*7th Gen Intel® CPU supports DDR4 up to 2400; 6th Gen Intel® CPU supports DDR4 up to 2133.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS
– 64Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 5.0 Compliant wake up events
– SMBIOS 2.7 Support
– DRAM Voltage Multi-adjustment

Graphics
– Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel ® HD Graphics 510/530/630
– Pixel Shader 5.0, DirectX 12
– Max. shared memory 1024MB**
– Three graphics output options: D-Sub, HDMI and DisplayPort 1.2***
– Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096×2304) @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports Accelerated Media Codecs: HEVC, VP8, VP9
– Supports HDCP with HDMI and DisplayPort 1.2 Ports
– Supports Full HD 1080p Blu-ray (BD) playback with HDMI and DisplayPort 1.2 Ports

*Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

**The size of maximum shared memory may vary from different operating systems.

***Supports up to 2 displays simultaneously

****Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.

*****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.

Audio
– Realtek ALC283 Audio Codec
– 1 x Headphone/Headset Jack
– 1 x MIC-In

LAN
– Gigabit LAN 10/100/1000 Mb/s
– Giga PHY Intel® I219V
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE

Slots
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
storage
– 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
– 1 x M.2 Socket, support M Key type 2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*

*Supports NVMe SSD as boot disks
SATA type M.2 module is not supported.

Connector
– 1 x Chassis Intrusive on Header
– 2 x CPU Fan Connectors (1 x 4-pin, 1 x 5-pin)
– 1 x Internal Speaker Header
– 1 x Front Panel Header
– 1 x USB 2.0 Header (Support 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

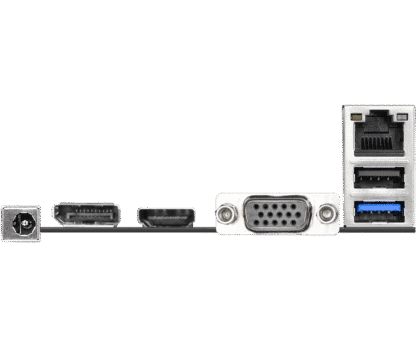

Rear Panel I/O
– 1 x DC Jack (Compatible with the 19V power adapter)*
– 1 x D-Sub Port
– 1 x HDMI Port
– 1 x DisplayPort 1.2
– 1 x USB 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Port (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

*Please use 120W power adapter for 65W CPU and 90W power adapter for 35W CPU.

Software and UEFI
Software
– ASRock Disk Health Report
– ASRock USB Key
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Fast Boot (Fast Boot, Restart to UEFI)
UEFI
– ASRock EZ Mode
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock UEFI Tech Service
– ASRock Easy Driver Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.

Accessories
–  I/O Shield

Hardware Monitor
– CPU temperature sensing
– CPU Fan Tachometer
– CPU Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU Fan multi-speed control
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor
– Mini-STX Form Factor: 5.5-in x 5.8-in, 14.0cm x 14.7cm

OS
– Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit*

*To install Windows® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions.
For the updated Windows® 10 driver, please visit ASRock’s website for details.

Certifications
– FCC, CE, BSMI, RCM
– ErP/EuP ready (ErP/EuP ready power supply is required)
