Product information

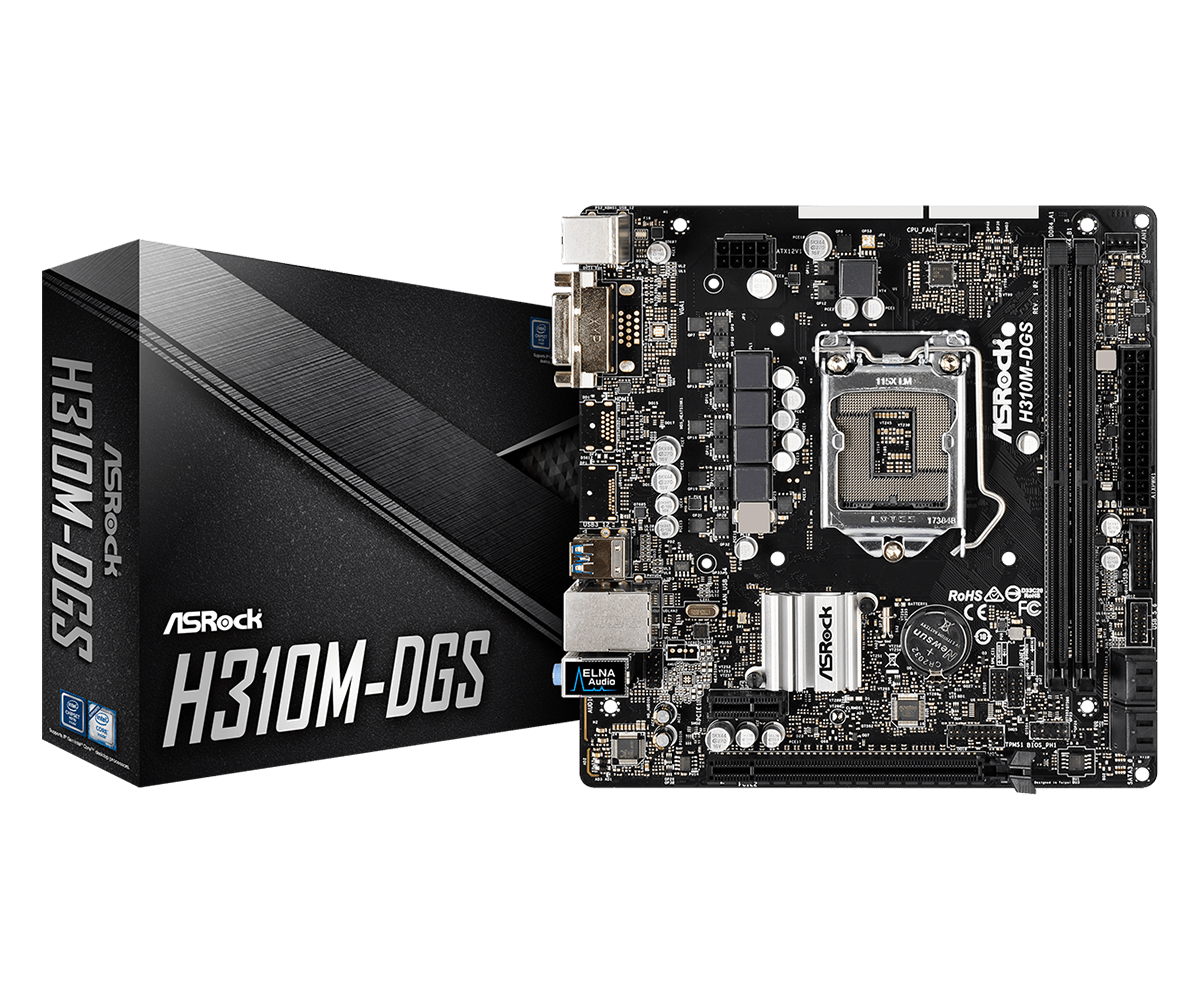

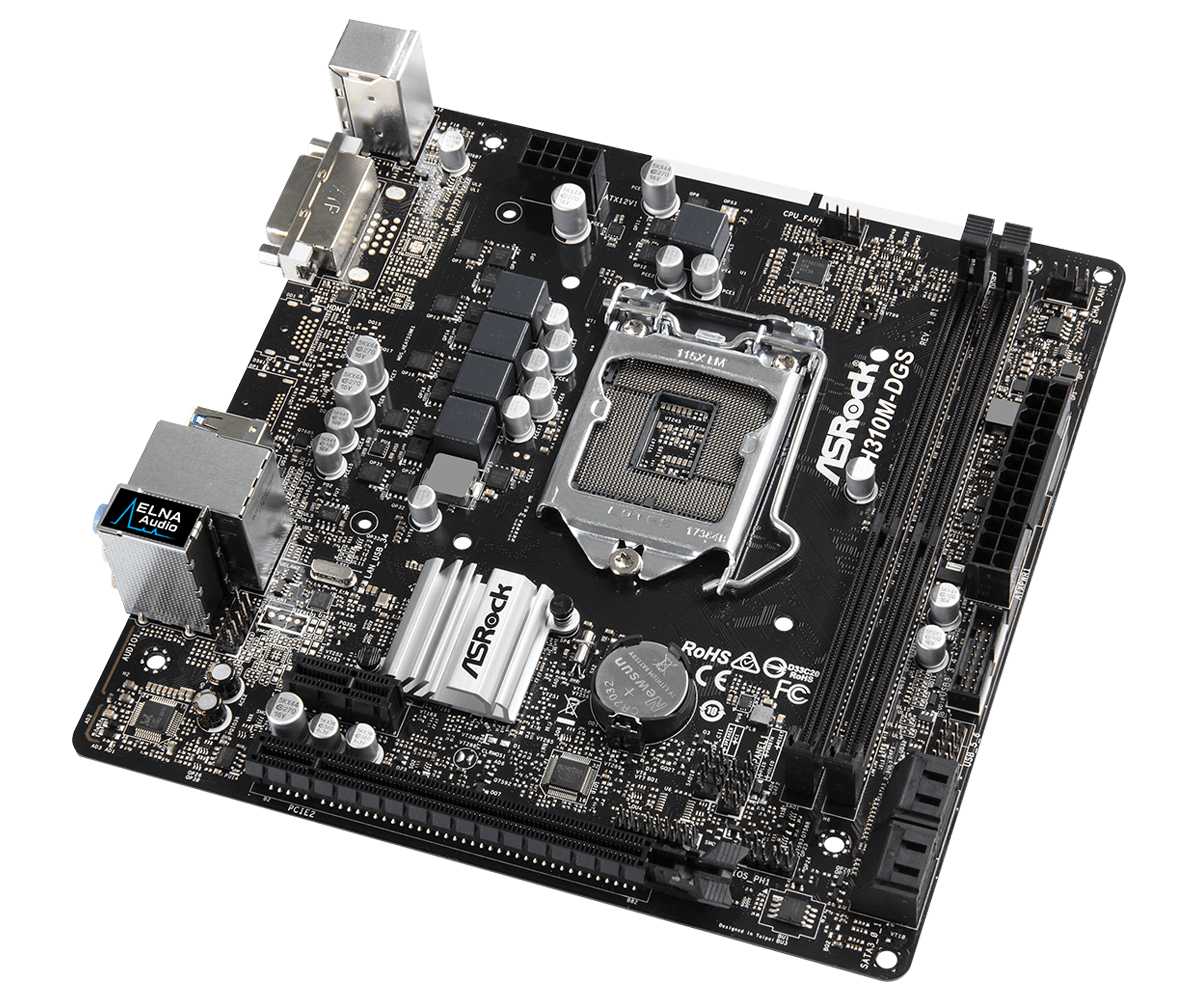

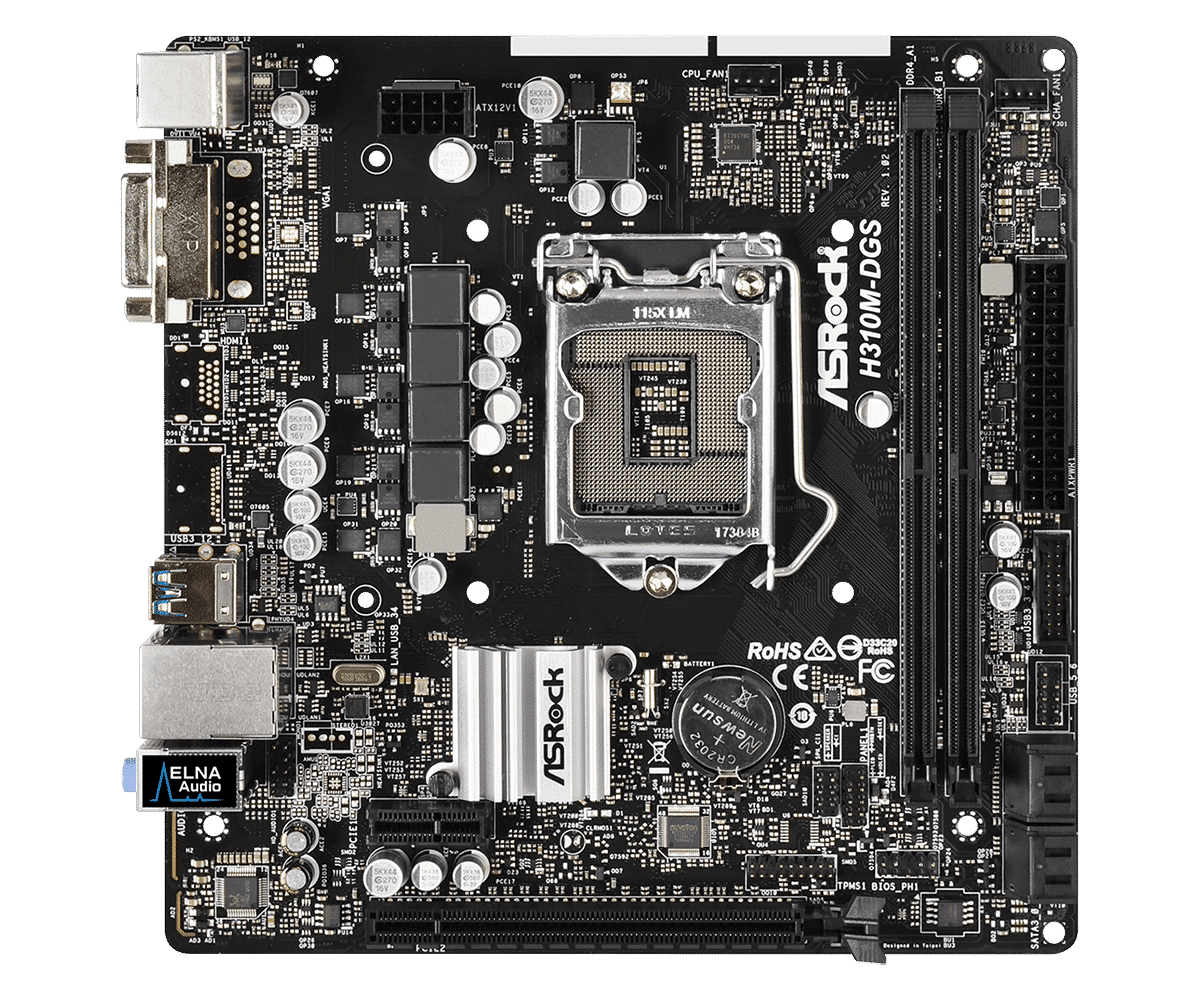

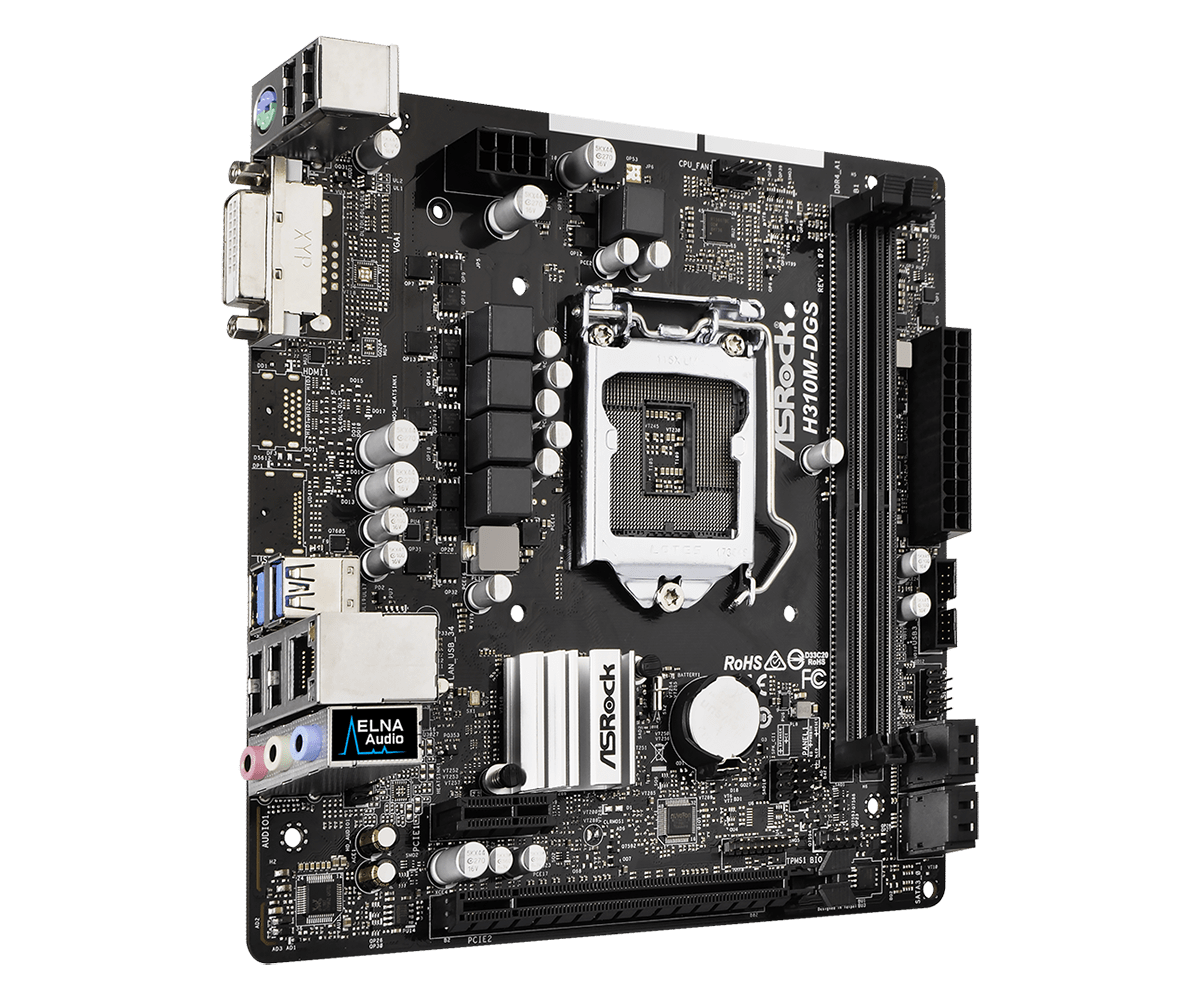

ASRock H310M-DGS : Motherboard | Micro ATX | LGA1151 /Sockel H4 (8th/9th Gen CPU | 2x DDR4 | SATA-600 | PCI-e 2.0 x16 |PCI-e 2.0 x1|USB 2.0 | USB 3.2 Gen1 | DVI-D


Product: H310M-DGS
Socket: LGA1151
Supports: 8th en 9th Generation Processors
Category: motherboards
Brand: ASRock
Condition: Used – BIOS updated to the latest version
EAN:
4717677335224
SKU: 90-MXB700-A0UAYZ, H310M-DGS
Warranty:
6 months


Package contents:
– Motherboard (H310M-DGS)
– Backplate (blende)
– instruction manual
– drivers CD
– cables


Unique Feature
ASRock Super Alloy
– Sapphire Black PCB
– High Density Glass Fabric PCB
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop


CPU
– Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
– Supports CPU up to 95W
– 5 Power Phase design
– Supports Intel® Turbo Boost 2.0 Technology


Chipset
– Intel® H310


Memory
– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– Supports DDR4 2666 / 2400 / 2133 non-ECC, unbuffered memory
– Max. capacity of system memory: 64GB*
– Supports Intel® Extreme Memory Profile (XMP) 2.0

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake up events
– SMBIOS 2.7 Support
– DRAM, PCH 1.05V Voltage Multi-adjustment


Graphics
– Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel ® UHD Graphics
– DirectX 12
– HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports HDCP 2.2 with DVI-D Port

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.


Audio
– 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
– Support Surge Protection
– ELNA Audio Caps

*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.


LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– 1 x Realtek RTL8111H
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)
– 1 x PCI Express 2.0 x1 Slot

*Supports NVMe SSD as boot disks


Storage
– 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug


Connector
– 1 x TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)*
– 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed ​​Control)**
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

**The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

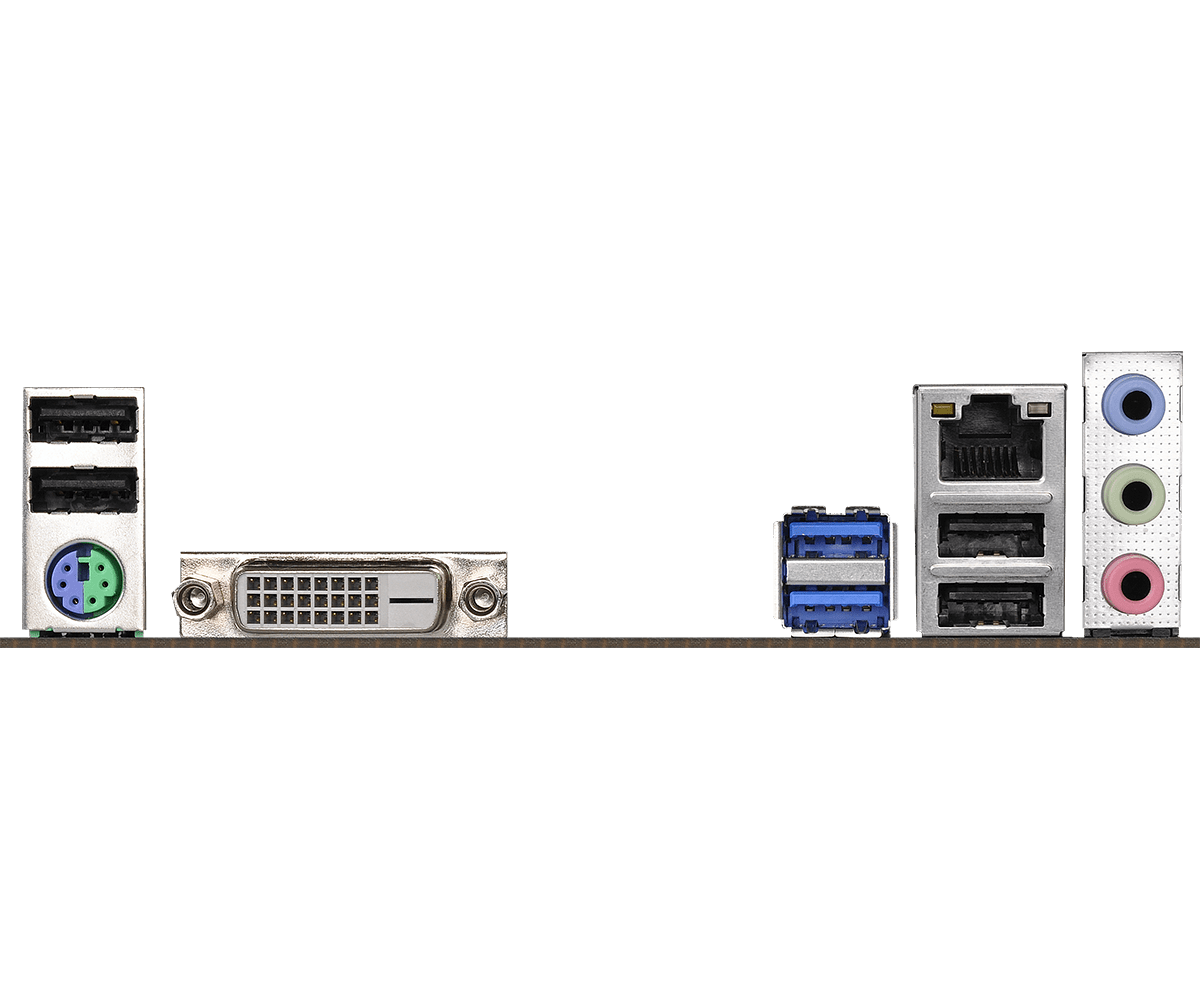

Rear Panel I/O
– 1 x PS/2 Mouse/Keyboard Port
– 1 x DVI-D Port
– 4 x USB 2.0 Ports (Support ESD Protection)
– 2 x USB 3.1 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone


Software and UEFI
Software
– ASRock A-Tuning
– ASRock XFast LAN


UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.


Support CD
– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar


Accessories
– Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables


Hardware Monitor
– Temperature Sensing: CPU, Chassis/Water Pump Fans
– Fan Tachometer: CPU, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore


Form Factor
– Micro ATX Form Factor: 7.5-in x 7.4-in, 19.1 cm x 18.8 cm
– Solid Capacitor design


OS
– Microsoft® Windows® 10 64-bit


Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Specification

Intel

Socket 1151

Brand

Asrock

Chipset

Intel H310M

Form Factor

Micro-ATX

Memory Type

DDR4 SDRAM

Number of memory slots

2

Maximum memory size

64 GB

Connectors

DVI-D, Ethernet (RJ-45), USB 2.0, USB 3.0

Storage Interfaces

Serial ATA-600

Interfaces

PCI-e 2.0 x1, PCI-e 2.0 x16

Socket

ASRock H310M-DGS LGA1151 motherboard

Fast delivery

  • Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
  • Supports DDR4 2666
  • 1 PCIe 3.0 x16, 1 PCIe 2.0 x1
  • Graphics Output Options: DVI-D
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
  • 4 SATA3
  • 4 USB 3.1 Gen1 (2 Front, 2 Rear)
  • Supports Full Spike Protection, ASRock Live Update & APP Shop
