Description
ASRock H470M-HDV is a reliable Micro-ATX motherboard for 10th generation Intel processors. The board offers extensive connectivity with HDMI, DVI-D, D-sub (VGA), USB 3.2 Gen1, USB 2.0, SATA3 and a Gigabit LAN port. With support for DDR4 memory and multiple expansion slots, this motherboard is ideal for everyday tasks as well as light gaming and workstations.

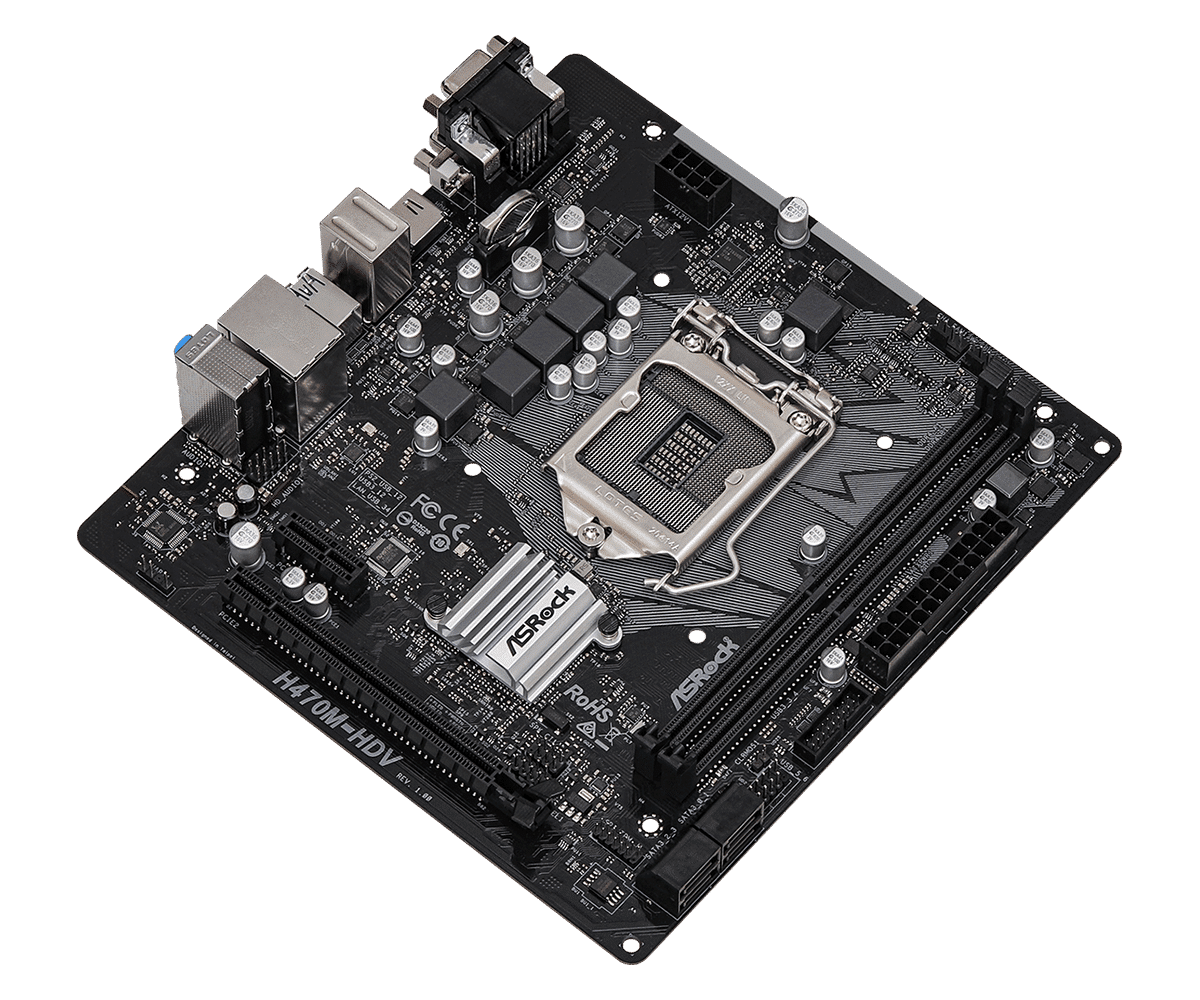

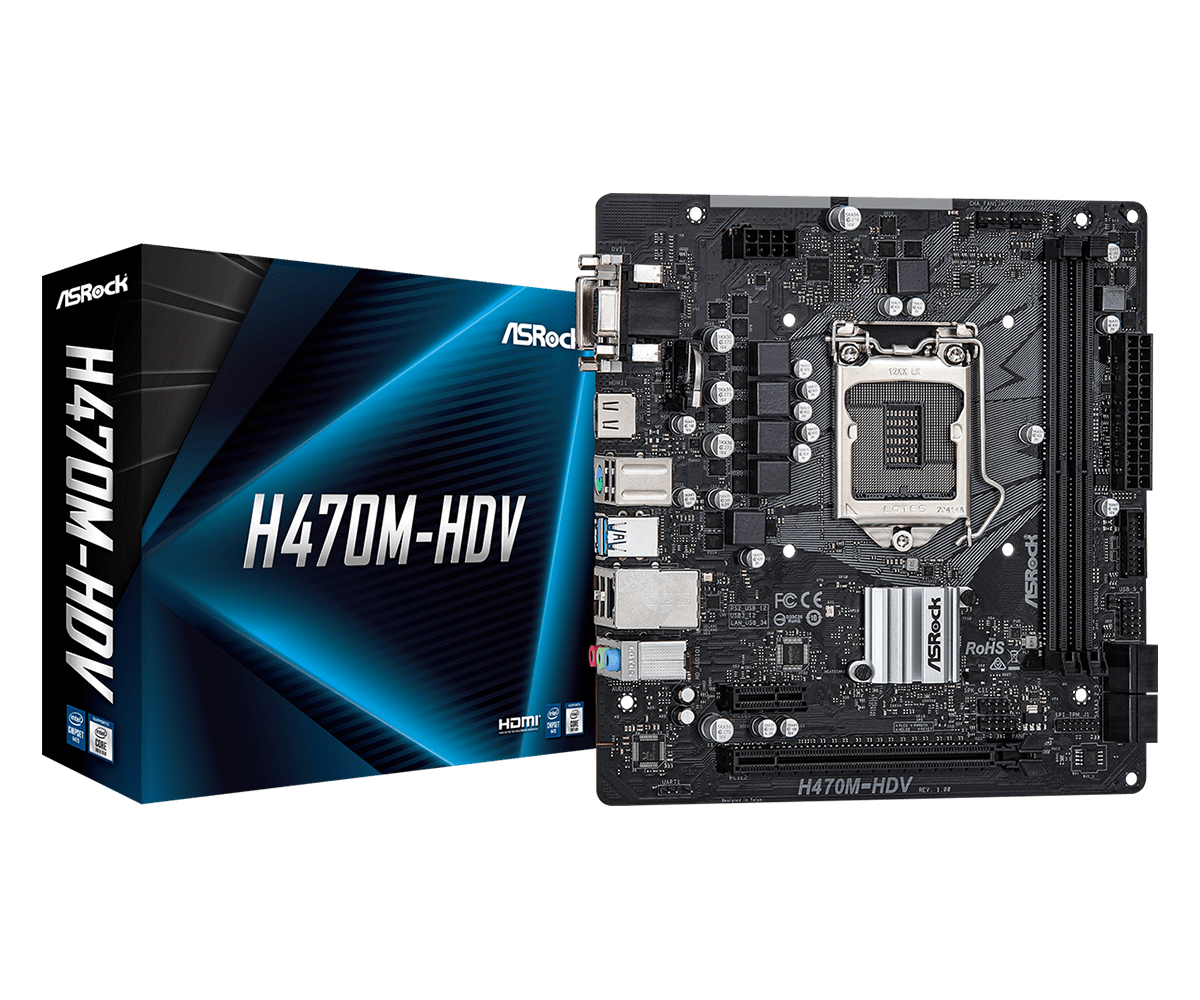

Asrock H470M-HDV
Product: Asrock H470M-HDV
Socket: LGA1200 (suitable for 10th generation processors only)
Category: Motherboards
Brand: ASRock
Condition: Refurbished
EAN: 4710483933820
SKU: 90-MXBG50-A0UAYZ, H470M-HDV
Warranty: 6 months
Drivers for the Asrock H470M-HDV
Processors supported by the Asrock H470M-HDV
package contents:
- Motherboard (Asrock H470M-HDV)
- IO-Shield (tin backplate)
- manual
- driver CD
- cables
Unique Feature
ASRock Super Alloy
– Premium 50A Power Choke
– Sapphire Black PCB
– High Density Glass Fabric PCB
ASRock Full Spike Protection (for all USB, Audio and LAN ports)
ASRock Live Update & APP Shop
CPU
– Supports 10th generation Intel® Core™ Processors (Socket 1200)
– Digi Power design
– 5-phase power design
– Supports Intel® Turbo Boost Max 3.0 Technology
Chipset
– Intel® H470
Memory
– Dual Channel DDR4 memory technology
– 2 x DDR4 DIMM slots
– Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, unbuffered memory*
– Supports ECC UDIMM memory modules (operates in non-ECC mode)
– Max. system memory capacity: 64GB**
– Supports Intel® Extreme Memory Profile (XMP) 2.0
– 15μ gold contacts in DIMM slots
*Core™ (i9/i7) supports DDR4 up to 2933; Core™ (i5/i3), Pentium®, and Celeron® support DDR4 up to 2666.
**Because of operating system limitations, the actual memory size may be smaller than 4GB on Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, this limitation does not apply.
BIOS
– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 compatible wake-up events
– SMBIOS 2.7 support
– Multi-adjustment CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST voltage
Graphic
– Hardware accelerated codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
– Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel® built-in visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
– Display & Content Protection: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel® SGX Content Protection, UHD Blu-ray Disc
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports Triple Monitor
– Supports HDMI 1.4 with max resolution up to 4K x 2K (4096×2160) @ 30Hz
– Supports DVI-D with max resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) via HDMI 1.4 (requires compatible HDMI monitor)
– Supports HDCP 2.3 via DVI-D and HDMI 1.4
– Supports 4K Ultra HD (UHD) playback via HDMI 1.4
*Intel® UHD Graphics built-in visuals and VGA outputs are supported only with processors with integrated GPU.
**VP9 10bit and VC-1 for decoding only. VP8 and VP9 encoding are not supported by Windows® OS.
Audio
– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Supports Surge Protection
LAN
– PCIe x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111H
– Supports Wake-On-LAN
– Supports Lightning/ESD protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
Expansion slots
– 1 x PCI Express 3.0 x16 Slot*
– 1 x PCI Express 3.0 x1 Slot
*Supports NVMe SSD as boot drives
Storage
– 4 x SATA3 6.0 Gb/s connectors, supports RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug
Connections
– 1 x SPI TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)*
– 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (supports 2 USB 2.0 ports) (supports ESD protection)
– 1 x USB 3.2 Gen1 Header (supports 2 USB 3.2 Gen1 ports) (supports ESD protection)
*CPU Fan Connector supports max 1A (12W) fan power.
**Chassis/Water Pump Fan supports max 2A (24W) fan power. CHA_FAN1/WP can automatically detect whether a 3-pin or 4-pin fan is used.
Rear panel I/O
– 1 x PS/2 mouse/keyboard port
– 1 x D-Sub port
– 1 x DVI-D port
– 1 x HDMI port
– 4 x USB 2.0 ports (supports ESD protection)
– 2 x USB 3.2 Gen1 ports (supports ESD protection)
– 1 x RJ-45 LAN port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
– ASRock Motherboard Utility (A-Tuning)
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Easy RAID Installer
*These tools can be downloaded from ASRock Live Update & APP Shop.
Accessories
– I/O Shield
Hardware Monitor
– Temperature detection: CPU, Chassis/Water Pump Fans
– Fan Tachometer: CPU, Chassis/Water Pump Fans
– Quiet Fan (automatic chassis fan adjustment based on CPU temperature): CPU, Chassis/Water Pump Fans
– Multi-Speed Fan Control: CPU, Chassis/Water Pump Fans
– CASE OPEN detection
– Multi-adjustment CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST voltage
Form Factor
– Micro ATX Form Factor: 19.7 cm x 18.8 cm (7.76-in x 7.4-in)
– Solid Capacitor Design
OS
– Microsoft Windows® 10 64-bit / 11 64-bit
Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP compatible power supply required)
