Description

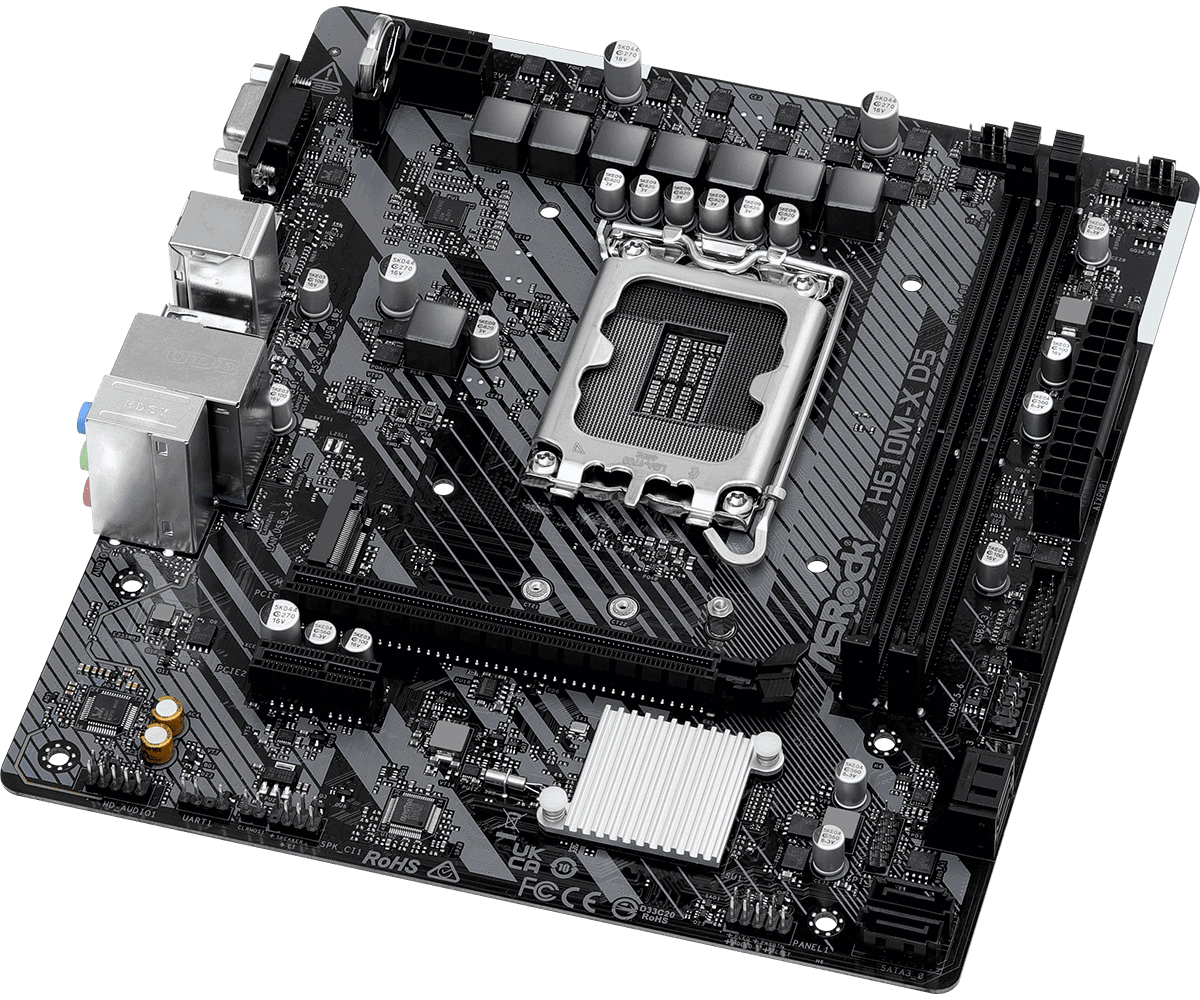

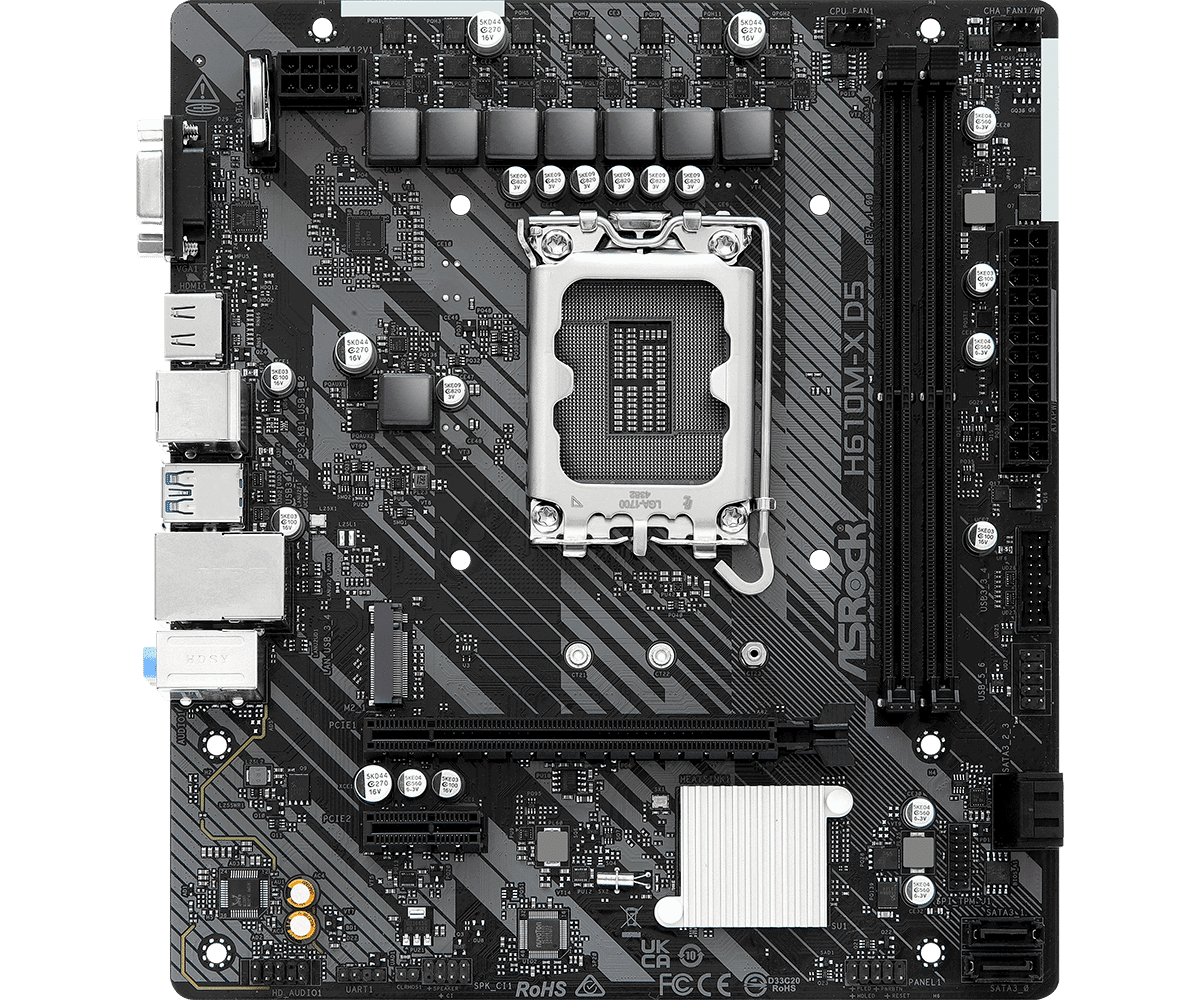

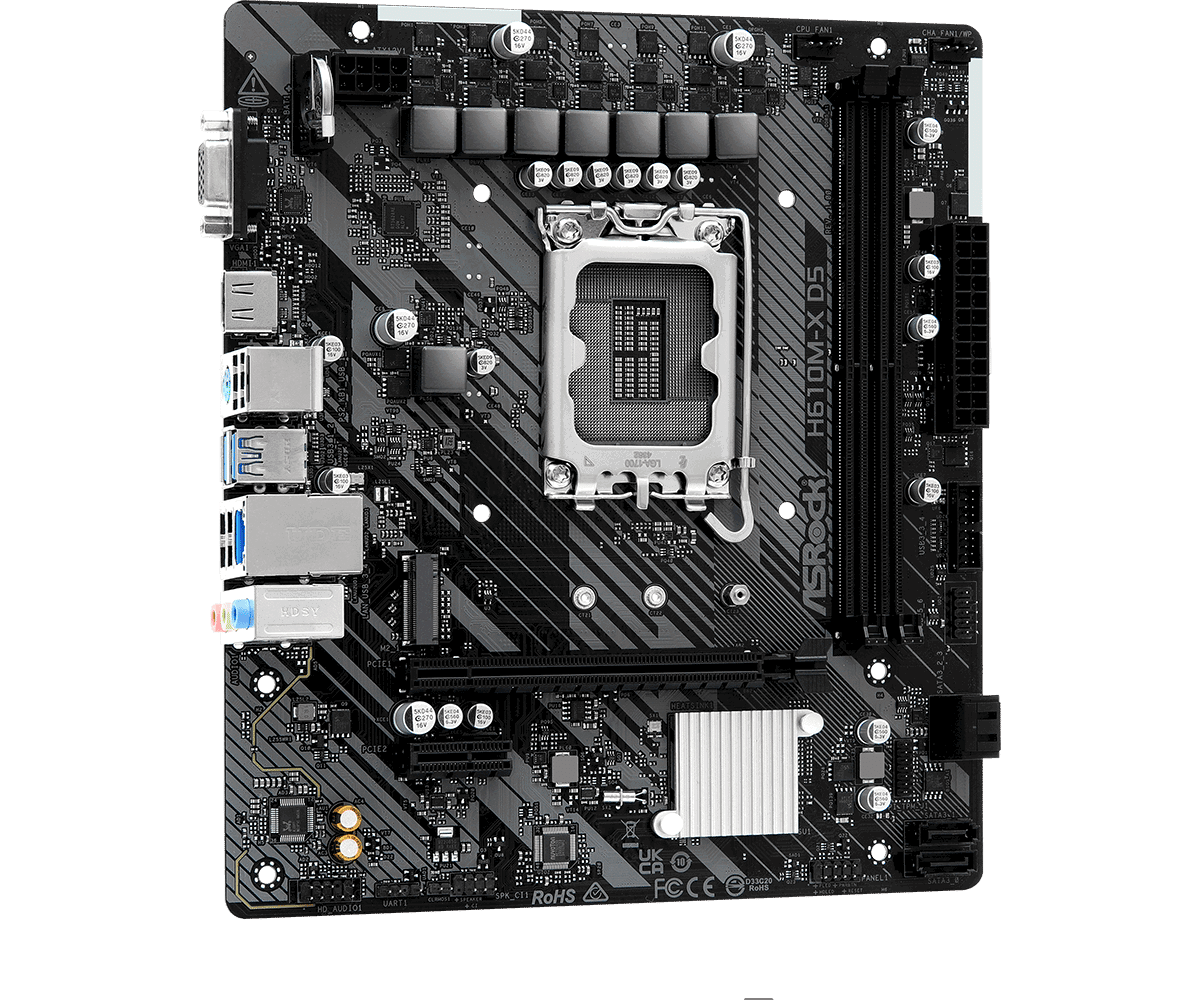

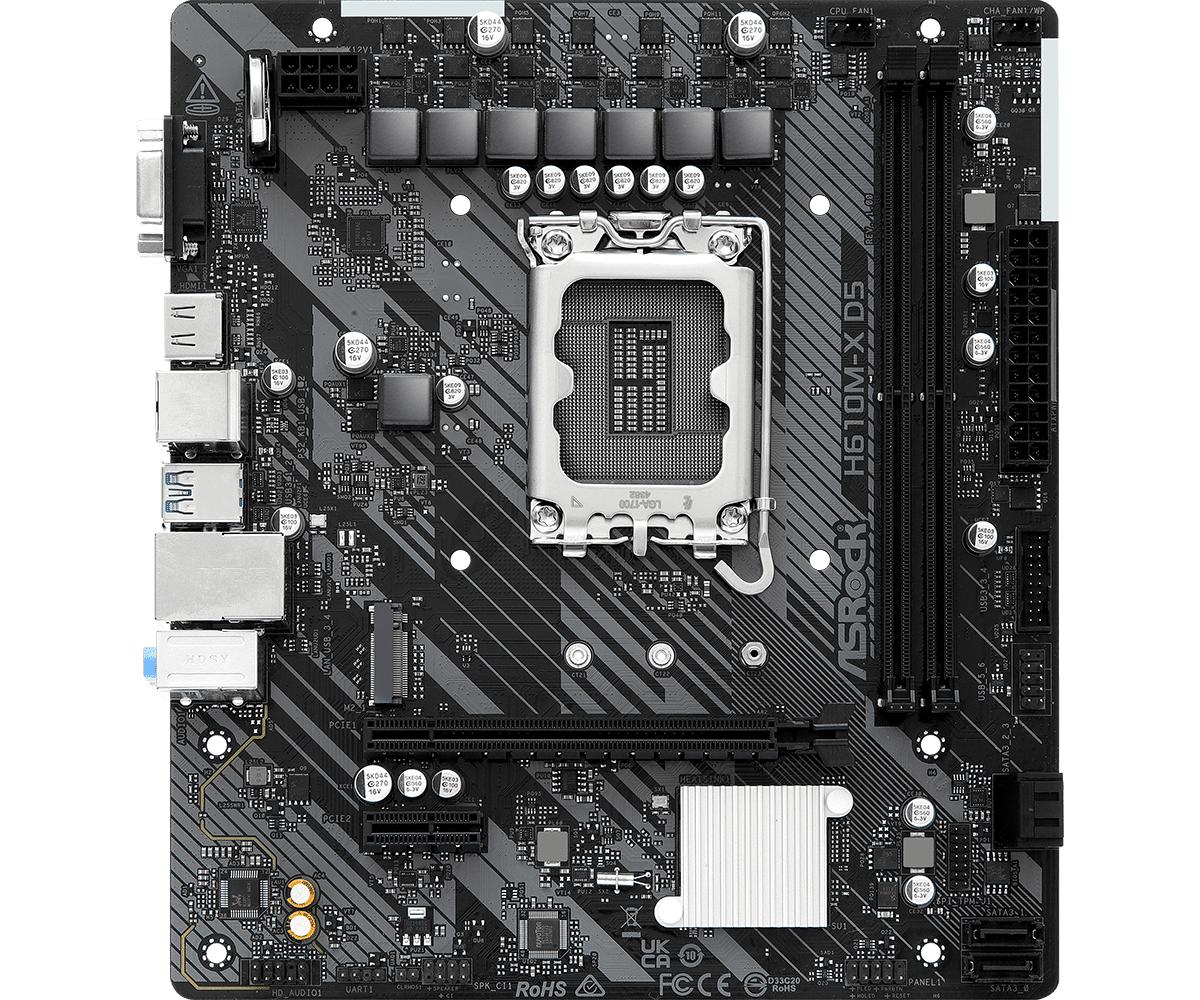

The ASRock H610M-X D5 is a compact and affordable micro-ATX motherboard that supports Intel 12th, 13th, and 14th generation processors. Thanks to the DDR5 memory slots, you are guaranteed fast and efficient performance. The board features HDMI and VGA ports for video output, various USB ports for peripherals, a Gigabit LAN port for network internet, and audio jacks for clear sound. With an M.2 slot for fast storage and a PCIe 4.0 x16 slot for graphics cards, this motherboard is an excellent foundation for a modern PC.
Product: ASRock H610M-X D5
Socket: LGA1700
Category: Motherboards
Brand: ASRock
Condition: Refurbished
Warranty: 6 months
Package contents:
– Motherboard (ASRock H610M-X D5)
– IO Shield (metal backplate)
Unique Feature
Superb Productivity
– Dual Channel DDR5
Rock-Solid Durability
– 6+1+1 Power Phase
Ultrafast Connectivity
– 2.5G LAN
EZ Update
– ASRock Auto Driver Installer
CPU
– Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
– Supports Intel® Hybrid Technology
– Supports Intel® Turbo Boost Max 3.0 Technology
Chipset
– Intel® H610
Memory
– Dual Channel DDR5 Memory Technology
– 2 x DDR5 DIMM Slots
– 13th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 5600*
– 12th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 4800*
– Max. capacity of system memory: 96GB
– Supports Intel® Extreme Memory Profile (XMP) 3.0
* Actual support may vary by CPU
BIOS
– 128Mb AMI UEFI Legal BIOS with GUI support
Graphics
– Intel® Xe Graphics Architecture (Gen 12)
– 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
– 1 x D-Sub, supports max. resolution up to Full HD (1920×1080) 60Hz
* Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Audio
– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN
– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supports Dragon 2.5G LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User Friendly UI
– Visual Network Usage Statistics
– Optimized Default Setting for Game, Browser, and Streaming Modes
– User Customized Priority Control
Slots
CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 1 x PCIe 3.0 x1 Slot (PCIE2)*
* Supports NVMe SSD as boot disks
Storage
Chipset:
– 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
– 4 x SATA3 6.0 Gb/s Connectors*
* Supports NVMe SSD as boot disks
USB
– 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
– 6 x USB 2.0 (4 Rear, 2 Front)
* All USB ports support ESD Protection
Connector
– 1 x SPI TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)*
– 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
* CPU_FAN1 supports the fan power up to 1A (12W).
** CHA_FAN1/WP supports the fan power up to 2A (24W).
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

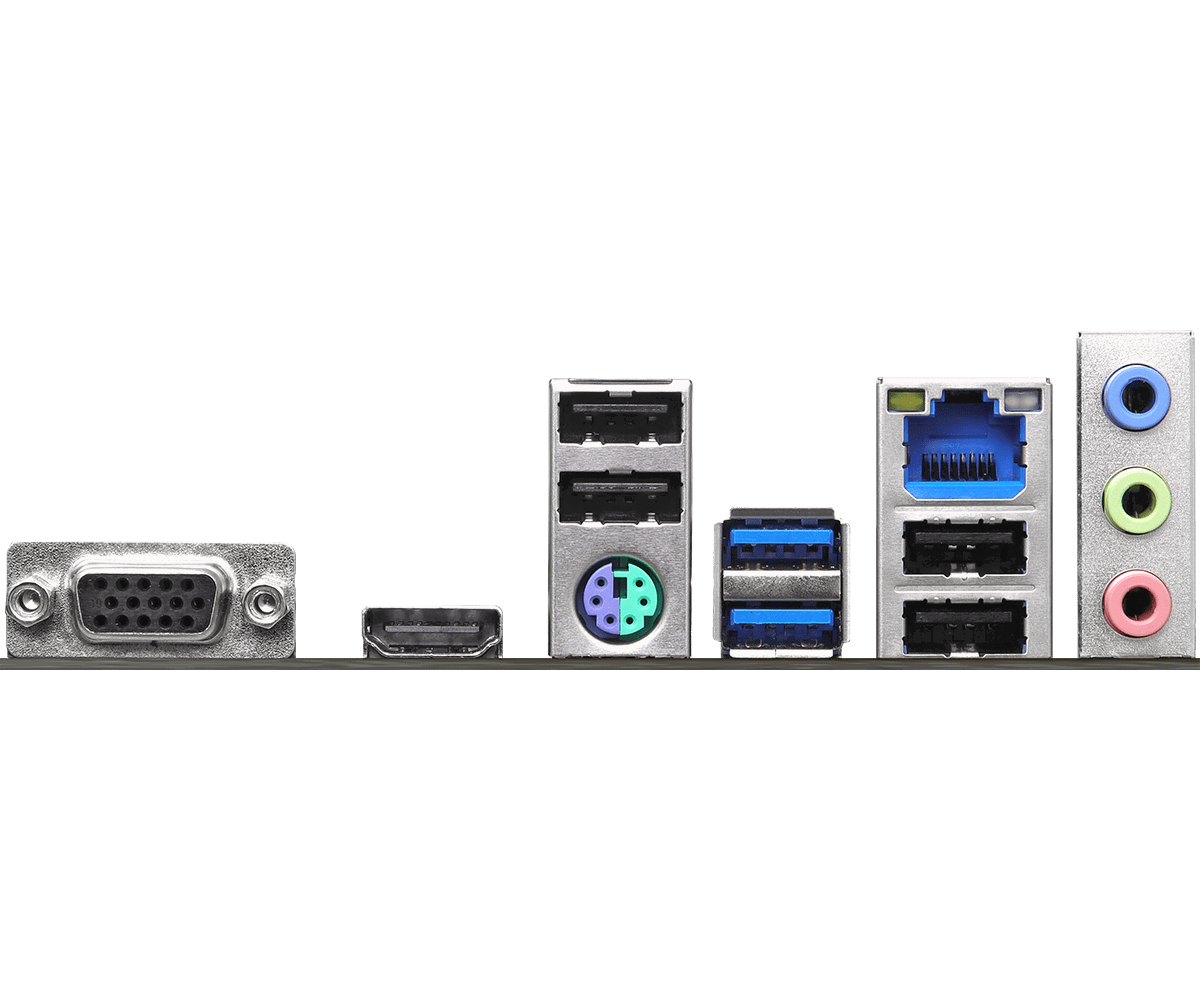

Rear Panel I/O
– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x HDMI Port
– 2 x USB 3.2 Gen1 Type-A Ports
– 4 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock Dragon 2.5G LAN Software*
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories
– 1 x I/O Shield
– 1 x Screw for M.2 Socket
Form Factor
– Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
OS
– Microsoft Windows® 10 64-bit / 11 64-bit
Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
