Product information

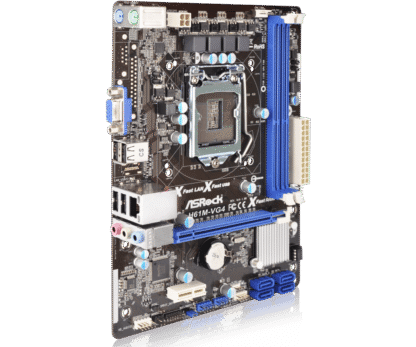

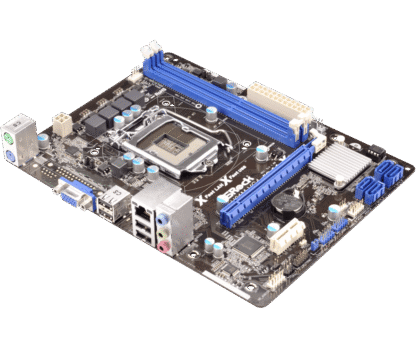

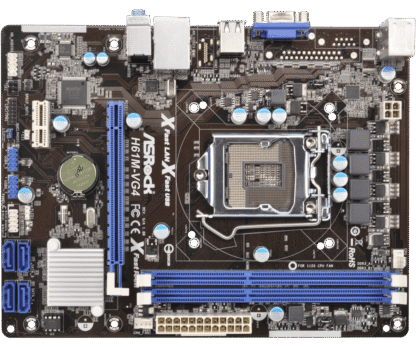

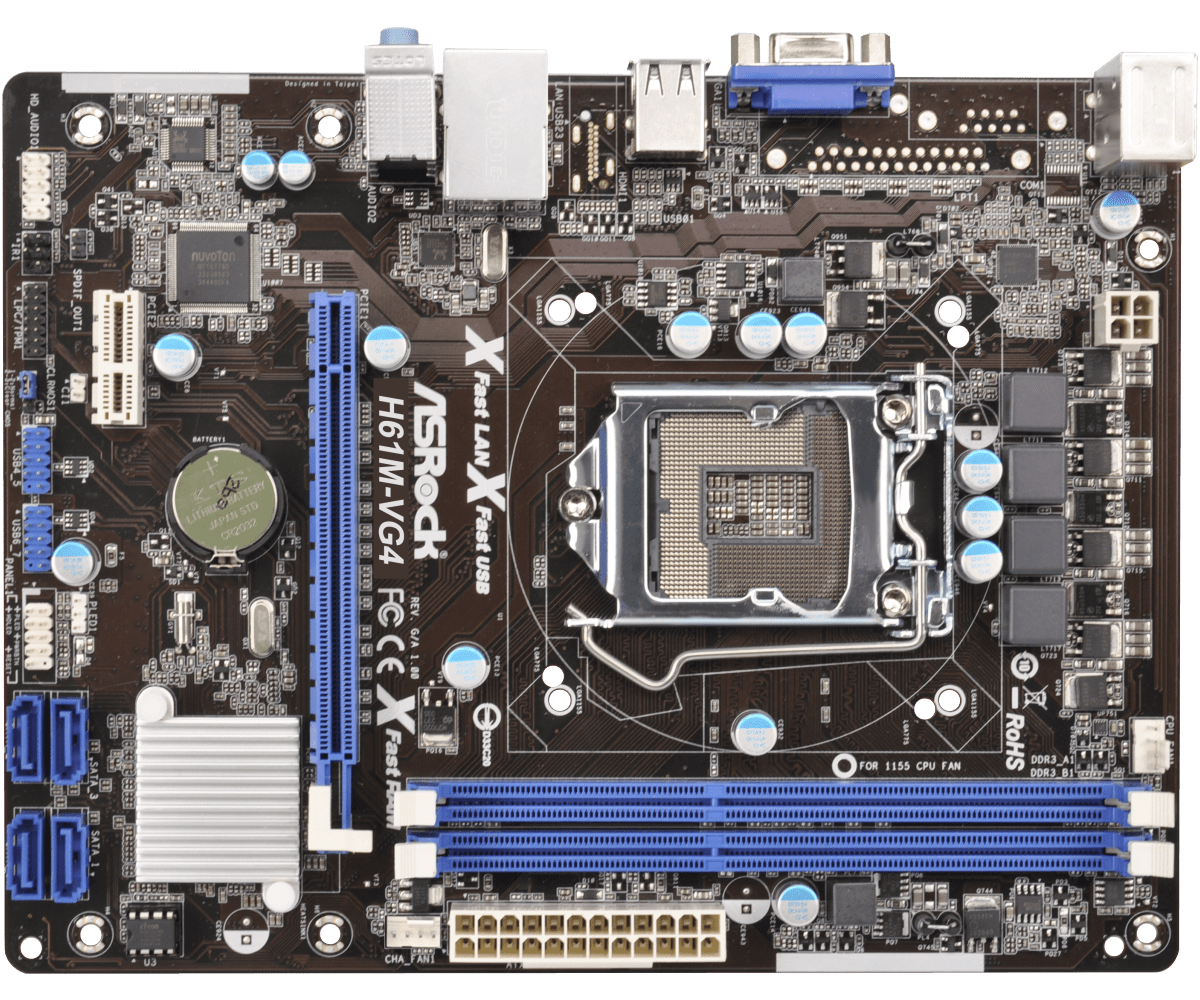

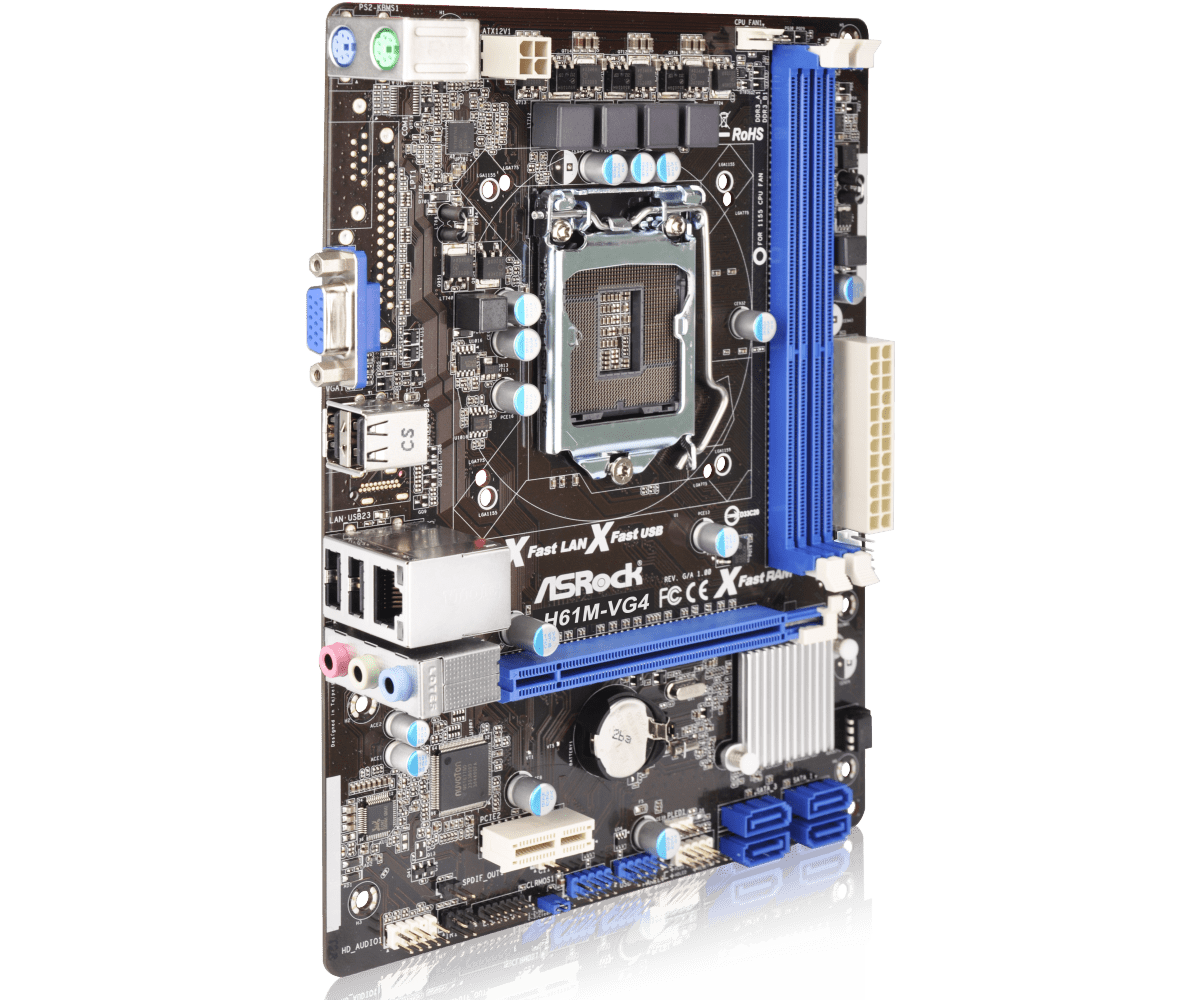

The Asrock H61M-VG4 is a Micro-ATX motherboard with space for 2 DDR3 memory modules, with a maximum of 16GB. The Asrock H61M-VG4 motherboard is equipped with a PCI-e x1 and a PCI-e 3.0 x16 slot. it’s a nimble motherboard that fits nicely into the smaller cases.

Specifications:
 motherboard – Socket 1155 – Intel H61 chipset – 2 x DDR3 up to 16 GB – Gigabit Ethernet – SATA – PCI-e 3.0 – PCI-e -VGA


Product: Asrock H61M-VG4 Socket 1155 motherboard
Category: Motherboards
Brand: Asus
EAN: 4717677320978
SKU:
90-MXGQN0-A0UAYZ, H61M-VG4
Condition: used
Warranty: 6 months


package content:
– Motherboard
– Backplate (blende)
– No manual
– No driver CD
– No cables


CPU
– Supports 3rd and 2nd Generation Intel® Core™ i7 / i5 / i3 / Xeon® / Pentium® / Celeron® in LGA1155 Package
– Supports Intel® Turbo Boost 2.0 Technology
– Supports Hyper-Threading Technology


Chipset
– Intel® H61
– Supports Intel® Rapid Start Technology and Smart Connect Technology

*Intel® Rapid Start Technology and Smart Connect Technology are only supported under Windows® 7 OS or later versions.


Memory
– Dual Channel DDR3 memory technology
– 2 x DDR3 DIMM slots
– Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 16GB*
– Supports Intel® Extreme Memory Profile (XMP) 1.3/1.2 with Intel® Ivy Bridge CPU

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

**The highest supported DRAM frequency depends on the CPU you’ve installed. For detailed CPU specifications, please refer to Intel® official website.

***In order to maximize the system memory, please install 8GB memory module with 16 cells


BIOS
– 32Mb AMI UEFI Legal BIOS with GUI support
– Support “Plug and Play”
– ACPI 1.1 Compliance Wake Up Events
– Supports jumper free
– SMBIOS 2.3.1 Support


Graphics
– Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video 2.0, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 2500/4000 with Intel® Ivy Bridge CPU
– Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® HD Graphics 2000/3000, Intel® Advanced Vector Extensions (AVX) with Intel® Sandy Bridge CPU
– Pixel Shader 5.0, DirectX 11 with Intel® Ivy Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel® Sandy Bridge CPU.
– Max. shared memory 1760MB with Intel® Ivy Bridge CPU. Max. shared memory 1759MB with Intel® Sandy Bridge CPU.
– Supports D-Sub with max. resolution up to 2048×1536 @ 75Hz

*Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

***Intel® InTru™ 3D is only supported under Windows® 7 and Windows® 7 x64.


Audio
– 5.1 CH HD Audio (Realtek ALC662 Audio Codec)


LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111E
– Supports Wake-On-LAN
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 1 x PCI Express 3.0 x16 slot (blue @ x16 mode)
– 1 x PCI Express 2.0 x1 slot

*PCIe Gen3 is supported on 3rd Generation of Intel® Core™ i5 and Core™ i7 CPUs.


Storage
– 4 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions


Connector
– 1 x IR header
– 1 x Power LED header
– 1 x Chassis Intrusion header
– 1 x LPC/TPM header
– 1 x CPU Fan connector (4 pin)
– 1 x Chassis Fan connector (4-pin)
– 1 x 24 pin ATX power connector
– 1 x 4 pin 12V power connector
– 1 x Front panel audio connector
– 1 x SPDIF Out connector
– 2 x USB 2.0 headers (support 4 USB 2.0 ports)

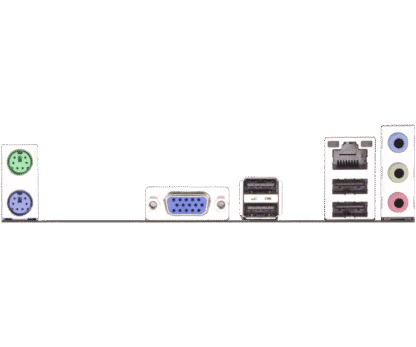

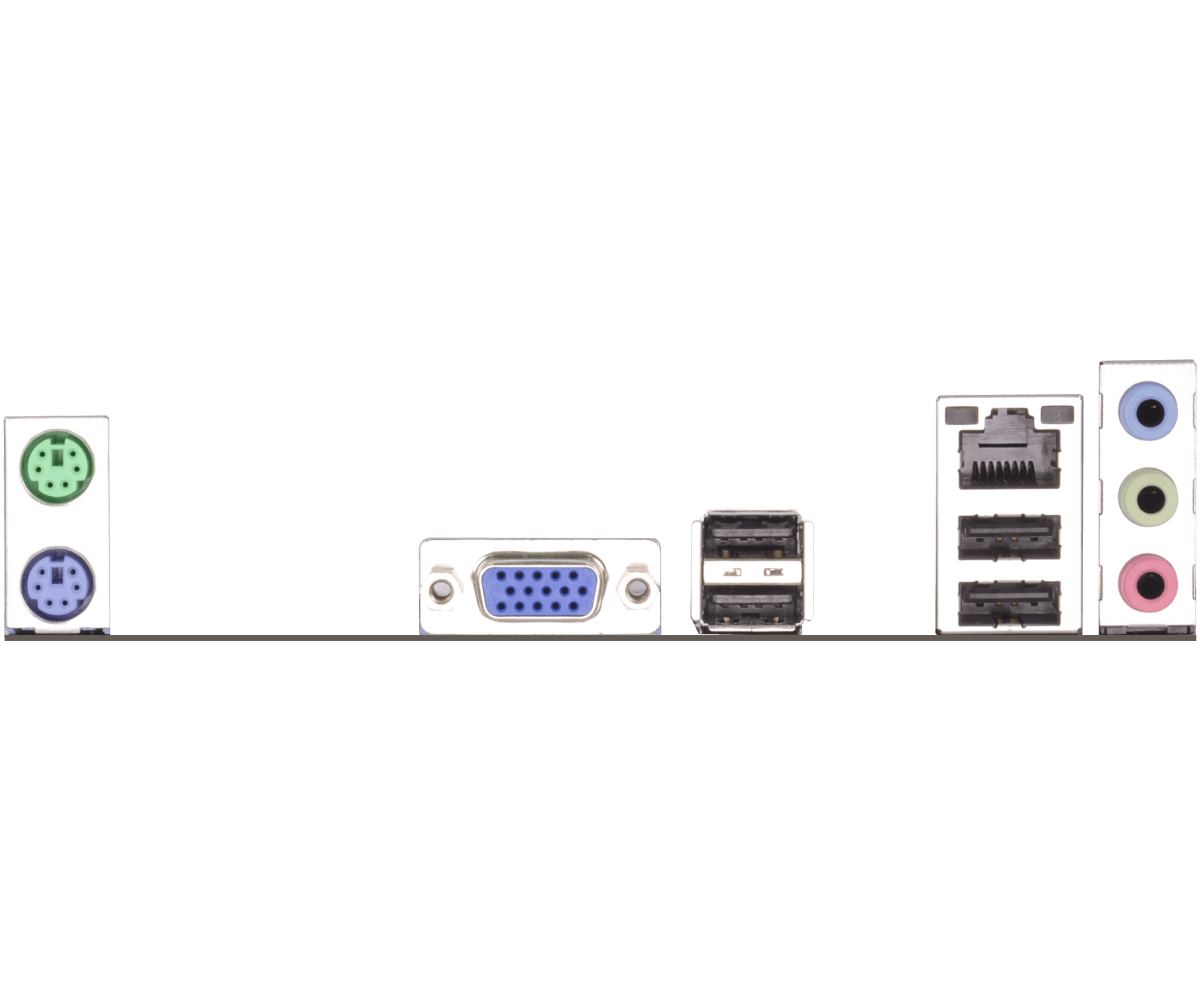

Rear Panel I/O
I/O Panel
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x D-Sub Port
– 4 x USB 2.0 Ports
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jack: Line in / Front Speaker / Microphone


Unique Feature
– ASRock Extreme Tuning Utility (AXTU)
– ASRock Instant Boot
– ASRock Instant Flash
– ASRock APP Charger
– ASRock XFast USB
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock Internet Flash
– ASRock Dehumidifier Function
– ASRock Fast Boot
– ASRock Restart to UEFI
– Hybrid Booster:
– ASRock U-COP
– Boot Failure Guard (B.F.G.)
– Combo Cooler Option (C.C.O.)
– Good Night LED


Accessories
– I/O Shield


Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis Fan Tachometer
– CPU Quiet Fan (Allow Chassis Fan Speed ​​Auto-Adjust by CPU Temperature)
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
– Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore


Form Factor
– Micro ATX Form Factor
– All Solid Capacitor design


OS
– Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32- bit / XP 64 bit

*Windows® 8.1 is supported with Intel® Ivy Bridge CPU for onboard VGA.


Certifications
– FCC, CE

Specification

Weight 1 kg
Intel

LGA1155

Brand

Asrock

Chipset

Intel H61

Form Factor

Micro-ATX

Memory Type

DDR3 SDRAM

Number of memory slots

2

Maximum memory size

16 GB

Connectors

D-Sub (VGA), Ethernet (RJ-45), PS/2, USB 2.0

Storage Interfaces

Serial ATA-300

Interfaces

PCI-e 2.0 x1, PCI-e 3.0 x16

Socket

Model

H61M-VG4

Length

27 cm

Width

21.3 cm

package content

Motherboard and Backplate (Blende)

Asrock H61M-VG4 LGA1155 motherboard

5 in stock

Fast delivery
34,95

Brand: Asus
Model: H61M-VG4
Socket: LGA1155
Chipset: Intel H61
Memory: 2x DDR3 (16GB Max)
Form Factor: M-ATX
EAN: 4717677320978
