Description

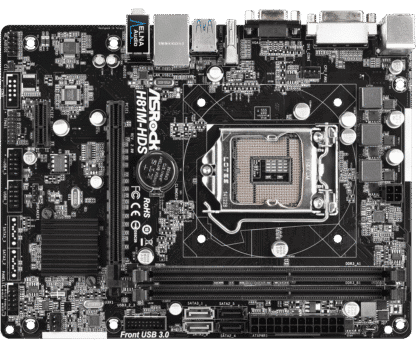

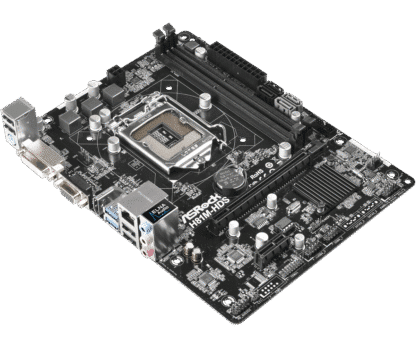

The ASRock H81M-HDS R2.0 is a Micro-ATX LGA1150 motherboard based on the Intel H81 chipset. The board must be combined with DDR3 memory, for which 2 slots are available. In total, the ASRock H81M-HDS R2.0 has 4 Serial ATA connections for hard drives and SSDs. The built-in sound card offers 7.1-channel sound and is based on a Realtek ALC662 chip.
Features: Motherboard | Micro-ATX | LGA1150 | 2x DDR3 | 2x SATA-600 | 2x SATA-300 | 1x PCI-e 2.0 x16 | 1x PCI-e 2.0 x1 | USB 3.1 (Gen1, 5 Gb / s) | USB 2.0 | HDMI | DVI-D | D-Sub (VGA)
Click here for the supporting CPUs
Click here for the drivers
Product: ASRock H81M-HDS R2.0
Socket: LGA1150
Category: motherboards
Brand: ASRock
EAN: 4717677325454
Condition: refurbished – BIOS updated to the latest version
SKU: 90-MXG80A0UAYZ, 90-MXGX80-A0UAYZ, H81M-HDS R2.0
Warranty: 6 months
Package content:
– Motherboard (ASRock H81M-DGS R2.0)
– backplate (blende)
– No manual
– No CD with drivers
– No cables
Unique Feature
ASRock Full Spike Protection
ASRock APP Shop
CPU
Supports New 4th and 4th Generation Intel® Xeon® / Core ™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
– Supports Intel® Turbo Boost 2.0 Technology
Chipset
– Intel® H81
Memory
– Dual Channel DDR3 / DDR3L Memory Technology
– 2 x DDR3 / DDR3L DIMM Slots
Supports DDR3 / DDR3L 1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 16GB *
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
– 32Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 1.1 Compliant wake up events
– SMBIOS 2.3.1 support
– DRAM, PCH 1.05V Voltage multi-adjustment
Graphics
Supports Intel® HD Graphics Built-in Visuals: Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru ™ 3D, Intel® Clear Video HD Technology, Intel® Insider ™, Intel ® HD Graphics 4400/4600
– Pixel Shader 5.0, DirectX 11.1
– Max. shared memory 512MB *
– Three graphics output options: D-Sub, DVI-D and HDMI Ports **
Supports HDMI with max. Resolution up to 1920×1200 @ 60Hz
Supports DVI-D with max. Resolution up to 1920×1200 @ 60Hz
Supports D-Sub with max. Resolution up to 1920×1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports HDCP with DVI-D and HDMI Ports
Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports
* The size of maximum shared memory may vary from different operating systems.
** Supports up to 2 displays simultaneously.
*** Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
**** Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8/8 64-bit / 7/7 64-bit / Vista ™ / Vista ™ 64-bit .
***** Intel® InTru ™ 3D is only supported under Windows® 8/8 64-bit / 7/7 64-bit.
Audio
– 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
– Supports Surge Protection (ASRock Full Spike Protection)
– ELNA Audio Caps
LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb / s
– Realtek RTL8111GR
Supports Wake-On-WAN
– Supports Wake-On-LAN
Supports Lightning / ESD Protection (ASRock Full Spike Protection)
– Supports LAN Cable Detection
Supports Energy Efficient Ethernet 802.3az
– Supports PXE
Slots
– 1 x PCI Express 2.0 x16 Slot (PCIE1: x16 mode)
– 1 x PCI Express 2.0 x1 Slot
Storage
– 2 x SATA3 6.0 Gb / s Connectors, support NCQ, AHCI and Hot Plug
– 2 x SATA2 3.0 Gb / s Connectors, support NCQ, AHCI and Hot Plug
Connector
– 1 x Chassis Intrusion Header
– 1 x TPM Header
– 1 x CPU Fan Connector (4-pin)
– 1 x Chassis Fan Connector (4-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 4 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Header by ASMedia ASM1042A (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))

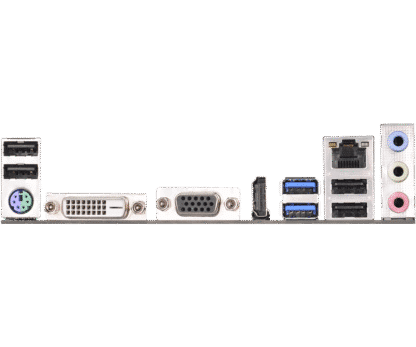

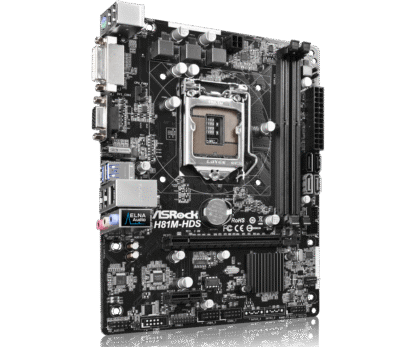

Rear Panel I / O
– 1 x PS / 2 Mouse / Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT / LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
– ASRock A-Tuning
– ASRock Disk Health Report
– ASRock USB Key
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Restart to UEFI
UEFI
– ASRock Interactive UEFI
– ASRock UEFI Guide
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock UEFI Tech Service
– ASRock Dehumidifier
– ASRock Easy Driver Installer
Accessories
– I / O Shield
Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
Voltage monitoring: + 12V, + 5V, + 3.3V, CPU Vcore
Form Factor
– Micro ATX Form Factor
– Solid capacitor design
– High Density Glass Fabric PCB
OS
Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
Certifications
– FCC, CE
– ErP / EuP ready (ErP / EuP ready power supply is required)
