ASRock H81TM-ITX R2.0: Motherboard | Mini ITX | LGA1150 | 2x DDR3 (SODIMM) (max 16GB) | SATA 600 | Mini PCI-e 2.0 x1 | PCI-e 2.0 x4 | USB 2.0 | USB 3.2 (Gen1, 5Gb/s) | DVI-I | HDMI
Product: ASRock ASRock H81TM-ITX R2.0
Socket: LGA 1150/Sockel H3
Category: motherboards
Brand: ASRock
Condition: Refurbished – BIOS updated to the latest version
EAN: 4717677323900
SKU: 90-MXGVM0-AoUAYZ, H81TM-ITX R2.0
Warranty: 6 months
Package contents:
– Motherboard (ASRock H81TM-ITX R2.0)
– Backplate (blende)
– No Adapter
– No manual
– No drivers CD
– No cables
Unique Feature
ASRock Full Spike Protection
ASRock Cloud
ASRock APP Shop
CPU
– Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors with up to 65W TDP (Socket 1150)
– Supports Intel® Turbo Boost 2.0 Technology
Chipset
– Intel® H81
Memory
– Dual-Channel DDR3/DDR3L Memory Technology
– 2 x DDR3/DDR3L SO-DIMM Slots
– Supports DDR3/DDR3L 1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 16GB*
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
– 32Mb AMI UEFI Legal BIOS with Multilingual GUI support
– ACPI 1.1 Compliant wake-up events
– SMBIOS 2.3.1 support
– CPU, DRAM Voltage multi-adjustment
Graphics
– Supports Intel® HD Graphics Built-in Visuals: Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel ® HD Graphics 4400/4600
– Pixel Shader 5.0, DirectX 11.1
– Max. shared memory 512MB*
– Three graphics output options: HDMI, DVI-I, and LVDS**
– Supports HDMI with max. resolution up to 4K x 2K (4096×2304) @ 24Hz
– Supports DVI-I with max. resolution up to 1920×1200 @ 60Hz
– Supports LVDS with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC, and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports HDCP function with HDMI
– Supports Full HD 1080p Blu-ray (BD) playback with HDMI
*The size of maximum shared memory may vary from different operating systems.
**Supports up to 2 displays simultaneously.
***Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
****Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit.
*****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.
Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
– Premium Blu-ray Audio support
– Supports Surge Protection (ASRock Full Spike Protection)
LAN
– Gigabit LAN 10/100/1000 Mb/s
– Giga PHY Intel® I218V
– Supports Intel® Remote Wake Technology
– Supports Wake-On-LAN
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
Slots
– 1 x PCI Express 2.0 x4 Slot
– 1 x Half mini PCI Express Slot
Storage
– 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI, and Hot Plug
Connector
– 1 x CIR Header
– 1 x COM Port Header
– 1 x SPDIF Out Connector
– 1 x Monitor Switch Header
– 1 x Backlight Power Jumper
– 1 x Panel Power Jumper
– 1 x Backlight & Amp Volume Control Header
– 1 x LVDS Connector
– 1 x LPC Debug Header
– 1 x Home Theater PC Header
– 1 x CPU Fan Connector (4 pin)
– 1 x Chassis Fan Connector (4-pin)
– 1 x Front Panel Audio Connector
– 1 x Analog Surround Audio Header
– 1 x Digital MIC Header
– 1 x 3W Audio AMP Outtput Wafer Header
– 1 x Internal Power Header
– 1 x SATA Power Connector
– 3 x USB 2.0 Headers (Support 5 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
Rear Panel I/O
– 1 x DC Jack (Compatible with the 19V power adapter)

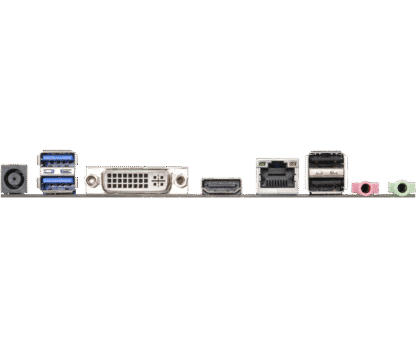

– 1 x DVI-I Port
– 1 x HDMI Port
– 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Front Speaker / Microphone
*Please use a 19V power adapter for the DC jack. his jack accepts dual-barrel plugs with an inner diameter of 5.1 mm and an outer diameter of 7.4 mm, where the inner contact is +19 (±10%) VDC and the shell is GND.
Software and UEFI
Software
– ASRock A-Tuning
– ASRock Disk Health Report
– ASRock USB Key
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Restart to UEFI
UEFI
– ASRock Interactive UEFI
– ASRock UEFI Guide
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock UEFI Tech Service
– ASRock Dehumidifier
– ASRock Easy Driver Installer
Accessories
– I/O Shields
Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
– Thin Mini-ITX Form Factor (Compatible with Mini-ITX)
– Solid Capacitor for CPU power
OS
– Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
