Description

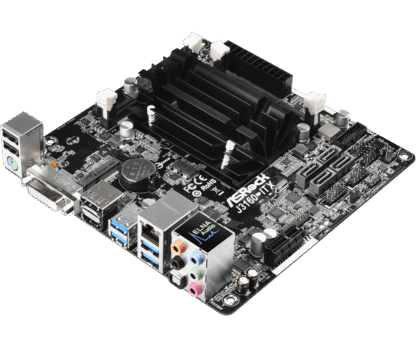

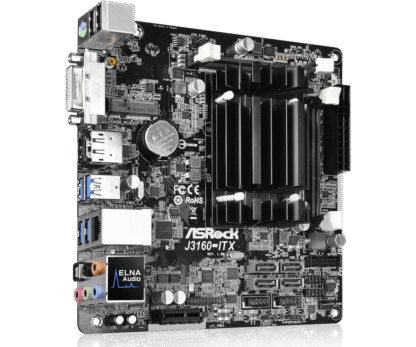

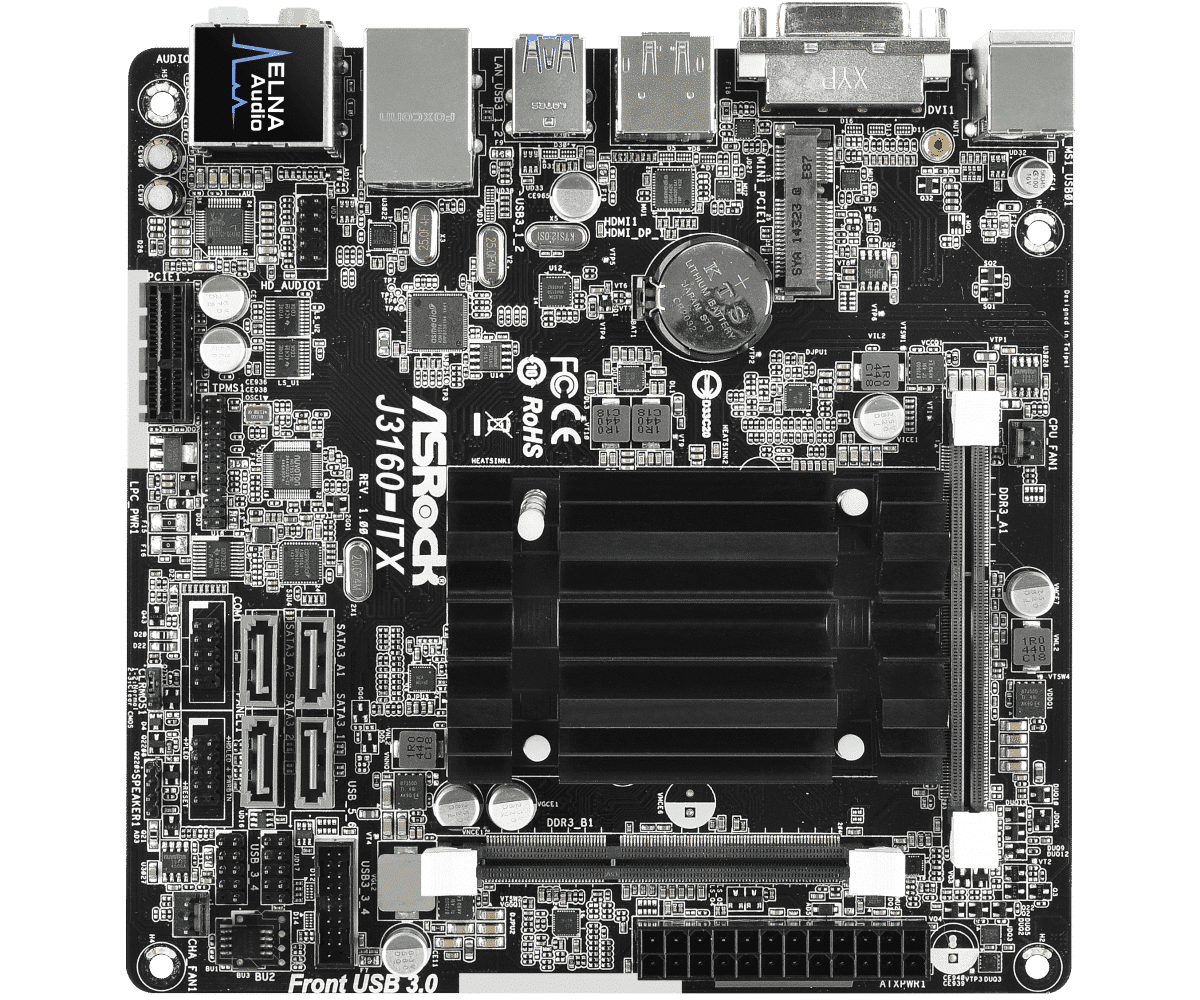

The ASRock J3160-ITX is a Mini-ITX motherboard with an integrated Intel Celeron J3160 APU. The board must be combined with DDR3 memory, for which 2 slots are available. In total, the ASRock J3160-ITX has 4 Serial ATA connections for hard disks and SSDs. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC892 chip.
Features: Motherboard | Micro ATX| integrated Intel Celeron J3160 APU | 2 x DDR3 | 4x SATA 600 | PCI-e 2.0 x1 | mini PCI Express | USB2.0 | USB3.2 | D-Sub (VGA) | Display port | HDMI
Click here for the drivers
Product:ASRock J3160-ITX
Connection: Onboard CPU
Category: motherboards
Brand: ASRock
EAN:4717677329919
State: Refurbished – BIOS updated to the latest version
SKU: 90-MXB1M0-A0UAYZ, J3160-ITX
Warranty: 6 months

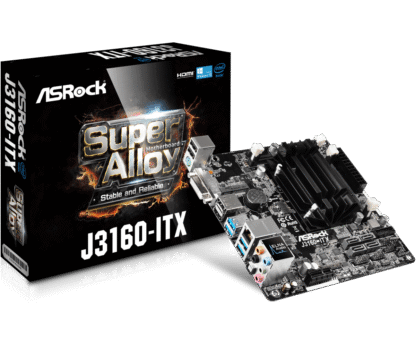

package content:
– Motherboard (ASRock J3160-ITX)
– IO-Shield (Tin back plate)
– instruction manual
– drivers CD
– cables
Unique Feature
ASRock Super Alloy
– High Density Glass Fabric PCB
ASRock Full Spike Protection
ASRock Live Update & APP Shop
CPU
– Intel® Quad-Core Processor J3160 (up to 2.24GHz)
Memory
– Dual Channel DDR3/DDR3L Memory Technology
– 2 x DDR3/DDR3L SO-DIMM Slots*
– Supports DDR3/DDR3L 1600/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 16GB*
*If only one SO-DIMM module is installed, please install it into DDR3_A1.
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
– 64Mb AMI UEFI Legal BIOS with GUI support
– Supports Plug and Play
– ACPI 5.0 compliant wake up events
– Supports jumper free
– SMBIOS 2.7 support
Graphics
– Integrated Intel® HD Graphics 400: 12 EUs inside (Up to 700MHz)
– DirectX 11.1, Pixel Shader 5.0
– Three graphics output options: DVI-D, HDMI and DisplayPort 1.1a
– Supports Triple Monitor
– Supports HDMI with max. resolution up to 4K x 2K (3840×2160) @ 30Hz or 2560×1600 @ 60Hz
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports DisplayPort 1.1a with max. resolution up to 4K x 2K (3840×2160) @ 30Hz or 2560×1600 @ 60Hz
– Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports HW Accelerated Decoders: H.264 @ level 5.2, H.265/HEVC @ level 5 (GPU accelerated), JPEG, VP8
– Supports HDCP with DVI-D, HDMI and DisplayPort 1.1a Ports
– Supports Full HD 1080p Blu-ray (BD) playback with DVI-D, HDMI and DisplayPort 1.1a Ports
Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
– Premium Blu-ray Audio support
– Supports Surge Protection (ASRock Full Spike Protection)
– ELNA Audio Caps
LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111GR
– Supports Wake-On-WAN
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
Slots
– 1 x PCI Express 2.0 x1 Slot
– 1 x Half-size Mini PCI Express Slot
Storage
– 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
– 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
Connector
– 1 x COM Port Header
– 1 x TPM Header
– 1 x CPU Fan Connector (3-pin)
– 1 x Chassis Fan Connector (3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))*
*USB3_3_4 is shared with USB_5_6.

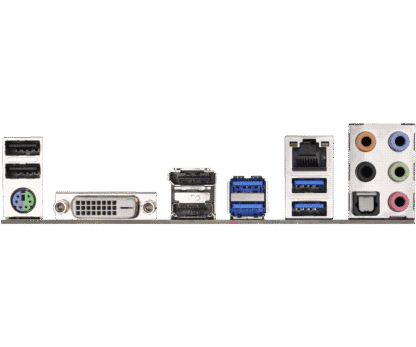

Rear Panel I/O
– 1 x PS/2 Mouse/Keyboard Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 1 x DisplayPort 1.1a
– 1 x Optical SPDIF Out Port
– 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 4 x USB 3.1 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Software and UEFI
– ASRock Power Gear
– ASRock Disk Health Report
– ASRock USB Key
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Restart to UEFI*
UEFI
– ASRock Power Gear
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD
– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories
– Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables
– 1 x WiFi Module Screw
Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
– Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
– Solid Capacitor design
OS
– Microsoft® Windows® 10 32-bit / 10 64-bit / 8.1 32-bit / 8.1 64-bit / 7 32-bit / 7 64-bit*
– Linux: Ubuntu 14.04.3 LTS / Ubuntu 15.04 / Ubuntu 15.10 / Fedora 23 / Zorin OS 10 / Arch Linux 2015.10.01 / clonezilla-live-20150915-wily-amd64 / Android-x86-4.4-r3**
*To install Windows® 7 64-bit OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions.
For the updated Windows® 10 driver, please visit ASRock’s website for details.
**Linux O/S basic function support only, due to the compatibility of the Liunx system itself, there is no guarantee that all functions are supported.
Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
