Description
The ASRock J4005M Motherboard is a Micro-ATX motherboard with an integrated Dual-Core J4005 (Up to 2.7Ghz) processor. The motherboard features dual-channel DDR4 DIMM memory slots with a maximum capacity of 8GB RAM.
The ASRock J4005M Motherboard includes one PCI Express 2.0 x16 slot, two PCI Express 2.0 x1 slots, 1 M.2 Socket (Key E), and 2 SATA3 6.0 Gb/s connectors. Additionally, it is equipped with connections such as HDMI, DVI-D, D-Sub (VGA), USB 2.0, and USB 3.1 Gen1.

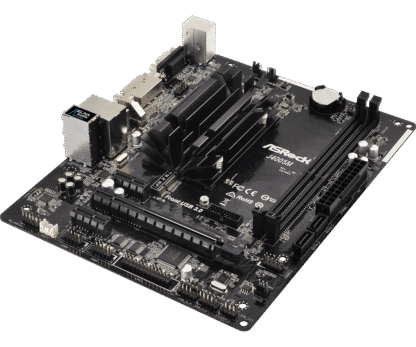

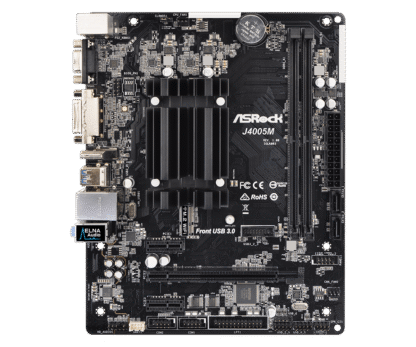

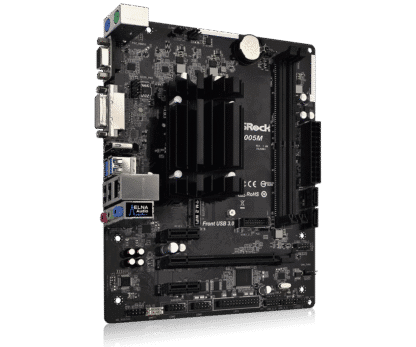

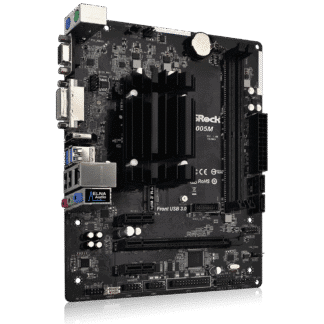

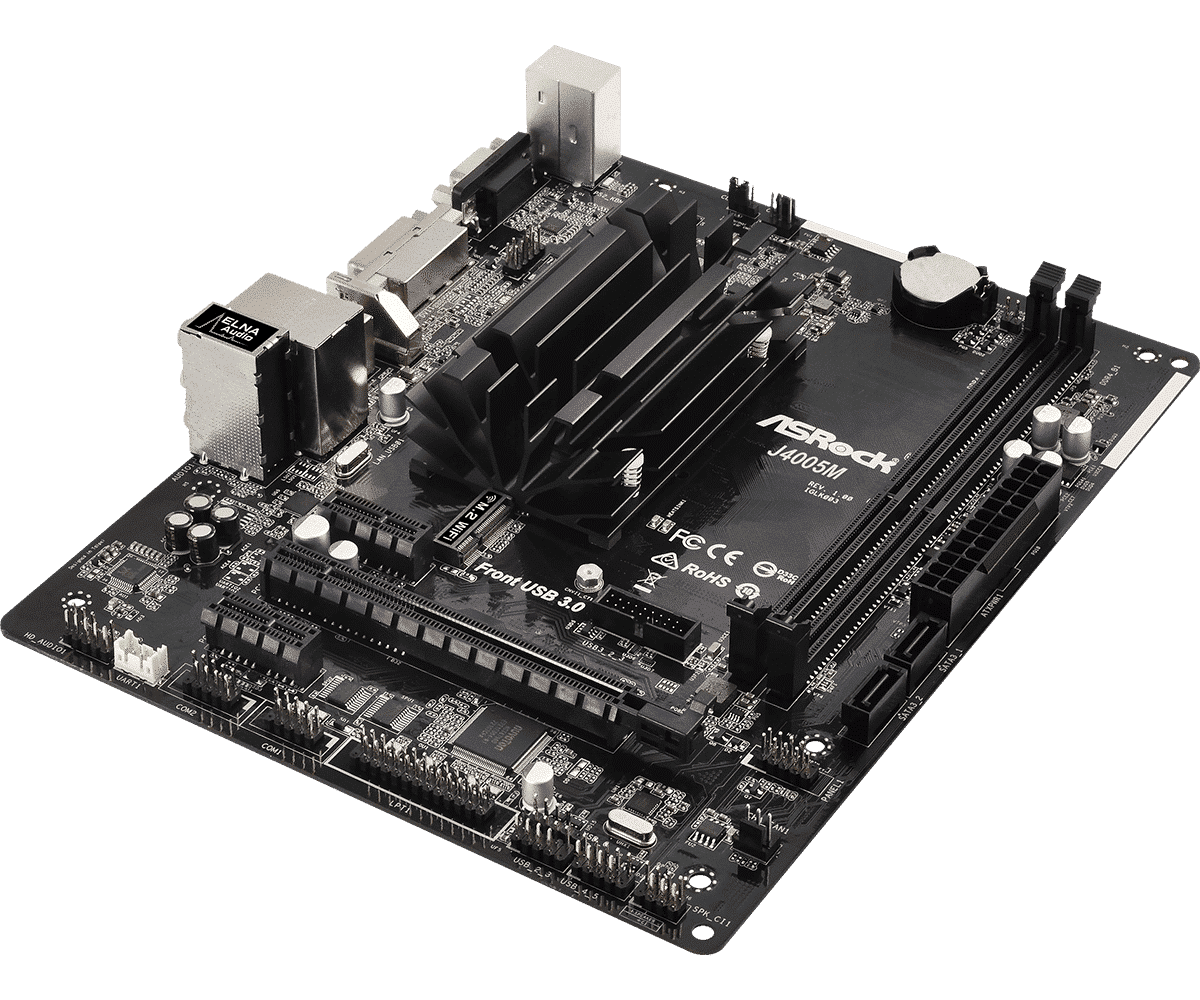

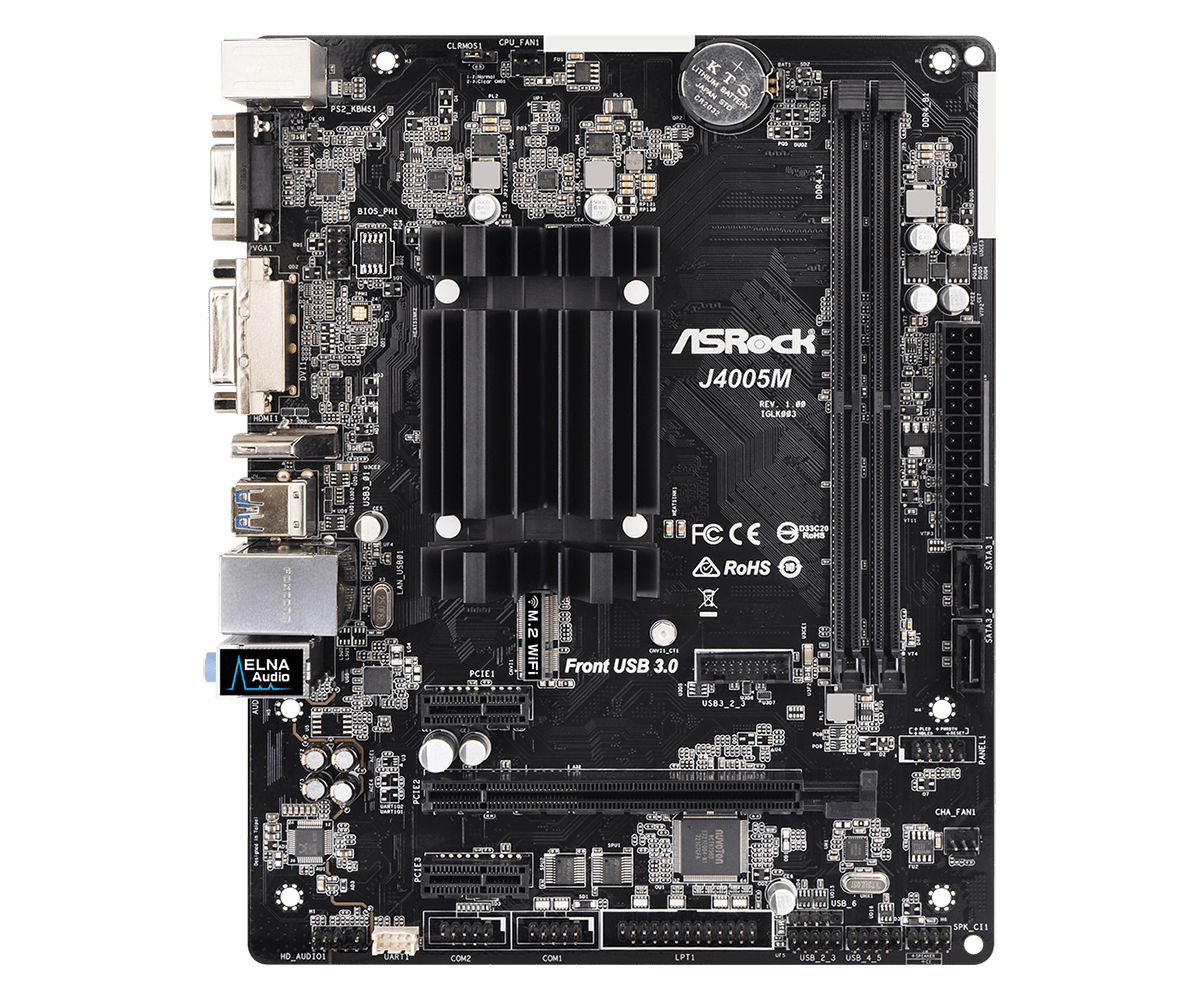

ASRock J4005M Motherboard
Type: Motherboard
Socket: Integrated Dual-Core J4005 Processor
Brand: ASRock
Condition: Refurbished
Warranty: 6 months
EAN: 4717677334944
Manufacturer Code: 90-MXB6L0-A0UAYZ, J4005M
Drivers for the ASRock J4005M
Package Contents
- ASRock J4005M Motherboard
- IO Shield
- No manual, driver CD, or cables included
Specifications
Unique Feature
ASRock Super Alloy
– Sapphire Black PCB
– High Density Glass Fabric PCB
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU
– Intel® Dual-Core Processor J4005 (up to 2.7 GHz)
Memory
– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots*
– Supports DDR4 2400 / 2133 non-ECC, un-buffered memory
– Max. capacity of system memory: 8GB**
*2GB DRAM per module is not supported.
**Intel® Extreme Memory Profile (XMP) is not supported
BIOS
– 128Mb AMI UEFI Legal BIOS with GUI support
– Supports Plug and Play
– ACPI 5.0 compliant wake up events
– Supports jumperfree
– SMBIOS 3.0 support
Graphics
– Integrated Intel® UHD Graphics 600: 12 EUs inside (Up to 700MHz)
– DX12, OpenGL 4.3, OGL ES 3.0, OpenCL 2.0
– HW Acceleration Decode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 @ Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit, VP9 10 bit
– HW Acceleration Encode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 @ Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports Triple Monitor
– Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 2048×1536 @ 60Hz
– Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI 2.0 monitor is required)
– Supports HDCP with DVI-D and HDMI 2.0 Ports
– Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI 2.0 Ports
Audio
– 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
– Supports Surge Protection
– ELNA Audio Caps
*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111E
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
Slots
– 1 x PCI Express 2.0 x16 Slot (PCIE2: x1 mode)
– 2 x PCI Express 2.0 x1 Slots
– 1 x M.2 Socket (Key E), supports type 2230 Intel® CNVi (Integrated WiFi/BT)*
* M.2 PCI Express module is not supported
Storage
– 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Connector
– 1 x Print Port Header
– 2 x COM Port Headers
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (3-pin)
– 1 x Chassis Fan Connector (3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x Front Panel Audio Connector
– 3 x USB 2.0 Headers (Support 5 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

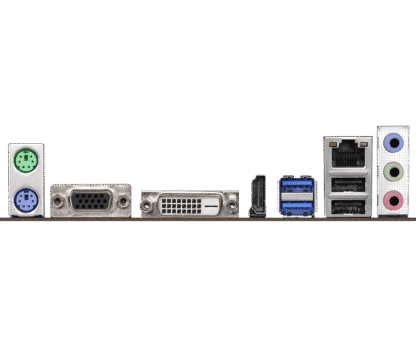

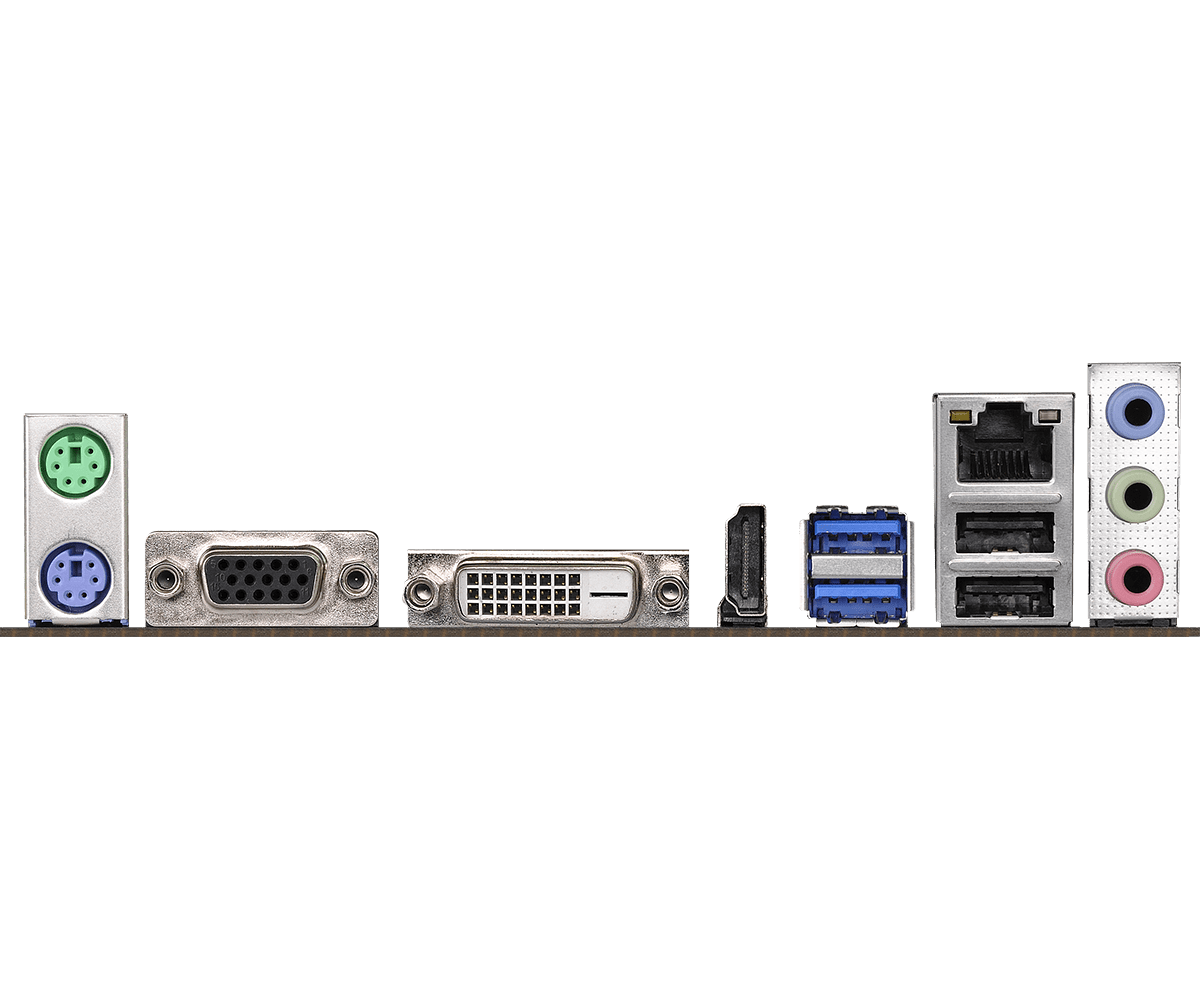

Rear Panel I/O
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 2 x USB 3.1 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
UEFI
– ASRock Instant Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories
– I/O Shield
Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
– Micro ATX Form Factor: 8.9-in x 7.0-in, 22.6 cm x 17.8 cm
– Solid Capacitor design
OS
– Microsoft Windows® 10 64-bit*
*Supports UEFI mode only
Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
