Product information

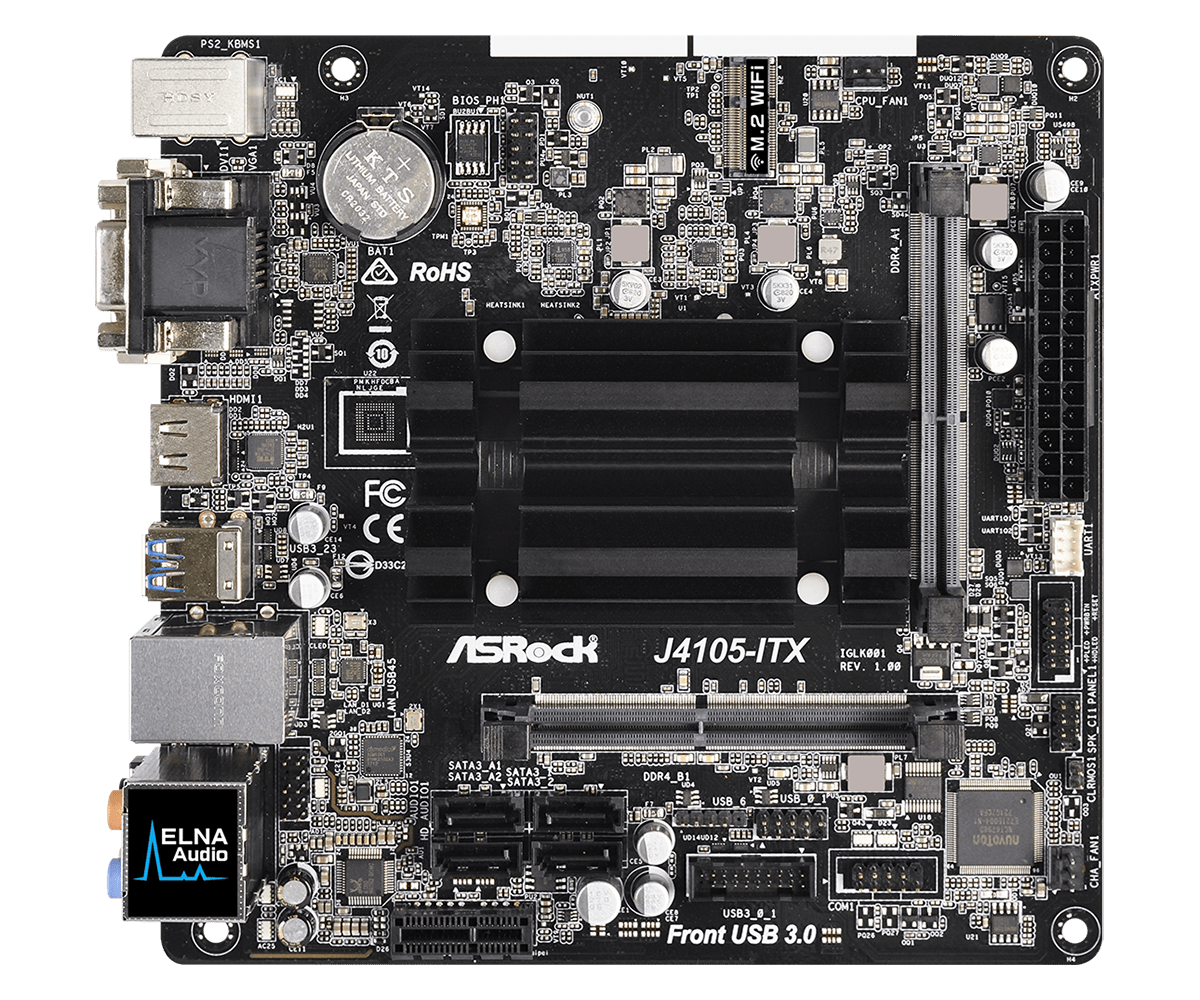

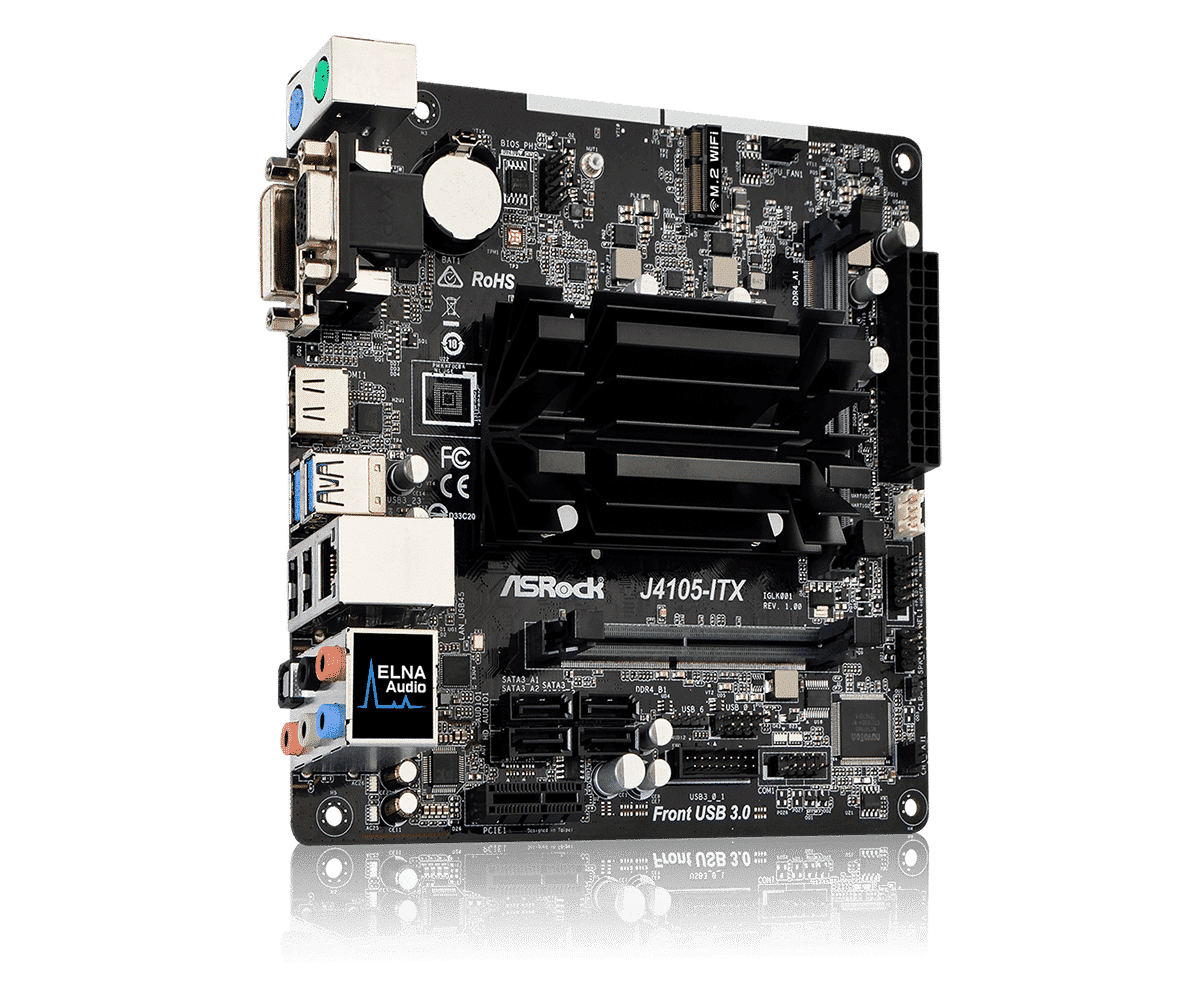

The ASRock J4105-ITX is a Mini-ITX motherboard with an integrated Intel Quad-Core Processor J41055. The board must be combined with SODimm DDR4 memory, for which 2 slots are available. The ASRock J4105-ITX has a total of 4 Serial ATA connections for hard disks and SSDs. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC892 chip.

Features: Motherboard | Mini ITX| integrated Intel Quad-Core Processor J4105 APU | 2 x SODimm DDR4 | SATA-600 | PCIe 2.0 x1 | USB2.0 | USB3.1 | DVI-D | D-Sub (VGA) | HDMI | Com port


Product: ASRock J4105-ITX
Connection: Onboard CPU
Category: motherboards
Brand: ASRock
EAN: 4717677334883
Condition: Refurbished – BIOS updated to the latest version
SKU: 90-MXB6N0-A0UAYZ
Warranty:
6 months

package contents:
– Motherboard (ASRock J4105-ITX)
– backplate (blende)
– No manual
– No driver CD
– No cables


Unique Feature
ASRock Super Alloy
– High Density Glass Fabric PCB
ASRock Full Spike Protection
ASRock Live Update & APP Shop


CPU
– Intel® Quad-Core Processor J3455 (up to 2.3 GHz)


Memory
– Dual Channel DDR3/DDR3L Memory Technology
– 2 x DDR3/DDR3L SO-DIMM Slots*
– Supports DDR3/DDR3L 1866/1600/1333 non-ECC, un-buffered memory
– Max. capacity of system memory: 16GB**

*2GB DRAM per module is not supported.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 64Mb AMI UEFI Legal BIOS with GUI support
– Supports Plug and Play
– ACPI 5.0 compliant wake up events
– Supports jumperfree
– SMBIOS 3.0 support


Graphics
– Integrated Intel® HD Graphics 500: 12 EUs inside (Up to 750MHz)
– DirectX 12, Pixel Shader 5.0
– Dual graphics output: support D-Sub and HDMI ports by independent display controllers
– Supports HDMI with max. resolution up to 4K x 2K (3840×2160) @ 30Hz or 2560×1600 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports HW Accelerated Decoders: H.264 @ level 5.2, HEVC (H.265) 10b @MP level 5.1 (GPU accelerated), JPEG, VP8, VP9
– Supports HDCP with HDMI Port
– Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port


Audio
– 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
– Supports Surge Protection (ASRock Full Spike Protection)
– ELNA Audio Caps

*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.


LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111GR
– Supports Wake-On-WAN
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 1 x PCI Express 2.0 x16 Slot (PCIE1: x2 mode)


Storage
– 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug


Connector
– 1 x COM Port Header
– 1 x Chassis Intrusion Header
– 1 x TPM Header
– 1 x CPU Fan Connector (3-pin)
– 1 x Chassis Fan Connector (3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))*

*USB3_1_2 is shared with USB2_3.


Rear Panel I/O
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x Parallel Port (ECP/EPP Support)
– 1 x Serial Port: COM1
– 1 x D-Sub Port
– 1 x HDMI Port
– 1 x USB 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection))
– 3 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone


Software and UEFI
Software
– ASRock Power Gear
– ASRock XFast LAN*
UEFI
– ASRock Power Gear
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS

*These utilities can be downloaded from ASRock Live Update & APP Shop.


Accessories
– I/O Shield


Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore


Form Factor
– Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
– Solid Capacitor design


OS
– Microsoft® Windows® 10 64-bit*
– Linux: Ubuntu 16.10 / Fedora 25**

*For the updated Windows® 10 driver, please visit ASRock’s website for details.

**Linux O/S basic function support only, due to the compatibility of the Liunx system itself, there is no guarantee that all functions are supported.


Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Specification

Weight 1 kg
Intel

Onboard CPU

Brand

Asrock

Form Factor

Mini-ITX

Memory Type

DDR4 Sodimm

Number of memory slots

2

Maximum memory size

8 GB

Connectors

D-Sub (VGA), DVI-D, Ethernet (RJ-45), HDMI, USB 2.0, USB 3.1 Gen1

Storage Interfaces

Serial ATA-600

Interfaces

PCI-e 2.0 x1

Socket

Model

J4105-ITX

Suitable for

Regular use

particularities

Onboard Audio

package content

Motherboard and Backplate (Blende)

Length

17.5 cm

Width

17.5 cm

ASRock J4105-ITX onboard Quad-Core CPU motherboard

Fast delivery

  • ASRock Super Alloy
  • Intel® Quad-Core Processor J4105 (up to 2.5 GHz)
  • Supports DDR4 2133/2400 SO-DIMM
  • 1 PCIe 2.0 x1, 1 M.2 (Key E)
  • Graphics Output Options: D-Sub, HDMI, DVI-D
  • 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
  • 4 SATA3
  • 4 USB 3.1 Gen1 (2 Front, 2 Rear)
  • Supports Full Spike Protection, ASRock Live Update & APP Shop
