Description
ASRock J4125-ITX is a compact mini-ITX motherboard with an Intel Celeron J4125 quad-core processor, ideal for media centers and small PCs. The board offers HDMI, D-Sub (VGA), DVI-D,
USB 3.2, USB 2.0, Gigabit LAN, 3 audio jacks and SATA3 ports.

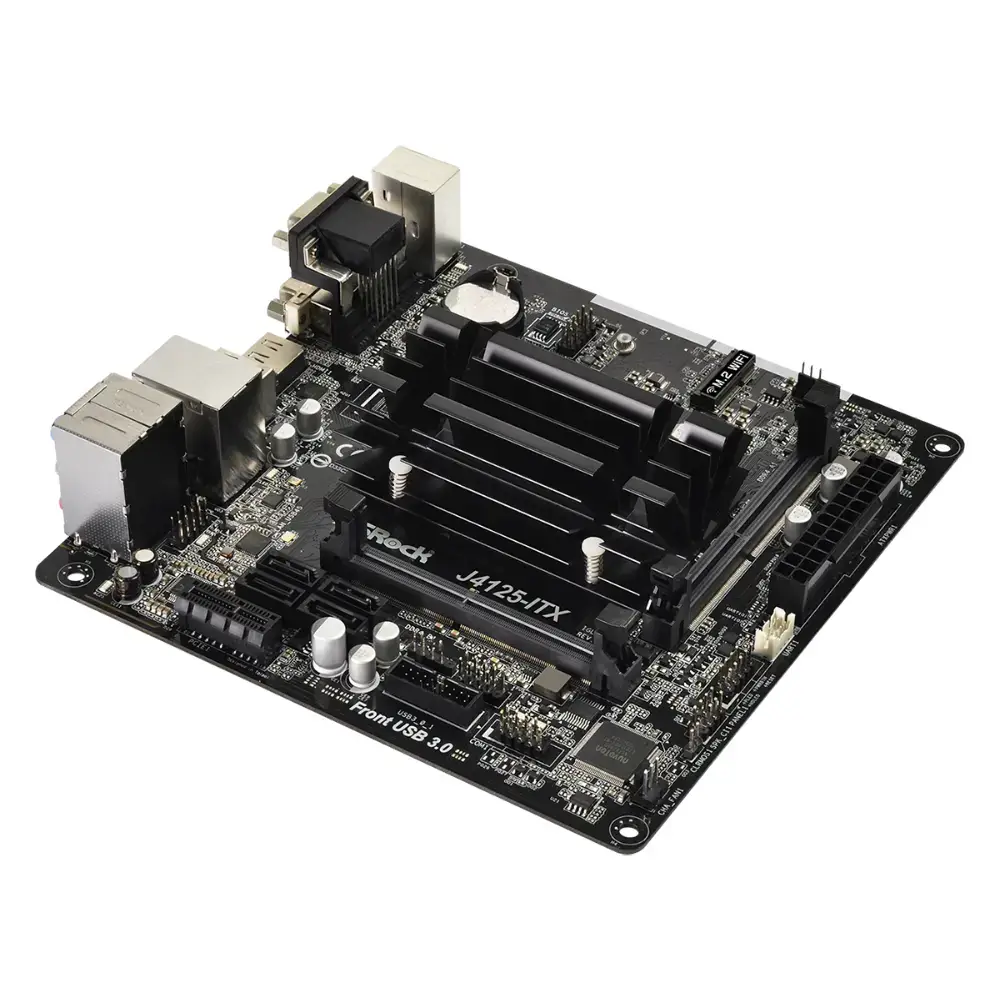

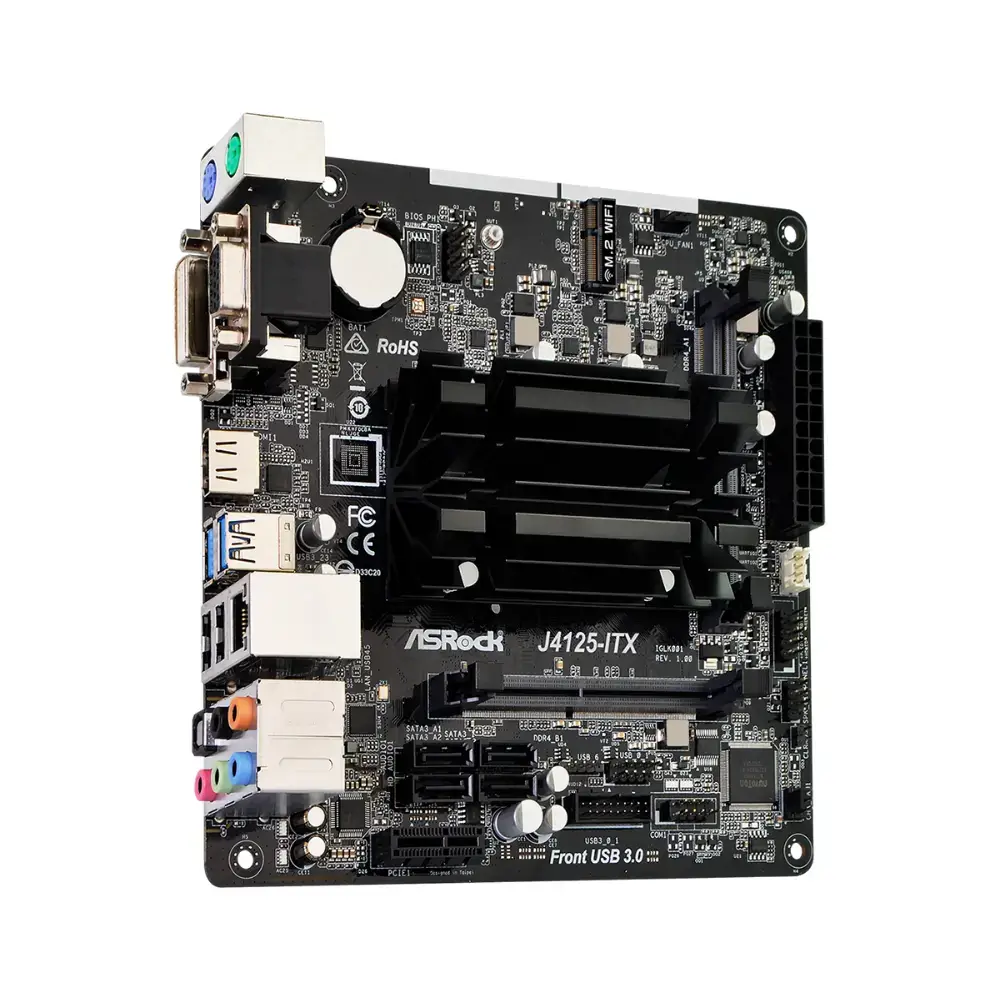

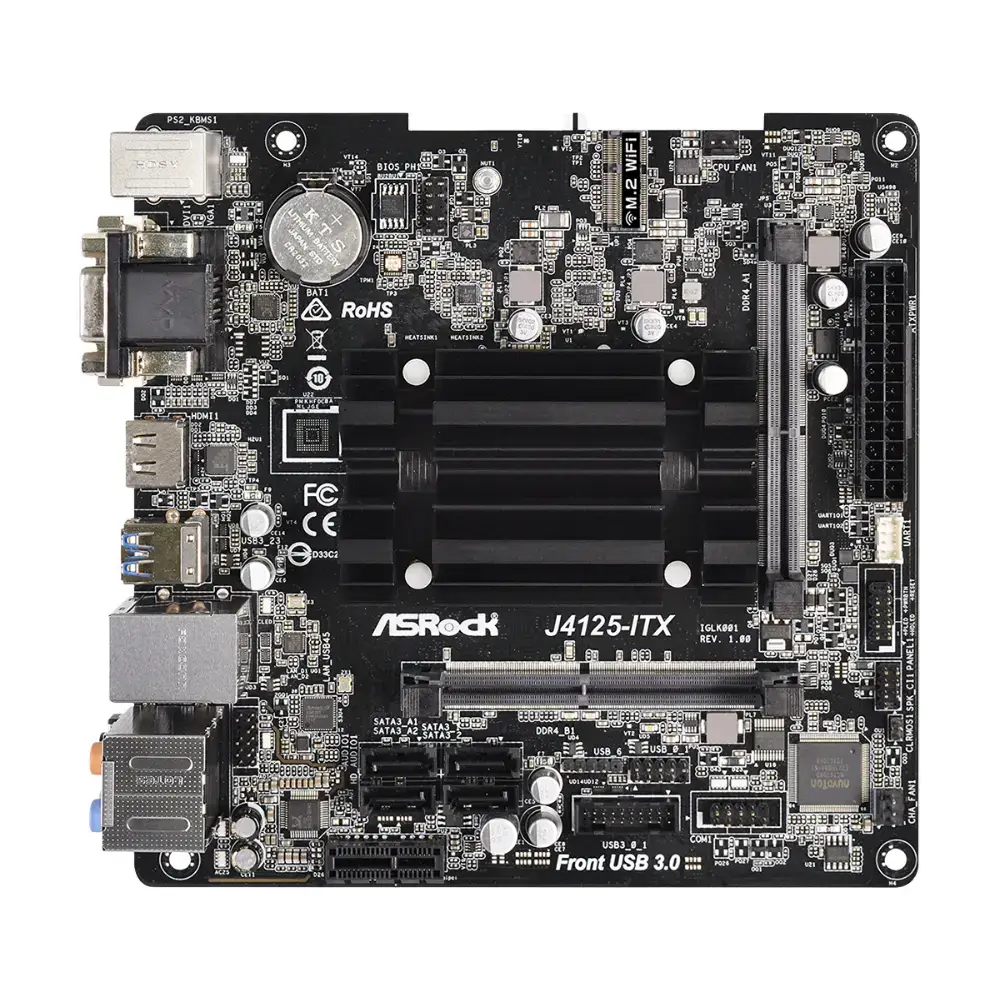

ASRock J4125-ITX Motherboard
Type: Motherboard
Socket / CPU: Integrated Intel Celeron J4125 (quad-core)
Brand: ASRock
Condition: Refurbished
Warranty: 6 months
EAN: 4710483930522
Manufacturer code: 90-MXBCE0-A0UAYZ
Package Contents
– ASRock J4125-ITX motherboard
– I/O shield
– No manual, driver CD or cables
Unique features
– ASRock Super Alloy
– Sapphire Black PCB
– High Density Glass Fabric PCB
– ASRock Full Spike Protection (USB, audio and LAN)
– ASRock Live Update & APP Shop
CPU
– Intel® quad-core processor J4125 (up to 2.7 GHz)
Memory (Memory)
– Dual Channel DDR4 memory technology
– 2 × DDR4 SO-DIMM slots
– DDR4 2400 / 2133 non-ECC, un-buffered
– Maximum memory capacity: 8 GB
*2GB of DRAM per module is not supported.
BIOS
– 128 Mb AMI UEFI BIOS with GUI
– Plug and Play support
– ACPI 5.0 support
– Jumperfree
– SMBIOS 3.0
Graphic card
– Intel® UHD Graphics 600 (up to 750 MHz)
– DX12, OpenGL 4.4, OpenCL 1.2
– HDMI, DVI-D and D-Sub
– Triple monitor support
– HDMI: up to 4K @ 30Hz
– DVI-D: up to 1920×1200 @ 60Hz
– D-Sub: up to 2048×1536 @ 60Hz
– HDCP 2.2 support
– Full HD Blu-ray support
Audio
– 7.1 HD audio (Realtek ALC892)
– Premium Blu-ray Audio
– Surge protection
– ELNA Audio Capacitors
LAN
– Gigabit LAN (10/100/1000 Mb/s)
– Realtek RTL8111H
– Wake-On-LAN
– Energy Efficient Ethernet
Expansion slots
– 1 × PCIe 2.0 x1
– 1 × M.2 (Key E) for WiFi/Bluetooth
Storage
– 2 × SATA3 via chipset
– 2 × SATA3 via ASMedia ASM1061
Rear panel I/O
– PS/2 mouse & keyboard
– VGA (D-Sub), DVI-D, HDMI
– Optical SPDIF output
– 2 × USB 2.0
– 2 × USB 3.2 Gen1
– RJ-45 LAN
– HD Audio jacks
Form Factor
– Mini-ITX (17 × 17 cm)
– Solid Capacitor Design
Operating System
– Windows® 10 64-bit
– Windows® 11 64-bit
Certifications
– FCC, CE
– ErP/EuP ready
