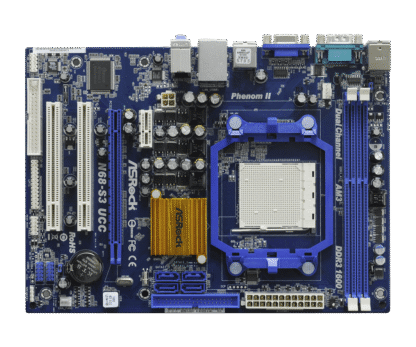

The ASRock N68-S3 UCC is a Micro-ATX AMD AM3(+) motherboard based on the NVIDIA® GeForce 7025 / nForce 630a chipset. The board must be combined with DDR3 memory, for which 2 slots are available. In total, the ASRock N68-S3 UCC has 4 Serial ATA connections for hard disks and SSDs. The built-in sound card offers 7.1-channel sound and is based on a Realtek ALC887 chip.
Features:Motherboard | Micro ATX | Connection AMD AM3(+) | 2x DDR3 | 4x SATA-300 | PCIe 2.0 x16| PCIe 2.0 x1 | PCI | Serial Port: COM1 | USB 2.0| D-Sub (VGA)
Product: ASRock N68-S3 UCC
Socket: AMD AM3(+)
Category: motherboards
Brand: ASRock
EAN:4711140872148
Condition: refurbished – BIOS updated to the latest version
SKU: N68-S3 UCC, N68-S3-UCC
Warranty: 6 months
Package content:
– Motherboard (ASRock N68-S3 UCC)
– Backplate (blende)
– No manual
– No driver CD
– No cables
CPU
– Support up to 95W Socket AM3 processors: AMD Phenom™ II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
– Supports UCC feature (Unlock CPU Core)
– Supports AMD’s Cool ‘n’ Quiet Technology
– FSB 1000MHz (2.0GT/s)
– Supports Untied Overclocking Technology
– Supports Hyper-Transport Technology
*For more information, please refer to the “CPU Support List”.
Chipset
– NVIDIA® GeForce 7025 / nForce 630a
Memory
– Dual Channel DDR3 memory technology
– 2 x DDR3 DIMM slots
– Supports DDR3 1600(OC)/1333/1066/800 non-ECC, unbuffered memory
– Max. capacity of system memory: 8GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
– 4Mb AMI Legal BIOS
-Supports “Plug and Play”
– ACPI 1.1 Compliance Wake Up Events
– Supports jumper free
– SMBIOS 2.3.1 Support
– CPU, VCCM Voltage Multi-adjustment
Graphics
– Integrated NVIDIA® GeForce 7025 graphics
– DX9.0 VGA, Pixel Shader 3.0
– Max. shared memory 256MB
– Supports D-Sub with max. resolution up to 1920×1440 @ 60Hz
Audio
– 5.1 CH HD Audio (VIA® VT1705 Audio Codec)
LAN
– Realtek PHY RTL8201EL
– Speed: 10/100 Ethernet
– Supports Wake On LAN
– Supports PXE
Slots
– 1 x PCI Express x16 slot
– 1 x PCI Express x1 slot
– 2 x PCI slots
Connections
– 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ and Hot Plug functions
– 1 x ATA133 IDE connector (supports 2 x IDE devices)
– 1 x Floppy connector
– 1 x Print Port header
– CPU/Chassis FAN connector
– 24 pin ATX power connector
– 4 pin 12V power connector
– Front panel audio connector
– 2 x USB 2.0 headers (support 4 USB 2.0 ports)
*This mainboard does not support RAID with HDDs of 3TB and above.

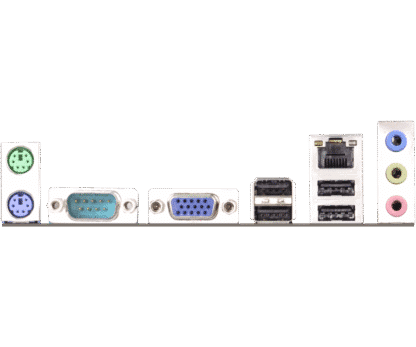

I/O Rear Panel
I/O Panel
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x Serial Port: COM1
– 1 x VGA Port
– 4 x Ready-to-Use USB 2.0 Ports
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jack: Line in / Front Speaker / Microphone
Unique Features
– ASRock OC Tuner
– Smart Energy Saver
– Instant Boot
– ASRock Instant Flash
– ASRock OC DNA
-Hybrid Booster:
– CPU Frequency Stepless Control
– ASRock U-COP
– Boot Failure Guard (B.F.G.)
Accessories
– I/O Shield
Hardware Monitor
– CPU Temperature Sensing
– Chassis Temperature Sensing
– CPU Fan Tachometer
– Chassis Fan Tachometer
– CPU Quiet Fan
– Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor
– Micro ATX Form Factor: 9.6in x 7.0in, 24.4cm x 17.8cm
OS
– Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant
Certificates
– FCC, CE
Weight | 1 kg |
---|---|
AMD-en | AM3(+) |
Brand | Asrock |
Chipset | NVIDIA® GeForce 7025 / nForce 630a |
Form Factor | Micro-ATX |
Memory Type | DDR3 SDRAM |
Number of memory slots | 2 |
Maximum memory size | 16 GB |
Connectors | D-Sub (VGA), Ethernet (RJ-45), Serial Port: COM1, USB 2.0 |
Storage Interfaces | IDE ATA-133, Serial ATA-300 |
Interfaces | PCI, PCI-e 2.0 x1, PCI-e 2.0 x16 |
Socket | |
Model | N68-S3 UCC |
Length | 24.4 cm |
Width | 17.8 cm |
Fast delivery
Brand: Asrock
Model: N68-S3 UCC
Socket: AMD AM3(+)
Memory: 2x DDR3 (16GB Max)
Form Factor: Micro ATX
EAN: 4711140872148
SKU: N68-S3 UCC, N68-S3-UCC
