Sale!

Product information

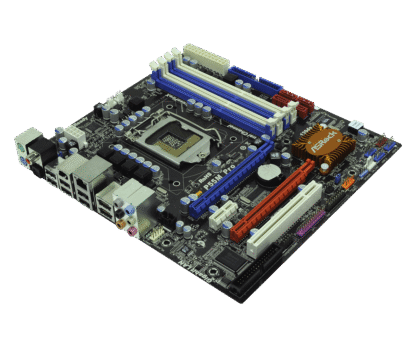

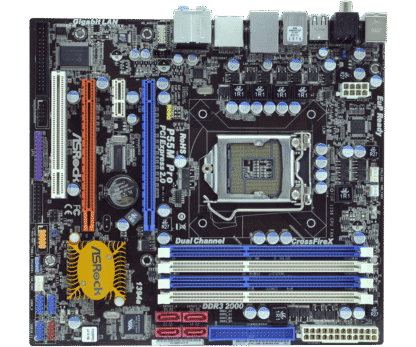

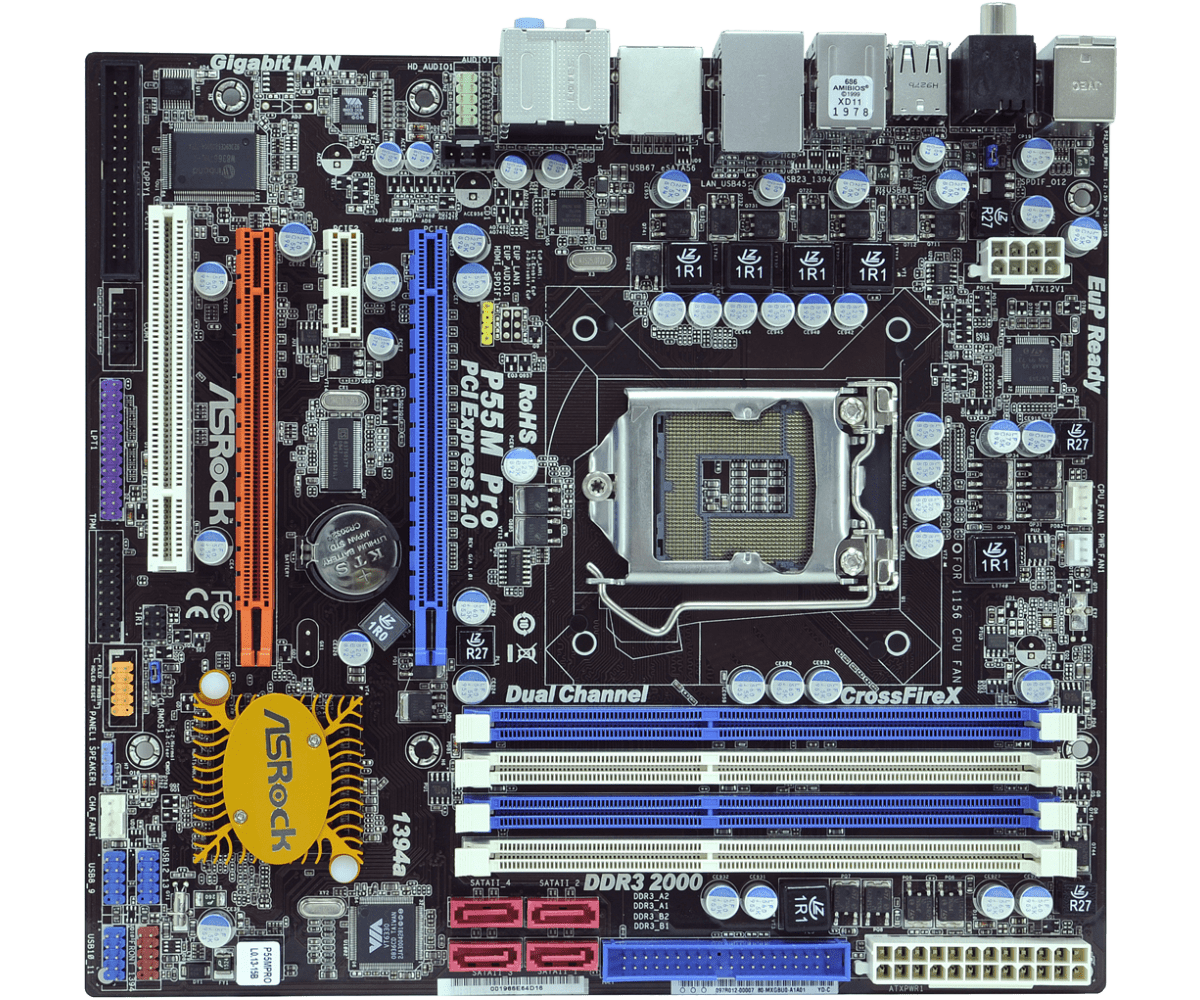

The Asrock P55M Pro is a Micro-ATX Socket 1156 motherboard based on the Intel P55 chipset. The board must be combined with DDR3 memory, for which 4 slots are available. In total, the Asus P55M Pro has 4 Serial ATA connections for hard drives and SSDs.

Features: Motherboard | Micro ATX | Socket LGA 1156 | 4x DDR3 | SATA-300 | PCI-e x16| PCI-e x1 |PCI | USB 2.0 | Firewire | eSata


Product: Asrock P55M Pro
Socket: LGA 1156
Category: motherboards
Brand: Asus
Condition: Used – BIOS updated to the latest version
EAN:
4711140875965
SKU: 90-MXGBU0-A0UAYZ, P55M PRO, P55M PRO/M/ASR
Warranty:
6 months

Package contents:
– Motherboard (Asrock P55M PRO)
– I/O-Shield (tin backplate)
– No manual
– No drivers CD
– No cables


CPU
– Supports Intel® Core™ i7 / i5 / i3 and Pentium® G6950 Processors in LGA1156 Package
– 4+1 Power Phase Design
– Supports Intel® Turbo Boost Technology
– Supports Hyper-Threading Technology
– Supports Untied Overclocking Technology
– Supports EM64T CPU


Chipset
– Intel® P55


Memory
– Dual Channel DDR3 memory technology
– 4 x DDR3 DIMM slots
– Supports DDR3 2400+(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 16GB*
– Supports Intel® Extreme Memory Profile (XMP)

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 16Mb AMI BIOS
– AMI Legal BIOS
– Support “Plug and Play”
– ACPI 1.1 Compliance Wake Up Events
– Supports jumper free
– SMBIOS 2.3.1 Support
– CPU, VCCM, PCH, VTT Voltage Multi-adjustment
– Supports I.O.T. (Intelligent Overclocking Technology)
– Supports Smart BIOS


Graphics
– n/a


Audio
– 7.1 CH HD Audio (VIA® VT1708S Audio Codec)


LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111DL
– Supports Wake-On-LAN
– Supports PXE


Slots
– 1 x PCI Express 2.0 x16 slot (at x16 mode)
– 1 x PCI Express 2.0 x16 slot (at x4 mode, 2.5GT/s)
– 1 x PCI Express 2.0 x1 slot (2.5GT/s)
– 1 x PCI slot
– Supports ATI™ CrossFireX™ ​​and Quad CrossFireX™


Connector
– 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10, RAID 5 and Intel® Matrix Storage), NCQ, AHCI and Hot Plug functions
– 1 x ATA133 IDE connector (supports 2 x IDE devices)
– 1 x Floppy Connector
– 1 x IR header
– 1 x Print Port header
– 1 x COM port header
– 1 x HDMI_SPDIF header
– 1 x IEEE 1394 header
– 1 x TPM header
– CPU/Chassis/Power FAN connector
– 24 pin ATX power connector
– 8 pin 12V power connector
– CD in header
– Front panel audio connector
– 3 x USB 2.0 headers (support 6 USB 2.0 ports)

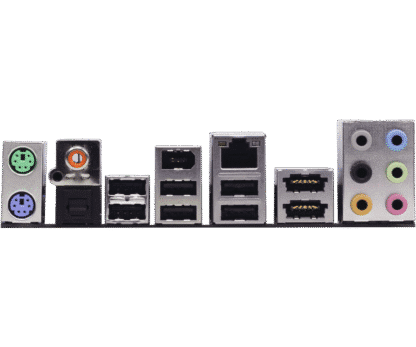

Rear Panel I/O
I/O Panel
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x Coaxial SPDIF Out Port
– 1 x Optical SPDIF Out Port
– 6 x Ready-to-Use USB 2.0 Ports
– 2 x Powered eSATA2/USB Connectors
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– 1 x IEEE 1394 Port
– HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone


Unique Feature
– ASRock OC Tuner
– Intelligent Energy Saver
– Instant Boot
– ASRock Instant Flash
– ASRock OC DNA
– Hybrid Booster:
– CPU Frequency Stepless Control
– ASRock U-COP
– Boot Failure Guard (B.F.G.)
– Combo Cooler Option (C.C.O.)
– Good Night LED


Accessories
– I/O Shield


Hardware Monitor
– CPU Temperature Sensing
– Chassis Temperature Sensing
– CPU, Chassis, Power Fan Tachometer
– CPU Quiet Fan
– CPU, Chassis Fan multi-speed control
– Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore


Form Factor
– Micro ATX Form Factor: 9.6-in x 8.8-in, 24.4 cm x 22.4 cm
– All Solid Capacitor design (100% Japan made high quality conductive polymer capacitors)


OS
– Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant


Certifications
– FCC, CE
– EuP Ready (EuP ready power supply is required)

Specification

Weight 1 kg
Intel

LGA1156

Brand

Asrock

Form Factor

Micro-ATX

Chipset

Intel P55

Memory Type

DDR3 SDRAM

Number of memory slots

4

Maximum memory size

16 GB

Connectors

eSATA, Ethernet (RJ-45), IEEE 1394 Port, PS/2, USB 2.0

Storage Interfaces

PATA-133, Serial ATA-300

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 2.0 x16

Socket

Model

P55M-Pro

Length

24.4 cm

Width

22.5 cm

Pakketinhoud

Motherboard and Backplate (Blende)

Asrock P55M Pro socket 1156 moederbord

2 in stock

Fast delivery
34,95

Brand: Asrock
Product: P55M Pro
Socket: Socket 1156
Category: motherboards
Memory: 4x DDR3 (16GB Max)
Form Factor: Micro-ATX
Condition: Used – BIOS updated to the latest version
EAN:
4711140875965
SKU: 90-MXGBU0-A0UAYZ
Warranty:
6 months

Quantity:
  • Free shipping from €100,-
  • Reliable for more than 10 years!
  • Fast delivery
  • Monthly payments are possible!
SKU: P55M-Pro Categories: , Tags: , ,
