Product information

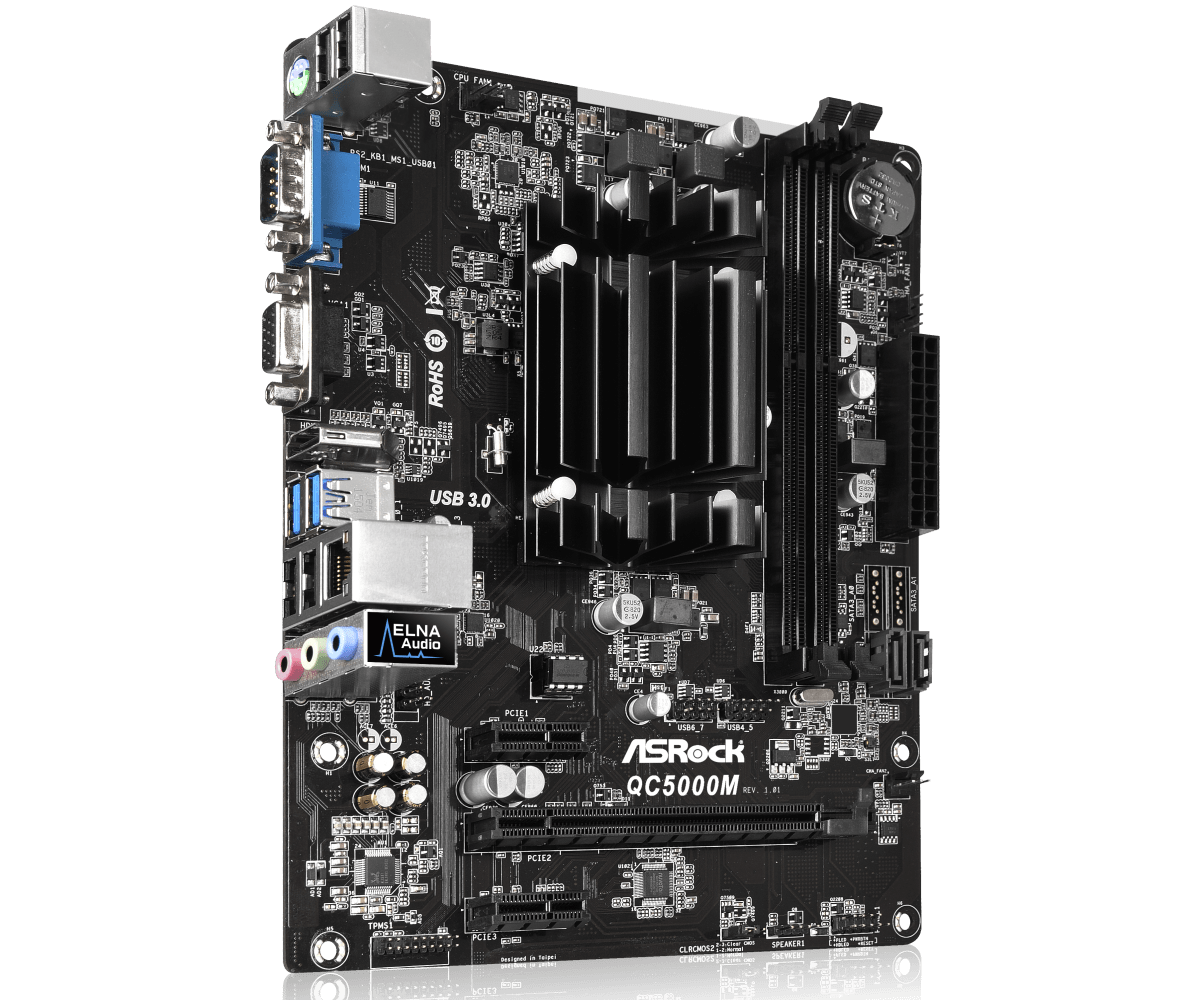

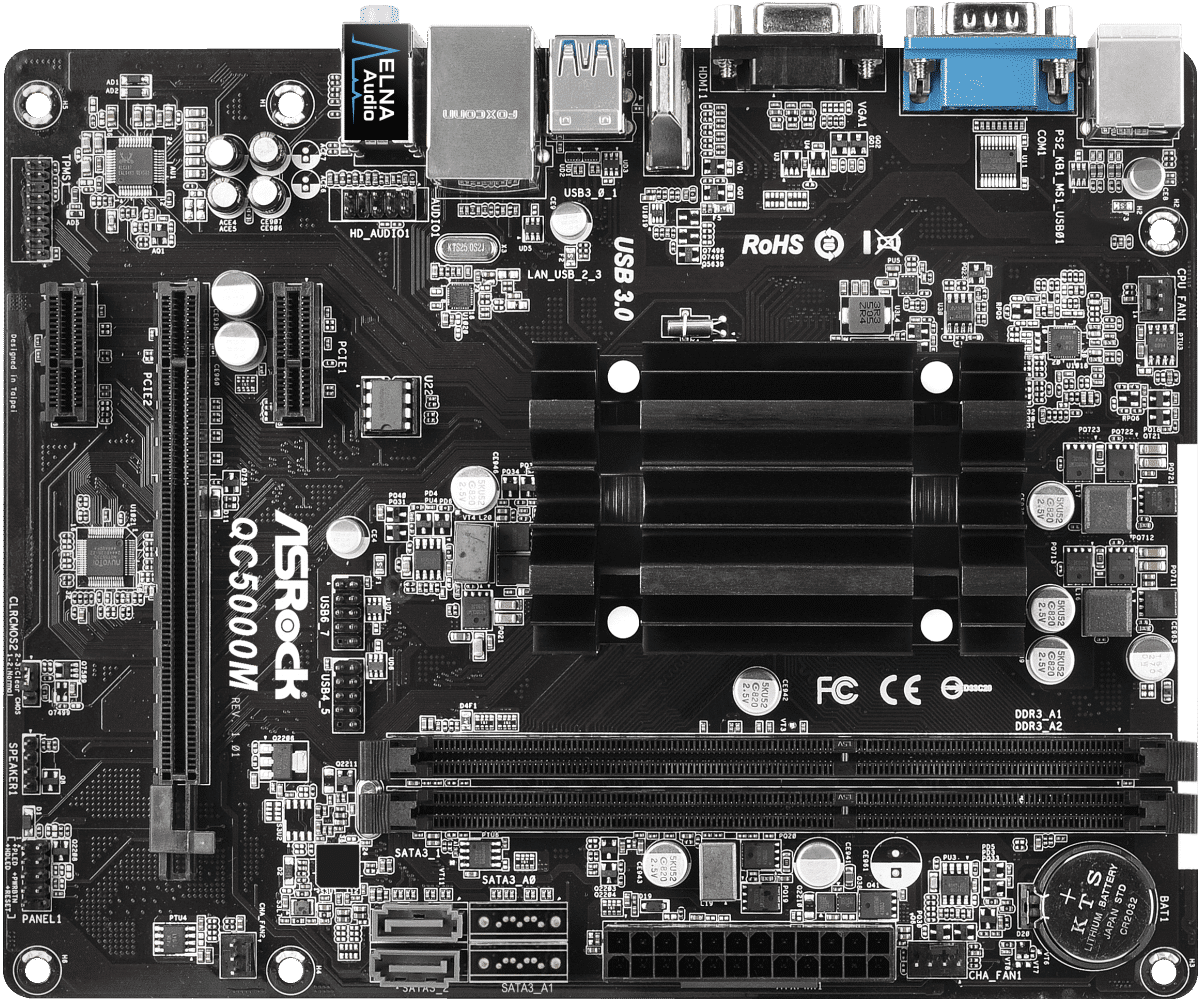

The ASRock QC5000M is a Micro-ATX motherboard with an integrated AMD FT3 Kabini A4-5050 / 5000 Quad-Core APU. The board must be combined with DDR3 memory, for which 2 slots are available. In total, the ASRock QC5000M has 2 Serial ATA connections for hard disks and SSDs. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC887 chip.

Features: Motherboard | Micro-ATX | integrated AMD FT3 Kabini A4-5050 / 5000 Quad-Core APU | 2 x DDR3 | 2x SATA-600 | PCI-e 2.0 x1 | PCI-e 2.0 x16 | USB2.0 | USB3.1 | D-Sub (VGA) | Serial Port (Com1) | HDMI

Click here for the drivers

Product: ASRock QC5000M
Connection: Onboard CPU
Category: motherboards
Brand: ASRock
EAN: 4717677326277
Condition: Refurbished – BIOS updated to the latest version
SKU: 90-MXGYU0-A0UAYZ, QC5000M
Warranty: 6 months

Package Contents:
– Motherboard (ASRock QC5000M )
– backplate (blende)
– No manual
– No CD with drivers
– No cables

Unique Feature
ASRock Full Spike Protection
ASRock APP Shop

CPU
– AMD FT3 Kabini A4-5050 / 5000 Quad-Core APU

Chipset
– SOC

Memory
– 2 x DDR3 DIMM Slots
Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 32GB *

* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
Please refer to the Memory Support List on ASRock’s website for more information.

BIOS
– 32Mb AMI UEFI Legal BIOS with multilingual GUI support
– Supports “Plug and Play”
– ACPI 1.1 compliance wake-up events
– SMBIOS 2.3.1 support
– DRAM Voltage multi-adjustment

Graphics
– Integrated AMD Radeon ™ HD 8330 Graphics
– DirectX 11.1, Pixel Shader 5.0
– Max. shared memory 2GB
Dual graphics output: support D-Sub, and HDMI ports by independent display controllers
Supports HDMI with max. Resolution up to 4K x 2K (4096×2160) @ 24Hz or 4K x 2K (3840×2160) @ 30Hz
Supports D-Sub with max. Resolution up to 2048×1536 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC, and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports HDCP with HDMI Port
Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port

Audio
– 7.1 CH HD Audio (Realtek ALC887 Audio Codec) *
Supports Surge Protection (ASRock Full Spike Protection)
– ELNA Audio Caps

* To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN
– PCIe x1 Gigabit LAN 10/100/1000 Mb / s
– Realtek RTL8111GR
Supports Wake-On-WAN
– Supports Wake-On-LAN
Supports Lightning / ESD Protection (ASRock Full Spike Protection)
– Supports LAN Cable Detection
Supports Energy Efficient Ethernet 802.3az
– Supports PXE

Slots
– 1 x PCI Express 2.0 x16 Slot (PCIE2: x4 mode)
– 2 x PCI Express 2.0 x1 Slot

Storage
– 2 x SATA3 6.0 Gb / s Connectors, support NCQ, AHCI, and Hot Plug

Connector
– 1 x TPM Header
– 1 x CPU Fan Connector (3-pin)
– 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

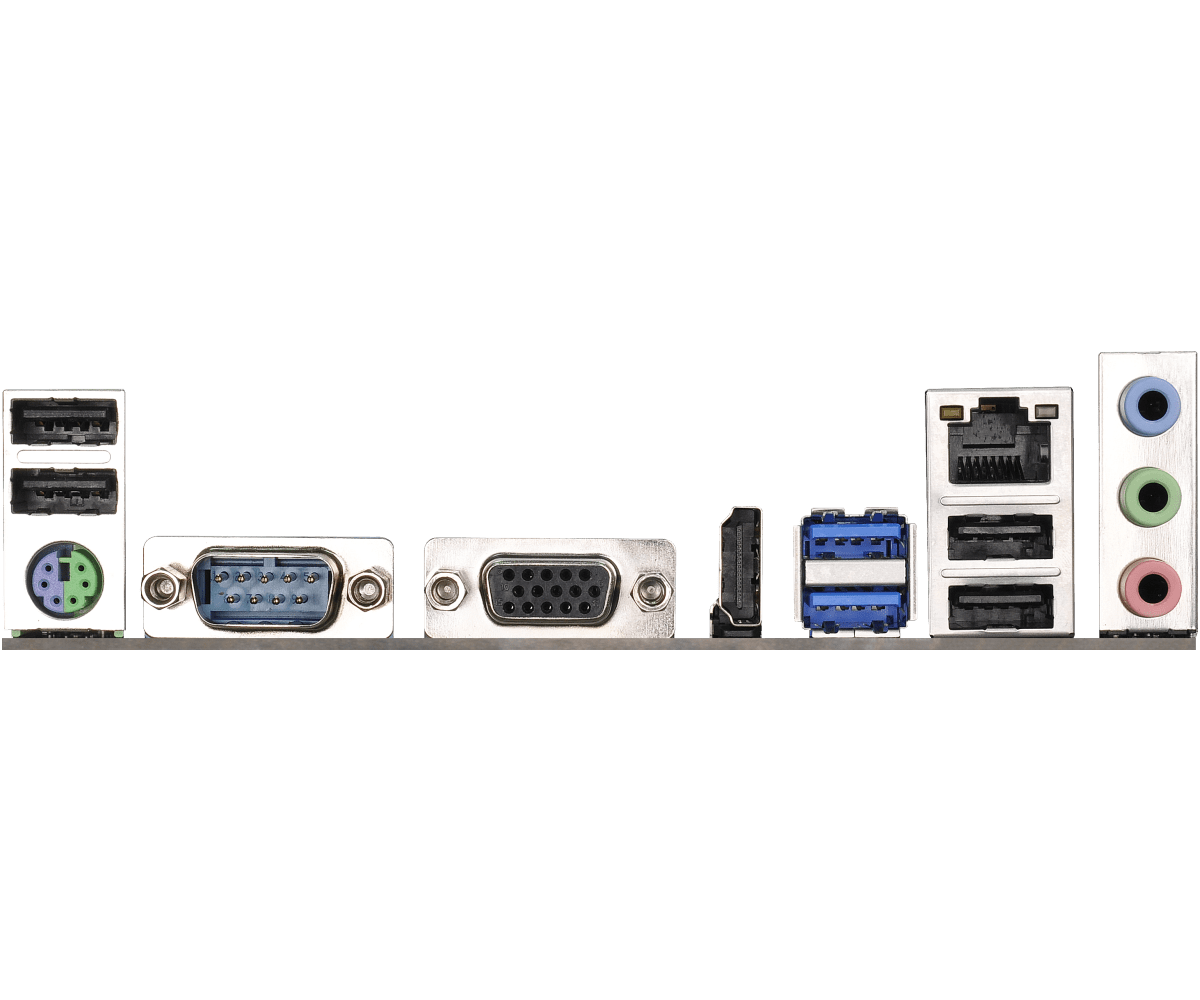

Rear Panel I / O
– 1 x PS / 2 Mouse / Keyboard Port
– 1 x Serial Port: COM1
– 1 x D-Sub Port
– 1 x HDMI Port
– 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT / LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI
Software
– ASRock USB Key
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Restart to UEFI *
– ASRock APP Charger

UEFI
– ASRock Interactive UEFI
– ASRock Instant Boot
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock UEFI Tech Service
– ASRock Dehumidifier Function
– ASRock Easy Driver Installer

* These utilities can be downloaded from ASRock Live Update & amp; APP Shop.

Hardware Monitor
– CPU temperature sensing
– Chassis temperature sensing
– CPU Fan Tachometer
– Chassis Fan Tachometer
– CPU, Chassis Quiet Fan
– CPU, Chassis Fan multi-speed control
Voltage monitoring: + 12V, + 5V, + 3.3V, Vcore

Form Factor
Micro ATX Form Factor
– Solid capacitor design
– High-Density Glass Fabric PCB

OS
Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / XP 32-bit / XP 64-bit *

* USB 3.1 Gen1 is not supported by Windows® XP
For the updated Windows® 10 driver, please visit ASRock’s website for details.

Certifications
– FCC, CE
– ErP / EuP ready (ErP / EuP ready power supply is required)
