Product information

Features: Motherboard | Micro-ATX| AMD Embedded G-Series APU T48E | 2 x DDR3 | 4x SATA-600 | PCI-e 2.0 x16 | USB2.0 | eSata3 | D-Sub (VGA) | DVI-D | HDMI

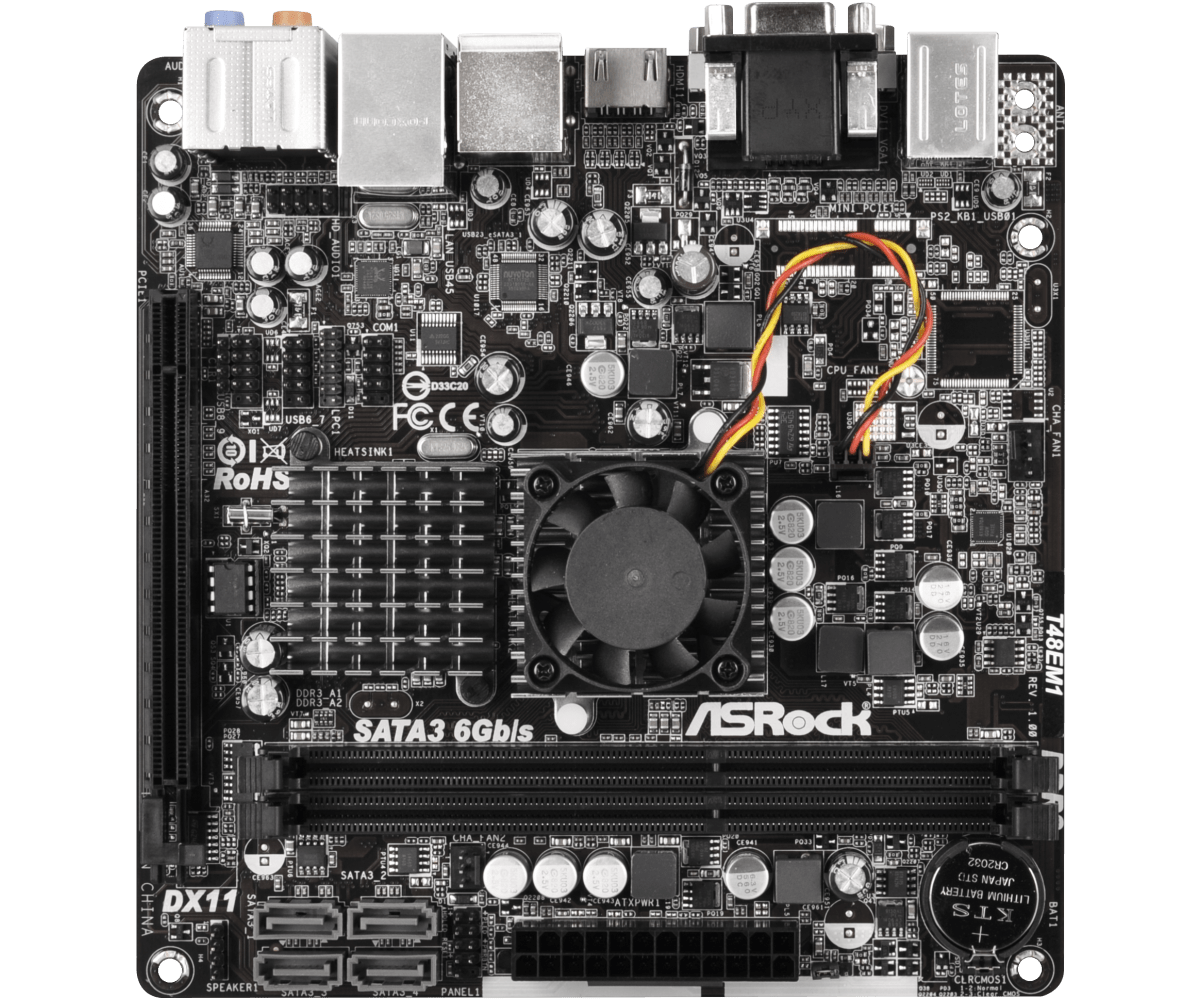

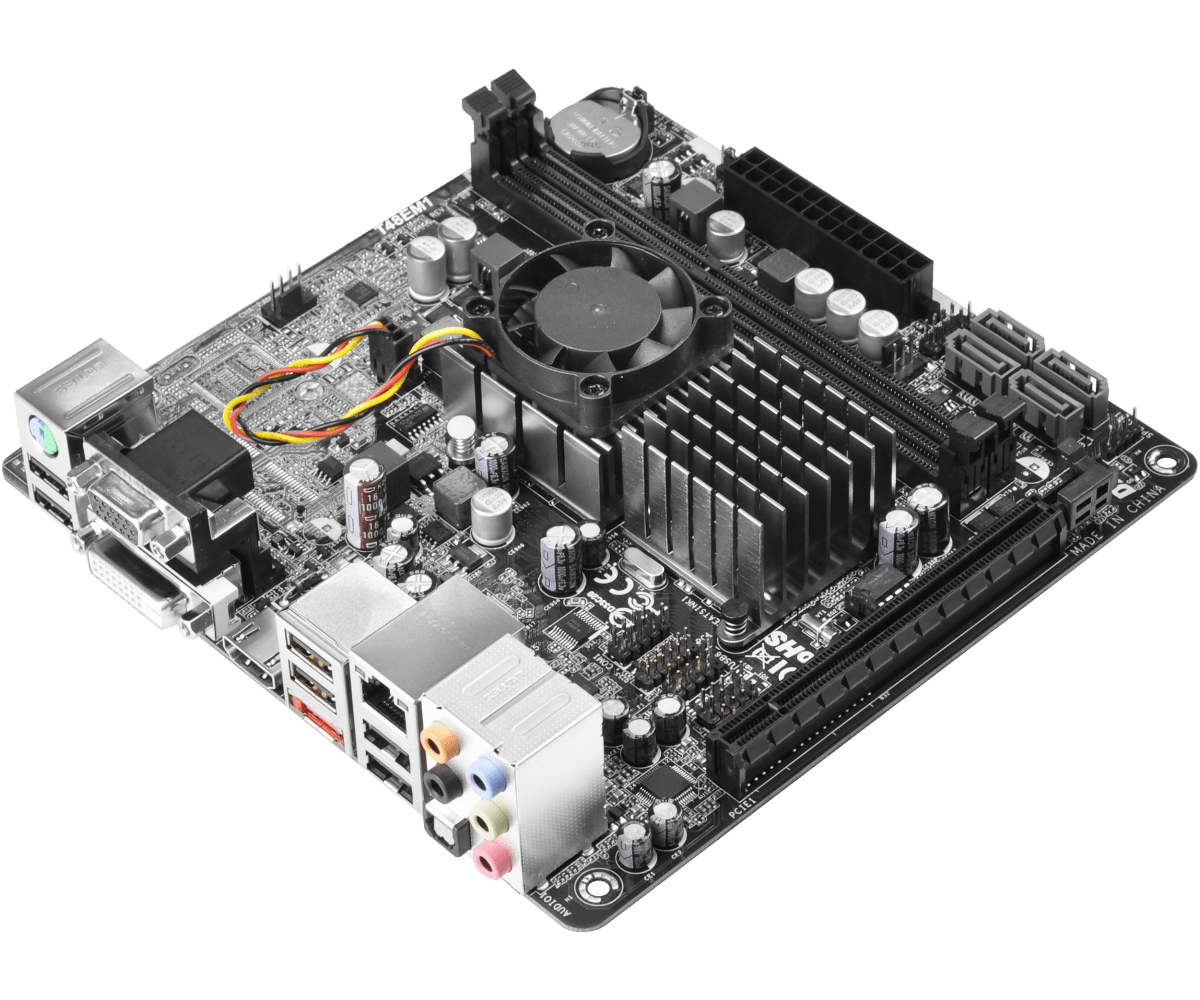

Product: ASRock T48EM1
Connection: Onboard CPU
Category: motherboards
Brand: ASRock
EAN:4717677323658
State: New
SKU: 90-MXGUQ0-A0UAYZ
Warranty: 6 months

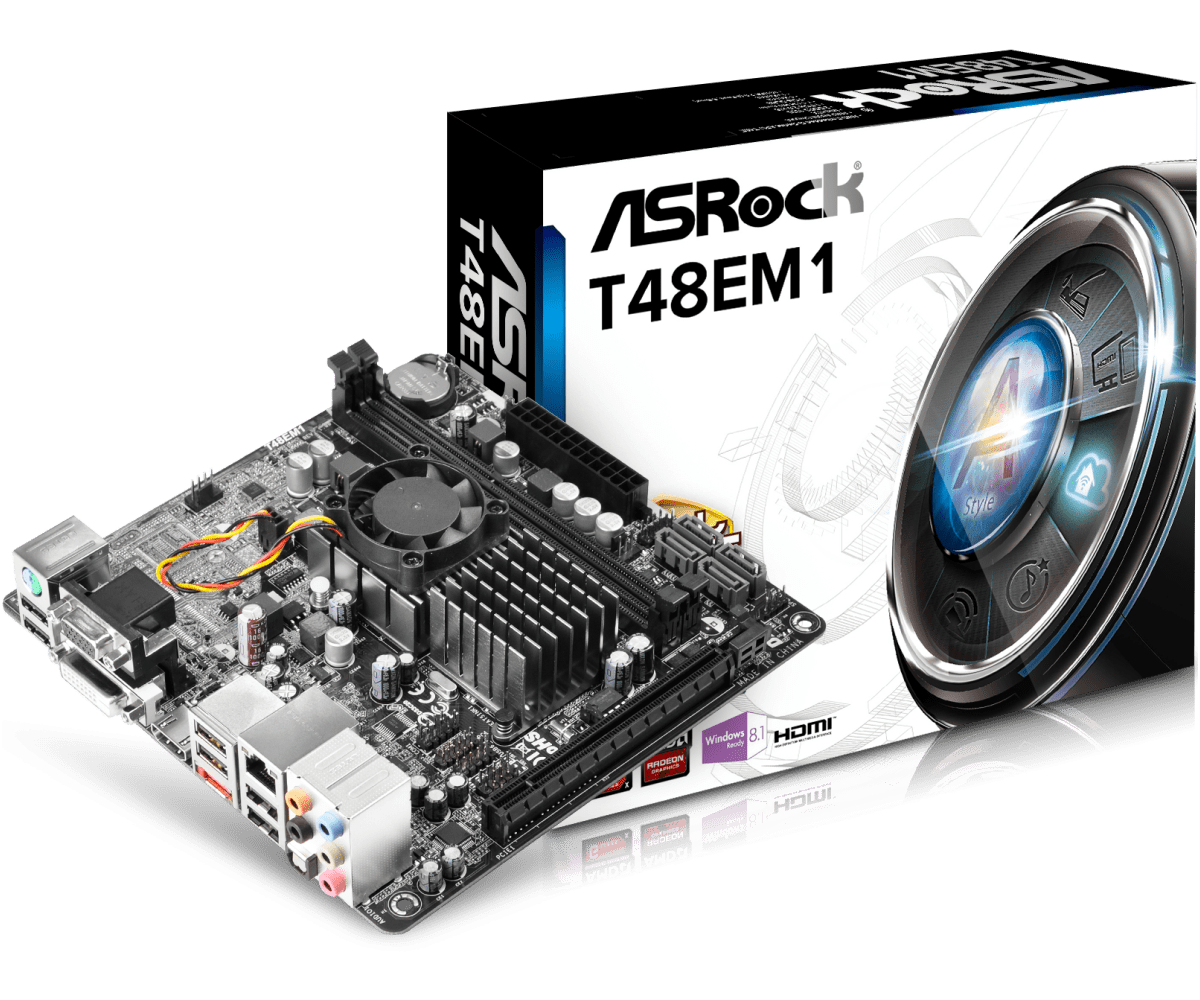

package content:
– Motherboard (ASRock T48EM1)
– IO-Shield (Tin back plate)
– instruction manual
– drivers CD
– cables

Unique Feature
ASRock Full Spike Protection

CPU
– AMD Embedded G-Series APU T48E
– Supports AMD’s Cool ‘n’ Quiet Technology
– UMI 2.5 GT/s

Chipset
– AMD A50M Chipset

Memory
– 2 x DDR3 DIMM Slots
– Supports DDR3 1333/1066/800 non-ECC, un-buffered memory
– Max. capacity of system memory: 16GB*

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS
– 32Mb AMI UEFI Legal BIOS with GUI support
– Supports Plug and Play
– ACPI 1.1 compliant wake up events
– Supports jumperfree
– SMBIOS 2.3.1 support
– DRAM, FCH, +1V, +1.8V Voltage multi-adjustment

Graphics
– Integrated AMD Radeon HD 6250 graphics
– DX11 class iGPU, Pixel Shader 5.0
– Max. shared memory 512MB
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports HDMI with max. resolution up to 1920×1200 (1080P)
– Supports DVI-D with max. resolution up to 1920×1200 @ 75Hz
– Supports D-Sub with max. resolution up to 2048×1536 @ 85Hz
– Supports HDCP with DVI-D and HDMI Ports
– Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports
– Supports Dolby® TrueHD and DTS-HD Master Audio through HDMI Port

Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
– Premium Blu-ray Audio support
– Supports Surge Protection (ASRock Full Spike Protection)

LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111E
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE

Slots
– 1 x PCI Express 2.0 x16 Slot (PCIE1 @ x4 mode)

Storage
– 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

Connector
– 1 x CIR Header
– 1 x COM Port Header
– 1 x CPU Fan Connector (3-pin)
– 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

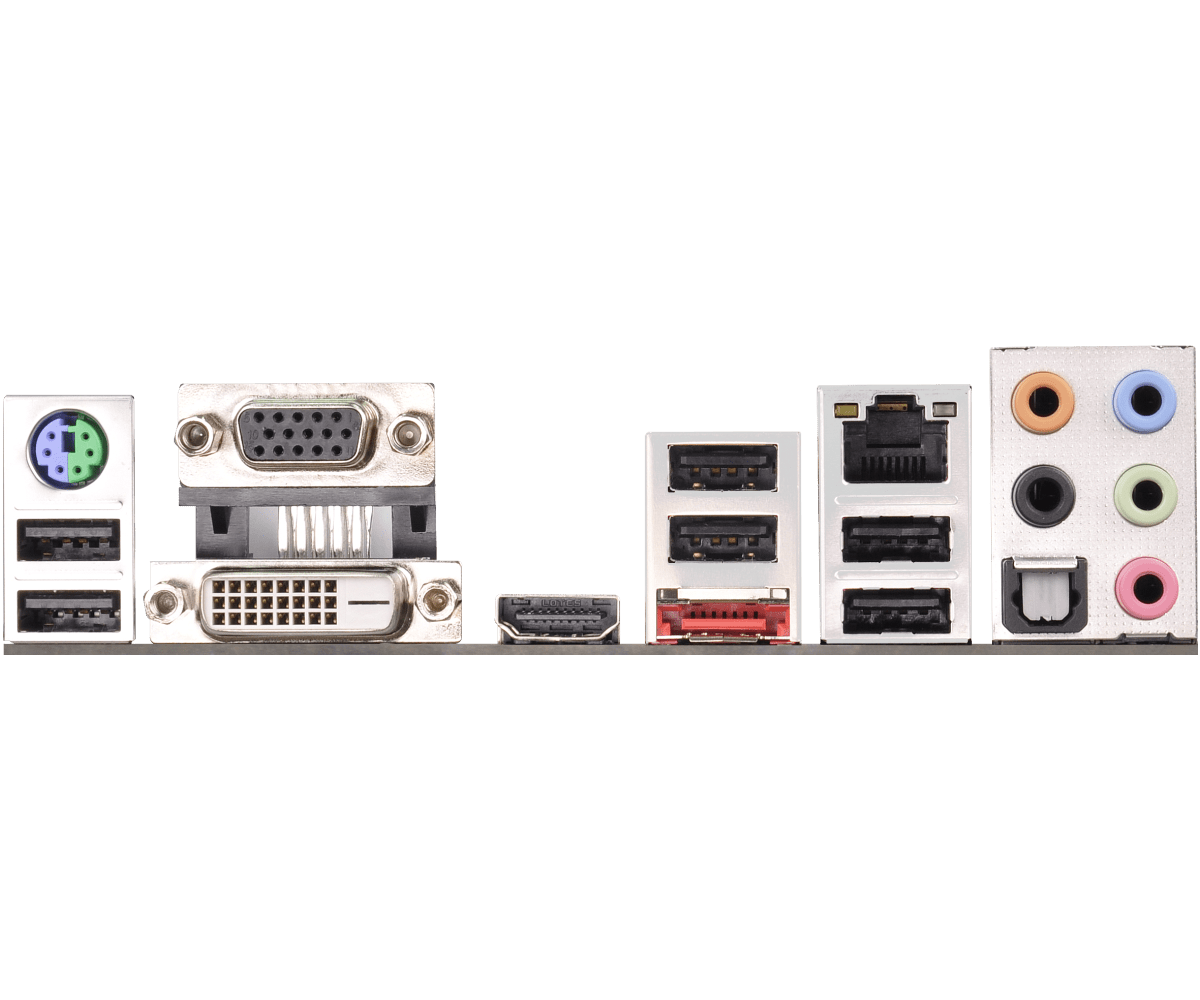

Rear Panel I/O
– 1 x PS/2 Keyboard/Mouse Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 1 x Optical SPDIF Out Port
– 6 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x eSATA3 Connector
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Software and UEFI
Software
– ASRock Instant Boot
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Restart to UEFI
UEFI
– ASRock Instant Flash
– ASRock Crashless BIOS

Support CD
– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial)

Accessories
– Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables

Hardware Monitor
– CPU temperature sensing
– Chassis temperature sensing
– CPU, Chassis Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor
– Mini-ITX Form Factor
– Solid Capacitor for CPU power
– High Density Glass Fabric PCB

OS
– Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / XP 32-bit / XP 64-bit

Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
