ASRock TRX40 Taichi

  • Form Factor: ATX
  • Socket: sTRX4
  • Memory: 8 DDR4 DIMM slots, Supports DDR4 4666+(OC)
  • USB Ports: 1 Rear USB 3.2 Gen2x2 20Gb/s Type-C, 2 USB 3.2 Gen2 Type-A Ports (10Gb/s), 4 USB 3.2 Gen1 Ports
  • Extras: Wi-Fi (802.11ac), Bluetooth 4.2

Out of stock

Vergelijk
SKU: ASRock TRX40 Taichi Categories: , , Tags: , , , ,

Description

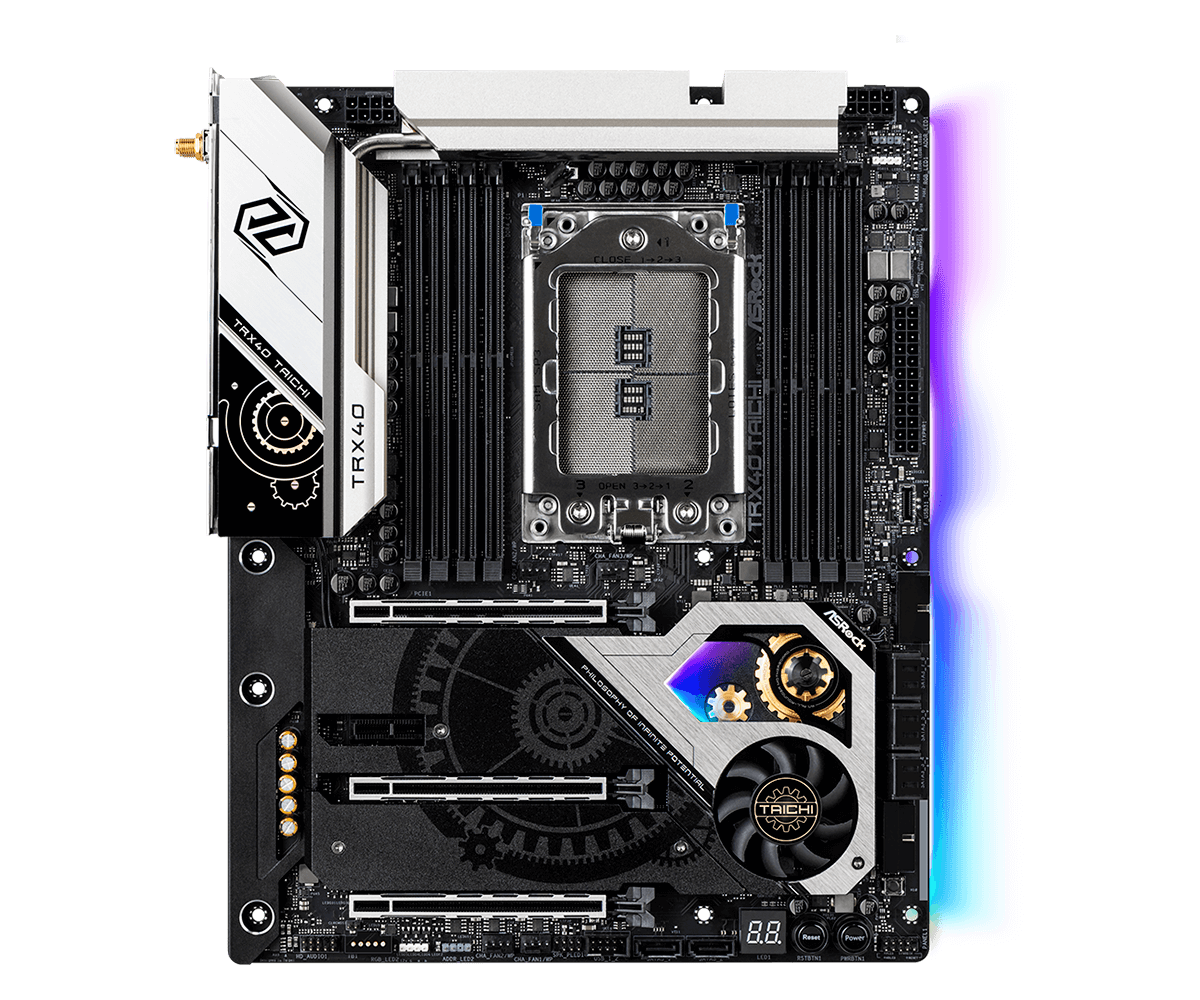

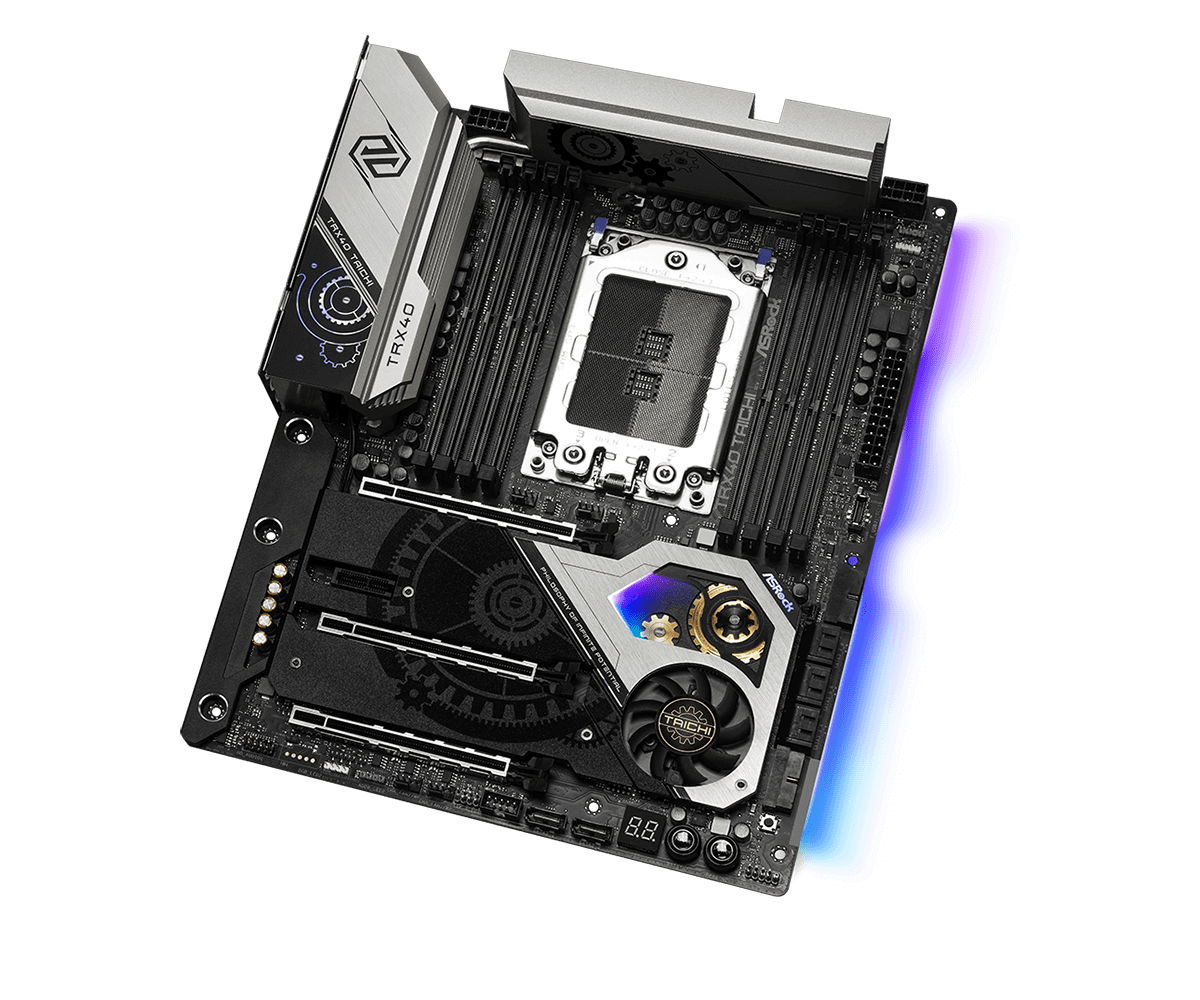

ASRock TRX40 Taichi is a high-end motherboard designed for AMD Threadripper processors with the TRX4 socket. This motherboard offers extensive connectivity options including multiple PCIe 4.0 x16 slots for powerful graphics cards, eight DDR4 memory slots for quad-channel support, and various M.2 and SATA connections for fast storage. With support for USB 3.2 Gen2, Wi-Fi 6, and 10 Gigabit LAN, the TRX40 Taichi delivers excellent connectivity for demanding users and content creators.


ASRock TRX40 Taichi

Product: ASRock TRX40 Taichi
Socket:
sTRX4
Category: Motherboards
Brand: ASRock
Condition: Refurbished
EAN: 4717677339918
SKU:
90-MXBBK0-A0UAYZ
Warranty: 6 months


Drivers for the ASRock TRX40 Taichi
Processors supported by the ASRock TRX40 Taichi


Package Contents:

  • Motherboard (ASRock TRX40 Taichi)
  • IO Shield (metal backplate)
  • Antennas
  • User manual
  • Driver CD
  • Cables

Unique Feature

ASRock USB 3.2 Gen2
– ASRock Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
– ASRock USB 3.2 Gen2x2 Type C Port (20 Gb/s)
– ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
ASRock Super Alloy
– XXL Aluminum Alloy Heatsink
– Premium 90A Power Choke
– 90A Dr.MOS
– Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
– Combo Caps (Nichicon 12K Black Caps)
– Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
– Matte Black PCB
– High Density Glass Fabric PCB
– 8 Layer PCB
– 2oz Copper PCB
2.5G LAN
Intel® 802.11ax WiFi
ASRock Steel Slot Gen4
ASRock Full Coverage M.2 Heatsink
ASRock Hyper M.2 (PCIe Gen4x4 & SATA3)
ASRock Ultra USB Power
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop


CPU

– Supports AMD Socket sTRX4
– Intersil Digital PWM
– 16 Power Phase design
– Supports ASRock Hyper BCLK Engine II


Chipset

– AMD TRX40


Memory

– Quad Channel DDR4 Memory Technology
– 8 x DDR4 DIMM Slots
– Supports DDR4 4666(OC)+ / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory (U-DIMM)
– Max. capacity of system memory: 256GB
– 15μ Gold Contact in DIMM Slots


BIOS

– 128Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 5.1 compliance wake up events
– Supports jumperfree
– SMBIOS 2.3 support
– CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment


Graphics

– n/a


Audio

– 7.1 CH HD Audio (Realtek ALC4050H+ALC1220)
– Premium Blu-ray Audio support
– Supports Surge Protection
– Supports Purity Sound™ 4
– Nichicon Fine Gold Series Audio Caps
– NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
– Pure Power-In
– Direct Drive Technology
– PCB isolate shielding
– Impedance Sensing on Rear Out port
– Individual PCB Layers for R/L Audio Channel
– Gold Audio Jacks
– 15μ Gold Audio Connector
– Supports DTS Connect


LAN

1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125AG):
– Supports Dragon 2.5G LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User Friendly UI
– Visual Network Usage Statistics
– Optimized Default Setting for Game, Browser, and Streaming Modes
– User Customized Priority Control
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
1 x Intel® Gigabit LAN 10/100/1000 Mb/s (1 x Intel® I211AT):
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Wireless LAN

– Intel® 802.11ax WiFi Module
– Supports IEEE 802.11a/b/g/n/ax
– Supports Dual-Band (2.4/5 GHz)
– Supports WiFi6 802.11ax (2.4Gbps)
– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
– Supports Bluetooth 5.0 + High speed class II
– Supports MU-MIMO


Slots

– 3 x PCI Express 4.0 x16 Slots (PCIE1/PCIE3/PCIE4: single at x16 (PCIE1); dual at x16 (PCIE1) / x16 (PCIE3); triple at x16 (PCIE1) / x16 (PCIE3) / x16 (PCIE4)*
– 1 x PCI Express 4.0 x1 Slot
– Supports AMD 3-Way CrossFireX™ and CrossFireX™
– Supports NVIDIA® 3-Way SLI™ and SLI™
– Supports NVIDIA® NVLink™ with dual NVIDIA® GeForce RTX series graphics cards**
– 1 x M.2 Socket (Key E) with the bundled WiFi-802.11ax module
– 15μ Gold Contact in VGA PCIe Slots (PCIE1, PCIE3 and PCIE4)

*Supports NVMe SSD as boot disks

**NVIDIA® NVLink™ Bridge does not come with the package. Please purchase it from NVIDIA® if necessary.


Storage

– 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
– 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s)*
– 1 x Hyper M.2 Socket (M2_2), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s)

*Supports NVMe SSD as boot disks


Connector

– 1 x Power LED and Speaker Header
– 2 x RGB LED Headers*
– 2 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
– 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
– 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)
– 1 x Dr. Debug with LED
– 1 x Power Button with LED
– 1 x Reset Button with LED
– 1 x Clear CMOS Button

*Support in total up to 12V/3A, 36W LED Strip

**Support in total up to 5V/3A, 15W LED Strip

***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.

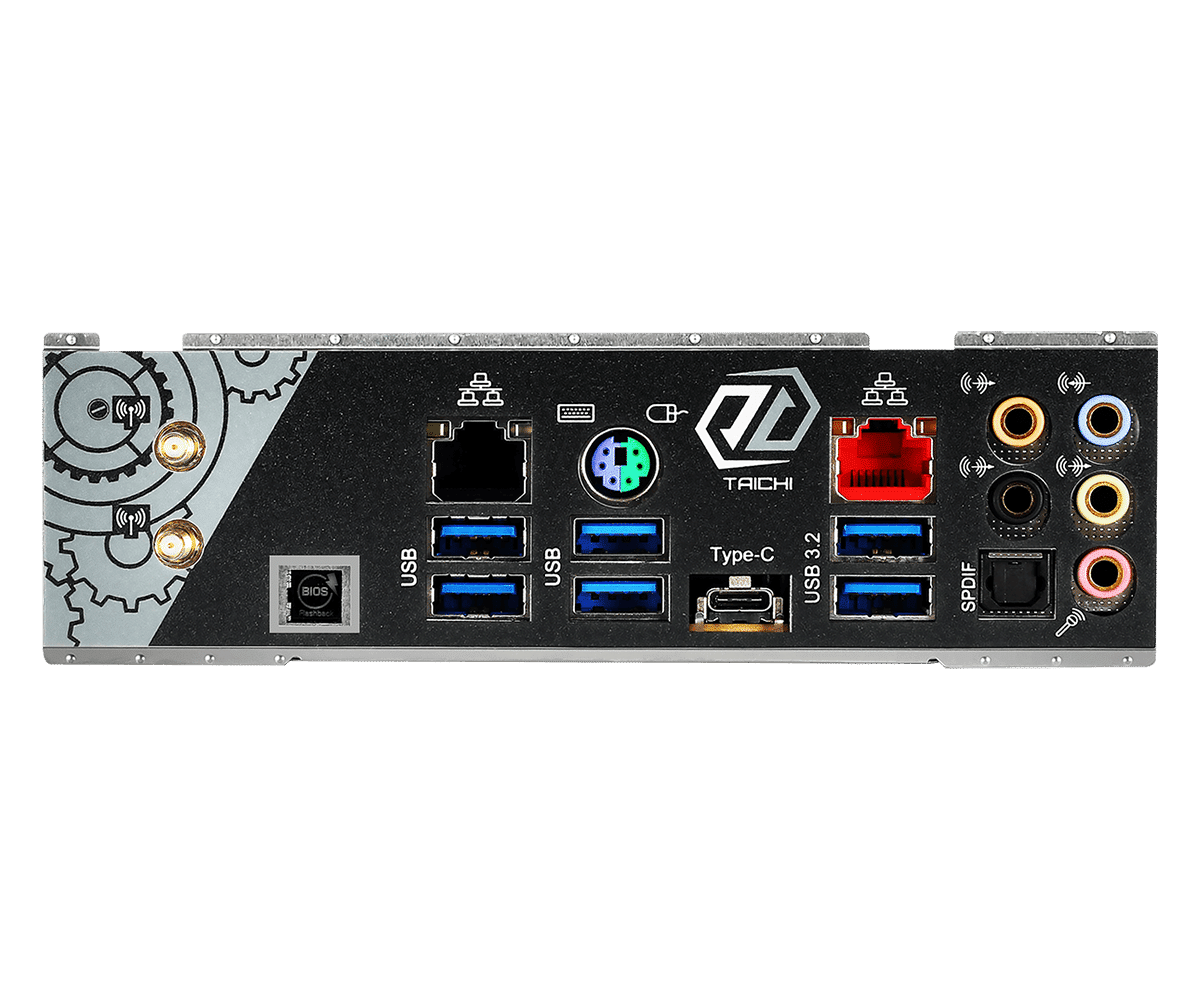

Rear Panel I/O

– 2 x Antenna Ports (on I/O Panel Shield)
– 1 x PS/2 Mouse/Keyboard Port
– 1 x Optical SPDIF Out Port
– 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection)
– 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection)
– 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)*
– 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
– 1 x BIOS Flashback Button
– HD Audio Jacks: Rear Speaker / Central / Line in / Front Speaker / Microphone (Gold Audio Jacks)

*Ultra USB Power is supported on USB3_1_2 ports.


Software and UEFI

Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock Dragon 2.5G LAN Software
– ASRock Polychrome SYNC*
UEFI
– ASRock Full HD UEFI
– ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.


Accessories

– 2 x ASRock WiFi Antennas


Hardware Monitor

– Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, PREM VDDCR_SOC, +1.8V


Form Factor

– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
– 8 Layer PCB
– 2oz Copper PCB


OS

– MicrosoftWindows® 10 64-bit


Certifications

– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Additional information

Weight 1 kg
Brand

Asrock

Model

Asrock TRX40 Taichi

Form Factor

ATX

Socket

CPU Support

Ryzen Threadripper 3e Gen

Chipset

AMD TRX40

Memory Type

DDR4 SDRAM

Number of memory slots

8

Maximum memory size

256GB

Connectors

Wifi, 2 x RJ45 Lan, USB 3.2 (Gen2, 10Gb/s) type-a, USB 3.2 Gen1, USB 3.2 Gen2x2 Type-C

Storage Interfaces

Serial ATA-600, Ultra M.2 Socket, Hyper M.2

Expansion slots

1 x M.2 Socket (Key E), 1 x PCI Express 4.0 x1, 1 x PCI Express 4.0 x16

Storage

2 x Hyper M.2 Socket, 8 x SATA3 6.0 Gb/s

USB

1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s), 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s), 4 x USB 3.2 Gen1

Interfaces

M.2 Socket (Key E), PCI-e 4.0 x16, PCI-e 4.0 x1

Length

30.5 cm

Width

24.4 cm

package content

Moederbord, Antennes en I/O-Shield
