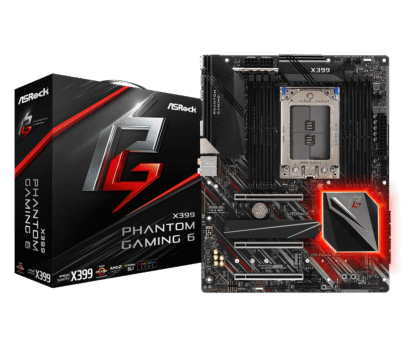

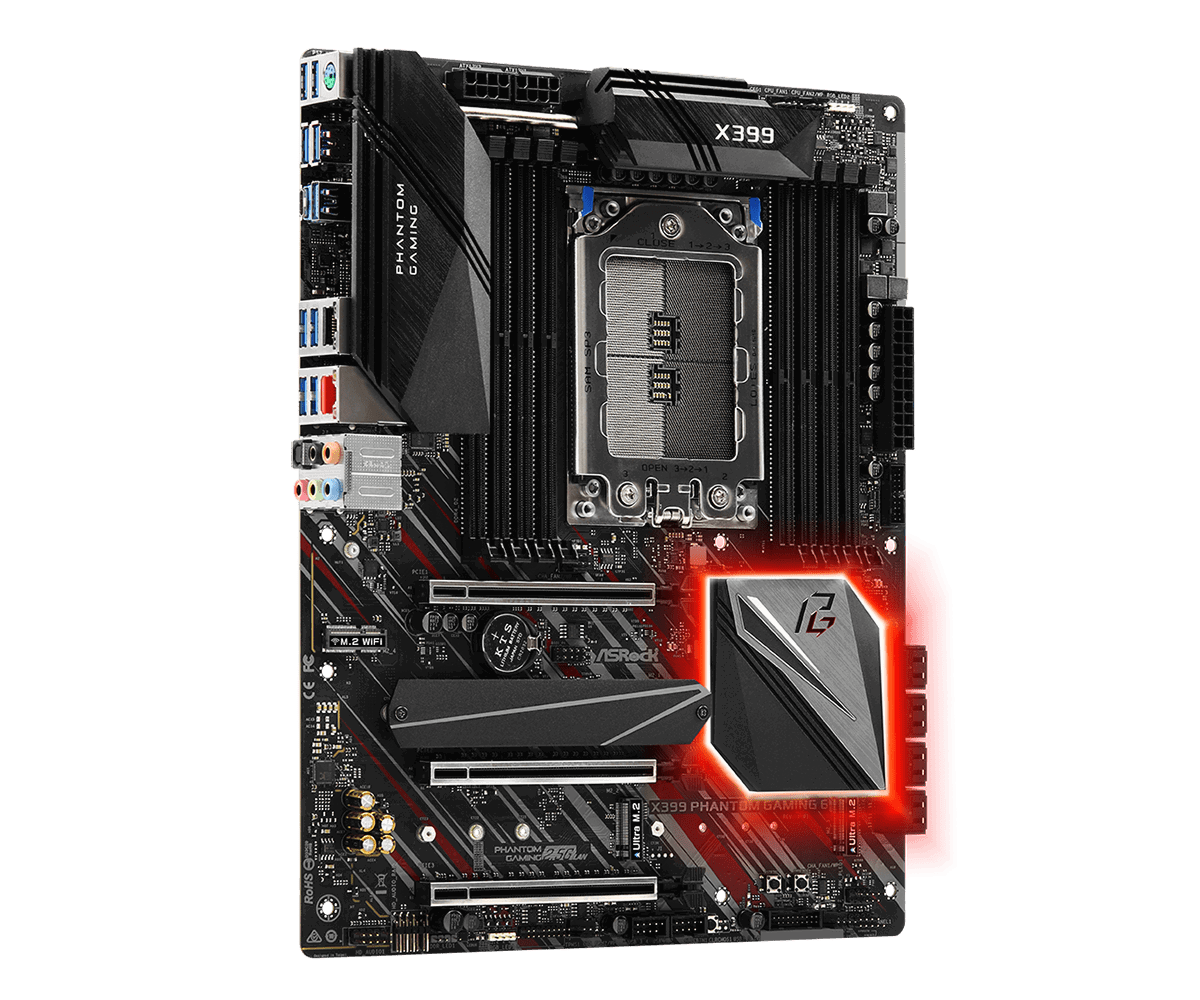

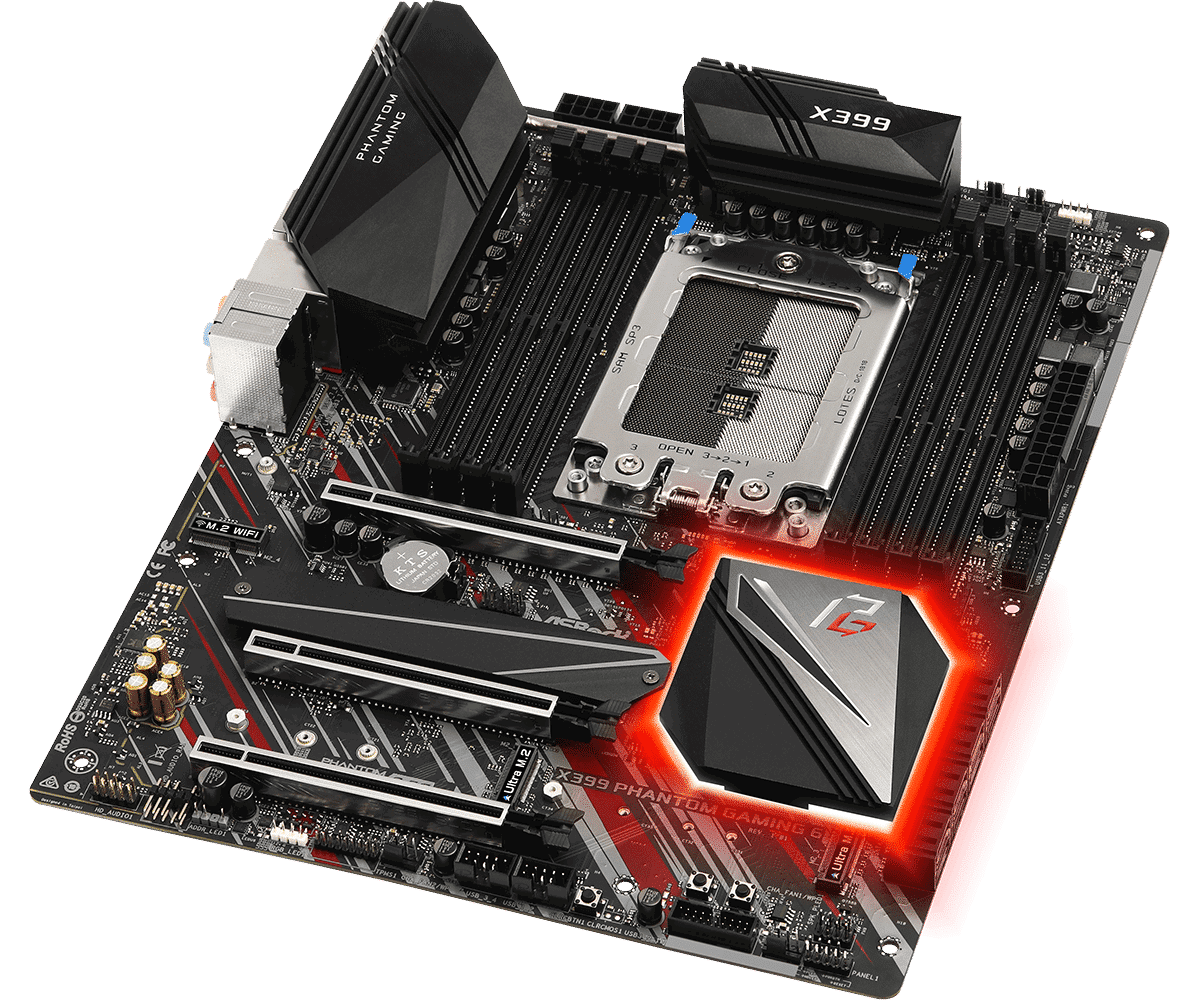

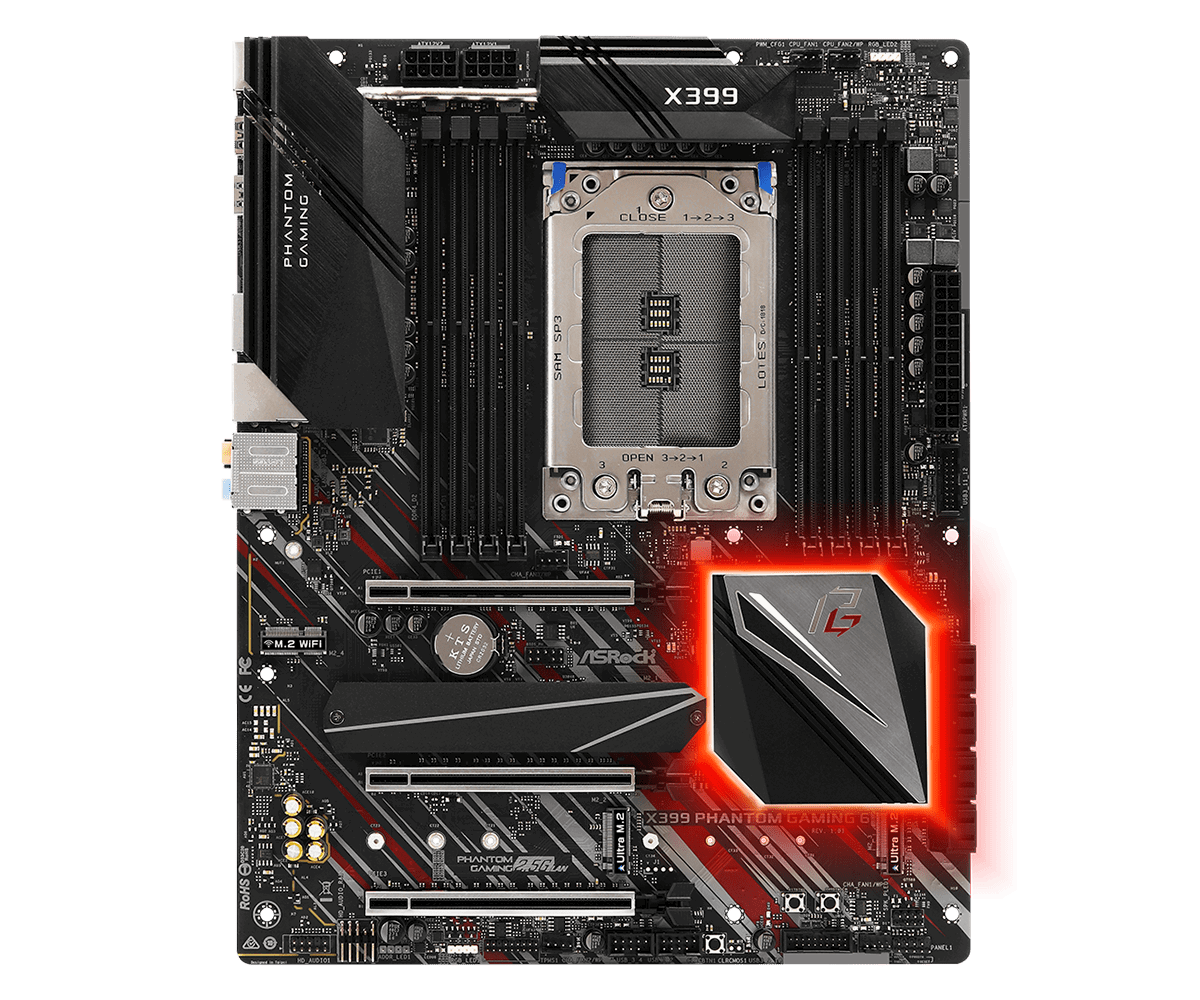

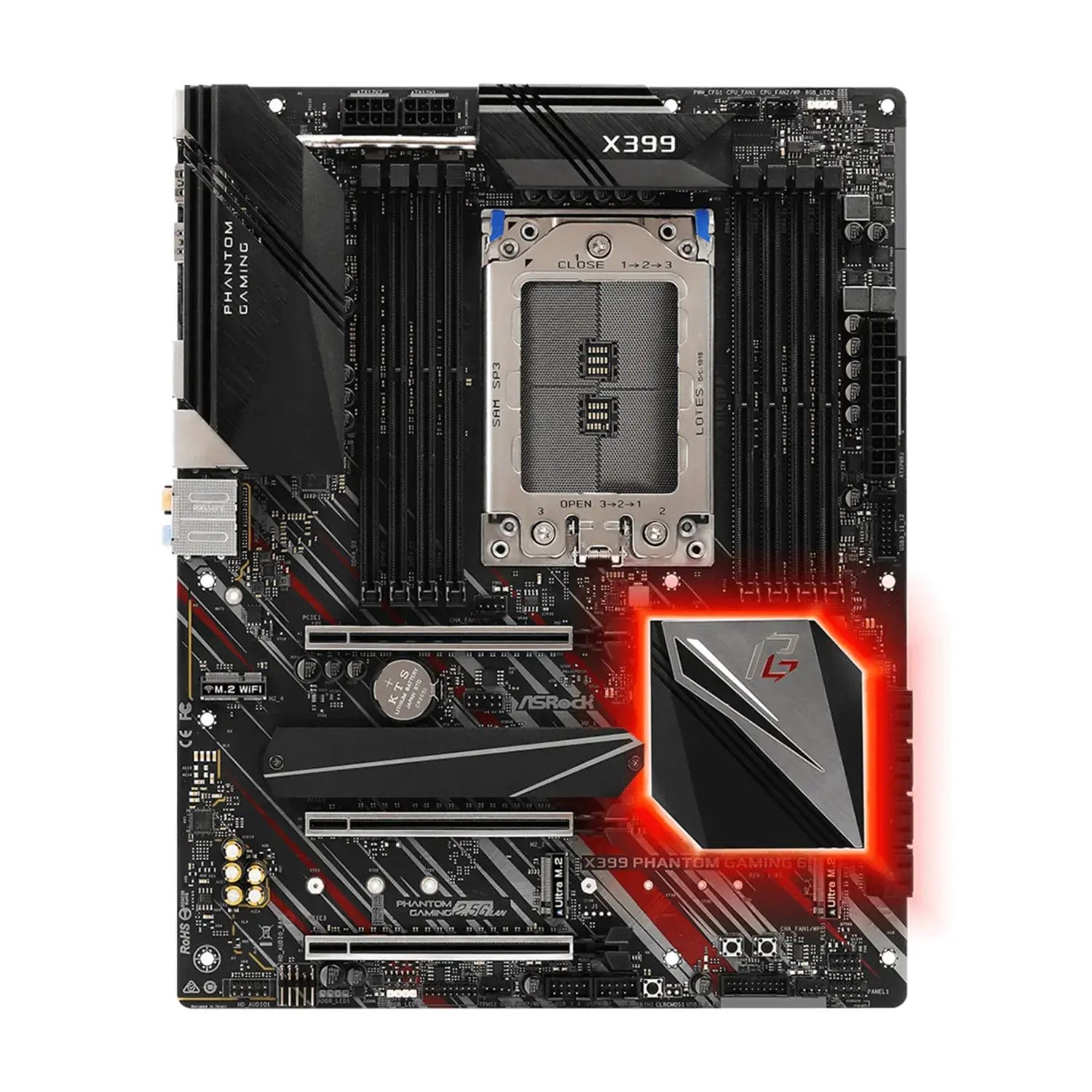

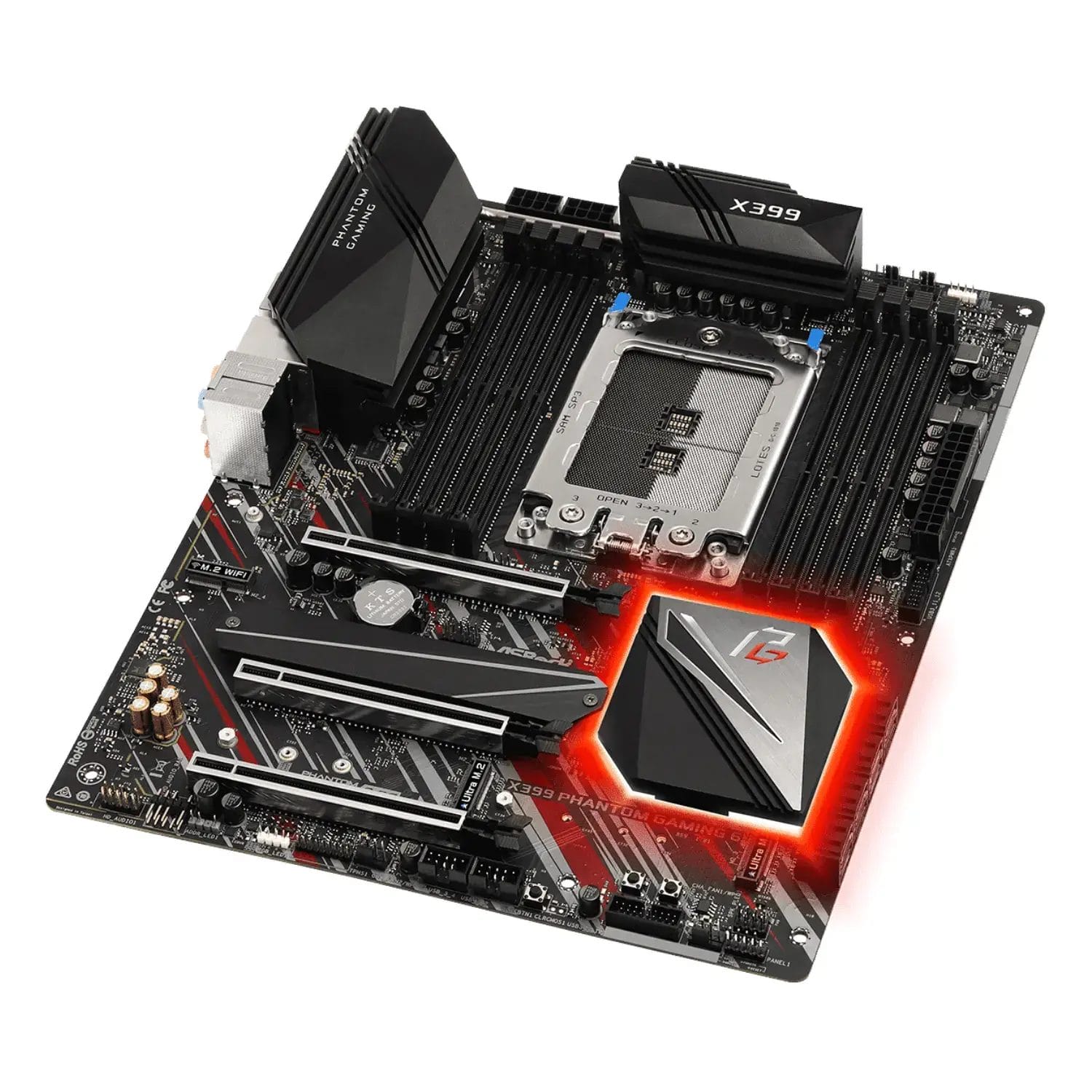

ASRock X399 Phantom Gaming 6 – Powerful High-End Motherboard
The ASRock X399 Phantom Gaming 6 motherboard is designed for serious users who want to combine powerful performance with advanced expansion capabilities. Whether you’re handling large data tasks, running heavy rendering projects, or building a high-end gaming rig, this motherboard offers top-level stability, cooling, and connectivity.
Why choose the ASRock X399 Phantom Gaming 6?
- Threadripper-ready: Specifically built for the AMD Threadripper series, with strong power delivery and broad compatibility.
- Superior cooling: Robust heatsinks and fan headers help keep your system cool even under heavy load.
- Extensive storage options: With M.2, U.2, and eight SATA ports, you can easily build faster and larger storage arrays.
- Top-class network & audio: Featuring Dragon RTL8125AG 2.5GbE LAN and Realtek ALC1220 audio for faster networking and crystal-clear sound.
What’s in the box?
- ASRock X399 Phantom Gaming 6 motherboard
- I/O shield
Frequently Asked Questions (FAQ)
Is this motherboard suitable for gaming and workstation tasks?
Yes, thanks to its powerful VRM, extensive PCIe configuration, and networking options, it’s ideal for high performance in both gaming and workstation environments.
Can I install multiple GPUs?
Yes, with three PCIe x16 slots you can install multiple graphics cards for CrossFireX/SLI configurations (depending on the Threadripper CPU).
Does it support ECC memory?
Yes, it supports both ECC and non-ECC DDR4 memory, provided it is compatible with your Threadripper processor.
Recommended add-ons:
- Add a high-quality thermal paste for optimal heat transfer
- Add a wifi adapter for wireless internet
Why order from Dealstunter?
- ✅ Direct from stock
- ✅ 14-day return policy
- ✅ High customer satisfaction
- ✅ Easy returns
- ✅ Expert customer service
Detailed Specifications ASRock X399 Phantom Gaming 6
Product: ASRock X399 Phantom Gaming 6
Socket: TR4
Category: Motherboards
Brand: ASRock
Condition: Refurbished
EAN: 4717677337495 SKU: 90-MXB9B0-A0U, 90-MXB9B0-A0UAYZ
Warranty: 6 months
Drivers for the ASRock Fatal1ty X399 Professional Gaming
Processors supported by the ASRock Fatal1ty X399 Professional Gaming
Gaming Armor
Memory
– 15μ Gold Contact in DIMM Slots
VGA Card
– 15μ Gold Contact in VGA PCIe Slot (PCIE1, PCIE2 and PCIE3)
Internet
– Phantom Gaming 2.5G LAN
– Intel® LAN
Cooling
– XXL Aluminum Alloy Heatsink
– 8 Layer PCB
– Heat Pipe Design
Audio
– Creative Sound Blaster™ Cinema 5
Unique Feature
ASRock USB 3.1 Gen2
– ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)
– ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
– XXL Aluminum Alloy Heatsink
– Premium 60A Power Choke
– 60A Dr.MOS
– Combo Caps (Nichicon 12K Black Caps)
– Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
– Matte Black PCB
– High Density Glass Fabric PCB
ASRock Phantom Gaming 2.5G LAN
ASRock Steel Slots
ASRock Full Coverage M.2 Heatsink
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU
– Supports AMD TR4 Socket Ryzen Threadripper Series CPUs
– Supports CPU up to 180W
– Digi Power design
– 8 Power Phase design
Chipset
– AMD X399
Memory
– Quad Channel DDR4 Memory Technology
– 8 x DDR4 DIMM Slots
– Supports DDR4 3400+(OC) / 3200(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory (U-DIMM)
– Max. capacity of system memory: 128GB*
– 15μ Gold Contact in DIMM Slots
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
– 128Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 5.1 compliance wake up events
– Supports jumperfree
– SMBIOS 2.3 support
– VCORE, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, +1.8VSB, VDDCR_SOC_S5, PROM 2.5V, Voltage Multi-adjustment
Graphics
– n/a
Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
– Premium Blu-ray Audio support
– Supports Surge Protection
– Nichicon Fine Gold Series Audio Caps
– 120dB SNR DAC with Differential Amplifier
– NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
– Pure Power-In
– Direct Drive Technology
– PCB Isolate Shielding
– Impedance Sensing on Rear Out port
– Individual PCB Layers for R/L Audio Channel
– Gold Audio Jacks
– 15μ Gold Audio Connector
– Supports Creative Sound Blaster™ Cinema 5
LAN
1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125AG)
– Supports Phantom Gaming LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User Friendly UI
– Visual Network Usage Statistics
– Optimized Default Setting for Game, Browser, and Streaming Modes
– User Customized Priority Control
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I211AT)
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
Slots
– 3 x PCI Express 3.0 x16 Slots (PCIE1/PCIE2/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x16 (PCIE2); triple at x16 (PCIE1) / x16 (PCIE2) / x16 (PCIE3))*
– Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™
– Supports NVIDIA® Quad SLI™, 3-Way SLI™ and SLI™
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
– 15μ Gold Contact in VGA PCIe Slot (PCIE1, PCIE2 and PCIE3)
*Supports NVMe SSD as boot disks
Storage
– 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
– 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280/22110 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
– 1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
– 1 x Ultra M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
*Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
Connector
– 1 x TPM Header
– 1 x Power LED and Speaker Header
– 2 x RGB LED Headers*
– 1 x Addressable LED Header**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
– 1 x 24 pin ATX Power Connector
– 2 x 8 pin 12V Power Connectors
– 1 x Front Panel Audio Connector (15μ Gold Audio Connector)******
– 1 x Right Angle Front Panel Audio Connector
– 1 x AMD LED Fan USB Header
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)
– 1 x Clear CMOS Button
– 1 x Power Button with LED
– 1 x Reset Button with LED
*Support in total up to 12V/3A, 36W LED Strip
**Supports in total up to 5V/3A, 15W LED Strip
***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.
******Connect the audio device to either one of the audio connectors.

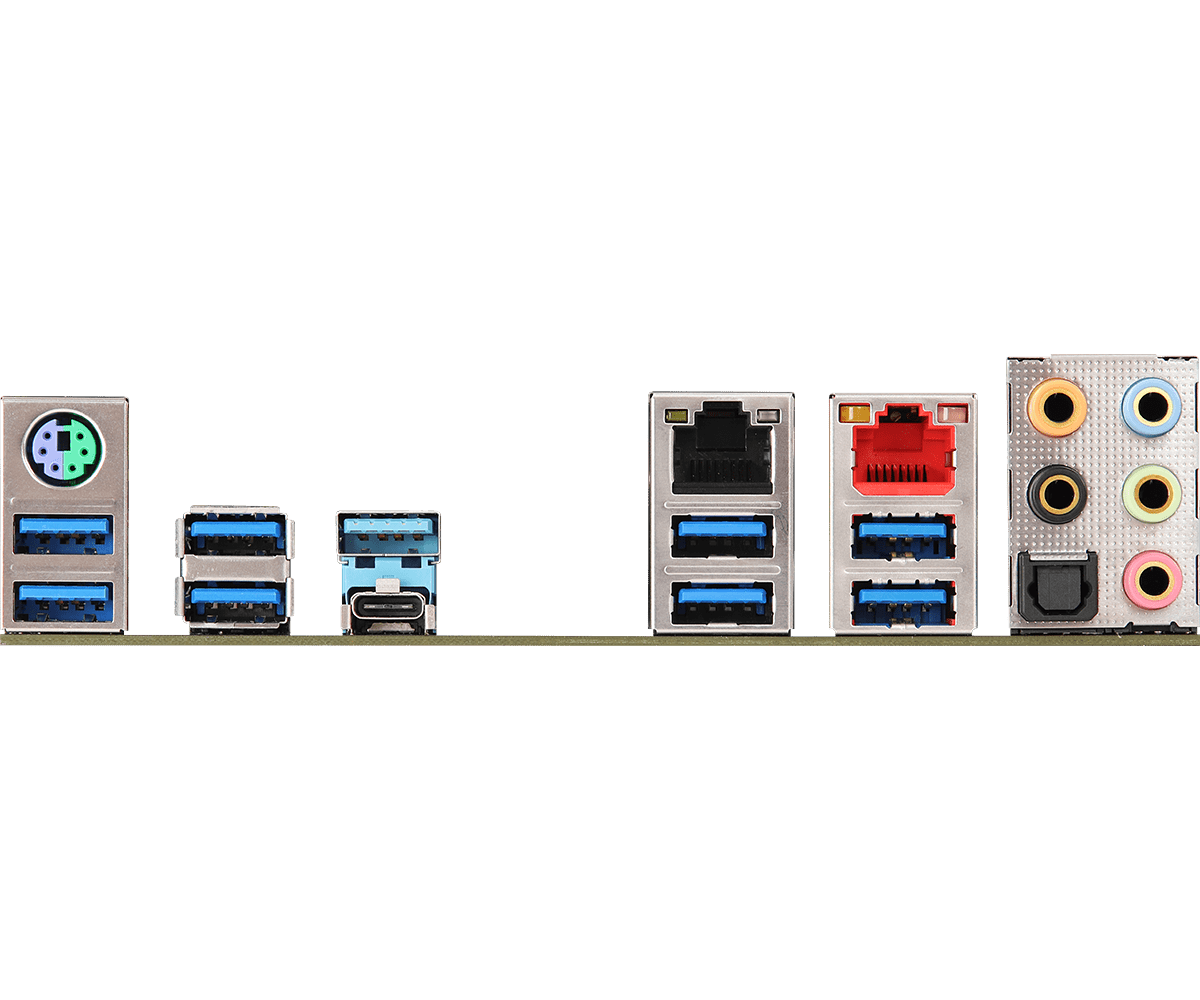

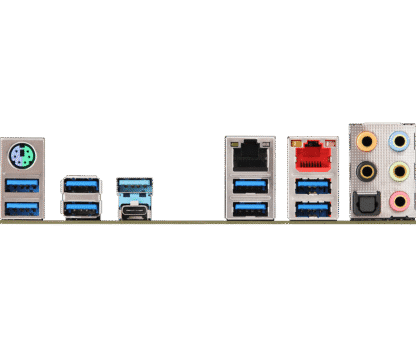

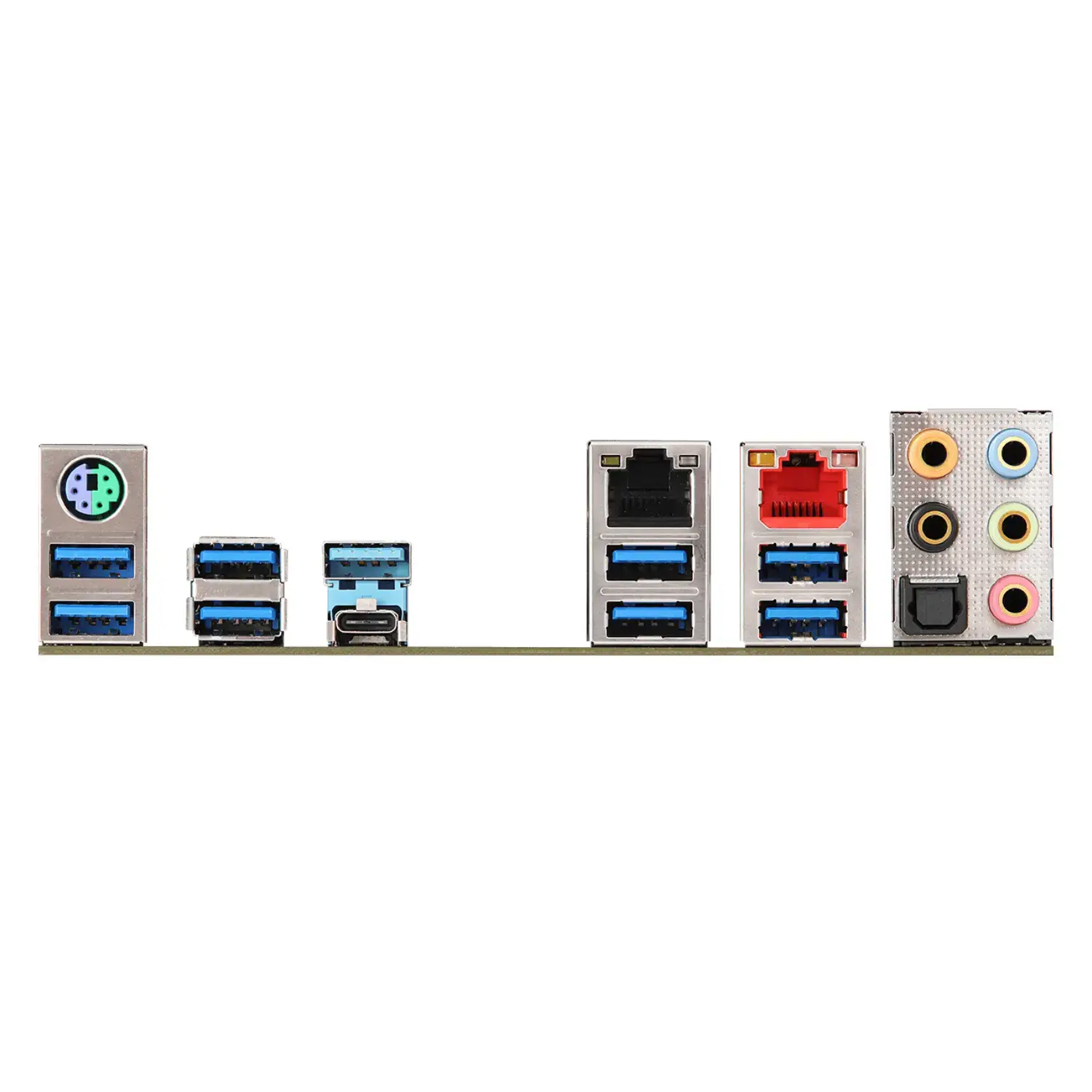

Rear Panel I/O
– 1 x PS/2 Mouse/Keyboard Port
– 1 x Optical SPDIF Out Port
– 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
– 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
– 8 x USB 3.1 Gen1 Ports (Supports ESD Protection)
– 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Software and UEFI
Software
– ASRock Phantom Gaming Tuning
– ASRock Phantom Gaming LAN
Software
– ASRock Polychrome RGB
– ASRock Key Master*
UEFI
– ASRock Full HD UEFI
– ASRock Instant Flash
– ASRock Easy RAID Installer
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD
– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories
– I/O Shield
– 4 x SATA Data Cables
– 1 x ASRock SLI_HB_Bridge_2S Card
– 4 x Screws for M.2 Sockets
– 1 x WiFi Bracket
Hardware Monitor
– Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_NB, DRAM, PCH 1.05V, +1.8V, VDDCR_SOC
Form Factor
– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
– 8 Layer PCB
OS
– Microsoft Windows® 10 64-bit
Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
