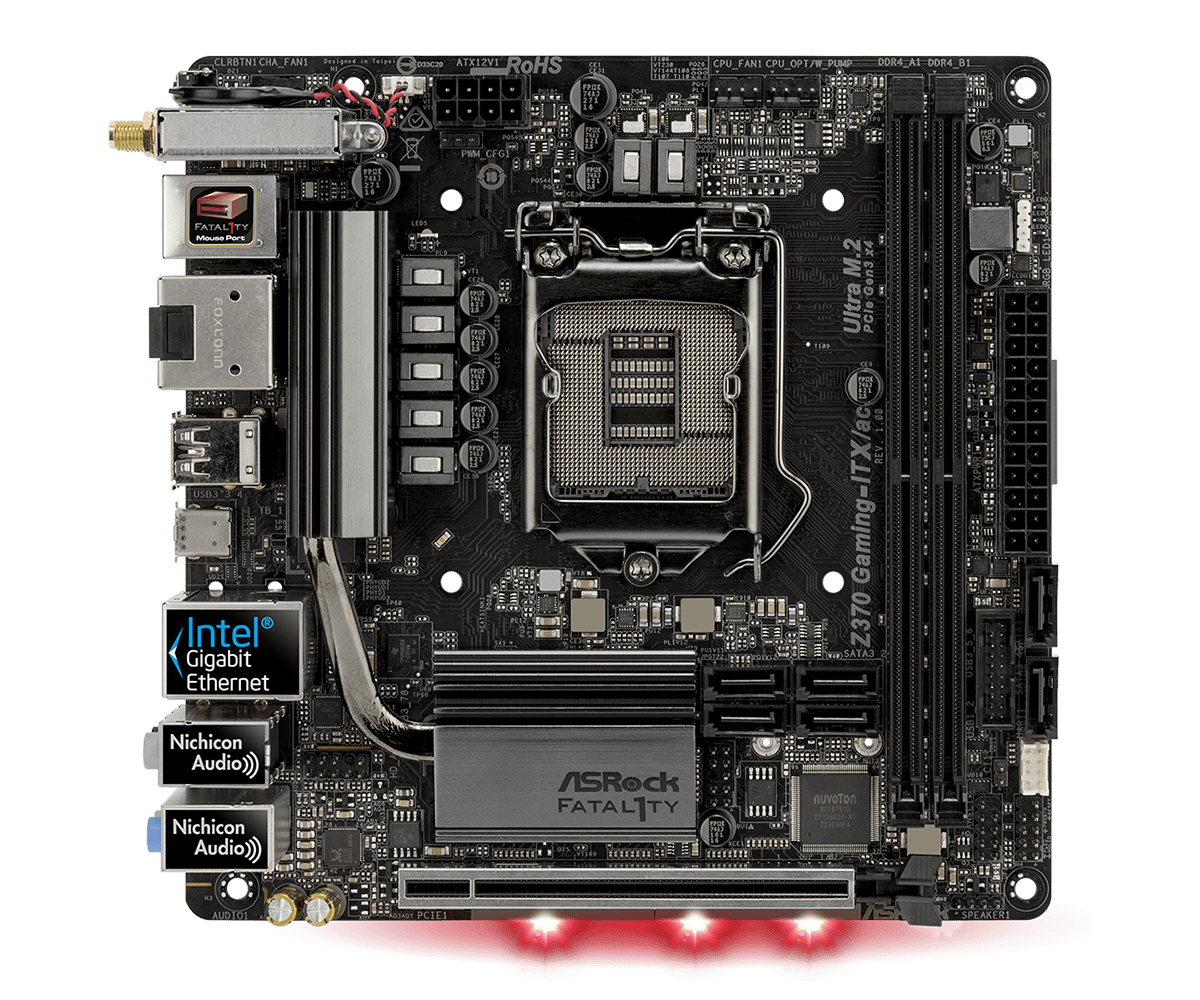

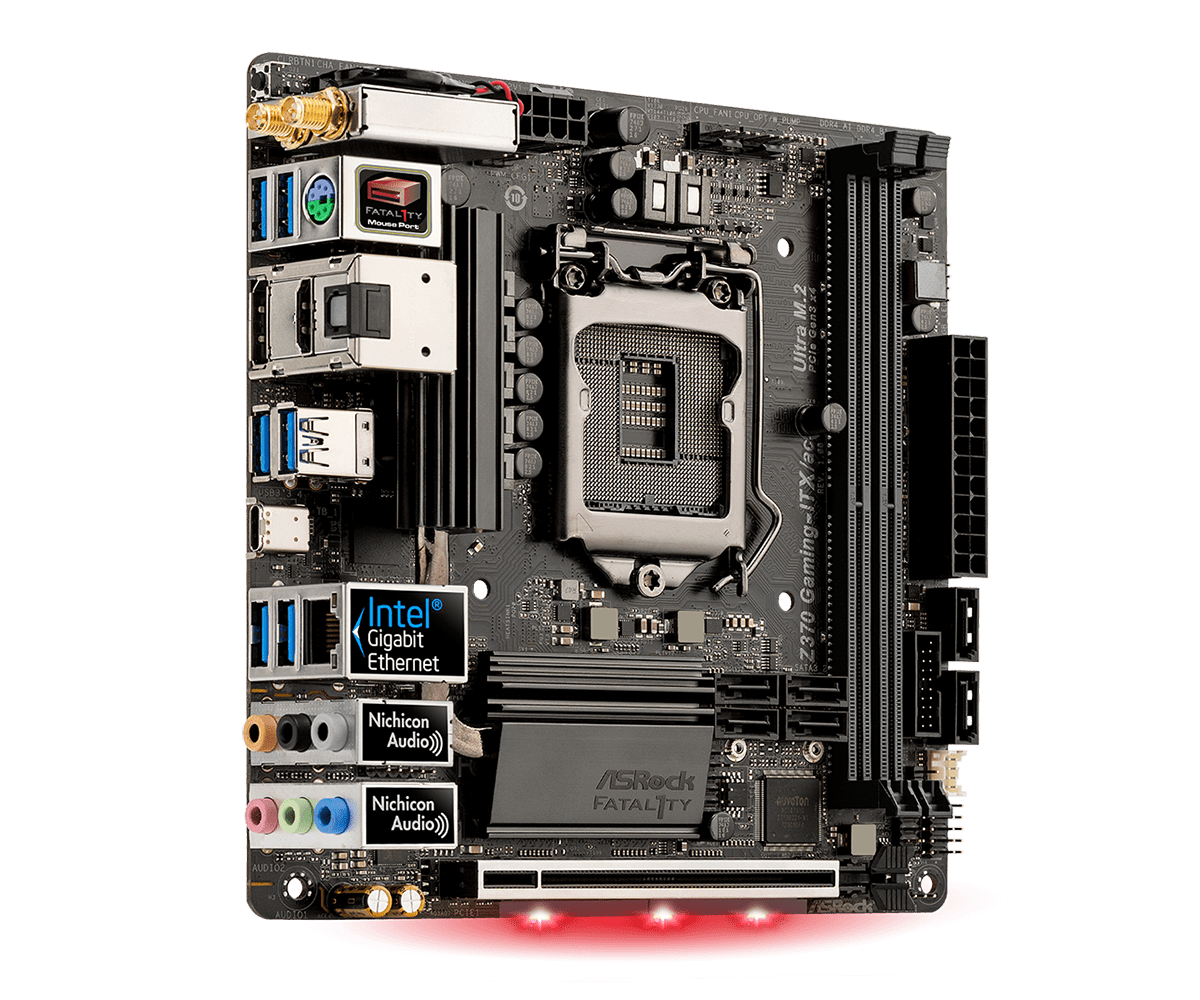

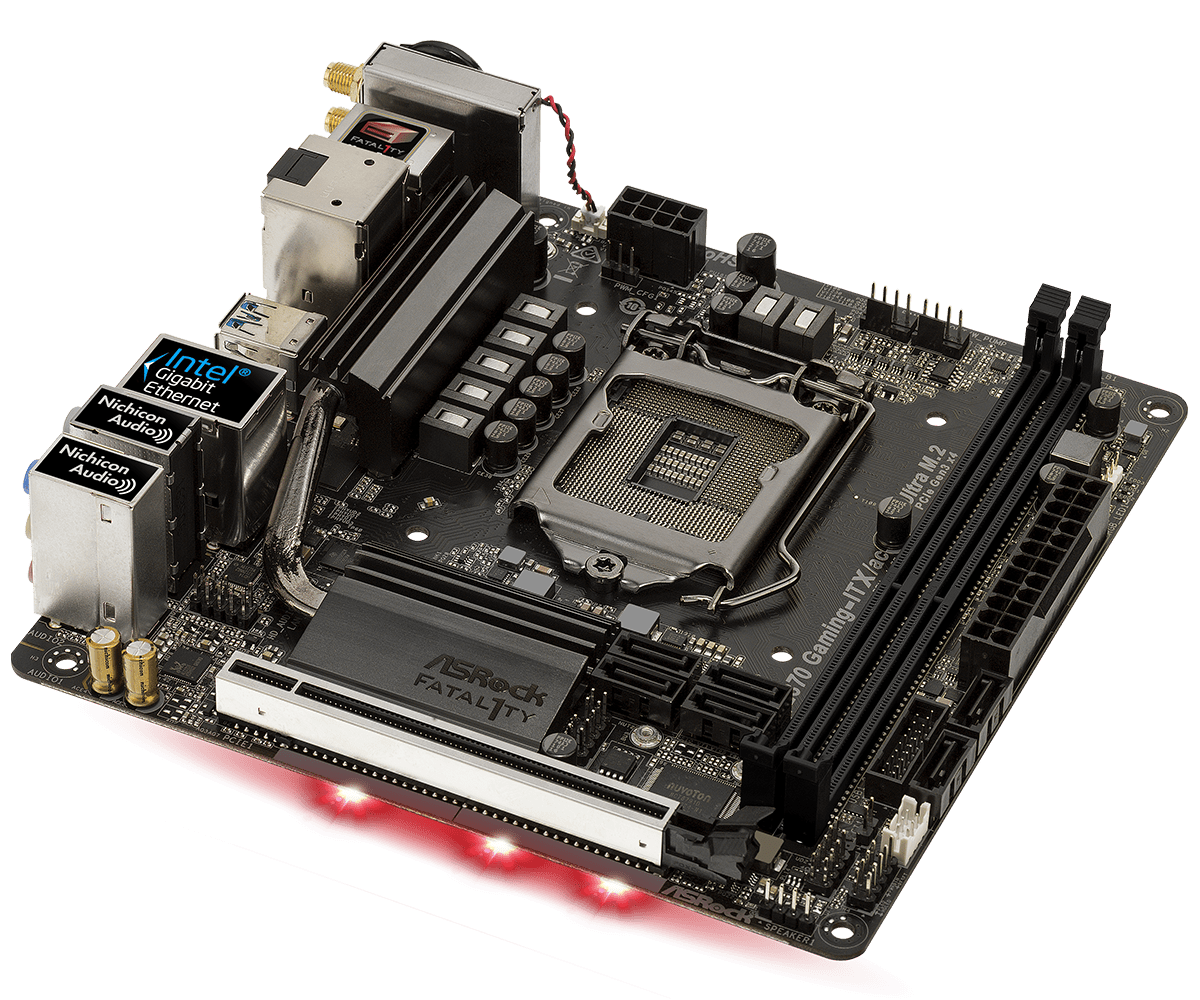

ASRock Z370 Gaming-ITX/AC: Motherboard | Mini-ITX | Socket 1151 | 2x DDR4 | RJ-45 | Wifi | SATA-600 | PCI-e 3.0 x16 | Ultra M.2 | Thunderbolt | USB 3.1 Gen1 | HDMI | Displayport

Click here for supported CPUs
Click here for drivers

Product: Z370 Gaming-ITX/AC
Connection: Socket 1151
Compatible with: 8th and 9th generation processors
Category: Motherboards
Brand: ASRock
Condition: Refurbished – BIOS updated to the latest version
EAN: 4717677334364
SKU: 90-MXB670-A0UAYZ, Fatal1ty Z370 Gaming-ITX/ac, Z370 GAMING-ITX/AC
Warranty: 6 months

Package Contents:
– Motherboard (Z370 Gaming-ITX/AC)
– I/O Shield (backplate)
– 2 antennas
– No manual
– No driver CD
– No cables

Gaming Armor
Power
– Hi-density power Connector
Memory
– 15μ Gold Contact in DIMM Slots
VGA Card
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Internet
– Intel® LAN
Cooling
– 8 Layer PCB
– 4 x 2oz copper
– Heat Pipe Design
Audio
– Creative Sound Blaster™ Cinema 3

Unique Feature
ASRock Super Alloy
– Premium 60A Power Choke
– 60A Dr.MOS
– Nichicon 12K Black Caps (100% Japan-made high-quality conductive polymer capacitors)
– Matte Black PCB
– High-Density Glass Fabric PCB
Intel® Dual Band Wireless-AC 8265 (AC Wave 2 + BLE BT4.2)
ASRock Steel Slots
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

CPU
– Supports 8th Generation Intel® Core™ Processors (Socket 1151)
– Digi Power design
– 7 Power Phase design
– Supports Intel® Turbo Boost 2.0 Technology
– Supports Intel® K-Series unlocked CPUs
– Supports ASRock BCLK Full-range Overclocking

Chipset
– Intel® Z370

Memory
– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– Supports DDR4 4333+(OC)* / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 32GB**
– Supports Intel® Extreme Memory Profile (XMP) 2.0
– 15μ Gold Contact in DIMM Slots

*8th Gen Intel® CPU supports DDR4 up to 2666.
Please refer to the Memory Support List on ASRock’s website for more information.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS
– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake-up events
– SMBIOS 2.7 Support
– CPU, DRAM, PCH 1.0V, VCCIO, VCCST, VCCSA, VCCPLL Voltage Multi-adjustment

Graphics
– Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics
– DirectX 12
– HWA Encode/Decode: VP9 8-bit, VP9 10-bit (Encode only), VP8, HEVC (MPEG-H Part2, h.265), AVC (MPEG4, h.264), MPEG2-Part2 (h.262), JPEG/MJPEG,VC-1
– Max. shared memory 1024MB**
– Three graphics output options: HDMI, DisplayPort 1.2, and Intel® Thunderbolt™ 3
– Supports Triple Monitor
– Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
– Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096×2304) @ 60Hz
– Supports Intel® Thunderbolt™ 3 with max. resolution up to 4K x 2K (4096×2304) @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC, and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI 2.0 monitor is required)
– Supports HDCP with HDMI 2.0, DisplayPort 1.2 and Intel® Thunderbolt™ 3
– Supports 4K Ultra HD (UHD) playback with HDMI 2.0, DisplayPort 1.2 and Intel® Thunderbolt™ 3

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors that are GPU integrated.

**The size of maximum shared memory may vary from different operating systems.

Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
– Premium Blu-ray Audio support
– Supports Surge Protection
– Nichicon Fine Gold Series Audio Caps
– 120dB SNR DAC with Differential Amplifier
– NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
– Pure Power-In
– Direct Drive Technology
– PCB Isolate Shielding
– Impedance Sensing on Rear outport
– Individual PCB Layers for R/L Audio Channel
– 15μ Gold Audio Connector
– Supports Creative Sound Blaster™ Cinema 3

LAN
– Gigabit LAN 10/100/1000 Mb/s
– Giga PHY Intel® I219V
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE

Wireless LAN
– Intel® Dual Band Wireless-AC 8265
– Supports IEEE 802.11a/b/g/n/ac
– Supports Dual-Band (2.4/5 GHz with 80Mhz bandwidth and MU-MIMO)
– Supports high-speed wireless connections up to 867Mbps
– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
– Supports Bluetooth 4.2 / 3.0 + High speed class II

Slots
– 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
– 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module (on the rear I/O)
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)

*Supports PCIe riser cards to extend one x16 slot to two x8 slots
Supports NVMe SSD as boot disks

Storage
– 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 15), NCQ, AHCI and Hot Plug*
– 1 x Ultra M.2 Socket, supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

*If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.

**Supports Intel® Optane™ Technology
Supports NVMe SSD as boot disks

Connector
– 1 x Chassis Intrusion Header
– 1 x RGB LED Header*
– 1 x CPU Fan Connector (4-pin)**
– 1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
– 1 x Chassis Fan Connector (4-pin)
– 1 x 24-pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

*Supports in total up to 12V/3A, 36W LED Strip

**The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

***The CPU Optional/Water Pump Fan supports the water cooler fan with a maximum of 1.5A (18W) fan power.

****CPU_OPT/W_PUMP can auto-detect if a 3-pin or 4-pin fan is in use.

Rear Panel I/O
– 2 x Antenna Ports
– 1 x PS/2 Mouse/Keyboard Port
– 1 x HDMI Port
– 1 x DisplayPort 1.2
– 1 x Intel® Thunderbolt™ 3 (Compatible with USB 3.1 Gen2 and USB-C Display)*
– 1 x Optical SPDIF OutPort
– 6 x USB 3.1 Gen1 Ports (Supports ESD Protection)**
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– 1 x Clear CMOS Button
– HD Audio Jacks: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

*Supports USB PD 2.0 up to 12V@3A (36W) charging

**1 x Fatal1ty Mouse Port (USB 3.1 Gen1) is included

Software and UEFI
Software
– ASRock F-Stream
– ASRock RGB LED
– ASRock Key Master
– ASRock XFast LAN
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.

Accessories
– I/O Shield

Hardware Monitor
– Temperature Sensing: CPU, CPU Optional/Water Pump, Chassis Fans
– Fan Tachometer: CPU, CPU Optional/Water Pump, Chassis Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/Water Pump, Chassis Fans
– Fan Multi-Speed Control: CPU, CPU Optional/Water Pump, Chassis Fans
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCST

Form Factor
– Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
– 8 Layer PCB
– 4 x 2oz copper

OS
– Microsoft® Windows® 10 64-bit / 11 64-bit

Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
