Product information

ASRock Z370M Pro4:  motherboard | Micro ATX | Intel Socket 1151 | Z370 Chip Set | 4x DDR4 (max. 64GB) | PCIe 3.0 x1 | PCIe 3.0 x16 | M.2 (PCI-e 3.0 x4 + SATA) | SATA-600 | USB 2.0 | USB 3.2 (Gen1, 5Gb/s) | USB 3.2 (Gen1, 5Gb/s) type-c | DVI-D | HDMI | VGA (D-Sub)

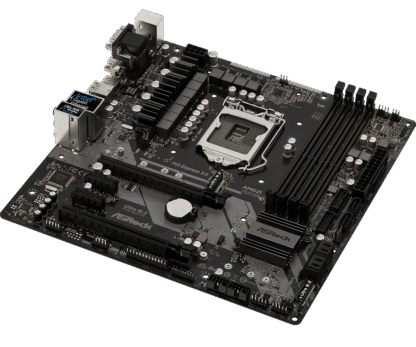

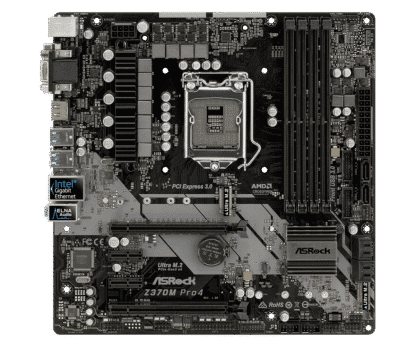

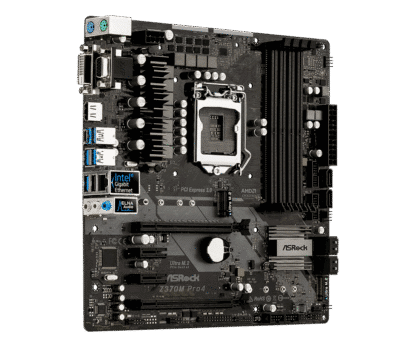

Product:ASRock Z370M Pro4
Socket:
Socket 1151
Suitable for: 8th and 9th generation processors
Brand: ASRock
Condition: Refurbished, with the latest BIOS version
EAN: 4717677334357
SKU:
90-MXB660-A0UAYZ, Z370M Pro4
Warranty:
6 months


package content:
– Motherboard (ASRock Z370M Pro4)
– backplate (blende)
– manual
– driver CD
– no cables


Unique Feature
ASRock Super Alloy
– Premium 45A Power Choke
– Sapphire Black PCB
– High Density Glass Fabric PCB
ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop


CPU
– Supports 8th Generation Intel® Core™ Processors (Socket 1151)
– Digi Power design
– 10 Power Phase design
– Supports Intel® Turbo Boost 2.0 Technology
– Supports Intel® K-Series unlocked CPUs
– Supports ASRock BCLK Full-range Overclocking


Chipset
– Intel® Z370


Memory
– Dual Channel DDR4 Memory Technology
– 4 x DDR4 DIMM Slots
– Supports DDR4 4300+(OC)* / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 64GB**
– Supports Intel® Extreme Memory Profile (XMP) 2.0
– 15μ Gold Contact in DIMM Slots

*8th Gen Intel® CPU supports DDR4 up to 2666.
Please refer to Memory Support List on ASRock’s website for more information.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCST Voltage Multi-adjustment


Graphics
– Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics
– DirectX 12
– HWA Encode/Decode: VP9 8-bit, VP9 10-bit (Encode only), VP8, HEVC (MPEG-H Part2, h.265), AVC (MPEG4, h.264), MPEG2-Part2 (h.262), JPEG/MJPEG,VC-1
– Max. shared memory 1024MB
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports Triple Monitor
– Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 30Hz
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports HDCP with DVI-D and HDMI Ports
– Supports 4K Ultra HD (UHD) playback with HDMI Port

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

**The size of maximum shared memory may vary from different operating systems.


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)*
– Premium Blu-ray Audio support
– Supports Surge Protection
– ELNA Audio Caps

*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.


LAN
– Gigabit LAN 10/100/1000 Mb/s
– Giga PHY Intel® I219V
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 2 x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE4: x4 mode)*
– 2 x PCI Express 3.0 x1 Slots (Flexible PCIe)
– Supports AMD Quad CrossFireX™ and CrossFireX™

*Supports NVMe SSD as boot disks


Storage
– 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 15), NCQ, AHCI and Hot Plug*
– 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
– 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

*If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.

**Supports Intel® Optane™ Technology
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit


Connector
– 1 x Print Port Header
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)*
– 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)
– 1 x Performance Mode / Easy OC Header

*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

**CHA_FAN1 and CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.


Rear Panel I/O
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 1 x USB 2.0 Port (Supports ESD Protection)
– 4 x USB 3.1 Gen1 Type-A Ports (Supports ESD Protection)
– 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone


Software and UEFI
Software
– ASRock A-Tuning
– ASRock XFast LAN
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.


Accessories
– I/O Shield


Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V


Form Factor
– Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
– Solid Capacitor design


OS
– Microsoft® Windows® 10 64-bit / 11 64-bit


Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Specification

Weight1 kg
Intel

Socket 1151

Brand

Asrock

Form Factor

Micro-ATX

Chipset

Intel Z370

Memory Type

DDR4 SDRAM

Number of memory slots

4

Maximum memory size

64 GB

Connectors

D-Sub (VGA), DVI-D, Ethernet (RJ-45), HDMI, USB 2.0, USB 3.1 Gen1 Type-C, USB 3.1 Gen2 Type-A

Storage Interfaces

M.2 Socket (M2_2), Serial ATA-600, Ultra M.2 Socket

Interfaces

PCI-e 3.0 x1, PCI-e 3.0 x16

Socket

Model

Z370M Pro4

Suitable for

Gaming

particularities

Onboard Audio

package content

Motherboard and Backplate (Blende)

Length

24.4 cm

Width

24.4 cm

ASRock Z370M Pro4 LGA1151 Motherboard

Fast delivery

  • Supports 8th and 9th Generation Intel® Core™ Processors (Socket 1151)
  • Supports DDR4 4300+(OC)
  • 2 PCIe 3.0 x16, 2 PCIe 3.0 x1
  • AMD Quad CrossFireX™
  • Graphics Output Options: HDMI, DVI-D, D-Sub
  • Supports Triple Monitor
  • 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
  • 6 SATA3, 2 Ultra M.2 (One supports PCIe Gen3 x4 & SATA3, the other one supports PCIe Gen3 x4 only)
  • 9 USB 3.1 Gen1 (1 Type-C, 4 Front, 4 Rear)
  • Intel® Gigabit LAN
  • Intel® Optane™ Memory Ready
