Product information

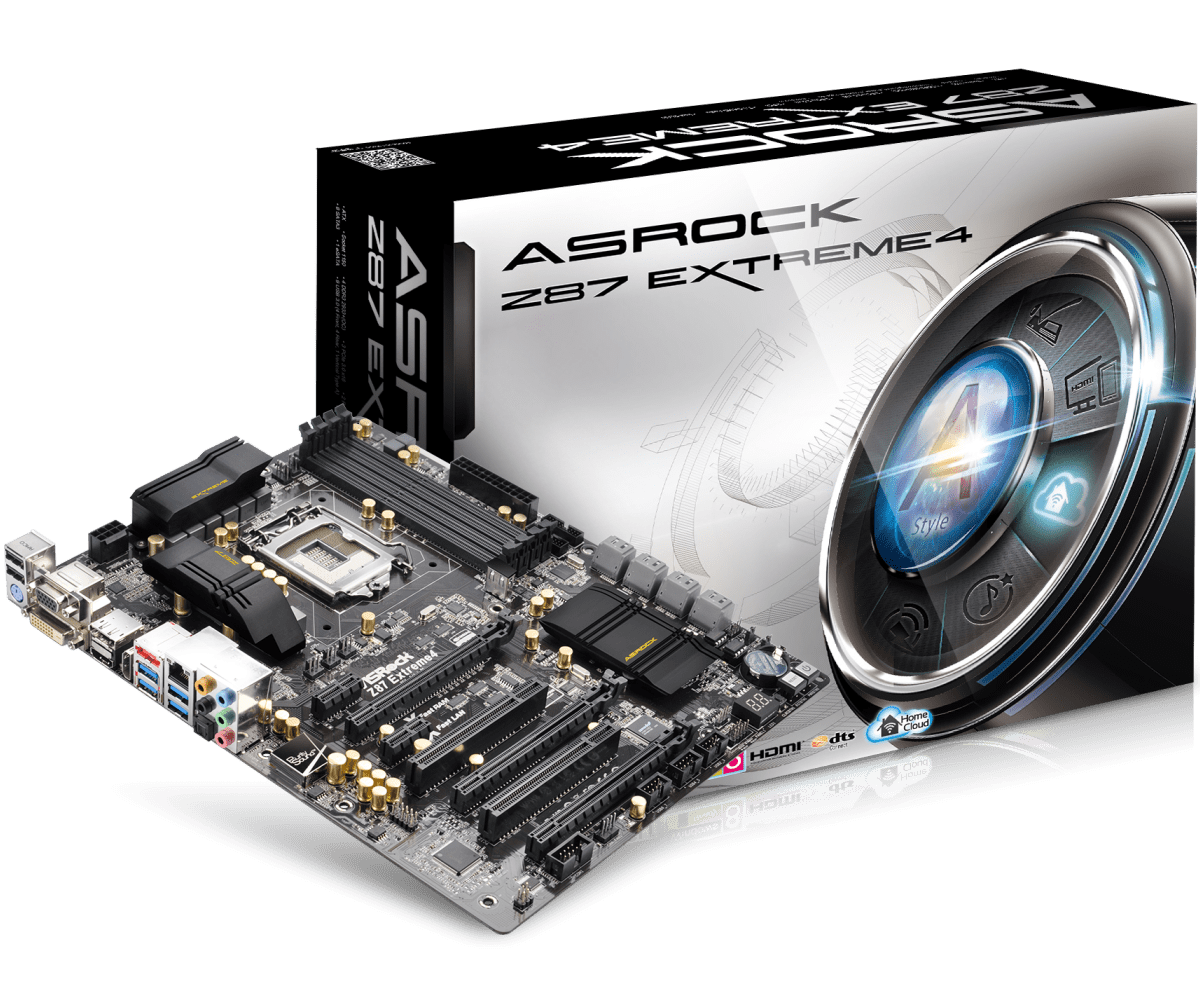

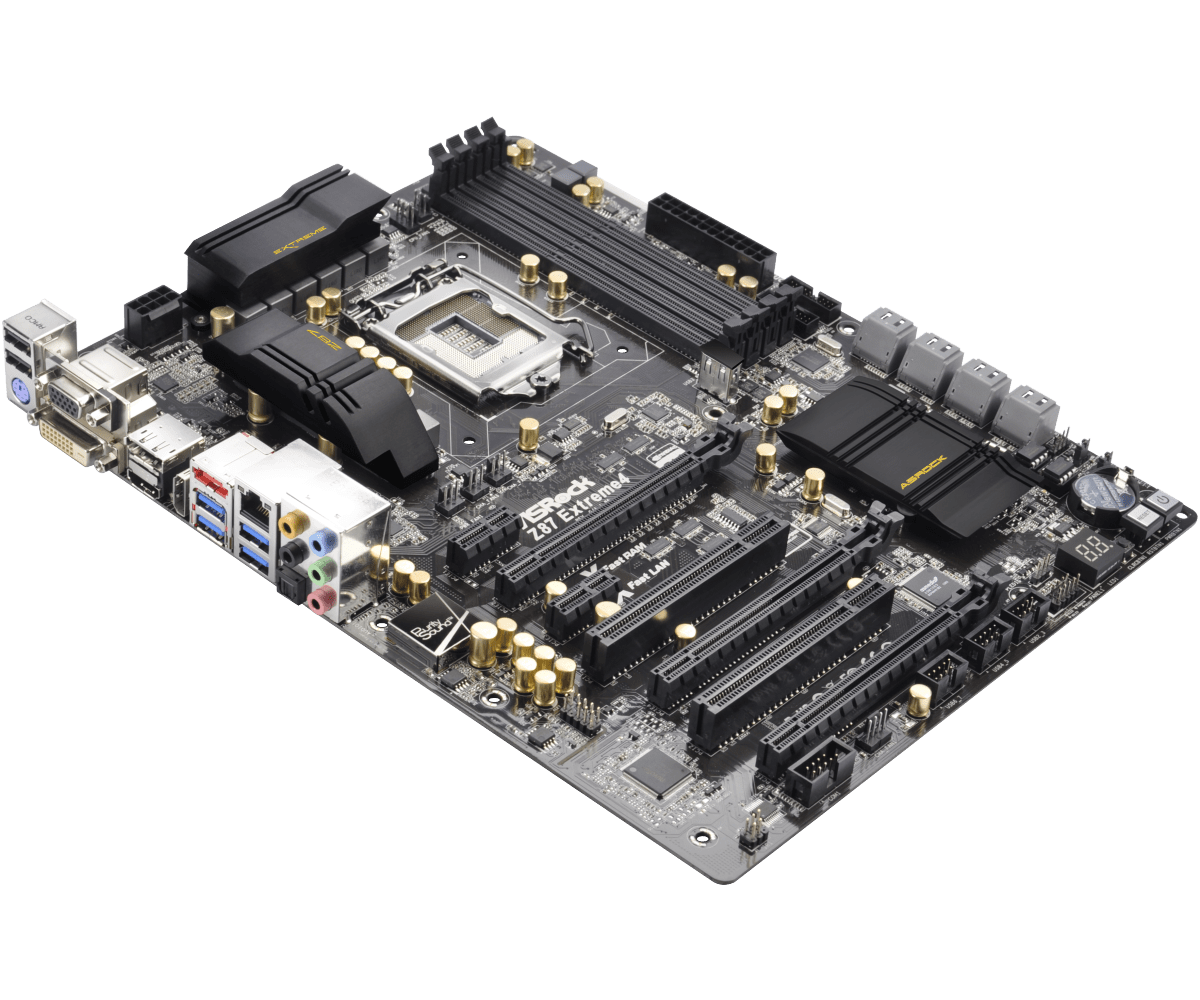

The ASRock Z87 Extreme4 is an ATX LGA1150 motherboard based on the Intel Z87 chipset. The board must be combined with DDR3 memory, for which 4 slots are available. In total, the Z87 Extreme4 has 8 Serial ATA connections for hard disks and SSDs. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC1150 chip.

Features: Motherboard | ATX | LGA1150 | 4x DDR3 | 8x SATA 600 | 2x PCI | 2x PCI-e 2.0 x1 | 3x PCI-e 3.0 x16 |eSATA | 8x USB 2.0 | 9x USB 3.2 (Gen1, 5Gb/s) | DisplayPort | DVI-D | 2x HDMI | VGA (D Sub)

Click here for the supporting CPUs
Click here for the drivers

Product: ASRock Z87 Extreme4
Socket: LGA1150
Memory: 4x DDR3 (32GB Max)
Form Factor: ATX
Category: motherboards
Brand: ASRock
EAN:4054319115050, 4717677321173
State: Refurbished – BIOS updated to the latest version
SKU: 90-MXGPC0-A0UAYZ, 90-MXGPC0-AOUAYZ, Z87 EXTREME4
Warranty:
6 months

package content:
– Motherboard (Z87 Extreme4)
– Backplate (Blende)
– instruction manual
– drivers CD
– cables


A-Style
– Home Cloud
– Purity Sound™
– HDMI In


CPU
– Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
– Digi Power Design
– 12 Power Phase Design
– Supports Intel® Turbo Boost 2.0 Technology
– Supports Intel® K-Series unlocked CPU
– Supports ASRock BCLK Full-range Overclocking


Chipset
– Intel® Z87


Memory
– Dual Channel DDR3/DDR3L memory technology
– 4 x DDR3 DIMM slots
– Supports DDR3 2933+(OC)/2800(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 32GB*
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
– Distortion-Free Slot

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 2 x 64Mb AMI UEFI Legal BIOS with Multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
– Supports Secure Backup UEFI Technology
– ACPI 1.1 Compliance Wake Up Events
– SMBIOS 2.3.1 Support
– CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment


Graphics
– Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel ® HD Graphics 4400/4600
– Pixel Shader 5.0, DirectX 11.1
– Max. shared memory 512MB*
– Four graphics output options: D-Sub, DVI-D, HDMI and DisplayPort
– Supports Triple Monitor
– Supports HDMI Technology with max. resolution up to 4K x 2K (4096×2304) @ 24Hz
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports DisplayPort with max. resolution up to 4K x 2K (4096×2304) @ 24Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
– Supports HDCP function with DVI-D, HDMI and DisplayPort ports
– Supports Full HD 1080p Blu-ray (BD) playback with DVI-D, HDMI and DisplayPort ports

*The size of maximum shared memory may vary from different operating systems.

**Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit.

****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
– Premium Blu-ray audio support
– Supports Purity Sound™
– 115dB SNR DAC with differential amplifier
– TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)
– Direct Drive Technology
– EMI shielding cover
– PCB isolation shielding
– Supports DTS Connect


LAN
– Gigabit LAN 10/100/1000 Mb/s
– Giga PHY Intel® I217V
– Supports Intel® Remote Wake Technology
– Supports Wake-On-LAN
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 3 x PCI Express 3.0 x16 slots (PCIE2/PCIE4/PCIE5: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); triple at x8 (PCIE2) / x4 ) (PCIE4) / x4 (PCIE5)
– 2 x PCI Express 2.0 x1 slots
– 2 x PCI slots
– Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™
– Supports NVIDIA® Quad SLI™ and SLI™


Storage
– 6 x SATA3 6.0 Gb/s connectors by Intel® Z87, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 12 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug
– 2 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug (SATA3_A0 connector is shared with eSATA port)
– 1 x eSATA connector by ASMedia ASM1061, supports NCQ, AHCI, Hot Plug and Port Multiplier


Connector
– 1 x IR header
– 1 x COM Port header
– 1 x Power LED header
– 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
– 3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin)
– 1 x Power Fan connector (3-pin)
– 1 x 24 pin ATX power connector
– 1 x 8 pin 12V power connector
– 1 x Front panel audio connector
– 3 x USB 2.0 headers (support 6 USB 2.0 ports)
– 1 x Vertical Type A USB 3.1 Gen1
– 2 x USB 3.1 Gen1 headers (support 4 USB 3.1 Gen1 ports) (ASMedia Hub)
– 1 x Dr. Debug with LED
– 1 x Power Switch with LED
– 1 x Reset Switch with LED
– 1 x Clear CMOS Switch


Rear Panel I/O
I/O Panel
– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI-Out Port
– 1 x HDMI-In Port
– 1 x DisplayPort
– 1 x Optical SPDIF Out Port
– 1 x eSATA Connector
– 2 x USB 2.0 Ports
– 4 x USB 3.1 Gen1 Ports
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone


Unique Feature
– ASRock APP Shop
– ASRock A-Tuning
– ASRock Instant Flash
– ASRock APP Charger
– ASRock XFast USB
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock Internet Flash
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Dehumidifier
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer
– ASRock Interactive UEFI
– ASRock Fast Boot
– ASRock Restart to UEFI
– ASRock USB Key
– ASRock FAN-Tastic Tuning
– Hybrid Booster:
– CPU Frequency Stepless Control
– ASRock U-COP
– Boot Failure Guard (B.F.G.)
– Good Night LED


Support CD
– Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar, Start8 (30 days trial), MeshCentral, Splashtop Streamer


Accessories
– 1 x ASRock SLI_Bridge_2S Card
– Quick Installation Guide, Support CD, I/O Shield
– 4 x SATA Data Cables


Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis, Power Fan Tachometer
– CPU, Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
– CPU, Chassis Fan multi-speed control
– Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore


Form Factor
– ATX Form Factor
– Premium Gold Capacitor design (100% Japan made high quality conductive polymer capacitors)


OS
– Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit


Certifications
– FCC, CE
– ErP/EuP Ready (ErP/EuP ready power supply is required)

Specification

Weight1 kg
Intel

LGA1150

Brand

Asrock

Chipset

Intel Z87

Form Factor

ATX

Memory Type

DDR3 SDRAM

Number of memory slots

4

Maximum memory size

32 GB

Connectors

Displayport, DVI-D, eSATA, HDMI, USB 2.0, USB 3.1 Gen1

Storage Interfaces

Serial ATA-300, Serial ATA-600

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 3.0 x16

Socket

ASRock Z87 EXTREME4 LGA1150 motherboard

Fast delivery

Product: ASRock Z87 Extreme4
Connection: Socket 1150
Memory: 4x DDR3 (32GB Max)
Form Factor: ATX
Category: motherboards
Brand: ASRock
EAN:4054319115050, 4717677321173
State: Refurbished – BIOS updated to the latest version
SKU: 90-MXGPC0-A0UAYZ, 90-MXGPC0-AOUAYZ, Z87 EXTREME4
Warranty:
6 months
