Product information

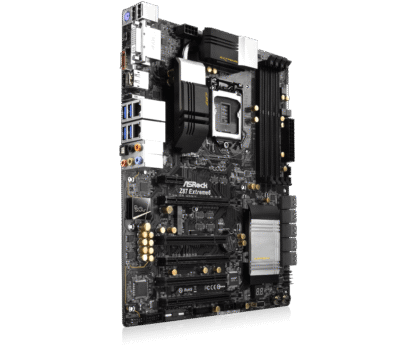

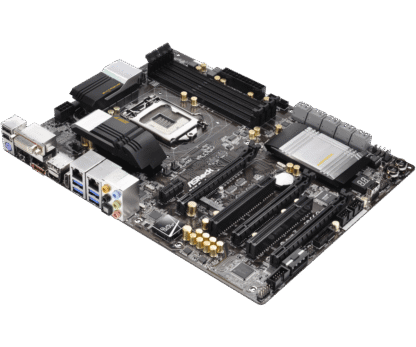

The ASRock Z87 Extreme6 is an ATX LGA1150 motherboard based on the Intel Z87 chipset. The board must be combined with DDR3 memory, for which 4 slots are available. In total, the Z87 Extreme6 has 10 Serial ATA connections for hard disks and SSDs. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC1150 chip.

Features: Motherboard | ATX | LGA1150 | 4x DDR3 | 10x SATA 600 | mini PCI Express | 2x PCI, PCI-e 2.0 x1 | 3x PCI-e 3.0 x16 | eSATA | 7x USB 2.0 | 8x USB 3.2 (Gen1, 5Gb/s) | DisplayPort | DVI-I | 2x HDMI

Click here for the supporting CPUs
Click here for the drivers

Product: ASRock Z87 Extreme6
Socket: LGA1150
Memory: 4x DDR3 (32GB Max)
Form Factor: ATX
Category: motherboards
Brand: ASRock
EAN: 4717677321180, 5053118559569
State: Refurbished – BIOS updated to the latest version
SKU: 90-MXGMK0-A0UAYZ, Z87 EXTREME6
Warranty: 6 months

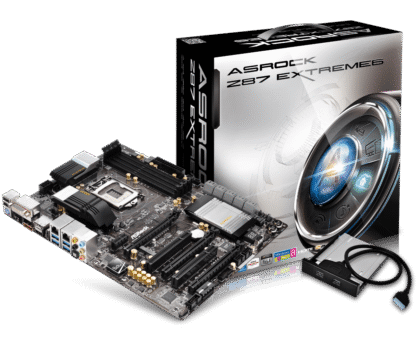

package content:
– Motherboard (Z87 Extreme6 )
– Backplate (blende)
– instruction manual
– drivers CD
– cables

A-Style
– Home Cloud
– Purity Sound™
– HDMI In

CPU
– Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
– Digi Power Design
– 12 Power Phase Design
– Dual Stack MOSFET (DSM)
– Supports Intel® Turbo Boost 2.0 Technology
– Supports Intel® K-Series unlocked CPU
– Supports ASRock BCLK Full-range Overclocking

Chipset
– Intel® Z87

Memory
– Dual Channel DDR3/DDR3L memory technology
– 4 x DDR3/DDR3L DIMM slots
– Supports DDR3/DDR3L 2933+(OC)/2800(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, unbuffered memory
– Max. capacity of system memory: 32GB*
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
– Distortion-Free Slot

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS
– 2 x 64Mb AMI UEFI Legal BIOS with Multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
– Supports Secure Backup UEFI Technology
– ACPI 1.1 Compliance Wake Up Events
– SMBIOS 2.3.1 Support
– CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment

Graphics
– Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel ® HD Graphics 4400/4600
– Pixel Shader 5.0, DirectX 11.1
– Max. shared memory 512MB*
– Three graphics output options: DVI-I, HDMI and DisplayPort
– Supports Triple Monitor
– Supports HDMI Technology with max. resolution up to 4K x 2K (4096×2304) @ 24Hz
– Supports DVI-I with max. resolution up to 1920×1200 @ 60Hz
– Supports DisplayPort with max. resolution up to 4K x 2K (4096×2304) @ 24Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
– Supports HDCP function with DVI-I, HDMI and DisplayPort ports
– Supports Full HD 1080p Blu-ray (BD) playback with DVI-I, HDMI and DisplayPort ports

*The size of maximum shared memory may vary from different operating systems.

**Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit.

****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.

Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
– Premium Blu-ray audio support
– Supports Purity Sound™
– 115dB SNR DAC with differential amplifier
– TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)
– Direct Drive Technology
– EMI shielding cover
– PCB isolation shielding
– Supports DTS Connect

LAN
– Gigabit LAN 10/100/1000 Mb/s
– 1 x Giga PHY Intel® I217V, 1 x GigaLAN Intel® I211AT
– Supports Intel® Remote Wake Technology (on Intel® I217V)
– Supports Wake-On-LAN
– Supports Dual LAN with Teaming
– Supports Energy Efficiencyt Ethernet 802.3az
– Supports PXE

Slots
– 3 x PCI Express 3.0 x16 slots (PCIE2/PCIE3/PCIE4: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE3); triple at x8 (PCIE2) / x4 (PCIE3) / x4 (PCIE4))
– 1 x PCI Express 2.0 x1 slot
– 1 x mini-PCI Express slot
– 2 x PCI slots
– Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™
– Supports NVIDIA® Quad SLI™ and SLI™

Storage
– 6 x SATA3 6.0 Gb/s connectors by Intel® Z87, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 12 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug
– 4 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug (SATA3_A4 connector is shared with the eSATA port)
– 1 x eSATA connector by ASMedia ASM1061, supports NCQ, AHCI, Hot Plug and Port Multiplier

Connector
– 1 x IR header
– 1 x COM Port header
– 1 x Power LED header
– 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
– 3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin)
– 1 x Power Fan connector (3-pin)
– 1 x 24 pin ATX power connector
– 1 x 8 pin 12V power connector (Hi-Density Power Connector)
– 1 x SLI/XFire power connector
– 1 x Front panel audio connector
– 2 x USB 2.0 headers (support 4 USB 2.0 ports)
– 1 x Vertical Type A USB 2.0
– 2 x USB 3.1 Gen1 headers (support 4 USB 3.1 Gen1 ports)
– 1 x Dr. Debug with LED
– 1 x Power Switch with LED
– 1 x Reset Switch with LED

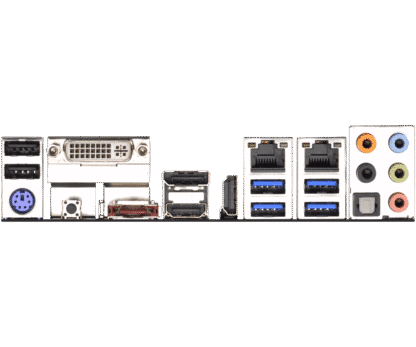

Rear Panel I/O
I/O Panel
– 1 x PS/2 Mouse/Keyboard Port
– 1 x DVI-I Port
– 1 x HDMI-Out Port
– 1 x HDMI-In Port
– 1 x DisplayPort
– 1 x Optical SPDIF Out Port
– 1 x eSATA Connector
– 2 x USB 2.0 Ports
– 4 x USB 3.1 Gen1 Ports (ASMedia Hub)
– 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
– 1 x Clear CMOS Switch
– HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Unique Feature
– ASRock APP Shop
– ASRock A-Tuning
– ASRock Instant Flash
– ASRock APP Charger
– ASRock XFast USB
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock Internet Flash
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Dehumidifier
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer
– ASRock Interactive UEFI
– ASRock Fast Boot
– ASRock Restart to UEFI
– ASRock USB Key
– ASRock FAN-Tastic Tuning
– Hybrid Booster:
– CPU Frequency Stepless Control
– ASRock U-COP
– Boot Failure Guard (B.F.G.)
– Good Night LED

Support CD
– Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar, Start8 (30 days trial), MeshCentral, Splashtop Streamer

Accessories
– 1 x ASRock SLI_Bridge_2S Card
– Quick Installation Guide, Support CD, I/O Shield
– 6 x SATA Data Cables
– 1 x Front USB 3.0 Panel with 2.5″ HDD/SSD Rack
– 4 x HDD Screws
– 6 x Chassis Screws
– 1 x Rear USB 3.1 Gen1 Bracket
– 1 x WiFi Module Screw

Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis, Power Fan Tachometer
– CPU, Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
– CPU, Chassis Fan multi-speed control
– Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor
– ATX Form Factor
– Premium Gold Capacitor design (100% Japan made high quality conductive polymer capacitors)

OS
– Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
