Description

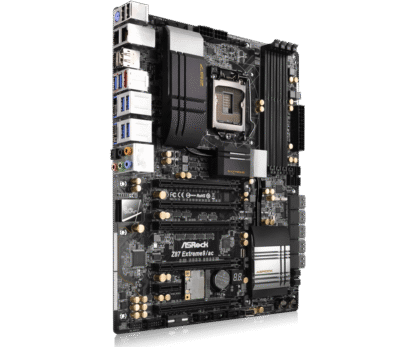

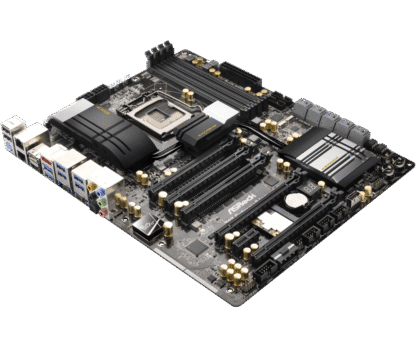

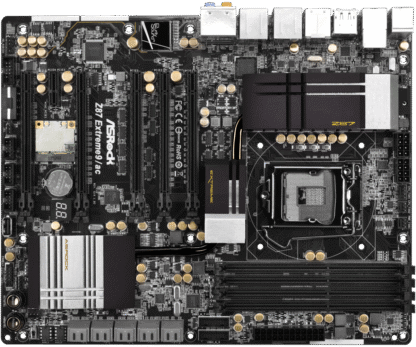

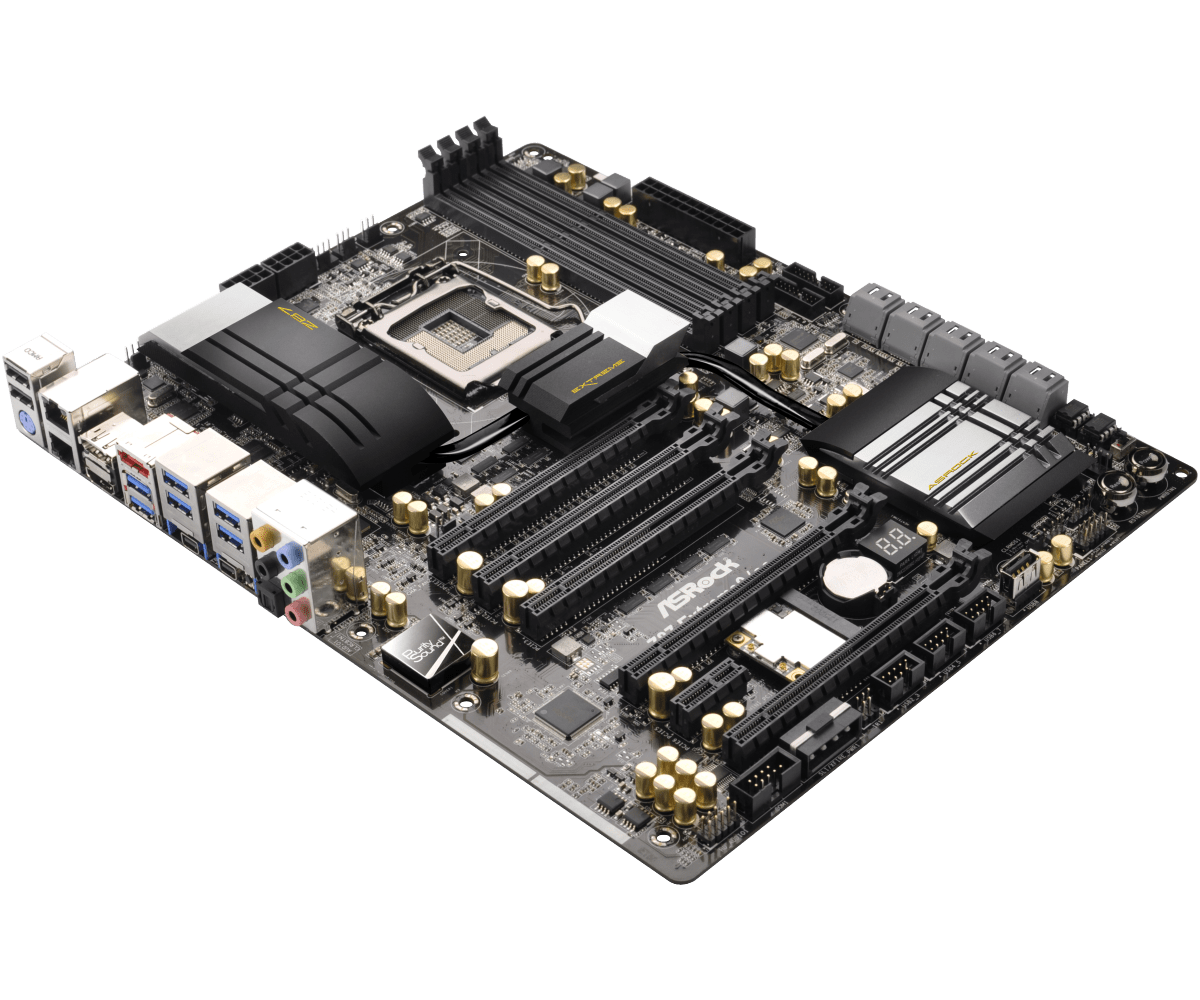

The ASRock Z87 Extreme9/AC is an ATX LGA1150 motherboard based on the Intel Z87 chipset. The board must be combined with DDR3 memory, for which 4 slots are available. In total, the ASRock Z87 Extreme9/AC has 10 Serial ATA connections for hard disks and SSDs. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC1150 chip.
Features: Motherboard | ATX | LGA1150 | 4x DDR3 | 10x SATA-600 | eSATA | Wireless LAN | PCI-e 3.0 x16 | PCI-e 2.0 x1 | Mini-PCI Express | HDMI | Thunderbold | USB2.0 | USB 3.1 Gen1 | 2x RJ45 Lan
Click here for the supporting CPUs
Click here for the drivers
Product: ASRock Z87 Extreme9/ac
Socket: LGA1150
Category: motherboards
Brand: ASRock
EAN: 0172302724943, 4717677321319
Condition: Refurbished – BIOS updated to the latest version
SKU: 90-MXGQA0-A0UAYZ, Z87 EXTREME9/AC, Z87EXTREME9AC
Warranty: 6 months
Package Contents:
– Motherboard (ASRock Z87 Extreme9/ac )
– backplate (blende)
– No manual
– No CD with drivers
– No cables
A-Style
– Home Cloud
– Purity Sound ™
– 802.11ac WiFi
CPU
Supports New 4th and 4th Generation Intel® Xeon® / Core ™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
– Digi Power design
– 12 Power Phase design
– Dual-Stack MOSFET (DSM)
– Supports Intel® Turbo Boost 2.0 Technology
Supports Intel® K-Series unlocked CPUs
– Supports ASRock BCLK Full-range Overclocking
Chipset
– Intel® Z87
Memory
– Dual Channel DDR3 / DDR3L Memory Technology
– 4 x DDR3 / DDR3L DIMM Slots
Supports DDR3 / DDR3L 2933+ (OC) / 2800 (OC) / 2400 (OC) / 2133 (OC) / 1866 (OC) / 1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 32GB *
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
– Distortion-Free Slot
* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
– 2 x 64Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
– Supports Secure Backup UEFI Technology
– ACPI 1.1 compliance wake up events
– SMBIOS 2.3.1 support
– CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage multi-adjustment
Graphics
Supports Intel® HD Graphics Built-in Visuals: Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru ™ 3D, Intel® Clear Video HD Technology, Intel® Insider ™, Intel ® HD Graphics 4400/4600
Pixel Shader 5.0, DirectX 11.1
– Max. shared memory 512MB *
– Two graphics output options: HDMI and DisplayPort / Thunderbolt ™ Ports
– Supports Triple Monitor
Supports HDMI Technology with max. Resolution up to 4K x 2K (4096×2304) @ 24Hz
Supports DisplayPort / Thunderbolt ™ with max. Resolution up to 4K x 2K (4096×2304) @ 24Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
Supports HDCP with HDMI and DisplayPort / Thunderbolt ™ Ports
Supports Full HD 1080p Blu-ray (BD) playback with HDMI and DisplayPort / Thunderbolt ™ Ports
Supports data transfer rate up to 10Gbps with Thunderbolt ™ Port
– Supports Daisy-chain up to 6 Thunderbolt ™ devices
* The size of maximum shared memory may vary from different operating systems.
** Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
*** Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8/8 64-bit / 7/7 64-bit / Vista ™ / Vista ™ 64-bit.
**** Intel® InTru ™ 3D is only supported under Windows® 8/8 64-bit / 7/7 64-bit.
Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
– Premium Blu-ray Audio support
– Supports Purity Sound ™
115dB SNR DAC with differential amplifier
– TI® NE5532 Premium Headset Amplifier (supports headsets up to 600 ohms)
– Direct Drive Technology
– EMI shielding
– PCB insulation shield
– Supports DTS Connect
LAN
– Gigabit LAN 10/100/1000 Mb / s
– 1 x Giga PHY Intel® I217V, 1 x GigaLAN Intel® I211AT
– Supports Intel® Remote Wake Technology (on Intel® I217V)
– Supports Wake-On-LAN
– Supports Dual LAN with Teaming
– Supports energy-efficient Ethernet 802.3az
– Supports PXE
Wireless LAN
– Supports IEEE 802.11a / b / g / n / ac
– Supports dual band (2.4 / 5 GHz)
– Supports fast wireless connections up to 867 Mbps
– 2 antennas to support 2 (transmit) x 2 (receive) diversity technology
– Supports Bluetooth 4.0 / 3.0 + High Speed Class II
Slots
– 5 x PCI Express 3.0 x16 slots (PCIE1 / PCIE2 / PCIE3 / PCIE4 / PCIE6: single on x16 (PCIE2); double on x16 (PCIE1) / x16 (PCIE4); triple on x8 (PCIE1) / x8 (PCIE3) / x16 (PCIE4); quad at x8 (PCIE1) / x8 (PCIE3) / x8 (PCIE4) / x8 (PCIE6)) *
– 1 x PCI Express 2.0 x1 slot
– 1 x Mini-PCI Express slot: for WiFi + BT module
PLX PEX 8747 and PLX PEX 8605 embedded
– Supports AMD Quad CrossFireX ™, 4-Way CrossFireX ™, 3-Way CrossFireX ™ and CrossFireX ™
– Supports NVIDIA® Quad SLI ™, 4-Way SLI ™, 3-Way SLI ™ and SLI ™
* PCIE1, PCIE3, PCIE4 and PCIE6 slots will be disabled when the PCIE2 slot is occupied.
Storage
– 6 x SATA3 6.0 Gb / s connectors from Intel® Z87, support for RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 12 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug
– 4 x SATA3 6.0 Gb / s connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug (SATA3_A4 connector is shared with the eSATA port)
1 x eSATA connector from ASMedia ASM1061, supports NCQ, AHCI, Hot Plug and Port Multiplier
Connector
– 1 x IR header
– 1 x COM port header
– 1 x Power LED head
– 2 x CPU fan connectors (1 x 4-pin, 1 x 3-pin)
– 3 x chassis fan connectors (1 x 4-pin, 2 x 3-pin)
– 1 x Power Fan Connector (3-pin)
– 1 x 24-pin ATX power connector
– 2 x 8 pin 12V Power Connectors (Hi-Density Power Connectors)
– 1 x SLI / XFire power connector
– 1 x front panel audio connector
– 3 x USB 2.0 Headers (supports 6 USB 2.0 ports)
– 1 x Vertical Type A USB 2.0
– 2 x USB 3.1 Gen1 Headers (support 6 USB 3.1 Gen1 ports)
– 1 x Dr. Debug with LED
– 1 x power switch with LED
– 1 x reset switch with LED
– 1 x BIOS selector switch
* Installation of Wi-SD Box is required to support 6 USB 3.1 Gen1 ports.

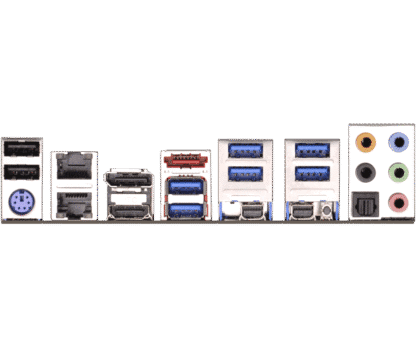

Back panel I / O
– 1 x PS / 2 mouse / keyboard port
– 1 x HDMI port
– 1 x DisplayPort input for Thunderbolt ™ port
– 2 x Thunderbolt ™ ports (supports Thunderbolt ™ devices or DisplayPort monitors)
– 1 x optical SPDIF output
– 1 x eSATA connector
– 2 x USB 2.0 ports
– 2 x USB 3.1 Gen1 ports (Intel® Z87)
– 4 x USB 3.1 Gen1 ports (ASMedia Hub)
– 2 x RJ-45 LAN ports with LED (ACT / LINK LED and SPEED LED)
– 1 x Clear CMOS switch
– HD audio connections: rear speaker / center / bass / line in / front speaker / microphone
Unique feature
– ASRock APP Shop
– ASRock A-Tuning
– ASRock Instant Flash
– ASRock APP charger
– ASRock XFast USB
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock Internet Flash
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Dehumidifier
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer
– ASRock Interactive UEFI
– ASRock Fast Boot
– ASRock reboots to UEFI
– ASRock USB key
– ASRock FAN-Tastic Tuning
– Hybrid booster:
– CPU frequency stepless regulation
– ASRock U-COP
– Boot Failure Guard (B.F.G.)
– Good Night LED
Accessories
– I / O shield
Hardware Monitor
– CPU, chassis temperature measurement
– CPU, chassis, speedometer with fan
– CPU, chassis silent fan (automatic adjustment of chassis fan speed based on the CPU
