ASRock Z87 Killer

Product information

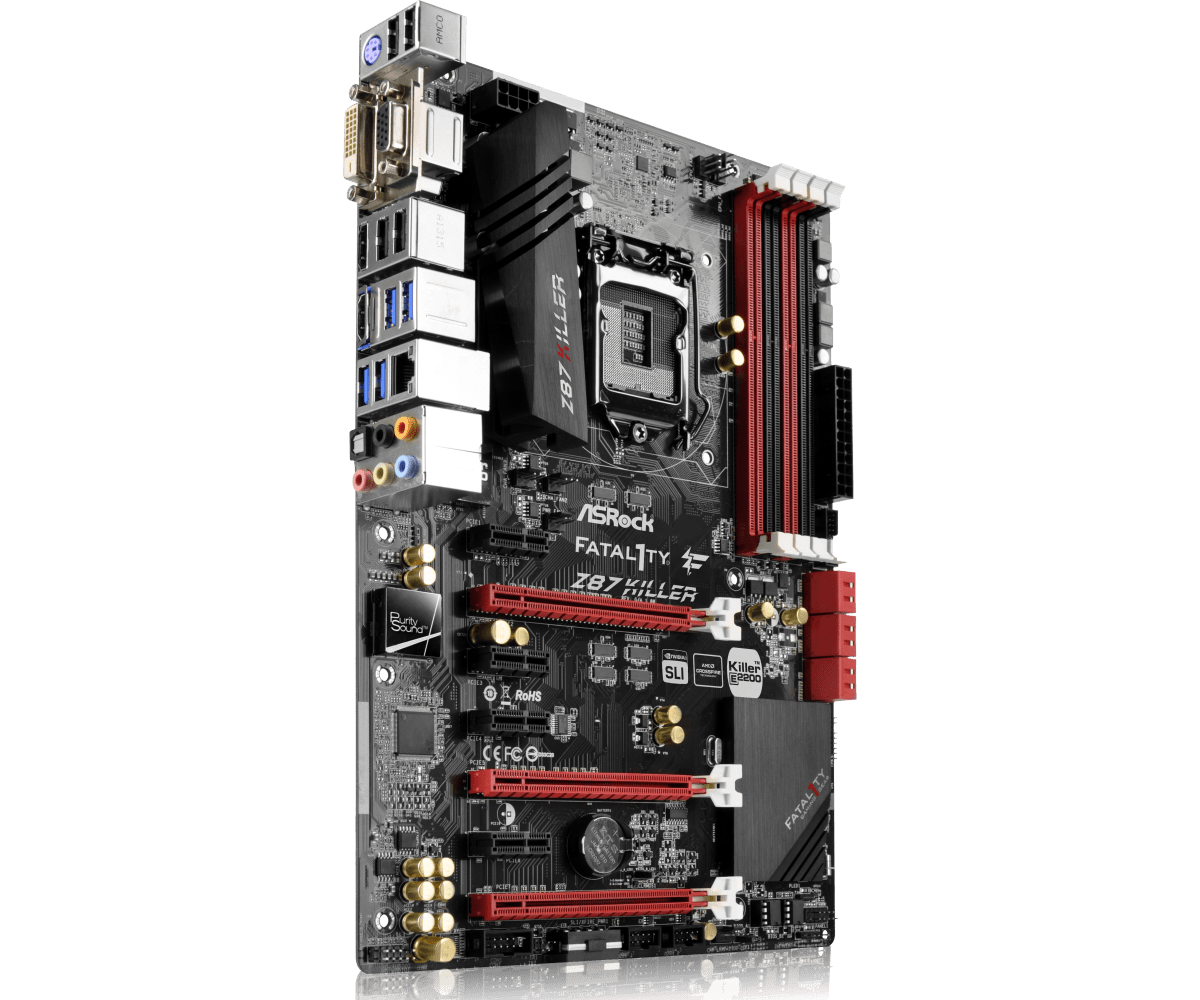

The ASRock Z87 Killer is an ATX Socket 1150 motherboard based on the Intel Z87 chipset. The board must be combined with DDR3 memory, for which 4 slots are available. In total, the ASRock Z87 Killer has 6 Serial ATA connections for hard disks and SSDs. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC1150 chip.

Features: Motherboard | ATX | Connection Socket 1150 | 4x DDR3 | 6x SATA-600 | PCI-e 3.0 x16 | PCI-e 2.0 x1 | D-Sub (VGA) | DVI-D | HDMI-in | HDMI | USB2.0 | USB3.1

Click here for the supporting CPUs
Click here for the drivers

Product: ASRock Z87 Killer
Connection: Socket 1150
Category: motherboards
Brand: ASRock
EAN: 4717677322088
Condition: Refurbished – BIOS updated to the latest version
SKU: 90-MXGSD0-A0UAYZ, Z87 Killer
Warranty: 6 months

Package Contents:
– Motherboard ( ASRock Z87 Killer )
– backplate (blende)
– No manual
– No CD with drivers
– No cables

A-Style
– Purity Sound ™
– HDMI-In
– ASRock Cloud
Gaming Armor
CPU Power
– Hi-Density Power Connector

VGA Card
– 15μ Gold Finger in VGA PCIe Slot (PCIE2)
– SLI / CrossFireX ™ Power Connector

Internet
– Qualcomm® Atheros® Killer ™ LAN

Audio
– Purity Sound ™

CPU
Supports New 4th and 4th Generation Intel® Xeon® / Core ™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
– Digi Power design
– 8 Power Phase design
– Supports Intel® Turbo Boost 2.0 Technology
Supports Intel® K-Series unlocked CPUs
Supports ASRock BCLK Full-range Overclocking

Chipset
– Intel® Z87

Memory
– Dual Channel DDR3 / DDR3L Memory Technology
– 4 x DDR3 / DDR3L DIMM Slots
Supports DDR3 / DDR3L 3050+ (OC) / 2800 (OC) / 2400 (OC) / 2133 (OC) / 1866 (OC) / 1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 32GB *
Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2

* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS
– 2 x 64Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
– Supports Secure Backup UEFI Technology
– ACPI 1.1 Compliant wake up events
– SMBIOS 2.3.1 support
– CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage multi-adjustment

Graphics
Supports Intel® HD Graphics Built-in Visuals: Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru ™ 3D, Intel® Clear Video HD Technology, Intel® Insider ™, Intel ® HD Graphics 4400/4600
Pixel Shader 5.0, DirectX 11.1
– Max. shared memory 512MB *
– Multi Graphics Output Options: D-Sub, DVI-D and HDMI Ports
– Supports Triple Monitor
Supports HDMI Technology with max. Resolution up to 4K x 2K (4096×2304) @ 24Hz
Supports DVI-D with max. Resolution up to 1920×1200 @ 60Hz
Supports D-Sub with max. Resolution up to 1920×1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
Supports HDCP with DVI-D and HDMI Ports
Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

* The size of maximum shared memory may vary from different operating systems.

** Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

*** Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8/8 64-bit / 7/7 64-bit / Vista ™ / Vista ™ 64-bit.

**** Intel® InTru ™ 3D is only supported under Windows® 8/8 64-bit / 7/7 64-bit.

Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
– Premium Blu-ray Audio support
– Supports Purity Sound ™
115dB SNR DAC with differential amplifier
– TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)
– Direct Drive Technology
– EMI shielding cover
– PCB isolate shielding
– Supports DTS Connect

LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb / s
– Qualcomm® Atheros® Killer ™ E2200 Series
– Supports Wake-On-LAN
– Supports Energy Efficientent Ethernet 802.3az
Supports PXE

Slots
– 3 x PCI Express 3.0 x16 Slots (PCIE2 / PCIE5 / PCIE7: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE5); triple at x8 (PCIE2) / x4 (PCIE5) / x4 (PCIE7) )
– 4 x PCI Express 2.0 x1 Slots
– Supports AMD Quad CrossFireX ™, 3-Way CrossFireX ™ and CrossFireX ™
Supports NVIDIA® Quad SLI ™ and SLI ™

Storage
– 6 x SATA3 6.0 Gb / s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 12 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug

Connector
– 1 x IR Header
– 1 x COM Port Header
– 1 x Power LED Header
– 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)
– 1 x Power Fan Connector (3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x SLI / XFire Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports)

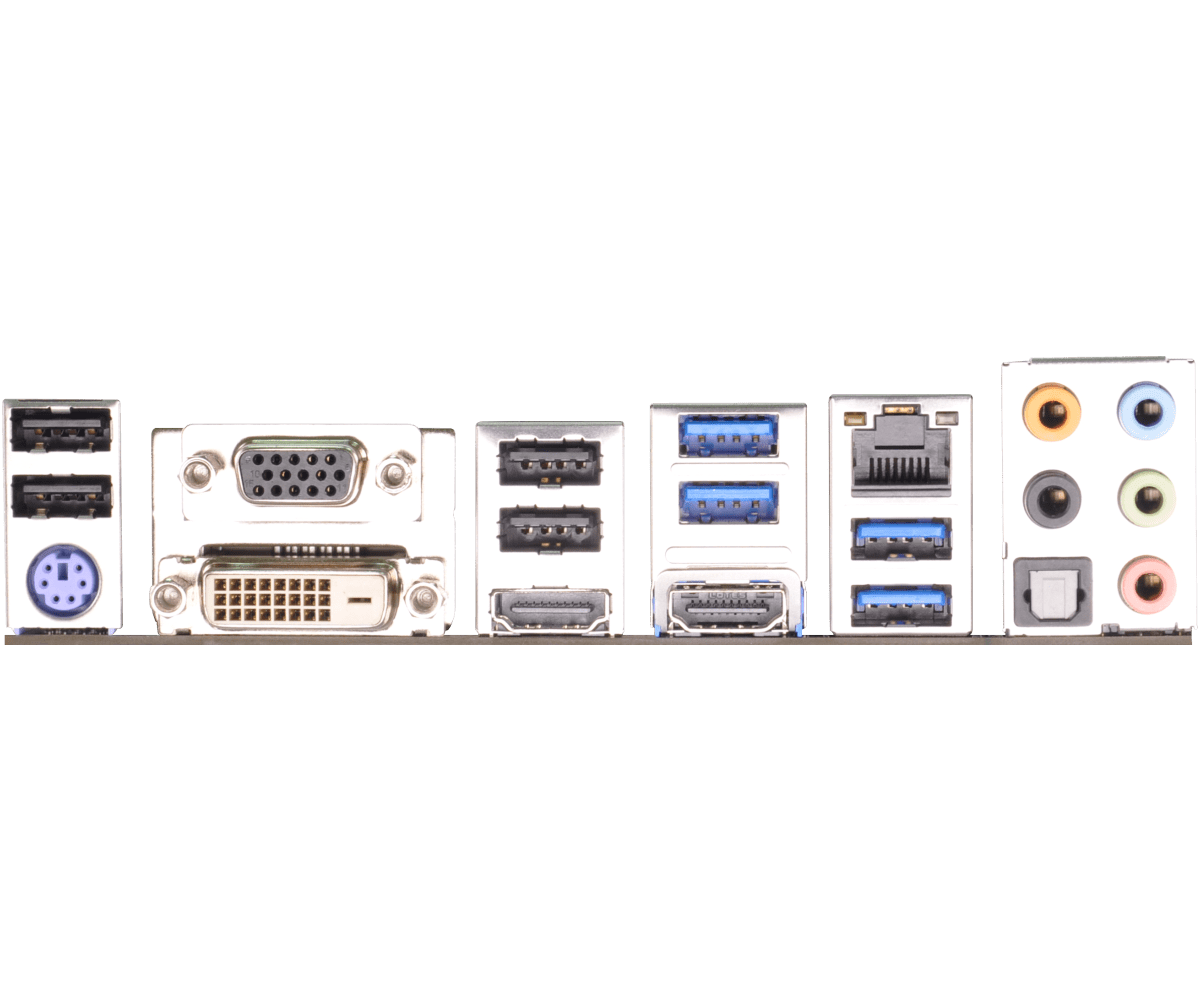

Rear Panel I / O
– 1 x PS / 2 Mouse / Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI-Out Port
– 1 x HDMI-In Port
– 1 x Optical SPDIF Out Port
– 3 x USB 2.0 Ports
– 1 x Fatal1ty Mouse Port (USB 2.0)
– 4 x USB 3.1 Gen1 Ports
– 1 x RJ-45 LAN Port with LED (ACT / LINK LED and SPEED LED)
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Unique Feature
– ASRock F-Stream
– ASRock APP Shop
– ASRock Instant Flash
– ASRock APP Charger
– ASRock XFast USB
– ASRock XFast RAM
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock Internet Flash
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Dehumidifier
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer
– ASRock Interactive UEFI
– ASRock Fast Boot
– ASRock Restart to UEFI
– ASRock USB Key
– ASRock Key Master
– ASRock FAN-Tastic Tuning
– Hybrid Booster:
– CPU Frequency Stepless Control
– ASRock U-COP
– Boot Failure Guard (B.F.G.)
– Good Night LED

Accessories
– I / O Shield

Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis, Power Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
Voltage monitoring: + 12V, + 5V, + 3.3V, CPU Vcore Voltage

Form Factor
– ATX Form Factor
Premium Gold Capacitor design (100% Japan made high quality conductive polymer capacitors)

OS
Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit

Certifications
– FCC, CE
– ErP / EuP ready (ErP / EuP ready power supply is required)
