Product information

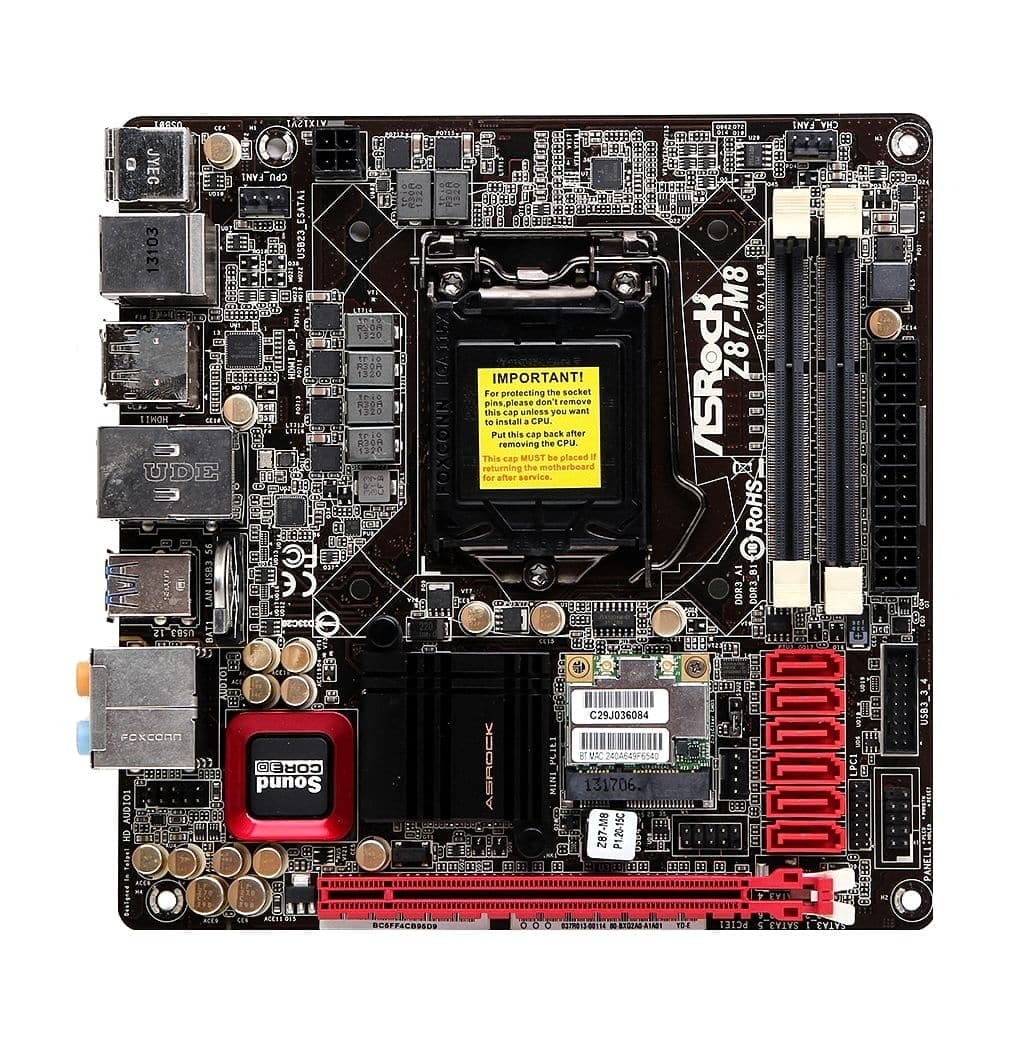

The ASRock Z87-M8 is a LGA1150 Mini-ITX motherboard, equipped with 2x SO-Dimm DDR3 (Max 16GB)

Features: Motherboard | Mini ITX | LGA1150 | 2x SO-Dimm | PCI-e | USB 3.2 | USB 2.0 | Sata-600 | eSata | Display port | HDMI

Click here for the supporting CPUs
Click here for the drivers

Product:ASRock Z87-M8
Socket: Intel LGA1150
Memory: 2x SO-Dimm DDR3 (16GB Max)
Form Factor: Mini-ITX
Brand: ASRock
Condition: refurbished
Warranty: 6 months

Package contents:
– Motherboard (ASRock Z87-M8)
– Backplate (Blende)
– NO WiFi module
– No manual
– No drivers CD
– No cables

CPU
– Supports 4th Gen Intel^® Core™ i7 / i5 / i3 / Xeon / Pentium^® / Celeron^® Processor Family

Chipset
– Intel^® Z87

Memory
– 2 x SO-DIMM slots
– Supports DDR3 1600/1333/1066 MHz, 2 x SO-DIMM slots, Max. up to 16GB

BIOS
– 2Mb AMI Legal BIOS
– Support “Plug and Play”
– ACPI 1.1 Compliance Wake Up Events
– SMBIOS 2.3.1 Support

Graphics
– Supports 1 x Dual-slot Graphics Card*
*Support the latest NVIDIA^® GTX 9xx series and AMD R9 2xx series graphics card, please refer to VGA support list.
*Note: VGA support list is tested based on the configuration. (Intel^® Core i7-4770K CPU, 2 x 8GB DDR3-1600 RAM, 1 x 3.5″ HDD, 1 x Slim ODD)
*Max. Supported VGA Dimension: 295mm x 138mm x 43.5mm; Max. Supported TDP: 270W.

Audio
– 7.1HD audio with Creative Sound Core3D

LAN
– Intel Gigabit LAN

Slots
– 1 x PCI-e 3.0 x16

Connector
– 6 x Sata-600
– mini PCI Express slot
– ATX 12v Power connector
– ATX Power connector
– USB 2.0 Header
– USB 3.0 Header

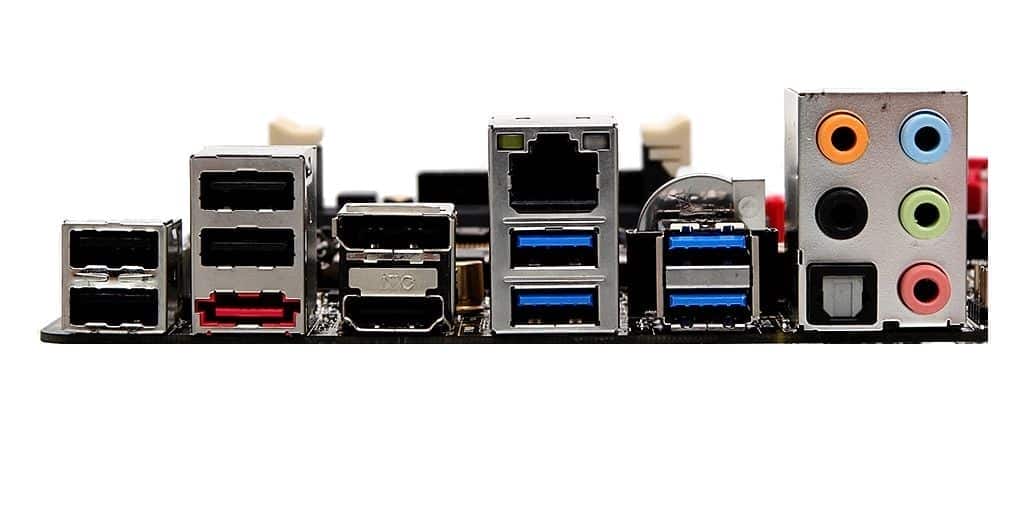

Rear Panel I/O
I/O Panel
– 1 x 7.1 HD audio with Creative Sound Core3D
– 1 x Intel^® Gigabit LAN
– 4 x USB3.0
– 4 x USB2.0
– 1 x eSATA2
– 1 x DP
– 1 x HDMI

Accessories
– I/O Shield

Form Factor
– Mini ITX Form Factor: 372mm (W) x 123mm (H) x 400mm (L)

OS
– Microsoft^® Windows^® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit compliant

Certifications
– FCC, CE
– ErP/EuP Ready (ErP/EuP ready power supply is required)
