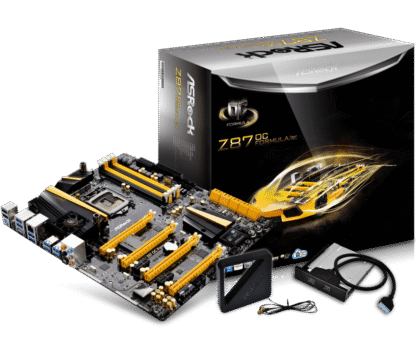

ASRock Z87 OC Formula/ac LGA1150 motherboard

Brand: ASRock
Model: Z87 OC Formula/ac
Socket: LGA1150
Chipset: Intel Z87
Memory: 4x DDR3 (32GB Max)
Form-Factor: EATX
EAN: 4717677321296
SKU: 90-MXGR50-A0UAYZ, Z87 OC FORMULA/AC, Z87OCFORMULAAC

Out of stock

Vergelijk
SKU: ASRock Z87 OC Formula/AC Categories: , , Tags: , ,

Description

The ASRock Z87 OC Formula/AC is an ATX LGA1150 motherboard based on the Intel Z87 chipset. The board must be combined with DDR3 memory, for which 4 slots are available with a maximum capacity of 32GB. In total, the ASRock Z87 OC Formula / AC has 10 Serial ATA connections for hard disks and SSDs. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC1150 chip.

Specifications: Motherboard – LGA1150 – E-ATX – Intel Z87 Chipset – 4 x DDR3 up to 32GB – Gigabit Ethernet – 2x HDMI – 10x SATA-600 – Wlan – Bluetooth – mini PCI Express – PCI -e 2.0 x1 – PCI-e 2.0 x16 – 3x PCI-e 3.0 x16 – AMD Crossfire, Nvidia SLI / NVLink

Click here for the supporting CPUs
Click here for the drivers

Product: ASRock Z87 OC Formula/AC
Category: Motherboards
Brand: ASRock
EAN: 4717677321296
SKU: 90-MXGR50-A0UAYZ, Z87 OC FORMULA / AC, Z87OCFORMULAAC

Note: This is a new motherboard, the motherboard comes in the original box with all accessories, 90 days warranty

Package Contents:
– Motherboard
– Backplate (blende)
– instruction manual
– driver CD
– cables


A-Style
– Home Cloud
– Conformal Coating
– Purity Sound ™
– 802.11ac WiFi
– HDMI-In


OC Formula Kit
OC Formula Power Kit
– 12 Power Phase Design
– Digi Power
Dual-Stack MOSFET (DSM)
– Multiple Filter Cap (MFC) (Filters different noises by 3 different capacitors: DIP solid cap, POSCAP and MLCC)
– Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke)

OC Formula Connector Kit
– Hi-Density Power Connector (8 pin)
15μ Gold Finger (CPU sockets, memory sockets and PCIE x16 slots)
– Distortion-Free Slot

OC Formula Cooling Kit
– Twin-Power Cooling (Combine active air cooling and water cooling)
– 8 Layer PCB
– 4 x 2oz copper
– GELID Solutions GC-Extreme Thermal Compound

OC Formula Monitor Kit
– Status OLED
– Multi Thermal Sensor


CPU
Supports New 4th and 4th Generation Intel® Xeon® / Core ™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
– Supports Intel® Turbo Boost 2.0 Technology
Supports Intel® K-Series unlocked CPU
Supports ASRock BCLK Full-range Overclocking


Chipset
– Intel® Z87


Memory
– Dual Channel DDR3 / DDR3L memory technology
– 4 x DDR3 / DDR3L DIMM slots
Supports DDR3 / DDR3L 3000+ (OC) / 2933 (OC) / 2800 (OC) / 2400 (OC) / 2133 (OC) / 1866 (OC) / 1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 32GB *
Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
– Distortion-Free Slot

* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 2 x 64Mb AMI UEFI Legal BIOS with Multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
– Supports Secure Backup UEFI Technology
– ACPI 1.1 Compliance Wake Up Events
– SMBIOS 2.3.1 Support
– CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment


Graphics
Supports Intel® HD Graphics Built-in Visuals: Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru ™ 3D, Intel® Clear Video HD Technology, Intel® Insider ™, Intel ® HD Graphics 4400/4600
Pixel Shader 5.0, DirectX 11.1
– Max. shared memory 512MB *
Supports HDMI Technology with max. Resolution up to 4K x 2K (4096×2304) @ 24Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
Supports HDCP function with HDMI port
Supports Full HD 1080p Blu-ray (BD) playback with HDMI port

* The size of maximum shared memory may vary from different operating systems.

** Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

*** Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8/8 64-bit / 7/7 64-bit / Vista ™ / Vista ™ 64-bit.

**** Intel® InTru ™ 3D is only supported under Windows® 8/8 64-bit / 7/7 64-bit.


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
– Premium Blu-ray audio support
– Supports Purity Sound ™
115dB SNR DAC with differential amplifier
– TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)
– Direct Drive Technology
– EMI shielding cofar
– PCB isolate shielding
– Supports DTS Connect


LAN
Gigabit LAN 10/100/1000 Mb / s
– Giga PHY Intel® I217V
– Supports Intel® Remote Wake Technology
– Supports Wake-On-LAN
Supports Energy Efficient Ethernet 802.3az
Supports PXE


Wireless LAN
Supports IEEE 802.11a / b / g / n / ac
Supports Dual-Band (2.4 / 5 GHz)
Supports high speed wireless connections up to 867Mbps
– 2 Antennas to support 2 (Transmit) x 2 (Receive) Diversity Technology
Supports Bluetooth 4.0 / 3.0 + High speed class II


Slots
– 3 x PCI Express 3.0 x16 slots (PCIE1 / PCIE2 / PCIE4: single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE4); triple at x8 (PCIE1) / x4 (PCIE2) / x4 (PCIE4) )
– 1 x PCI Express 2.0 x16 slot (PCIE6: x4 mode)
– 2 x PCI Express 2.0 x1 slots
– 1 x mini-PCI Express slot: For WiFi + BT module
– PLX8605 embedded
Supports AMD Quad CrossFireX ™, 4-Way CrossFireX ™, 3-Way CrossFireX ™ and CrossFireX ™
Supports NVIDIA® Quad SLI ™ and SLI ™

* mini PCI Express slot is shared with PCIE5 slot.


Storage
– 6 x SATA3 6.0 Gb / s connectors by Intel® Z87, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 12 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug
– 4 x SATA3 6.0 Gb / s connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug


Connector
– 1 x COM Port header
– 1 x Power LED header
2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
4 x Chassis Fan connectors (1 x 4-pin, 3 x 3-pin)
– 1 x Power Fan connector (3-pin)
– 1 x MOS Fan connector (3-pin)
– 1 x 24 pin ATX power connector
– 2 x 8 pin 12V power connectors (Hi-Density Power Connector)
– 1 x SLI / XFire power connector
– 1 x Front panel audio connector
– 2 x USB 2.0 headers (support 4 USB 2.0 ports)
– 1 x Vertical Type A USB 3.1 Gen1
– 2 x USB 3.1 Gen1 headers (support 4 USB 3.1 Gen1 ports) (ASMedia Hub)
– 1 x Power Switch with LED
– 1 x Reset Switch with LED
– 1 x Clear CMOS Switch
– V-Probe ™: 2 x 7-set or onboard voltage measurement points laid
Rapid OC Button: +/- buttons to adjust OC frequency
– 1 x PCIe ON / OFF Switch
– 1 x Post Status Checker (PSC)
– 1 x Slow Mode Switch
– 1 x LN2 Mode Switch
– 1 x BIOS Selection Switch


Rear Panel I / O
I / O Panel
– 1 x PS / 2 Mouse / Keyboard Port
– 1 x HDMI-Out Port
– 1 x HDMI-In Port
– 1 x Optical SPDIF Out Port
– 2 x USB 2.0 Ports
– 4 x USB 3.1 Gen1 Ports (Intel® Z87)
– 4 x USB 3.1 Gen1 Ports (Etron EJ188H)
– 1 x RJ-45 LAN Port with LED (ACT / LINK LED and SPEED LED)
– 1 x Clear CMOS Button
HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

* USB3_10_11 is shared with PCIE6. If the PCIE6 slot is occupied, USB3_10_11 shifts to USB 2.0.


Unique Feature
– ASRock APP Shop
– ASRock Formula Drive
– ASRock Instant Flash
– ASRock APP Charger
– ASRock XFast USB
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock Internet Flash
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Dehumidifier
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer
– ASRock Interactive UEFI
– ASRock Fast Boot
– ASRock Restart to UEFI
– NickShih’s OC Profile
– Fine-Tuning V-Controller
– Timing Configurator
– ASRock USB Key
– ASRock FAN-Tastic Tuning
– Hybrid Booster:
– CPU Frequency Stepless Control
– ASRock U-COP
– Boot Failure Guard (B.F.G.)
– Good Night LED


Accessories
– I / O Shield


Hardware Monitor
– CPU, Chassis, Power, MOS Temperature Sensing
– CPU, Chassis, Power, MOS Fan Tachometer
– CPU, Chassis, MOS Quiet Fan (Allows Chassis Fan Speed ​​Auto-Adjust by CPU Temperature)
– CPU, Chassis, MOS Fan Multi-Speed ​​Control
– Multi Thermal Sensor
Voltage Monitoring: + 12V, + 5V, + 3.3V, CPU Vcore
– 1 x Status OLED


Form Factor
– EATX Form Factor
Premium Gold Capacitor design (100% Japan made high quality conductive polymer capacitors)


OS
Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit


Certifications
– FCC, CE
– ErP / EuP Ready (ErP / EuP ready power supply is required)

Additional information

Weight 2 kg
