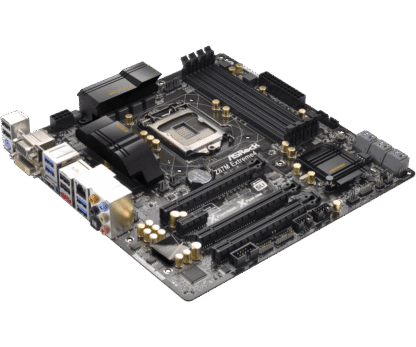

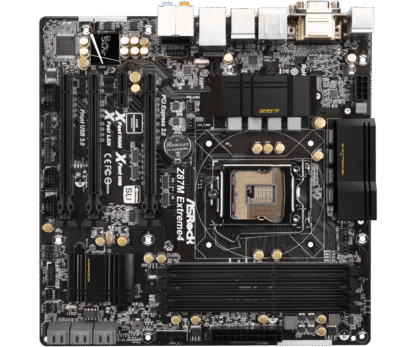

The ASRock Z87M Extreme4 is a Micro-ATX Intel LGA1150 motherboard based on the Z87 chipset. The board must be combined with DDR3 memory, for which 4 slots are available. In total, the ASRock Z87M Extreme4 has 6 Serial ATA connections for hard drives and SSDs. The built-in sound card offers 7.1-channel sound and is based on a Realtek ALC1150 chip.

Features: Motherboard | Micro-ATX | LGA1150 | 4x DDR3 | 6x SATA-600 | 1x PCI-e 3.0 x16 | 1x PCI-e 2.0 x16 | 1x PCI-e 2.0 x1 | USB 3.1 Gen1 Ports | USB 2.0 | D-Sub (VGA) | DVI-D | HDMI

Click here for the supporting CPUs
Click here for the drivers

Product: ASRock Z87M Extreme4
Socket: Intel Socket 1150
Category: motherboards
Brand: ASRock
EAN: 4717677320930, 4997401150655
Condition: refurbished – BIOS updated to the latest version
SKU: 90-MXGPK0-A0UAYZ, Z87M EXTREME4, Z87M-EXTREME4
Warranty: 6 months

Package content:
– Motherboard (ASRock Z87M Extreme4)
– backplate (blende)
– No manual
– No CD with drivers
– No cables

A-Style
– Home Cloud
– Purity Sound ™

CPU
Supports New 4th and 4th Generation Intel® Xeon® / Core ™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
– Digi Power Design
– 8 Power Phase Design
– Supports Intel® Turbo Boost 2.0 Technology
Supports Intel® K-Series unlocked CPU
Supports ASRock BCLK Full-range Overclocking

Chipset
– Intel® Z87

Memory
Dual-Channel DDR3 / DDR3L memory technology
– 4 x DDR3 / DDR3L DIMM slots
Supports DDR3 / DDR3L 2800+ (OC) / 2400 (OC) / 2133 (OC) / 1866 (OC) / 1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 32GB *
Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2

* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS
– 64Mb AMI UEFI Legal BIOS with Multilingual GUI support
– ACPI 1.1 Compliance Wake-up Events
– SMBIOS 2.3.1 Support
– CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment

Graphics
Supports Intel® HD Graphics Built-in Visuals: Intel® Quick Sync Video with AVC, MVC (S3D), and MPEG-2 Full HW Encode1, Intel® InTru ™ 3D, Intel® Clear Video HD Technology, Intel® Insider ™, Intel ® HD Graphics 4600
Pixel Shader 5.0, DirectX 11.1
– Max. shared memory 512MB *
– Three graphics output options: D-Sub, DVI-D, and HDMI
– Supports Triple Monitor
Supports HDMI Technology with max. Resolution up to 4K x 2K (4096×2304) @ 24Hz
Supports DVI-D with max. Resolution up to 1920×1200 @ 60Hz
Supports D-Sub with max. Resolution up to 1920×1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC, and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
Supports HDCP function with DVI-D, and HDMI ports
Supports Full HD 1080p Blu-ray (BD) playback with DVI-D, and HDMI ports

* The size of maximum shared memory may vary from different operating systems.

** Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

*** Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8/8 64-bit / 7/7 64-bit / Vista ™ / Vista ™ 64-bit.

**** Intel® InTru ™ 3D is only supported under Windows® 8/8 64-bit / 7/7 64-bit.

Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
– Premium Blu-ray audio support
– Supports Purity Sound ™
115dB SNR DAC with differential amplifier
– TI® NE5532 Premium Headset Amplifier (Supports up to 600-ohm headsets)
– Direct Drive Technology
– EMI shielding cover
– PCB isolate shielding
– Supports DTS Connect

LAN
Gigabit LAN 10/100/1000 Mb / s
– Giga PHY Intel® I217V
– Supports Intel® Remote Wake Technology
– Supports Wake-On-LAN
Supports Energy Efficient Ethernet 802.3az
Supports PXE

Slots
– 2 x PCI Express 3.0 x16 slots (PCIE1 / PCIE3: single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))
– 1 x PCI Express 2.0 x16 slot (PCIE4: x4 mode)
– 1 x PCI Express 2.0 x1 slot
Supports AMD Quad CrossFireX ™, 3-Way CrossFireX ™ and CrossFireX ™
Supports NVIDIA® Quad SLI™ and SLI ™

Storage
– 6 x SATA3 6.0 Gb / s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 12 and Intel® Smart Response Technology), NCQ, AHCI, and Hot Plug (SATA3_1 connector is shared with the eSATA port)
– 1 x eSATA connector, supports NCQ, AHCI, and Hot Plug

Connector
– 1 x IR header
– 1 x COM Port header
– 1 x Power LED header
– 1 x Chassis Intrusion header
– 1 x TPM header
2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
– 2 x Chassis Fan connectors (1 x 4-pin, 1 x 3-pin)
– 1 x Power Fan connector (3-pin)
– 1 x 24 pin ATX power connector
– 1 x 8 pin 12V power connector
– 1 x Front panel audio connector
– 2 x USB 2.0 headers (support 4 USB 2.0 ports)
– 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports)

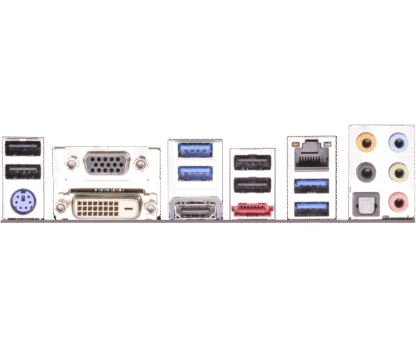

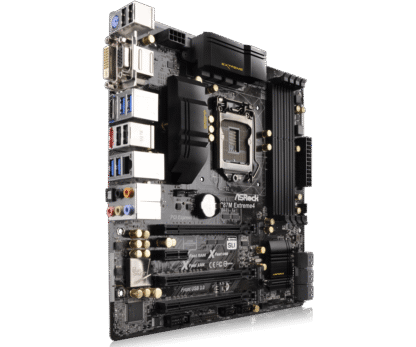

Rear Panel I / O
I / O Panel
– 1 x PS / 2 Mouse / Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 1 x Optical SPDIF Out Port
– 1 x eSATA Connector
– 4 x USB 2.0 Ports
– 4 x USB 3.1 Gen1 Ports
– 1 x RJ-45 LAN Port with LED (ACT / LINK LED and SPEED LED)
HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Unique Feature
– ASRock APP Shop
– ASRock A-Tuning
– ASRock Instant Flash
– ASRock APP Charger
– ASRock XFast USB
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock Internet Flash
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Dehumidifier
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer
– ASRock Interactive UEFI
– ASRock Fast Boot
– ASRock Restart to UEFI
– ASRock USB Key
– ASRock FAN-Tastic Tuning
– Hybrid Booster:
– CPU Frequency Stepless Control
– ASRock U-COP
– Boot Failure Guard (B.F.G.)
– Good Night LED

Accessories
I / O Shield

Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis, Power Fan Tachometer
– CPU, Chassis Quiet Fan (Allow the Chassis Fan Speed ​​Auto-Adjust by CPU Temperature)
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
Voltage Monitoring: + 12V, + 5V, + 3.3V, CPU Vcore

Form Factor
– Micro ATX Form Factor
Premium Gold Capacitor design (100% Japan-made high-quality conductive polymer capacitors)

OS
Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit

Certifications
– FCC, CE
– ErP / EuP Ready (ErP / EuP ready power supply is required)
