ASRock Z87M Pro4 Retail

Fast delivery
79,95

Brand: ASRock
Model: Z87M Pro4
Socket: LGA1150
Chipset: Intel Z87
Memory: 4x DDR3 (32GB Max)
Form-Factor: Micro-ATX
EAN: 4054319115234, 4717677321081
SKU: 90-MXGPD0-A0UAYZ, Z87M PRO 4, Z87M PRO4

12 in stock

  • Free shipping from €100,-
  • Reliable for more than 10 years!
  • Fast delivery
  • Postpay/payment plan possible
SKU: Z87M Pro4 Retail Categories: , Tags: , ,

Product information

The ASRock Z87M Pro4 is a Micro-ATX Socket 1150 motherboard based on the Intel Z87 chipset. The board must be combined with DDR4 memory, for which 4 slots are available. In total, the ASRock Z87M Pro4 has 6 Serial ATA connections for hard drives and SSDs. The built-in sound card offers 7.1-channel sound and is based on a Realtek ALC892 chip.

Specifications:
Motherboard | Socket LGA1150 | M-ATX | Intel Z87 chipset | 4 x DDR3 | DVI-D | HDMI | VGA | USB 2.0 | USB 3.1 (Gen1, 5 Gb / s) | PCI | PCI-e 2.0 x16 | PCI-e 3.0 x16

Click here for the supporting CPUs
Click here for the drivers

Product: ASRock Z87M Pro4
Category: Motherboards
Brand: ASRock
EAN: 4054319115234, 4717677321081
SKU: 90-MXGPD0-A0UAYZ, Z87M PRO 4, Z87M PRO4
Condition: Retail
Warranty: 6 Months

Package Contents:
– Motherboard
– backplate (blende)
– instruction manual
– driver CD
– cables


A-Style
– Home Cloud


CPU
Supports New 4th and 4th Generation Intel® Xeon® / Core ™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
– Digi Power Design
– 4 Power Phase Design
– Supports Intel® Turbo Boost 2.0 Technology
Supports Intel® K-Series unlocked CPU
Supports ASRock BCLK Full-range Overclocking


Chipset
– Intel® Z87


Memory
Dual Channel DDR3 / DDR3L memory technology
– 4 x DDR3 / DDR3L DIMM slots
Supports DDR3 / DDR3L 2800+ (OC) / 2400 (OC) / 2133 (OC) / 1866 (OC) / 1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 32GB *
Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2

* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 64Mb AMI UEFI Legal BIOS with Multilingual GUI support
– ACPI 1.1 Compliance Wake Up Events
– SMBIOS 2.3.1 Support
– CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment


Graphics
Supports Intel® HD Graphics Built-in Visuals: Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru ™ 3D, Intel® Clear Video HD Technology, Intel® Insider ™, Intel ® HD Graphics 4400/4600
Pixel Shader 5.0, DirectX 11.1
– Max. shared memory 512MB *
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports Triple Monitor
Supports HDMI Technology with max. Resolution up to 1920×1200 @ 60Hz
Supports DVI-D with max. Resolution up to 1920×1200 @ 60Hz
Supports D-Sub with max. Resolution up to 1920×1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
Supports HDCP function with DVI-D and HDMI ports
Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI ports

* The size of maximum shared memory may vary from different operating systems.

** Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

*** Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8/8 64-bit / 7/7 64-bit / Vista ™ / Vista ™ 64-bit.

**** Intel® InTru ™ 3D is only supported under Windows® 8/8 64-bit / 7/7 64-bit.

Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
– Premium Blu-ray audio support


LAN
Gigabit LAN 10/100/1000 Mb / s
– Giga PHY Intel® I217V
– Supports Intel® Remote Wake Technology
– Supports Wake-On-LAN
Supports Energy Efficient Ethernet 802.3az
Supports PXE


Slots
– 1 x PCI Express 3.0 x16 slot (PCIE1: x16 mode)
– 1 x PCI Express 2.0 x16 slot (PCIE2: x4 mode)
– 2 x PCI slots
– Supports AMD Quad CrossFireX ™ and CrossFireX ™


Storage
– 6 x SATA3 6.0 Gb / s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 12 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug


Connector
– 1 x IR header
– 1 x Print Port header
– 1 x COM Port header
– 1 x Chassis Intrusion header
– 1 x TPM header
2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
– 2 x Chassis Fan connectors (1 x 4-pin, 1 x 3-pin)
– 1 x Power Fan connector (3-pin)
– 1 x 24 pin ATX power connector
– 1 x 8 pin 12V power connector
– 1 x Front panel audio connector
– 1 x SPDIF Out connector
– 2 x USB 2.0 headers (support 4 USB 2.0 ports)
– 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports)

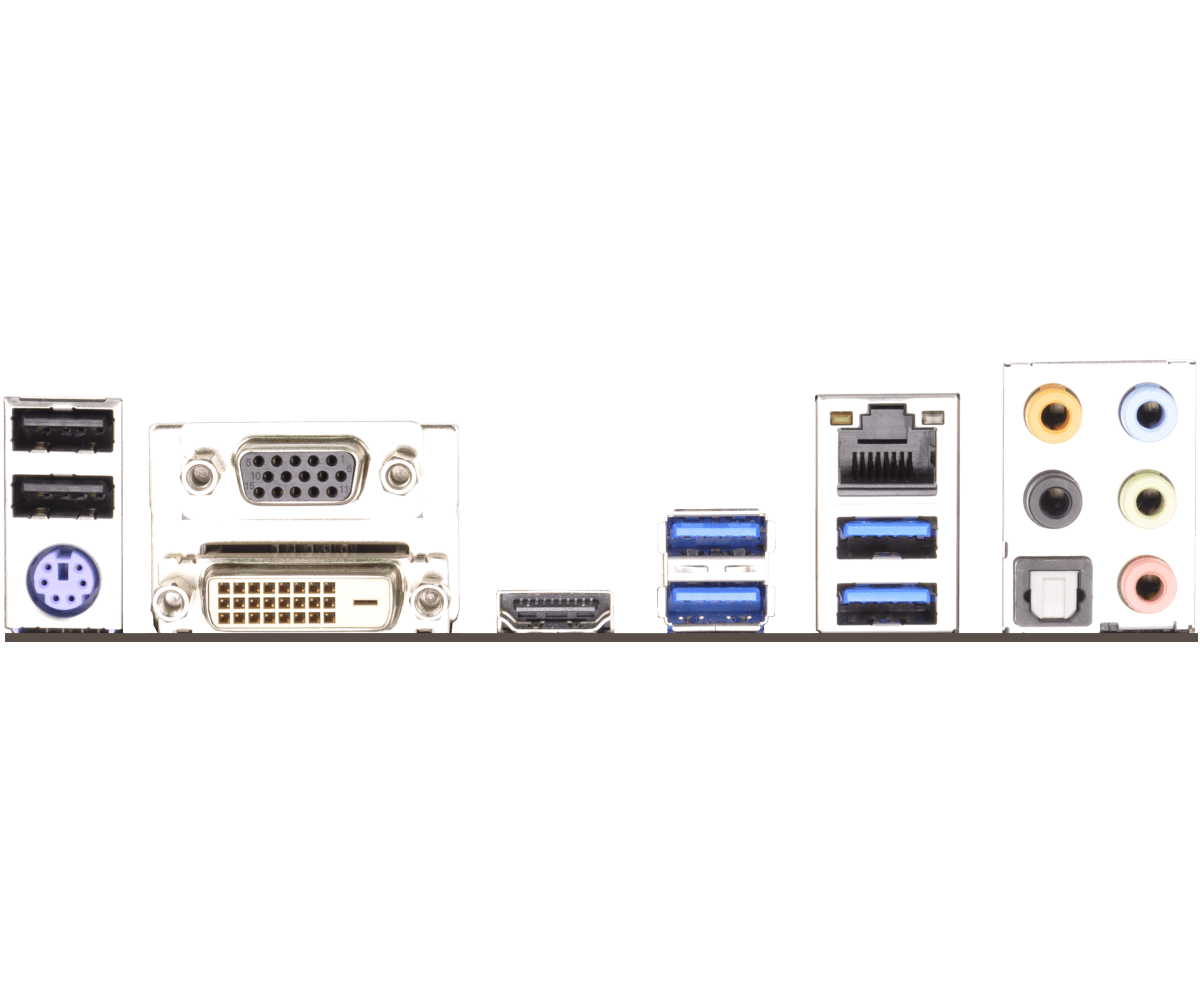

Rear Panel I / O
I / O Panel
– 1 x PS / 2 Mouse / Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 1 x Optical SPDIF Out Port
– 2 x USB 2.0 Ports
– 4 x USB 3.1 Gen1 Ports
– 1 x RJ-45 LAN Port with LED (ACT / LINK LED and SPEED LED)
HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone


Unique Feature
– ASRock APP Shop
– ASRock A-Tuning
– ASRock Instant Flash
– ASRock APP Charger
– ASRock XFast USB
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock Internet Flash
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Dehumidifier
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer
– ASRock Interactive UEFI
– ASRock Fast Boot
– ASRock Restart to UEFI
– ASRock On / Off Play Technology
– ASRock USB Key
– ASRock FAN-Tastic Tuning
– Hybrid Booster:
– CPU Frequency Stepless Control
– ASRock U-COP
– Boot Failure Guard (B.F.G.)
– Good Night LED


Support CD
Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar, Start8 (30 days trial), MeshCentral, Splashtop Streamer


Accessories
– Quick Installation Guide, Support CD, I / O Shield
– 2 x SATA Data Cables


Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis, Power Fan Tachometer
– CPU, Chassis Quiet Fan (Allow Chassis Fan Speed ​​Auto-Adjust by CPU Temperature)
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
Voltage Monitoring: + 12V, + 5V, + 3.3V, CPU Vcore


Form Factor
– Micro ATX Form Factor
– All Solid Capacitor design


OS
Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit


Certifications
– FCC, CE
– ErP / EuP Ready (ErP / EuP ready power supply is required)

Specification

Weight 1 kg
Intel

LGA1150

Brand

Asrock

Chipset

Intel Z87

Form Factor

Micro-ATX

Memory Type

DDR3

Number of memory slots

4

Maximum memory size

32 GB

Connectors

D-Sub (VGA), DVI-D, HDMI, USB 2.0, USB 3.1 Gen1

Storage Interfaces

Serial ATA-600

Interfaces

PCI, PCI-e 2.0 x16, PCI-e 3.0 x16

Socket

Intel LGA1150

Reviews

Reviews

There are no reviews yet.

Be the first to review “ASRock Z87M Pro4 Retail”

Your email address will not be published. Required fields are marked *

Pros and cons
According to our computer expert

  • Supports AMD Quad CrossFireX™ and CrossFireX
