Product information

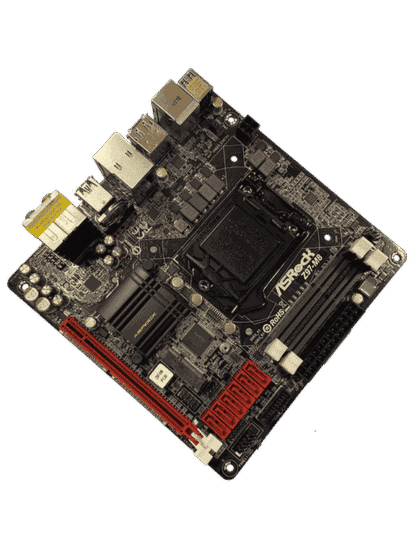

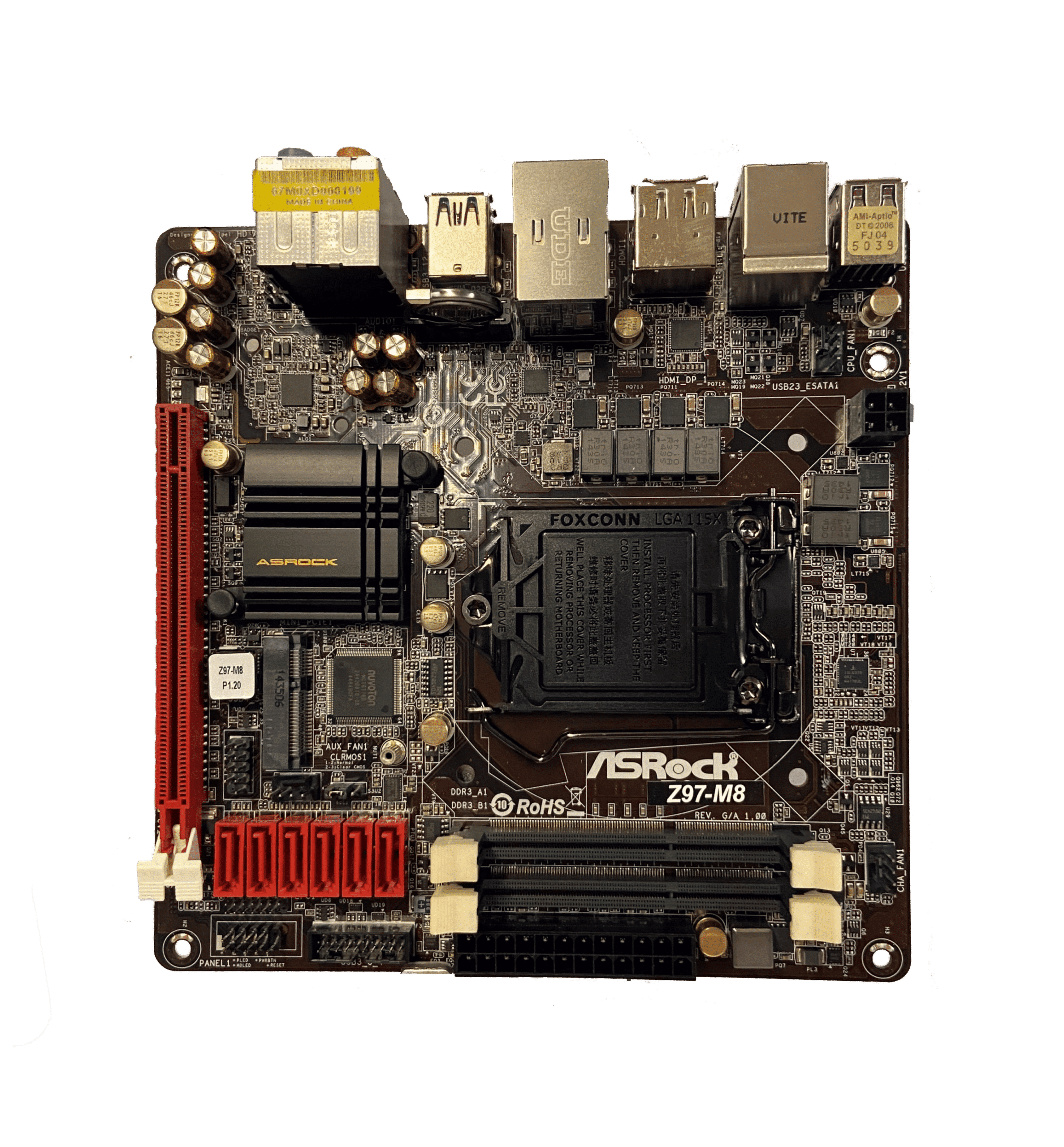

ASRock Z97-M8 : Motherboard | Mini ITX | LGA1150/Sockel H3 | 2x SO-Dimm | PCI-e | USB 3.2 | USB 2.0 | Sata-600 | eSata | Display port | HDMI


Product:ASRock Z97-M8
Socket: LGA1150/Sockel H3
Memory: 2x SO-Dimm DDR3 (16GB Max)
Form Factor: Mini-ITX
Brand: ASRock
Condition: refurbished
Warranty: 6 months


Package contents:
– Motherboard (ASRock Z97-M8)
– Backplate (Blende)
NO WiFi module
– No manual
– No drivers CD
– No cables


CPU
– Supports 4th Gen Intel® Core™ i7 / i5 / i3 / Xeon / Pentium® / Celeron® Processor Family


Chipset
– Intel® Z97


Memory
– 2 x SO-DIMM slots
– Supports DDR3 1600/1333/1066 MHz, 2 x SO-DIMM slots, Max. up to 16GB


BIOS
– 2Mb AMI Legal BIOS
– Support “Plug and Play”
– ACPI 1.1 Compliance Wake Up Events
– SMBIOS 2.3.1 Support


Graphics
– Supports 1 x Dual-slot Graphics Card*
*Support the latest NVIDIA® GTX 9xx series and AMD R9 2xx series graphics card, please refer to VGA support list.
*Note: VGA support list is tested based on the configuration. (Intel® Core i7-4770K CPU, 2 x 8GB DDR3-1600 RAM, 1 x 3.5″ HDD, 1 x Slim ODD)
*Max. Supported VGA Dimension: 295mm x 138mm x 43.5mm; Max. Supported TDP: 270W.


Audio
– 7.1HD audio with Creative Sound Core3D


LAN
– Intel Gigabit LAN


Slots
– 1 x PCI-e 3.0 x16


Connector
– 6 x Sata-600
– mini PCI Express slot
– ATX 12v Power connector
– ATX Power connector
– USB 2.0 Header
– USB 3.0 Header


Rear Panel I/O
I/O Panel
– 1 x 7.1 HD audio with Creative Sound Core3D
– 1 x Intel® Gigabit LAN
– 4 x USB3.0
– 4 x USB2.0
– 1 x eSATA2
– 1 x DP
– 1 x HDMI


Accessories
– I/O Shield


Form Factor
– Mini ITX Form Factor: 372mm (W) x 123mm (H) x 400mm (L)


OS
– Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit compliant


Certifications
– FCC, CE
– ErP/EuP Ready (ErP/EuP ready power supply is required)

Specification

Weight 1 kg
Intel

LGA1150

Brand

Asrock

Chipset

Intel Z97

Form Factor

Mini-ITX

Memory Type

DDR3 Sodimm

Number of memory slots

2

Maximum memory size

16 GB

Connectors

Displayport, eSATA, Ethernet (RJ-45), HDMI, USB 2.0, USB 3.0

Storage Interfaces

Serial ATA-600

Interfaces

Mini PCI Express, PCI-e 3.0 x16

Socket

ASRock Z97-M8 ITX LGA1150 motherboard

Fast delivery

  • Intel Z97 Chipset
  • Supports 4 Intel® Core™ processors (Socket 1150)
  • Supports SO-Dimm DDR3 1600
  • 1 PCIe 3.0 x16
  • Graphics output options: Displayport, HDMI
  • 7.1 CH HD Audio
  • 6 SATA3
  • 4 USB 3.0
  • Gigabit LAN

SKU: Z97-M8 Categories: , Tags: , , ,
