Product information

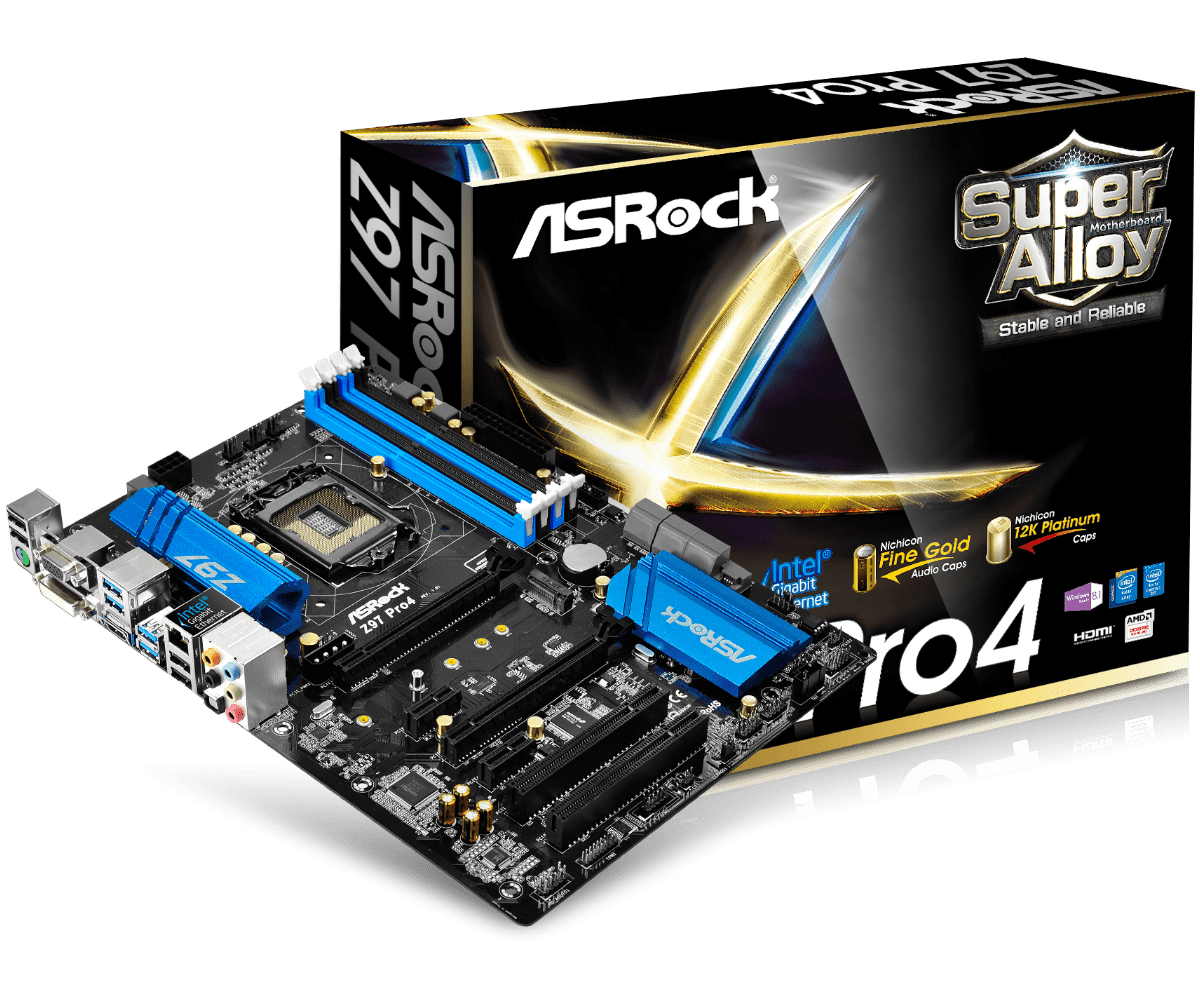

The ASRock Z97 Pro4 is an ATX LGA1150 motherboard based on the Intel Z97 chipset. The board must be combined with DDR3 memory, for which 4 slots are available. In total, the Z97 Extreme4 has 10 Serial ATA connections for hard disks and SSDs. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC892 chip.

Features: Motherboard | ATX | LGA1150 | 4x DDR3 | 6x SATA 600 | M.2 (PCI-e 2.0 x2 + SATA) | SATA Express | 2x PCI | PCI-e 2.0 x1 | PCI-e 2.0 x16 | PCI-e 3.0 x16 | USB 2.0 | USB 3.2 | VGA (D-Sub) | DVI-D | HDMI

Click here for the supporting CPUs
Click here for the drivers

Product: ASRock Z97 Pro4
Connection: LGA1150
Memory: 4x DDR3 (32GB Max)
Form Factor: ATX
Category: motherboards
Brand: ASRock
EAN:4717677323528
State: Refurbished – BIOS updated to the latest version
SKU: 90-MXGTS0-A0UAYZ, Z97 Pro4
Warranty:
6 months

package content:
– Motherboard (Z97 Pro4)
– Backplate (Blende)
– instruction manual
– drivers CD
– cables


Unique Feature
ASRock Super Alloy
– Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke)
– NexFET™ MOSFET
– Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
– Sapphire Black PCB
ASRock Full Spike Protection
ASRock Cloud
ASRock APP Shop


CPU
– Supports 5th Generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
– Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
– Digi Power design
– 6 Power Phase design
– Supports Intel® Turbo Boost 2.0 Technology
– Supports Intel® K-Series unlocked CPUs
– Supports ASRock BCLK Full-range Overclocking


Chipset
– Intel® Z97


Memory
– Dual Channel DDR3/DDR3L Memory Technology
– 4 x DDR3/DDR3L DIMM Slots
– Supports DDR3/DDR3L 3100+(OC)/2933(OC)/2800(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 32GB*
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 64Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 1.1 Compliant wake up events
– SMBIOS 2.3.1 support
– CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment


Graphics
– Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel ® HD Graphics 4400/4600
– Pixel Shader 5.0, DirectX 11.1
– Max. shared memory 512MB*
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports Triple Monitor
– Supports HDMI with max. resolution up to 1920×1200 @ 60Hz
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports HDCP with DVI-D and HDMI Ports
– Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

*The size of maximum shared memory may vary from different operating systems.

**Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.

****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
– Premium Blu-ray Audio support
– Supports Surge Protection (ASRock Full Spike Protection)
– Nichicon Fine Gold Series Audio Caps


LAN
– Gigabit LAN 10/100/1000 Mb/s
– Giga PHY Intel® I218V
– Supports Intel® Remote Wake Technology
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)
– 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)
– 2 x PCI Express 2.0 x1 Slots
– 2 x PCI Slots
– Supports AMD Quad CrossFireX™ ​​and CrossFireX™

*If PCIE2 or PCIE4 slot is occupied, PCIE3 slot will run at x2 mode.


Storage
– 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 13 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug
– 1 x SATA Express 10 Gb/s Connector (shared with SATA3_4, SATA3_5 and M.2 Socket)*
– 1 x M.2_SSD (NGFF) Socket 3, supports M Key M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x2 (10 Gb/s)

*Support to be announced.
** The M.2 Socket, SATA3_4, SATA3_5 and SATA Express share lanes. If either one of them is in use, the others will be disabled.


Connector
– 1 x COM Port Header
– 1 x Chassis Intrusion Header
– 1 x TPM Header
– 1 x Power LED Header
– 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
– 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)
– 1 x Power Fan Connector (3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x PCIe Power Connector
– 1 x Front Panel Audio Connector
– 1 x Thunderbolt™ AIC Connector*
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))

*Please update to the latest BIOS to support Thunderbolt™ technology.

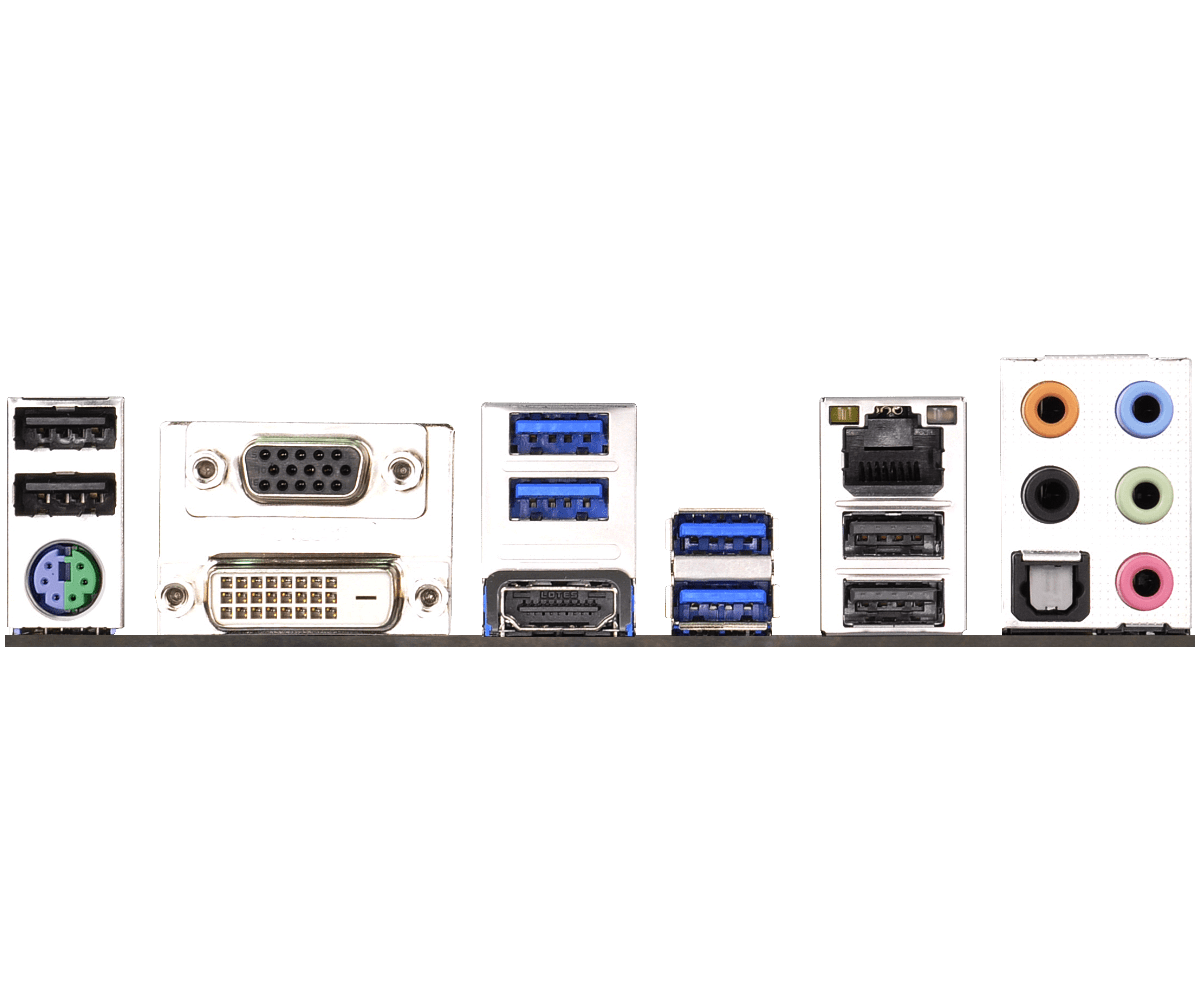

Rear Panel I/O
– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 1 x Optical SPDIF Out Port
– 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 4 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone


Software and UEFI
Software
– ASRock A-Tuning
– ASRock Disk Health Report
– ASRock USB Key
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Restart to UEFI

UEFI
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock UEFI Guide
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Dehumidifier
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer


Support CD
– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial), Orbweb.ME Professional (Win 8.1)


Accessories
– Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables
– 1 x Screw for M.2_SSD (NGFF) Socket 3


Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis, Power Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore


Form Factor
– ATX Form Factor
– High Density Glass Fabric PCB


OS
– Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit


Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Specification

Weight 1 kg
Intel

LGA1150

Brand

Asrock

Chipset

Intel Z97

Form Factor

ATX

Memory Type

DDR3 SDRAM

Number of memory slots

4

Maximum memory size

32 GB

Connectors

DVI-D, HDMI, USB 2.0, USB 3.1 Gen1, VGA (male) to VGA (male)

Storage Interfaces

M.2 (PCI-e 2.0 x2 + SATA), Serial ATA-600

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 2.0 x16, PCI-e 3.0 x16

Socket

ASRock Z97 Pro4
