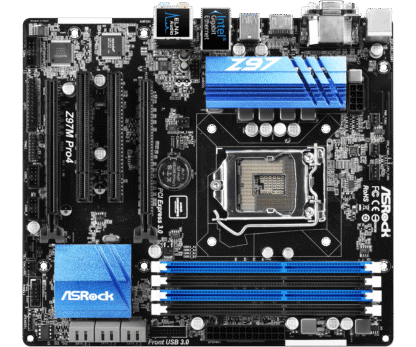

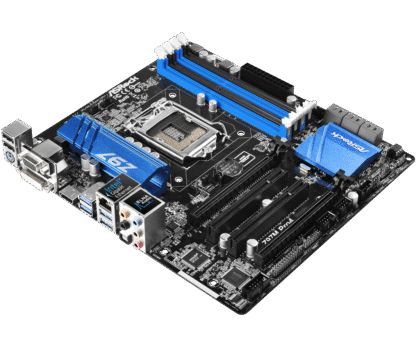

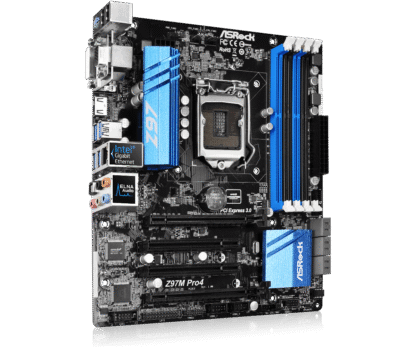

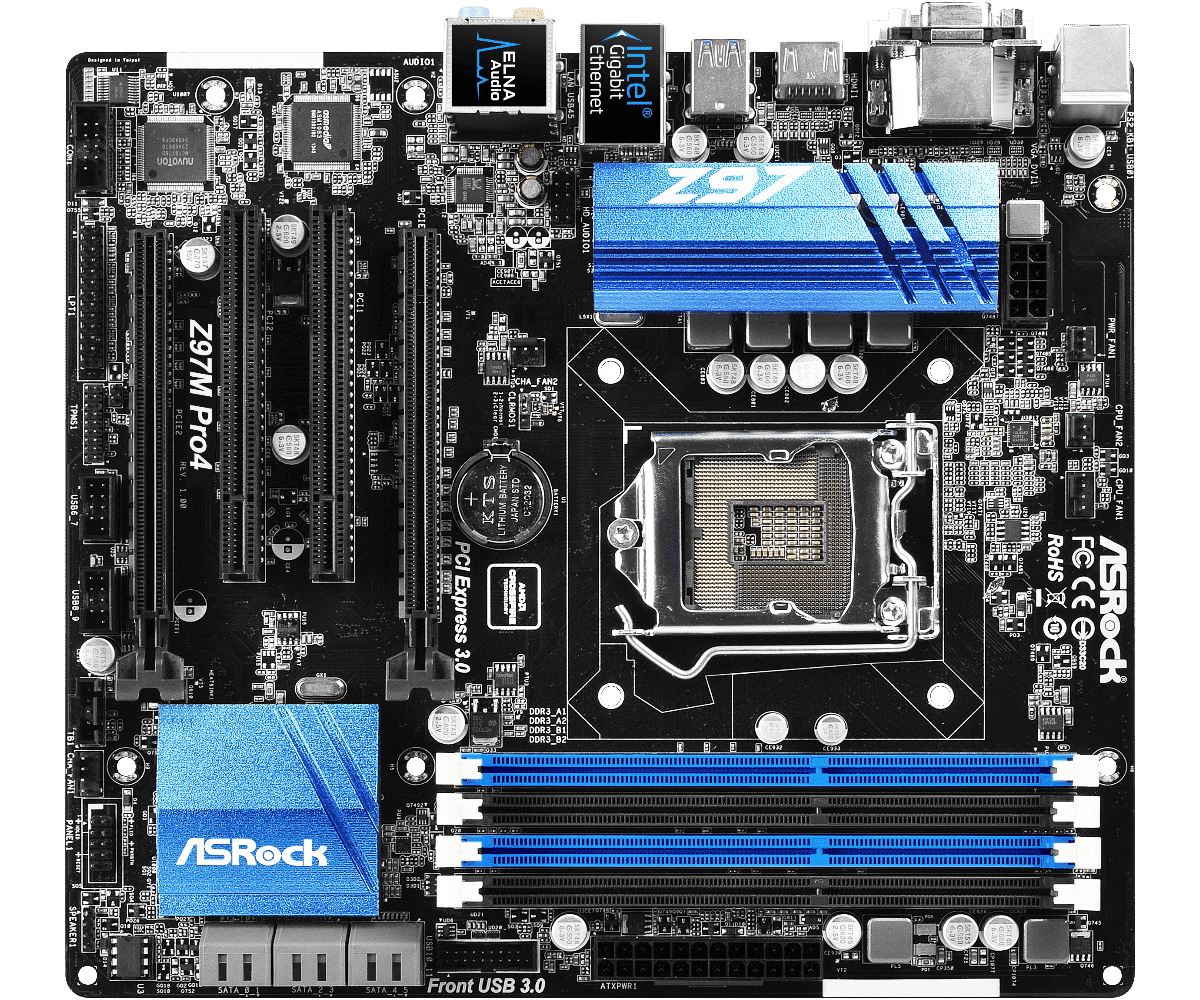

ASRock Z97M Pro4

Brand: ASRock
Model: Z97M Pro4
Socket: LGA1150
Chipset: Intel Z97
Memory: 4x DDR3 (32GB Max)
Form-Factor: Micro-ATX
EAN: 4717677323559
SKU: 90-MGXUD0-A0UAYZ, 90-MXGUD0-A0UAYZ, Z97M Pro4, Z97MPRO4

Out of stock

Vergelijk
SKU: Z97M Pro4 Categories: , Tags: , ,

Description

The ASRock Z97M Pro4 is a Micro ATX Socket 1150 motherboard based on the Intel Z97 chipset. The board must be combined with DDR3 memory, for which 4 slots are available with a maximum capacity of 32GB. USB 3.0 offers the board 6x and USB 2.0 6x. In total h the ASRock Z97M Pro4 has 6 Serial ATA connections for hard disks and SSDs. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC892 chip.

Specifications:
Motherboard | Socket LGA1150 | M-ATX | Intel Z97 Chipset | 4 x DDR3 up to 32GB | Gigabit Ethernet – DVI-D | HDMI | VGA | 6x USB 2.0 | 6x USB 3.2 (Gen1, 5Gb / s) | 2x PCI | PCI-e 2.0 x16 | PCI-e 3.0 x16

Click here for the supporting CPUs
Click here for the drivers

Product: ASRock Z97M Pro4
Category: Motherboards
Brand: ASRock
EAN: 4717677323559
SKU: 90-MGXUD0-A0UAYZ, 90-MXGUD0-A0UAYZ, Z97M Pro4, Z97MPRO4
Condition: Refurbished – BIOS updated to the latest available version
Warranty: 6 Months

Package Contents:
– Motherboard
– Backplate (Blende)
– No manual
– No driver CD
– No cables


Unique Feature
ASRock Super Alloy
– Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke)
– NexFET ™ MOSFET
– Sapphire Black PCB
ASRock Full Spike Protection
ASRock Cloud
ASRock APP Shop


CPU
Supports 5th Generation Intel® Core ™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
Supports New 4th and 4th Generation Intel® Xeon® / Core ™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
– Digi Power design
– 4 Power Phase design
– Supports Intel® Turbo Boost 2.0 Technology
Supports Intel® K-Series unlocked CPUs
– Supports ASRock BCLK Full-range Overclocking


Chipset
– Intel® Z97


Memory
– Dual-Channel DDR3 / DDR3L Memory Technology
– 4 x DDR3 / DDR3L DIMM Slots
Supports DDR3 / DDR3L 3100+ (OC) / 2933 (OC) / 2800 (OC) / 2400 (OC) / 2133 (OC) / 1866 (OC) / 1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 32GB *
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 64Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 1.1 Compliant wake-up events
– SMBIOS 2.3.1 support
– CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage multi-adjustment


Graphics
Supports Intel® HD Graphics Built-in Visuals: Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru ™ 3D, Intel® Clear Video HD Technology, Intel® Insider ™, Intel ® HD Graphics 4400/4600
Pixel Shader 5.0, DirectX 11.1
– Max. shared memory 512MB
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports Triple Monitor
Supports HDMI with max. Resolution up to 1920×1200 @ 60Hz
Supports DVI-D with max. Resolution up to 1920×1200 @ 60Hz
Supports D-Sub with max. Resolution up to 1920×1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports HDCP with DVI-D and HDMI Ports
Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports
* The size of maximum shared memory may vary from different operating systems.
** Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
*** Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8/8 64-bit / 7/7 64-bit.
**** Intel® InTru ™ 3D is only supported under Windows® 8/8 64-bit / 7/7 64-bit.


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
– Premium Blu-ray Audio support
– Supports SurgeProtection (ASRock Full Spike Protection)
– ELNA Audio Caps


LAN
– Gigabit LAN 10/100/1000 Mb / s
– Giga PHY Intel® I218V
– Supports Intel® Remote Wake Technology
Supports Wake-On-LAN
Supports Lightning / ESD Protection (ASRock Full Spike Protection)
Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)
– 1 x PCI Express 2.0 x16 Slot (PCIE2: x4 mode)
– 2 x PCI Slots
– Supports AMD Quad CrossFireX ™ and CrossFireX ™


Storage
– 6 x SATA3 6.0 Gb / s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 13 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug


Connector
– 1 x Print Port Header
– 1 x COM Port Header
– 1 x Chassis Intrusion Header
– 1 x TPM Header
– 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
– 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)
– 1 x Power Fan Connector (3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 1 x Thunderbolt ™ AIC Connector *
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))
* Please update to the latest BIOS to support Thunderbolt ™ technology.

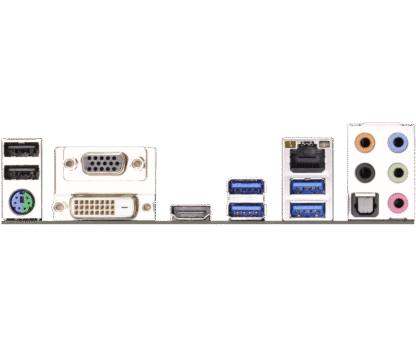

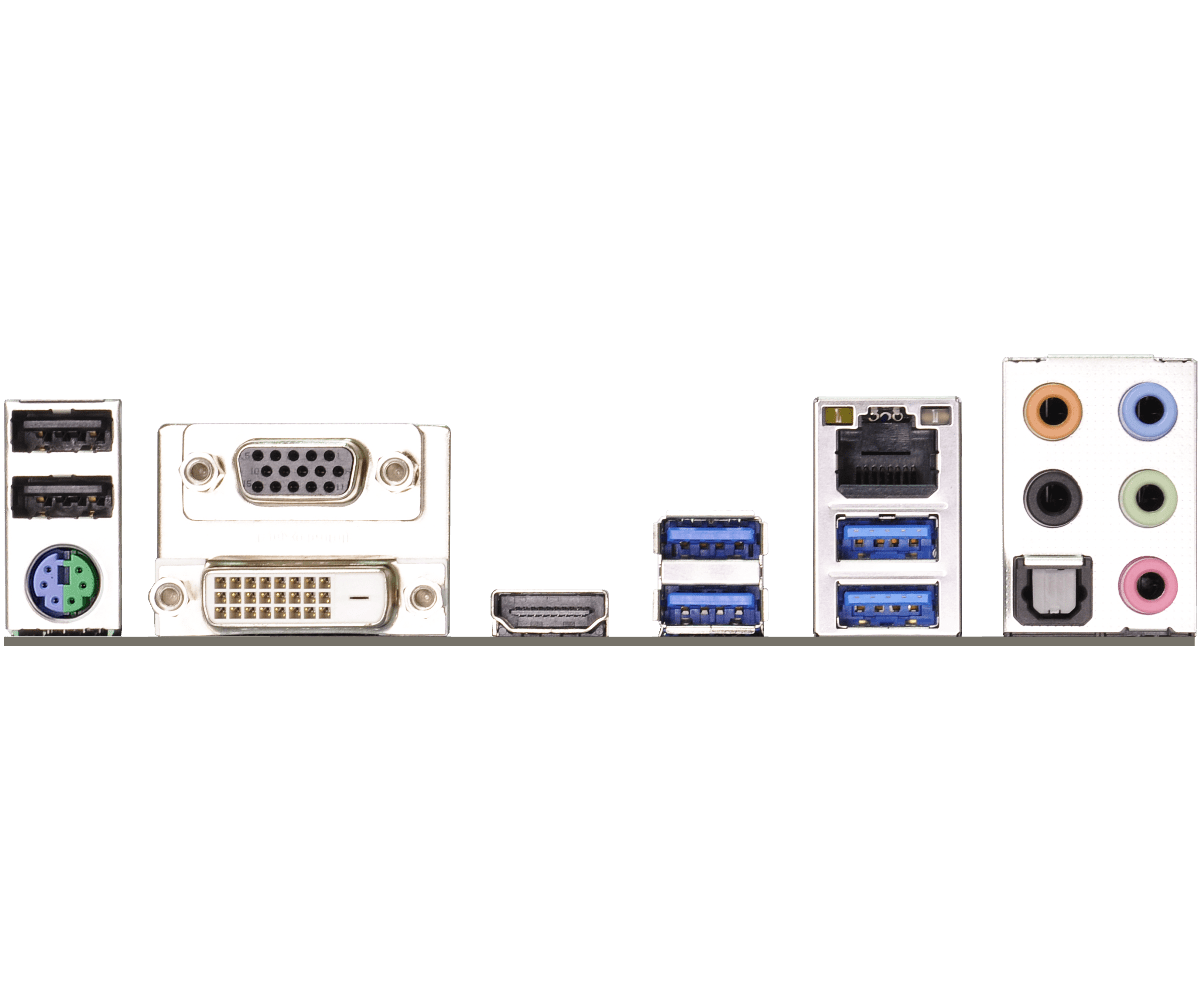

Rear Panel I / O
– 1 x PS / 2 Mouse / Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 1 x Optical SPDIF Out Port
– 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 4 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT / LINK LED and SPEED LED)
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone


Software and UEFI
Software
– ASRock A-Tuning
– ASRock Disk Health Report
– ASRock USB Key
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Restart to UEFI
UEFI
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock UEFI Guide
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Dehumidifier
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer


Accessories
– I / O Shield


Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis, Power Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust the chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
Voltage monitoring: + 12V, + 5V, + 3.3V, CPU Vcore


Form Factor
Micro ATX Form Factor
– Solid capacitor design
– High-Density Glass Fabric PCB


OS
Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit


Certifications
– FCC, CE
– ErP / EuP ready (ErP / EuP ready power supply is required)

Additional information

Weight 1 kg
Intel

LGA1150

Brand

Asrock

Chipset

Intel Z97

Form Factor

Micro-ATX

Memory Type

DDR3 SDRAM

Number of memory slots

4

Maximum memory size

32 GB

Connectors

D-Sub (VGA), DVI-D, HDMI, USB 2.0, USB 3.1 Gen1

Storage Interfaces

Serial ATA-600

Interfaces

PCI, PCI-e 2.0 x16, PCI-e 3.0 x16

Socket
