Product information

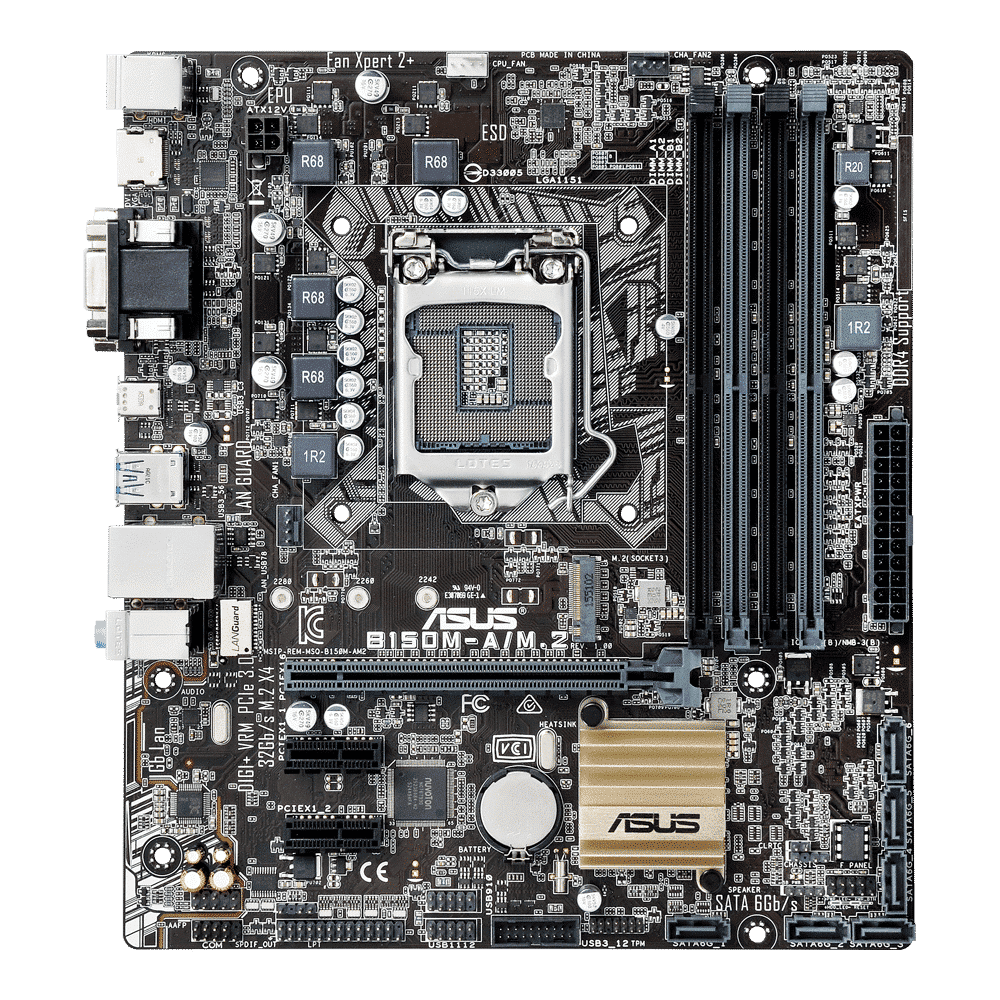

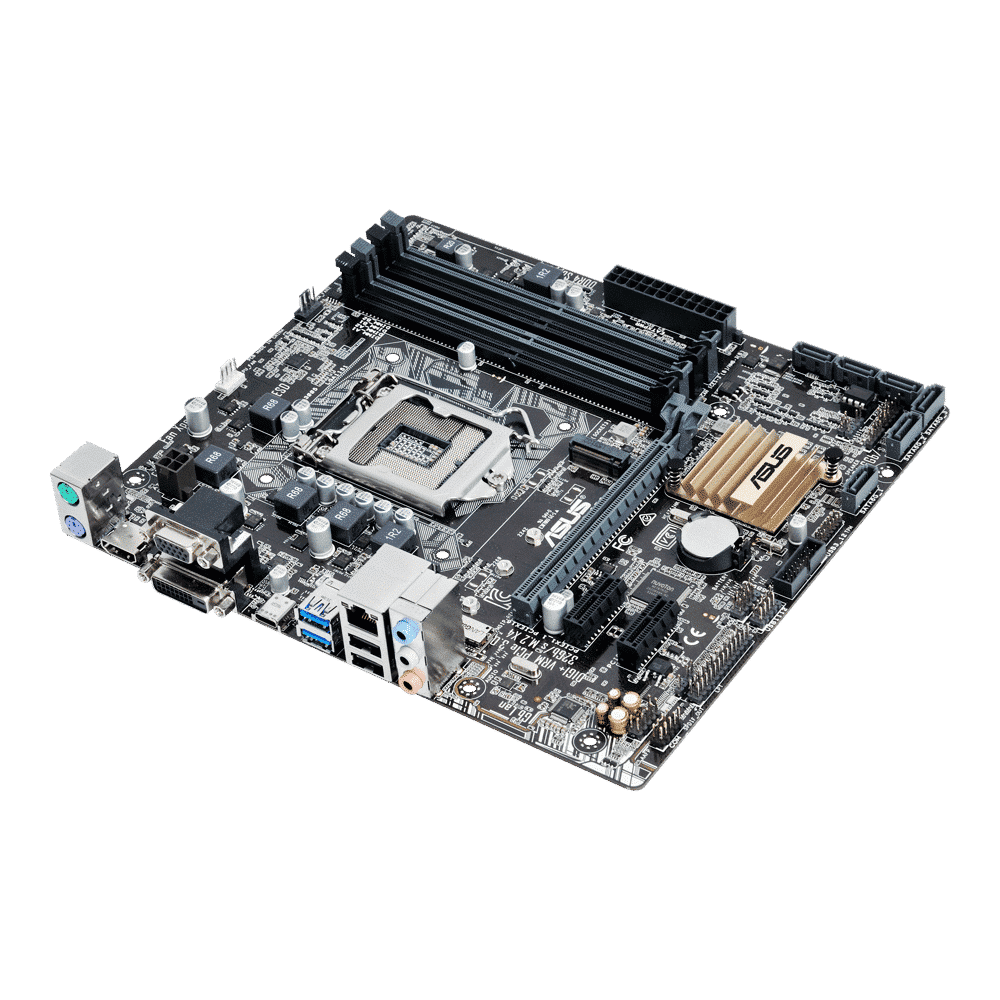

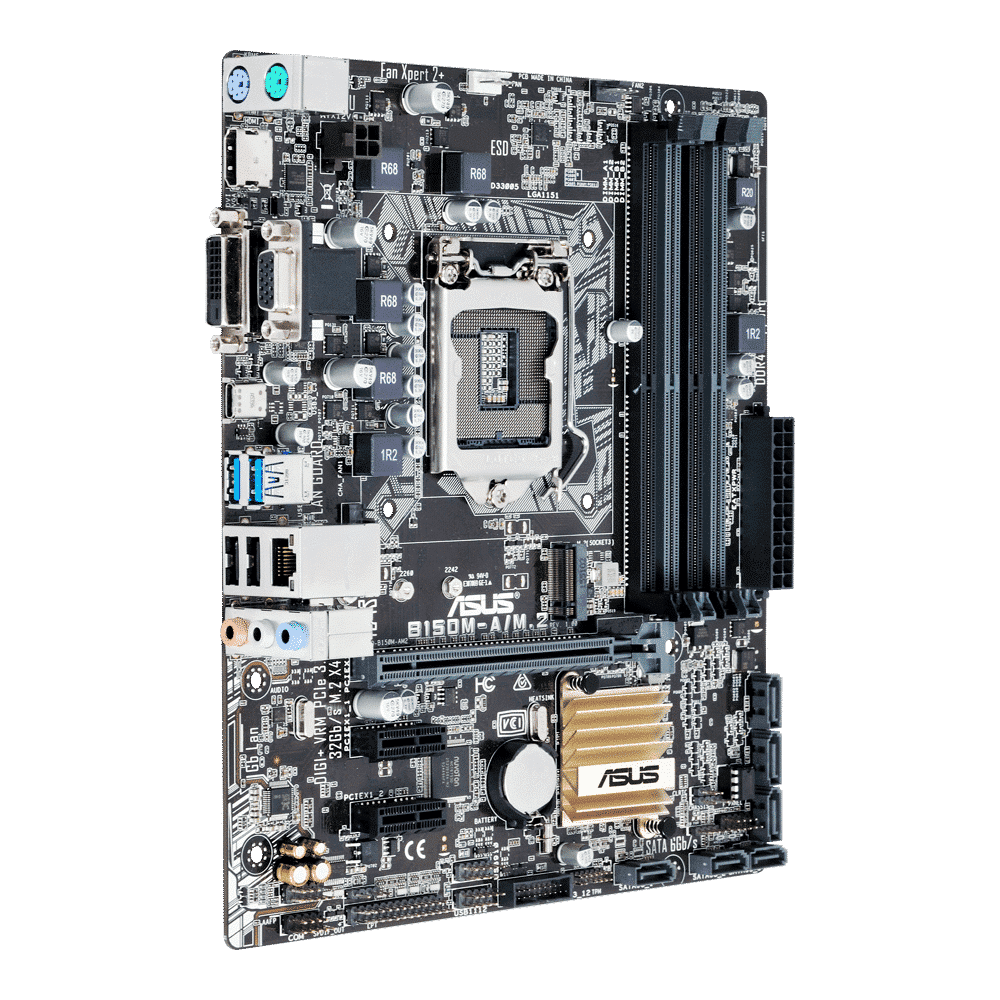

The Asus B150M-A/M.2 is a Micro ATX Socket 1151 motherboard based on the Intel B150 chipset. The board must be combined with DDR4 memory, for which 4 slots are available. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC887 chip.

Features: Motherboard – M-ATX | Socket 1151 6th, 7th Gen | 4x DDR4 | Intel® B150 Chipset | DVI-D | VGA (D-Sub)| HDMI | USB Type-C | USB 3.2 Gen1 Type-A | USB2.0 | PCI-e 3.0 x1 | PCI-e 3.0 x16 | Sata-600 | M.2

Product: Asus B150M-A/M.2
Socket: Socket 1151
Suitable for: 6th and 7th generation processors
Category: Motherboards
Brand: ASRock
EAN: 4712900424454
Condition: Used
SKU: 90MB0RR0-M0AAY0, 90MB0RR0-M0EAY0, B150M-A/M.2
Warranty: 6 Months

package content:
– Motherboard (Asus B150M-A/M.2)
– Backplate (blende)
– no manual
– no driver CD
– no cables

CPU
Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14nm CPU
Supports Intel® Turbo Boost Technology 2.0

Chipset
Intel® B150

Memory
4xDIMM, Max. 64GB, DDR4 2400/2133MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.

Graphic
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D/RGB ports
– Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
– Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
– Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports up to 3 displays simultaneously

Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
2 x PCIe 3.0/2.0 x1

Storage
Intel® B150 chipset :
6 x SATA 6Gb/s port(s), gray,
1 x M.2 x4 Socket 3*1, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)

LAN
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
ASUS LANGuard

Audio
Realtek ALC887/897 8-Channel High Definition Audio CODEC *2
– Supports : Front Panel Jack retasking, up to 24-Bit/192kHz playback
Audio Feature :
– LED illuminated design
– Audio Shielding
– Dedicated audio PCB layers
– Premium Japanese-made audio capacitors

USB Ports
Intel® B150 chipset :
1 x USB 5Gb/s port(s) port(s) (1 at back panel, , USB Type-C®, Support 3A power output)
Intel® B150 chipset :
4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board)
Intel® B150 chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, black, 4 at mid-board)

Special Features
ASUS 5X Protection II :
– ASUS LANGuard – 2.5X higher surge tolerance
– ASUS DIGI+ VRM – 5 Phase digital power design
– ASUS DRAM Overcurrent Protection – Prevents damage from short circuits
– ASUS Stainless-Steel Back I/O – 3X corrosion-resistance for greater durability
– ASUS ESD Guards – Electrostatic discharge protection
ASUS EPU :
– EPU
ASUS Exclusive Features :
– AI Suite 3
– Ai Charger
– Anti Surge
– Low EMI Solution
– ESD Guards
– USB 3.0 Boost
– Mobo Connect
– PC Cleaner
ASUS Quiet Thermal Solution :
– Stylish Fanless Design Heat-sink solution & MOS Heatsink
– ASUS Fan Xpert 2+
ASUS EZ DIY :
– ASUS EZ Flash 3
– ASUS MyLogo 2
– ASUS UEFI BIOS EZ Mode
– Push Notice
ASUS Q-Design :
– ASUS Q-Slot
– ASUS Q-DIMM
Media Streamer
Operating System Support
Windows® 10
Windows® 8.1
Windows® 7 *3

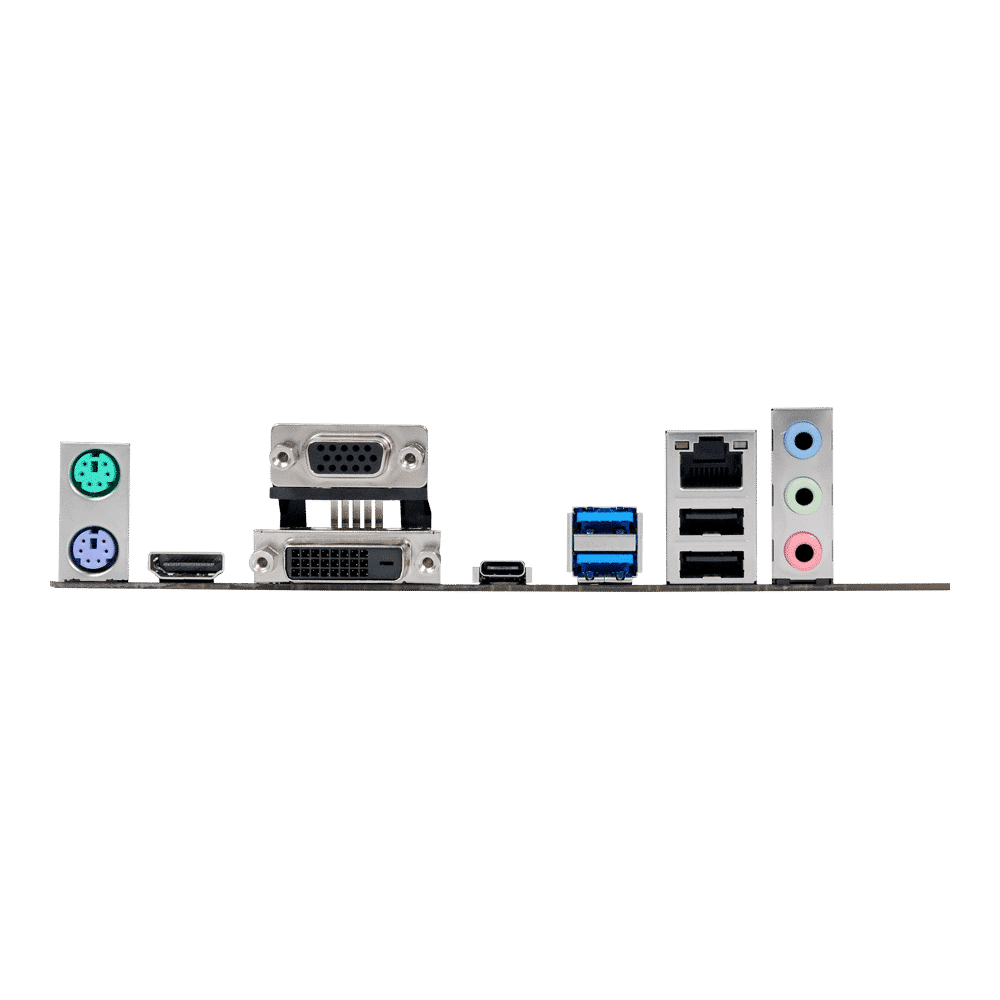

Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D Sub
1 x HDMI
1 x LAN (RJ45) port(s)
1 x 5Gb/s port(s) USB Type-C® ( support 3A power output )
2 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)

Internal I/O Ports
1 x CPU Fan connector(s) (1 x 4-pin)
2 x Chassis Fan connector(s) (2 x 4-pin)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices
1 x TPM header
1 x LPT header
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
1 x Clear CMOS jumper(s)

Accessories
I/O Shield

BIOS
128Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial
Presence Detect) memory information

Manageability
WfM 2.0, DMI 3.0, WOL by PME,WOR by PME, PXE

Form Factor
mATX Form Factor
9.2 inches x 8.1 inches ( 23.4 cm x 20.6 cm )
