Product information

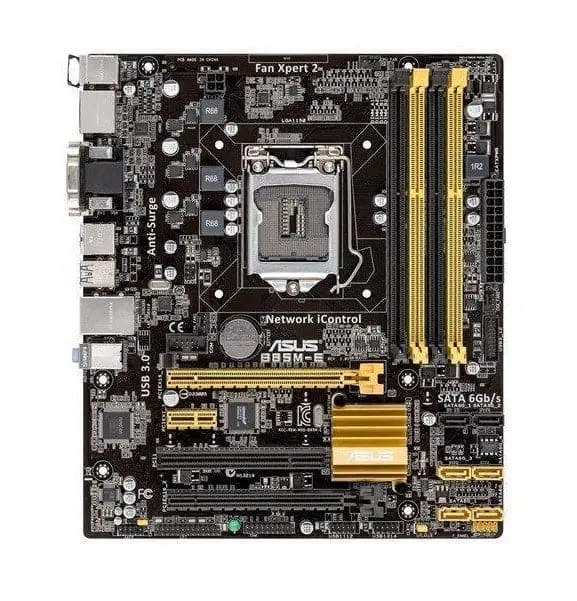

The Asus B85M-E is a Micro-ATX Socket 1150 motherboard based on the Intel B85 chipset. The board must be combined with DDR3 memory, for which 4 slots are available.

Features: Motherboard | Micro ATX | Socket 1150 | 4x DDR3 (max 32GB) | SATA 600 | SATA-300 | PCI | PCI-e 2.0 x1 | PCI-e 3.0 x16 | USB 2.0 | USB3 | DVI-D| VGA (D-Sub) | HDMI | display port

Product: Asus B85M-E
Socket: Socket 1150
Category: motherboards
Brand: Asus
Condition: Refurbished – BIOS updated to the latest version
EAN:4716639690906, 4716659490906, 4716659553724
SKU: 90MB0F60-M0EAY0, 90MB0F60-M0EAY5, B85M-E
Warranty: 6 months

Package contents:
– Motherboard (Asus B85M-E)
– Backplate (blende)
– No manual
– No drivers CD
– No cables

processor
LGA1150 socket for Intel® 4th generation CoreTM i7/ i5 / i3, Pentium®,
Celeron® Processors
Supports Intel® 22/32nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The support of Intel® Turbo Boost Technology 2.0 depends on the CPU type.
** Please refer to www.asus.com for Intel® CPU support list.

chipset
Intel® B85 Express Chipset

Memory
4x DIMM, max. 32 GB, DDR3 1600/1333/1066 MHz, non-ECC, unbuffered memory
Dual-channel memory architecture
* Please refer to www.asus.com for the latest Memory QVL (Qualified Vendors List).
**Due to Intel® chipset limitation, the DDR3 1600MHz and higher memory modules
in XMP mode works with the maximum transfer rate of DDR3 1600MHz.
*** When installing a total memory of 4 GB or more, Windows® 32-bit
operating system may only recognize less than 3 GB. We recommend a
up to 3 GB of system memory if you are using a Windows® 32-bit operating system
system.

Graphics Integrated Graphics Processor
Support for multiple VGA outputs: D-Sub, DVI, HDMI and DisplayPort ports
– Supports DVI-D with a maximum resolution of 1920 x 1200 @60Hz
– Supports D-Sub with max. resolution of 1920 x 1200 @60Hz
– Supports HDMI with max. resolution of 2560 x 1600 @60Hz
– Supports DisplayPort with max. resolution of 4096 x 2160 @24Hz /
3840 x 2160 @60Hz
Maximum shared memory of 1 GB

Expansion slots
1 x PCI Express 3.0/2.0 x16 slot
1 x PCI Express 2.0 x16 slot (@ x4)
1 x PCI Express 2.0 x1 slot
1 x PCI slot

Storage
Intel® B85 Express Chipset:
– 2 x Serial ATA 3.0 Gb/s connectors (black)
– 4 x Serial ATA 6.0 Gb/s connector (yellow)

LAN
Realtek 8111F Gigabit LAN Controller

Audio
8 Channel Realtek® ALC887-VD2 High Definition Audio CODEC
– Supports multi streaming
* Use a chassis with HD audio module in the front panel to
channel audio output.

USB
4 x USB 3.0 ports (2 ports on the center board, 2 ports on the back panel)
8 x USB 2.0 ports (4 ports on the center board, 4 ports on the back panel)

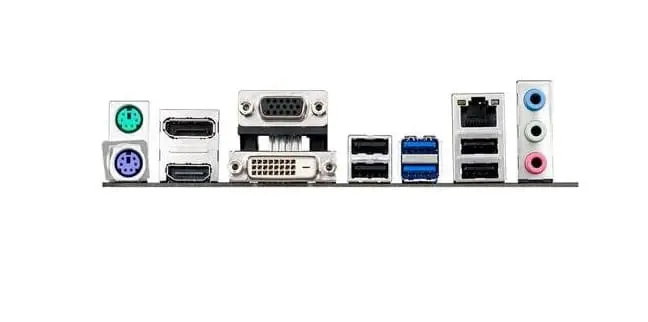

Rear panel I/O ports
1 x PS/2 keyboard port (purple)
1 x PS/2 mouse port (green)
1 x DVI Port
1 x D-Sub Port
1 x HDMI Port
1 x DisplayPort
1 x LAN (RJ-45) port
4 x USB 2.0/1.1 ports
2 x USB 3.0 ports
3 x audio jacks

Internal connectors/ switches/buttons
1 x USB 3.0 connector supports additional 2 USB 3.0 ports
2 x USB 2.0 connectors support additional 4 USB 2.0 ports
2 x SATA 3.0 Gb/s connectors
4 x SATA 6.0 Gb/s connector
1 x Chassis Burglar Connector
1 x Clear CMOS header
1 x 4 Pin CPU Fan Connector
2 x 4 Pin Chassis Fan Connectors
1 x Front Panel Audio Connector (AAFP)
1 x System Panel Connector
1 x Speaker Jack
1 x LPT Header
1 x COM Header
1 x TPM Header
1 x 24 Pin ATX Power Connector
1 x 4 Pin ATX 12V Power Connector

BIOS Features
128 MB Flash ROM, EFI BIOS, PnP, DMI v2.0, WfM2.0, SM BIOS v2.7,
ACPI v2.0a, SLP 3.0, EUP ready, multilingual BIOS, ASUS EZ Flash
2, ASUS Crash Free BIOS 3

Manageability
WOL by PME, WOR by PME, PXE

Form Factor
MicroATX form factor: 9.6″ x 8.4″ (24.4cm x 21.3cm)
